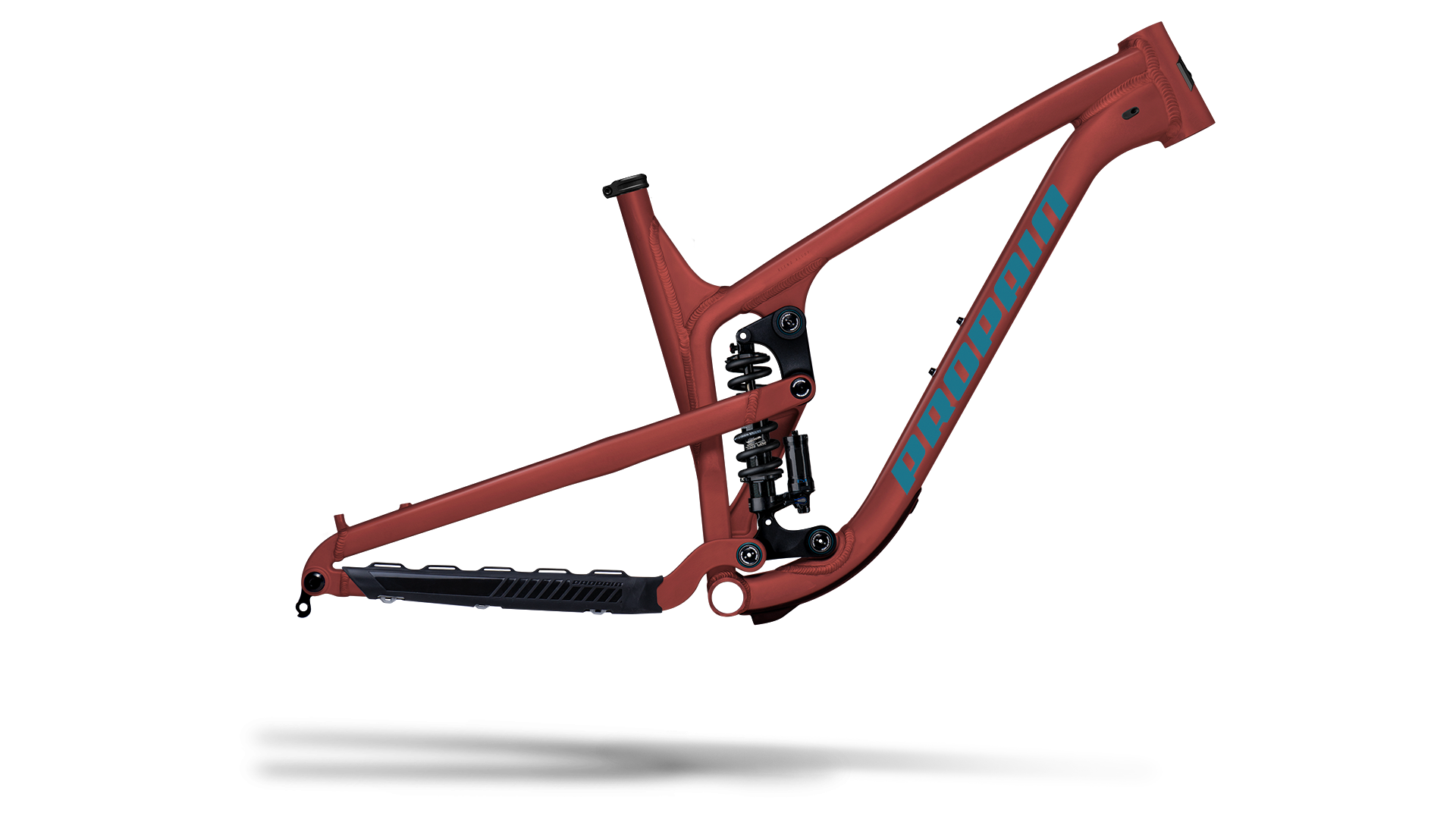

Frameset Tyee 5 AL 29″

SKU 17293 Category

incl. Headset Acros AZX-209 R2 ZS49/ZS56, Seatclamp Sixpack Skywalker 34,9mm black, SIXPACK 148 mm x 12 mm thru-axle and a fitting rear derailleur hanger


Incl. tax
Delivery Time: approx. 2 weeks
Build your own


The new Perspective

A versatile and balanced mountain bike that sets new standards on the climbs and descents. With its steep seat angle and progressive geometry, the Tyee 5 AL is a potent climber that kills it on the descents thanks to its full bikepark rating.

The Tyee 5 AL is our Next Level Action Enduro!

Play Video


From 2.649 €

Endless possibilities

The Tyee 5 AL offers you a true enduro mountain bike that shines with its balanced geometry and becomes a steady partner at your side thanks to a lot of detailed design. Whether enduro racing, flow trails, jumplines or the after-work lap – the Tyee 5 AL opens up a completely new perspective on every trail and always puts a big smile on your face.

You have the choice

Every frame is optimized for the wheel size. It was designed to make the most out of the unique characteristics of the different wheels. Smooth-running with 29″ wheels or more playful with 27.5″ wheels – the decision is entirely yours.

Your individual all-rounder

You can choose from a wide range of components and adapt your bike perfectly to your needs. You can also create an individual look for your Tyee 5 AL by choosing from the different frame colours, decals, grips and badges on the head tube.

"With its great looks and super versatile overall package that does not afford weaknesses uphill or downhill, it is our purchase tip."
"If you are looking for a new Enduro bike, you can strike here without hesitation. "
"Enduro means: up, down and along. The new Tyee does all this very well."

Smart Details

Our Tyee 5 AL also impresses with its inner values and smart detail solutions. With efficient chainstay protection, a sophisticated frame concept and internal cable routing, you spend more time on the bike than in the workshop.

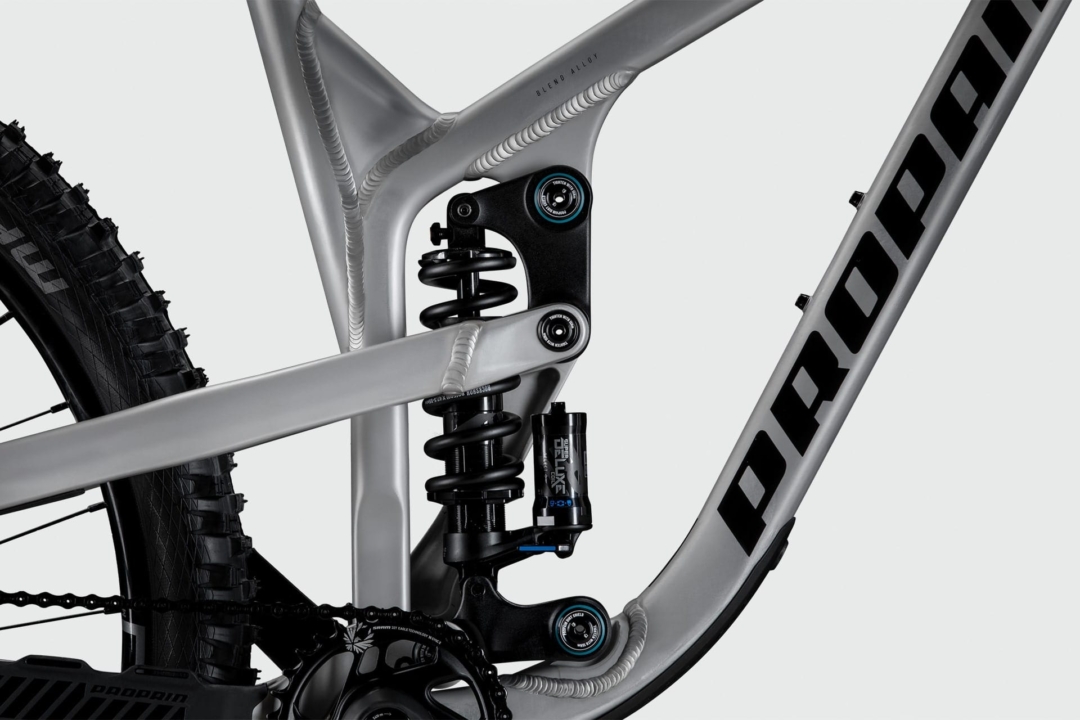

Frame Concept and PRO10

With his mission to develop the best frame concept, Robert Krauss laid the foundation for PROPAIN 12 years ago and the PRO10 suspension system is the quintessence. Don’t be fooled by the new looks, the good old Pro10 characteristics remain whilst further improving pedaling efficiency and weight balance.

Chain stay protection and down tube protection

Optimum frame protection is key for PROPAIN. Therefore a newly developed down tube and chain stay guard is used on the new Tyee 5 AL. The chain stay guard is an entire new design which absorbs chain vibrations with the soft shapes on its surface.

Internal Cable Routing

Internal cable routing became a standard for modern bikes. It is the smartest, safest and, above all, the cleanest way to route the cables.


With the Tyee 5 AL we have completely reinvented our Enduro bike. The ideas and experiences of the last six years have flown into its development.
The result is a Tyee 5 AL bike that meets 100% of the definition of an Enduro bike.

Bitte leer lassen

The frame size is an essential part of the bike performance and contributes significantly to the riding fun. Select your required frame size from the chart. If you are between two sizes, then you only have to decide whether you like it playful or smooth running. For smooth running choose the larger frame size, for playful the smaller one.

Frequently Asked Questions – bitte leer lassen

M: 168-182 cm / L: 178-192 cm / XL: 188-202 cm
160 cm 5’3″ 170 cm 5’7″ 180 cm 5’11” 190 cm 6’3″ 200 cm 6’7″
Smoothly running
S: 158-172 cm / M: 168-182 cm / L: 178-192 cm
150 cm 4’11” 160 cm 5’3″ 170 cm 5’7″ 180 cm 5’11” 190 cm 6’3″
Smoothly running
The adjustable seatpost is probably one of the most ingenious inventions of recent years. In order to function optimally on the trail, the proper seatpost travel is very important. The following chart shows the recommended minimum inseam for the corresponding frame size. Please keep in mind that this is only a recommendation, as the respective sitting position depends very much on personal habits and preferences.

* Inside leg length in cm
Kind Shock Lev 125 74.5 76.5 78.5 80.5
Kind Shock Lev 150 77.0 79.0 81.0 83.0
Bikeyoke Revive 125 73.5 75.5 77.5 79.5
Bikeyoke Revive 160 77.0 79.0 81.0 83.0
Bikeyoke Revive 185 83.5 83.5 83.5 85.5
Fox Transfer 125 75.5 77.5 79.5 81.5
Fox Transfer 150 78.0 80.0 82.0 84.0
Fox Transfer 175 84.5 84.5 84.5 86.5
RockShox Reverb AXS 125 73.5 75.5 77.5 79.5
RockShox Reverb AXS 150 76 78 80 82

Shock length 210 mm
Shock travel 55 mm
Shock bushings Top: 8 x 35 mm / Bottom: 8 x 30 mm
Travel (Frame) 160 mm
Max. Travel (Fork) 170 mm
Bottom bracket BSA 73 mm
Brake mount (Frame) Postmount 180
Max. brake rotor diamenter (rear) 203 mm
Seatpost diameter 31.6 mm
Max. seatpost insert length 29″: M 221 mm / L 241 mm / XL 261 mm 27.5″: S 247 mm / M 267 mm / L 287 mm
Headset (S.H.I.S.) Top: ZS49 / Bottom: ZS56
Rear wheel axle 148 mm x 12 mm
Chainline 52 mm (Boost)
Chainguide mount ISCG 05
Wheel size 29″ / 27.5″
Frame weight 3.7 kg (Size M)
Max. rider weight 120 kg

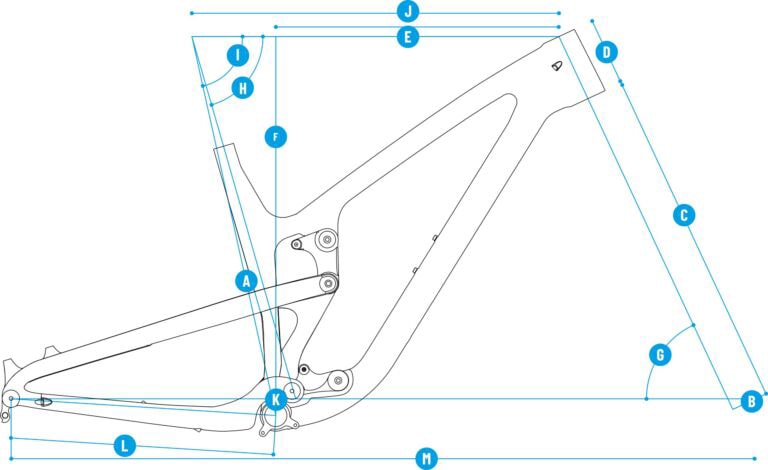

We believe that an Enduro bike must be a true master of versatility. We achieved exactly that by combining a slack head angle of 65°, a very steep seat angle of 77.5°, a reach that gives room for movement, and a centrally located floating shock to concentrate the weight around a super low bottom bracket. The new Tyee provides pedalling efficiency with lots of pressure on the front wheel on the uphill and an optimum weight distribution on the downhill. A characteristic that you will notice right away when you get on the bike and never want to miss again. It’s amazing that this change in geometry has significantly improved both the uphill and downhill characteristics.

Frequently Asked Questions – bitte leer lassen

Size M Size L Size XL
Frame height (A) 440 mm 460 mm 480 mm
Fork offset (B) 42 mm 42 mm 42 mm
Fork length (C) 585 mm 585 mm 585 mm
Head tube length (D) 105 mm 115 mm 125 mm
Reach (E) 451 mm 471 mm 491 mm
Stack (F) 630 mm 639 mm 648 mm
Head angle (G) 64.5° 64.5° 64.5°
Seat angle – real (H) 73.5° 73.5° 73.5°
Seat angle – effective (I) 77.1° 77.1° 77.1°
Top tube length (J) 595 mm 618 mm 640 mm
BB offset (K) 26 mm 26 mm 26 mm
Chainstay length (L) 445 mm 445 mm 445 mm
Wheelbase (M) 1,228 mm 1,253 mm 1,275 mm
Size S Size M Size L
Frame height (A) 420 mm 440 mm 460 mm
Fork offset (B) 37 mm 37 mm 37 mm
Fork length (C) 567 mm 567 mm 567 mm
Head tube length (D) 110 mm 120 mm 125 mm
Reach (E) 431 mm 451 mm 471 mm
Stack (F) 602.5 mm 611.5 mm 620.5 mm
Head angle (G) 64.5° 64.5° 64.5°
Seat angle – real (H) 74.6° 74.6° 74.6°
Seat angle – effective (I) 76.6° 76.6° 76.6°
Top tube length (J) 575 mm 597 mm 620 mm
BB offset (K) 10.5 mm 10.5 mm 10.5 mm
Chainstay length (L) 430 mm 430 mm 430 mm
Wheelbase (M) 1,182 mm 1,206 mm 1,230 mm

Additional information

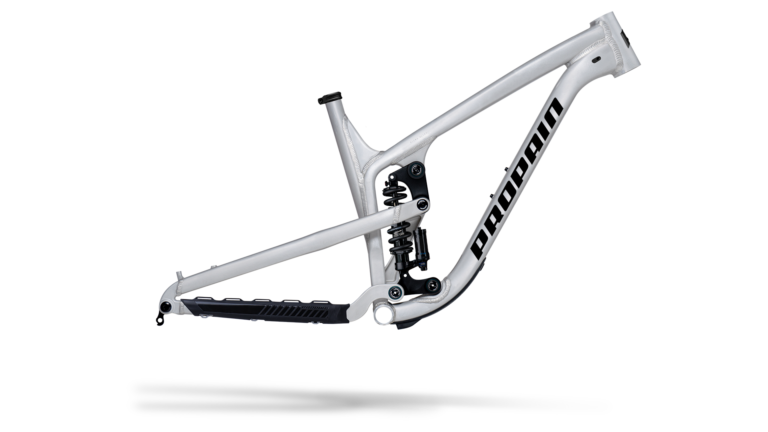

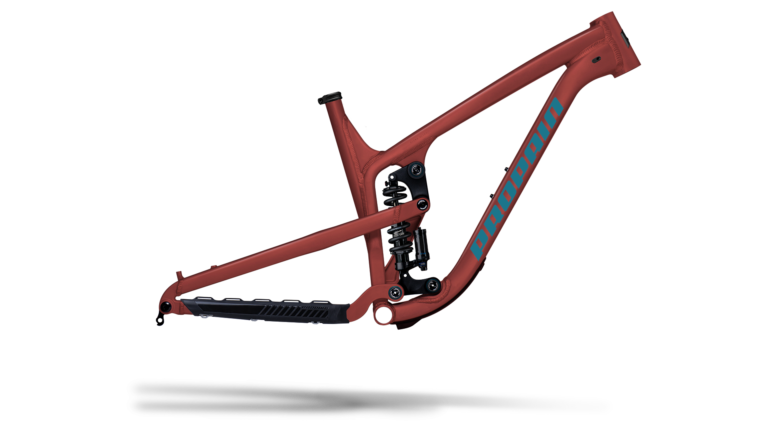

Marsred Matte, Petrol Matte, Raw (Aluminium)



Frame size

M, L, XL

Wheel size


Bike model

Tyee 5
