Rage AL



DARKFEST APPROVED

The new Rage AL has been completely redesigned, rolls on 27.5″ wheels, and is available in three frame sizes (S, M, L). The geometry is inspired by the Rage Carbon and based on the experience of our World Cup team.

A clean, sturdy and robust frame was the development goal for our engineering team. So we said “good bye” to some features of the previous Rage frame, such as the split seat tube design. The new design was inspired by the design of the popular Spindrift frame. In fact, some of PROPAIN’s customers and Propain staff were fantasizing about a long travel version of the Spindrift for some time – a “Spindrift on Steroids”.

Here it is, a downhill bike which focuses on reduced needs for maintenance whilst still delivering maximum performance for the high speeds and big hits that a park bike has to take.

Frame material
Aluminium

Wheel size
27.5″

Front travel
200 mm

Rear travel
200 mm

Terrain
Downhill

Category
5

Warranty
3 Years

Weight
from 16.8 kg

Awards & Tests

Choose your model

Build Kits

We will help you on your way to your personal dream bike. Our options are only a preliminary recommendation, because your needs are as individual as you are. We have put together three pre-configured models for you. In our configuration tool, however, you can still adapt every single part of all models to your wishes. Have fun building your dream bike!

Rage AL High End

4.629
00
incl. VAT
  • Fork Fox 40 Factory Kashima 203 mm
  • Shock Fox DHX2 Factory 200 mm
  • Brakes Magura MT7 203 mm / 203 mm
  • Wheels PROPAIN ZTR FLOW S1
  • Seatpost PROPAIN Seatpost
  • Saddle SIXPACK Kamikaze
  • Crank SRAM X01 Carbon DH 165 mm 36Z
  • Derailleur SRAM X01 DH (1×7)
  • Trigger SRAM X01 DH (1×7)
  • Cassette SRAM XG795 10/24 (1×7)
  • Handlebar SIXPACK Millenium Carbon 785
  • Stem SIXPACK Millenium Direct Mount
  • Tires Schwalbe Magic Mary
  • Weight 15.7 kg

Rage AL Performance

3.564
00
incl. VAT
  • Fork RockShox Boxxer Ultimate 200 mm
  • Shock RockShox Super Deluxe Coil Ultimate 200 mm
  • Brakes SRAM Code RSC 200 mm / 200 mm
  • Wheels PROPAIN ZTR FLOW S1
  • Seatpost PROPAIN Seatpost
  • Saddle SIXPACK Kamikaze
  • Crank Truvativ Descendant DH 165 mm 36Z
  • Derailleur SRAM GX DH (1×7)
  • Trigger SRAM GX DH (1×7)
  • Cassette SRAM PG720 11/25 (1×7)
  • Handlebar SIXPACK Millenium 785
  • Stem SIXPACK Millenium Direct Mount
  • Tires Schwalbe Magic Mary
  • Weight 16.3 kg

Rage AL Start

2.849
00
incl. VAT
  • Fork RockShox Boxxer Select 200 mm
  • Shock RockShox Super Deluxe Select R 200 mm
  • Brakes Magura MT5 203 mm/203 mm
  • Wheels PROPAIN ZTR FLOW S1
  • Seatpost PROPAIN Seatpost
  • Saddle SIXPACK Kamikaze
  • Crank Truvativ Descendant DH 165 mm 36Z
  • Derailleur SRAM GX DH (1×7)
  • Trigger SRAM GX DH (1×7)
  • Cassette SRAM PG720 11/25 (1×7)
  • Handlebar SIXPACK Millenium 785
  • Stem SIXPACK Millenium Direct Mount
  • Tires Schwalbe Magic Mary
  • Weight 16.8 kg

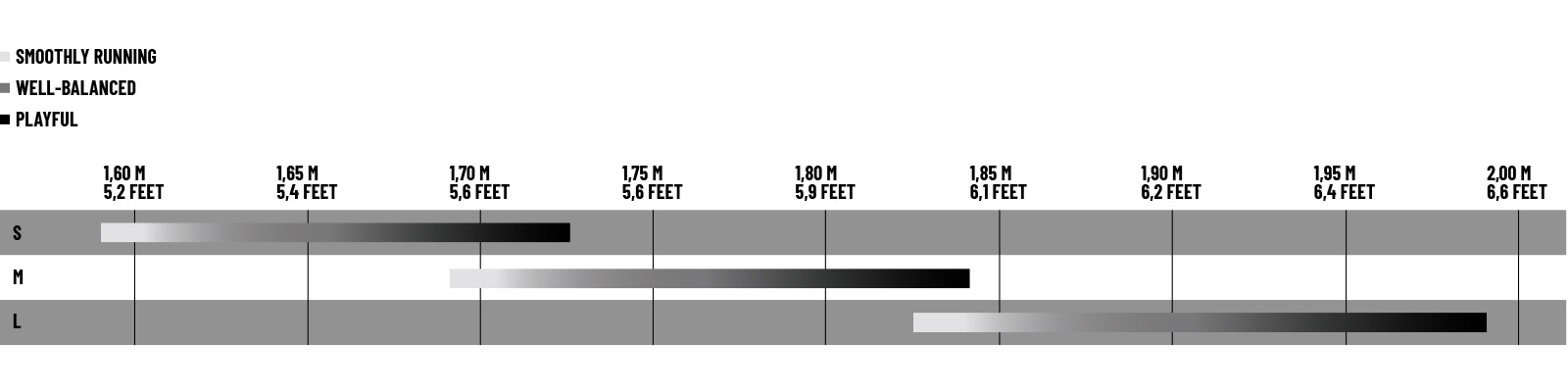

Frame size

The frame size is an essential part of the bike performance and contributes significantly to the riding fun. Select your required frame size from the chart. If you are between two sizes, then you only have to decide whether you like it playful or smooth running. For smooth running choose the larger frame size, for playful the smaller one.
S: 158-172 cm / M: 168-182 cm / L: 180-198 cm
150 cm 4'11" 160 cm 5'3" 170 cm 5'7" 180 cm 5'11" 190 cm 6'3"
S
M
L
Smooth running
Well-balanced
Playful

Technical Data

Shock length 230 mm
Shock travel 65 mm
Shock mount 8 x 25 mm
Travel (Frame) 200 mm
Maximum fork travel 203 mm
Bottom bracket BSA 83 mm
Brake mount (Frame) Postmount 180
Seatpost diameter 31.6 mm
Headset (S.H.I.S) Tapered - Top: IS42 / Bottom: IS52
Rear wheel axle 157 mm x 12 mm (X12)
Chainline 52 mm
Chainguide mount ISCG 05
Wheel size 27.5"
Frame weight 3.5 kg (Size M)
Max. rider weight 120 kg

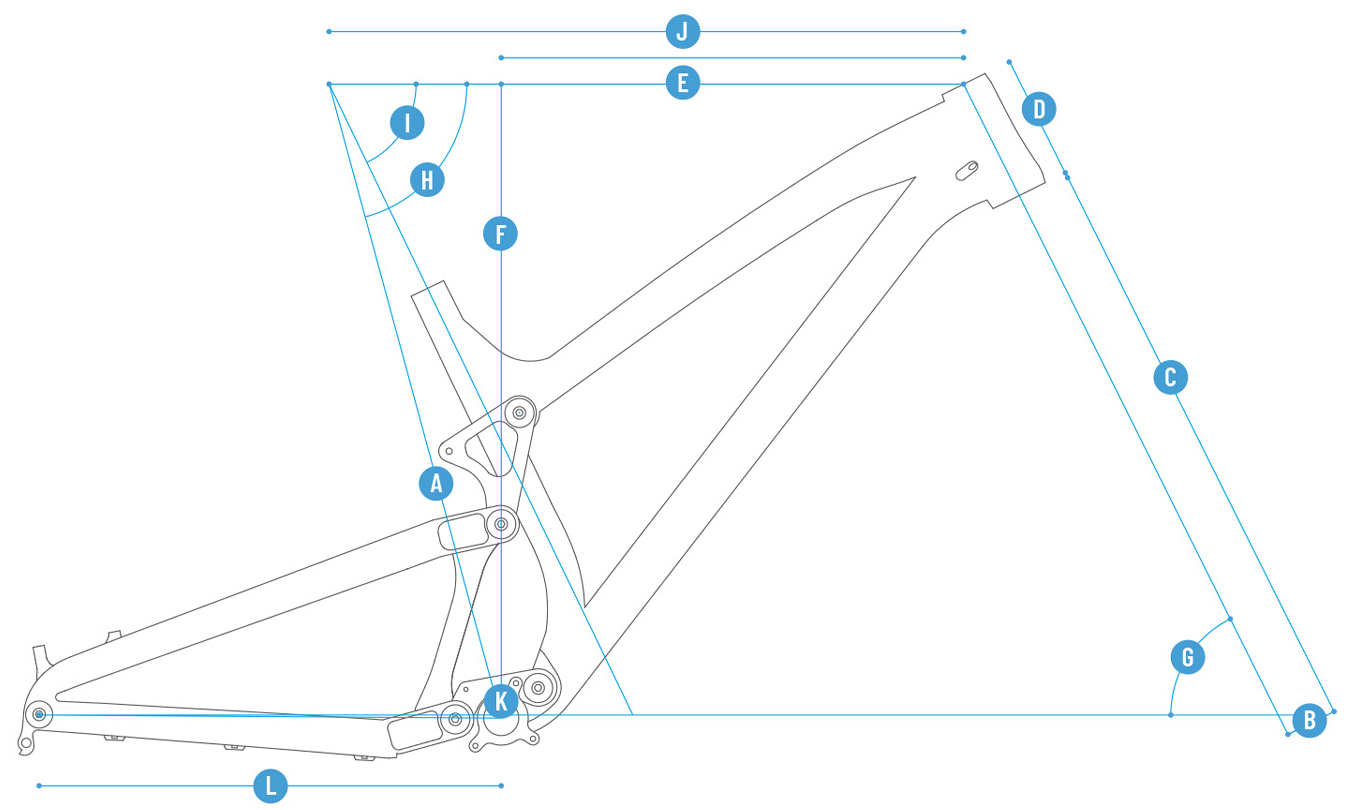

Geometry

Size S Size M Size L
Frame height (A) 420 mm / 16.5" 420 mm / 16.5" 420 mm / 16.5"
Fork offset (B) 42 mm 42 mm 42 mm
Fork length (C) 580 mm 580 mm 580 mm
Head tube length (D) 120 mm 120 mm 120 mm
Reach (E) 420 mm 445 mm 470 mm
Stack (F) 611 mm 611 mm 611 mm
Head angle (G) 63.5° 63.5° 63.5°
Seat angle - real (H) 64.5° 64.5° 64.5°
Seat angle - effective (I) 74.5° 74.5° 74.5°
Top tube length (J) 586 mm 611 mm 636 mm
BB offset (K) 3 mm 3 mm 3 mm
Chainstay length (L) 445 mm 445 mm 445 mm
Wheelbase (M) 1,215 mm 1,240 mm 1,265 mm
