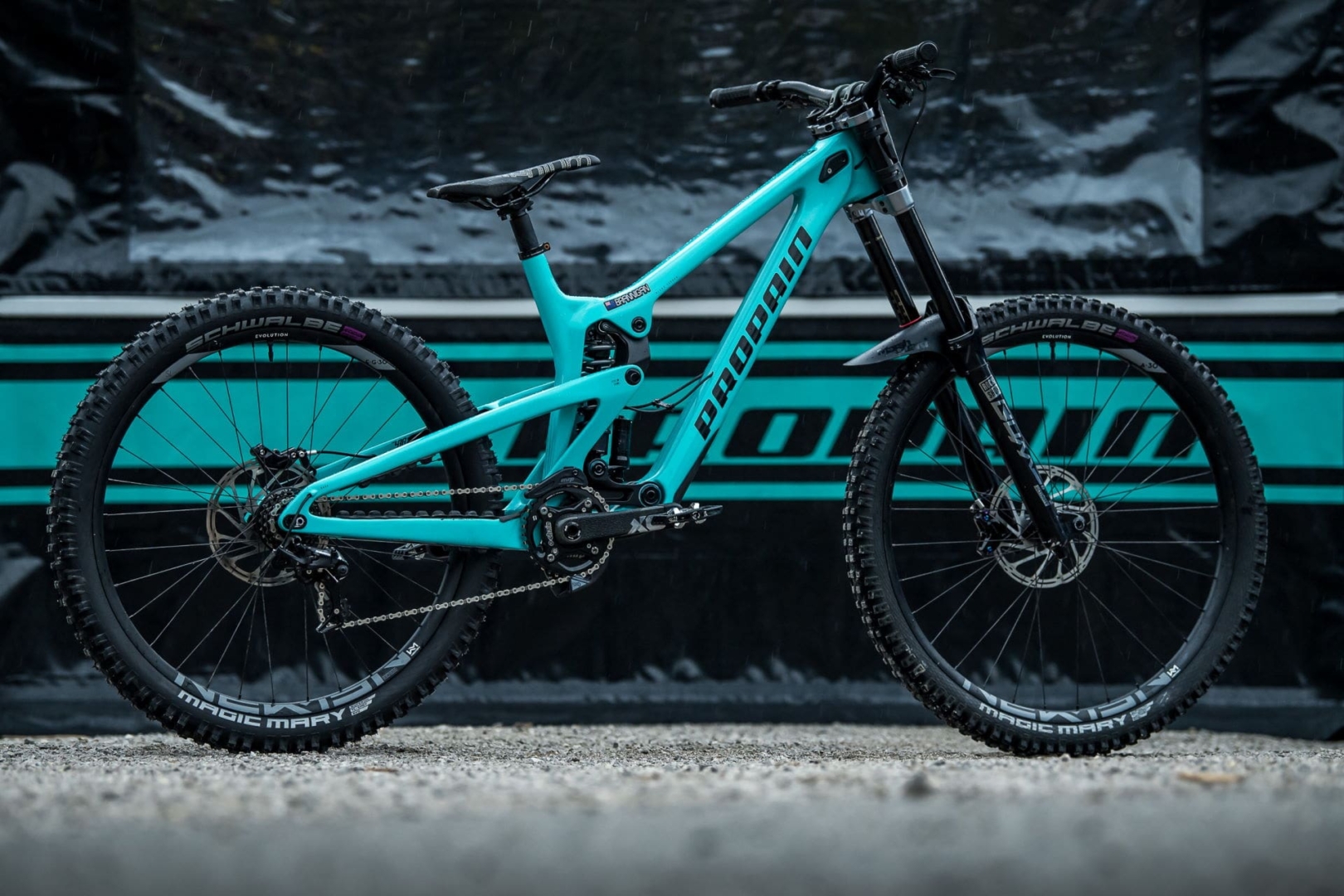

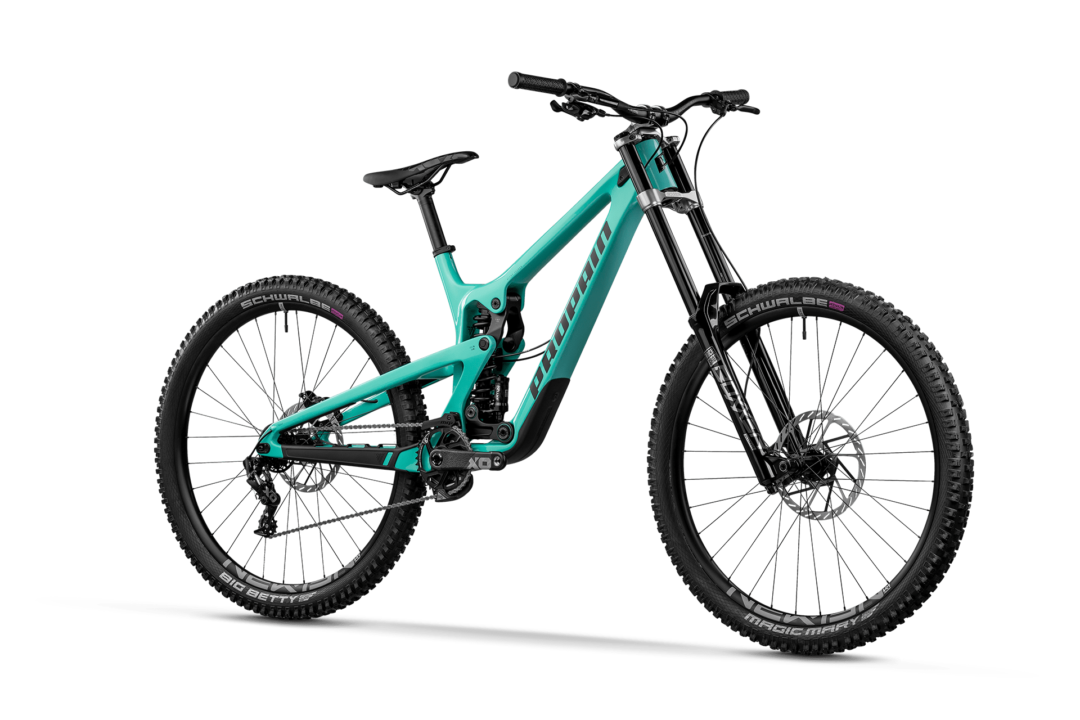

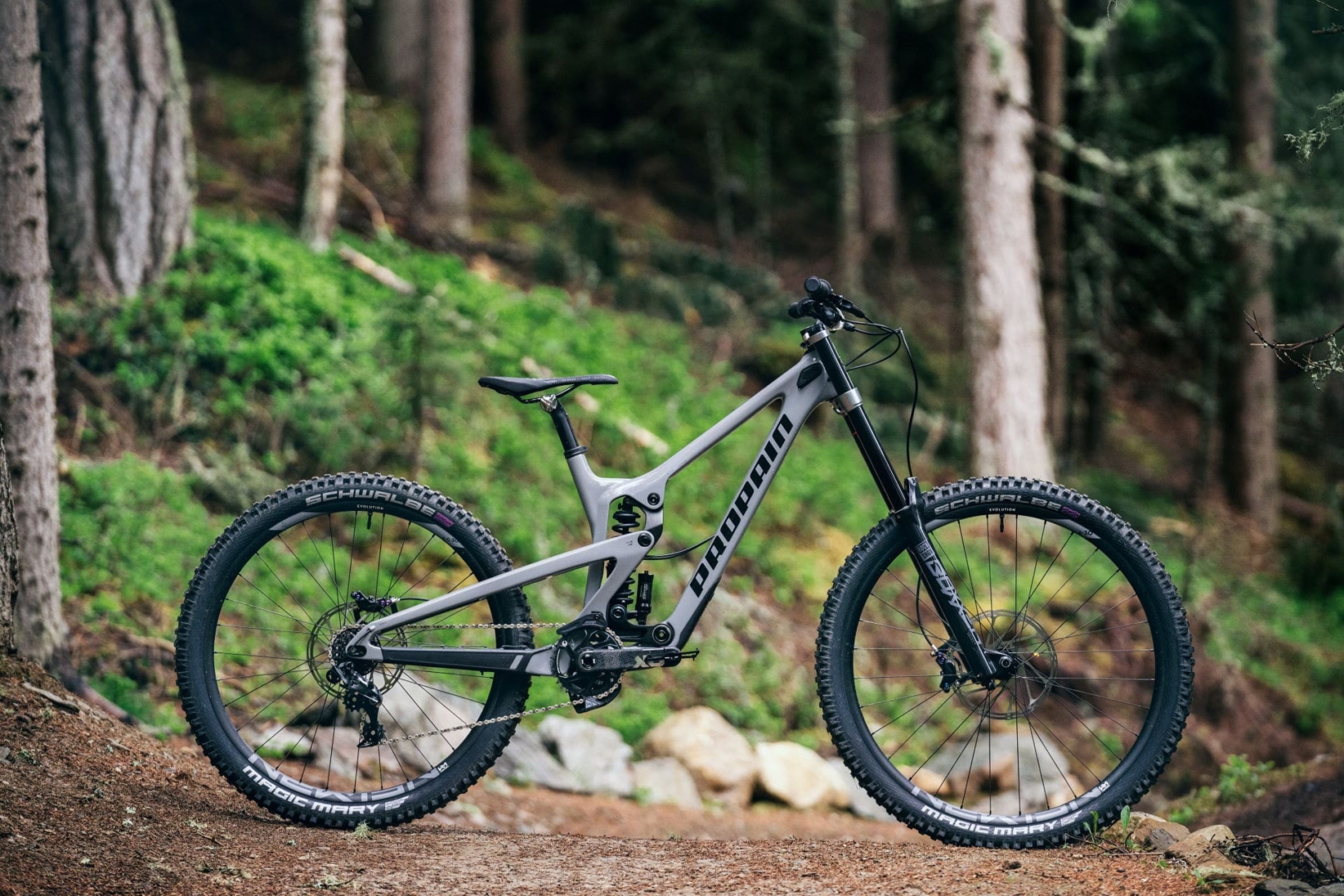

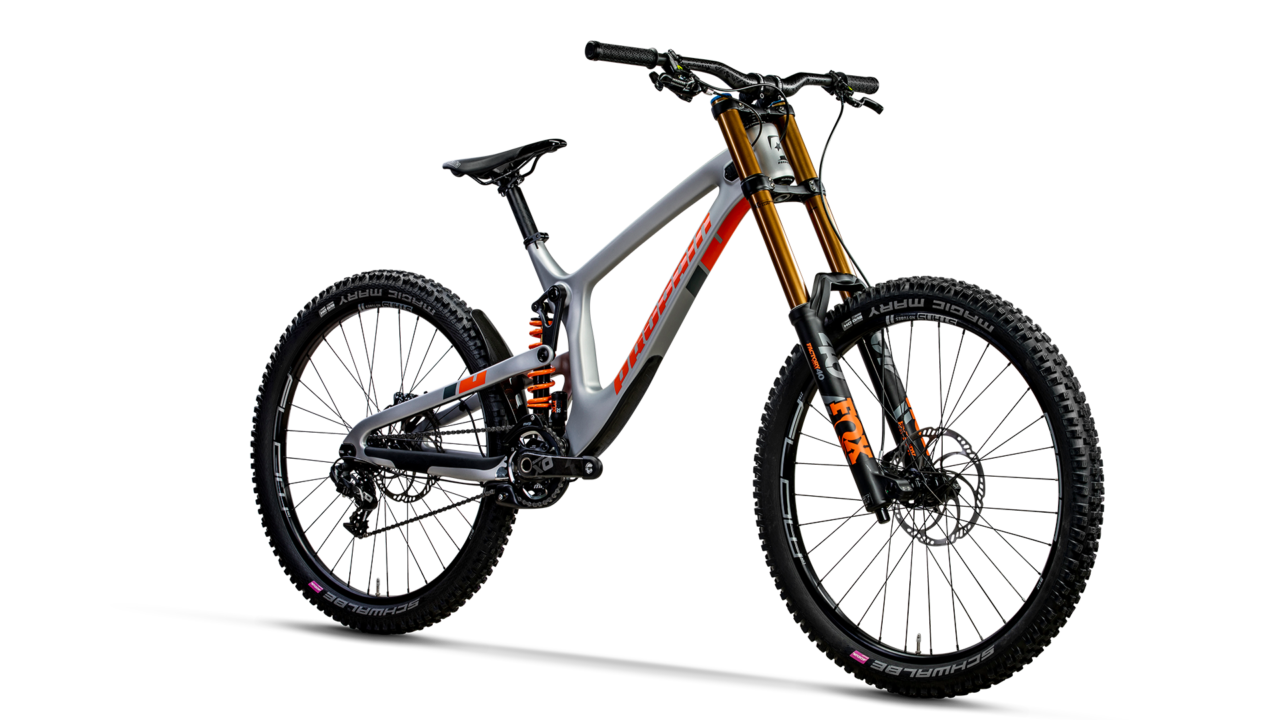

Rage CF


  • Frame material
    Carbon
  • Wheel size
    27,5" / 29"
  • Travel front
    200mm / 190mm
  • Travel rear
    210mm / 200mm

You want to ride the same equipment as the World Cup professionals? Then you are on the right track with the Rage Carbon 29. Our World Cup-proven Rage Carbon has been further optimized and is even more uncompromising with its 29” wheels. Super fast and super light is just right to squeeze the last seconds out of your race run. With the award-winning Pro10 suspension system you can shred with unbelievable speed on the toughest downhill tracks on the planet. The ingenious Reach Adjustment System lets you adapt the bike perfectly to your size.

Choose your model

Build Kits

We will help you on your way to your personal dream bike. Our options are only a preliminary recommendation, because your needs are as individual as you are. We have put together three pre-configured models for you. In our configuration tool, however, you can still adapt every single part of all models to your wishes. Have fun building your dream bike!

Rage CF Start

3.825
00
  • Fork: RockShox Boxxer Select 200mm / 190mm
  • Shock: RockShox Super Deluxe Select R 210mm / 200mm
  • Front Brake: Magura MT5 203mm
  • Rear Brake: Magura MT5 203mm
  • Saddle: SIXPACK Kamikaze
  • Seatpost: Propain Seatpost
  • Wheels: Propain ZTR FLOW S1
  • Crank: Truvativ Descendant DH 165mm 36Z
  • Derailleur: SRAM GX DH (1×7)
  • Trigger: SRAM GX DH (1×7)
  • Casette: SRAM PG720 11-25 (1×7)
  • Handlebar: SIXPACK Millenium 785
  • Stem: SIXPACK Skywalker Direct Mount
  • Tires: Schwalbe Magic Mary Ultra Soft
  • Weight: 16,1 kg
2020

Rage CF Performance

4.600
00
  • Fork: RockShox Boxxer Ultimate 200mm / 190mm
  • Shock: RockShox Super Deluxe Coil Ultimate DH 210mm / 200mm
  • Front Brake: SRAM Code RSC 200mm
  • Rear Brake:SRAM Code RSC 200mm
  • Saddle: SIXPACK Kamikaze
  • Seatpost: Propain Seatpost
  • Wheels: Propain ZTR FLOW EX3
  • Crank: Truvativ Descendant DH 165 mm 36Z
  • Derailleur: SRAM GX DH (1×7)
  • Trigger: SRAM GX DH (1×7)
  • Casette: SRAM PG720 11-25 (1×7)
  • Handlebar: SIXPACK Millenium 785
  • Stem: SIXPACK Skywalker Direct Mount
  • Tires: Schwalbe Magic Mary Ultra Soft
  • Weight: 15,9 kg
2020

Rage CF High End

5.610
00
  • Fork: Fox 49 Factory Kashima 200mm / 190mm
  • Shock: Fox Float X2 Factory Kashima 210mm / 200mm
  • Front Brake: Magura MT7 203mm
  • Rear Brake:Magura MT7 203mm
  • Saddle: SIXPACK Kamikaze
  • Seatpost: SIXPACK Seatpost
  • Wheels: Propain ZTR FLOW EX3
  • Crank: SRAM X01 DH 165 mm 36Z
  • Derailleur: SRAM X01 DH (1×7)
  • Trigger: SRAM X01 DH (1×7)
  • Casette: SRAM XG795 10-24 (1×7)
  • Handlebar: SIXPACK Millenium Carbon 785
  • Stem: SIXPACK Skywalker Direct Mount
  • Tires: Schwalbe Magic Mary Ultra Soft
  • Weight: 15,6 kg
2020

Frame Sizes

The frame size is an essential part of the bike performance and above all of the riding fun. Select your required frame size from the table. If you stand between two sizes, then you only have to decide whether you like it playful or smooth running. For smooth running choose the larger frame size, for playful the smaller.

Technical Data

Shock length 250 mm
Shock travel 75 mm
Shock mount 8 x 25 mm
Rear wheel travel 210 mm
Bottom bracket BSA 83 mm
Brake mount Postmount 200
Seatpost diameter 31,6 mm
Headset (S.H.I.S) Tapered – Top: IS42 / Bottom: IS42
Rear wheel axle 157 mm x 12 mm (X12)
Front derailleur none
Chainline 56,5 mm
Chainguide mount ISCG 05
Wheel size 27,5″
Maximum fork travel 203 mm
Frame weight 3,1 kg
Shock length 250 mm
Shock travel 70 mm
Shock mount 8 x 25 mm
Rear wheel travel 200 mm
Bottom bracket BSA 83 mm
Brake mount Postmount 200
Seatpost diameter 31,6 mm
Headset (S.H.I.S) Tapered – Top: IS42 / Bottom: IS42
Rear wheel axle 157 mm x 12 mm (X12)
Front derailleur none
Chainline 56,5 mm
Chainguide mount ISCG 05
Wheel size 29″
Maximum fork travel 190 mm
Frame weight 3,1 kg

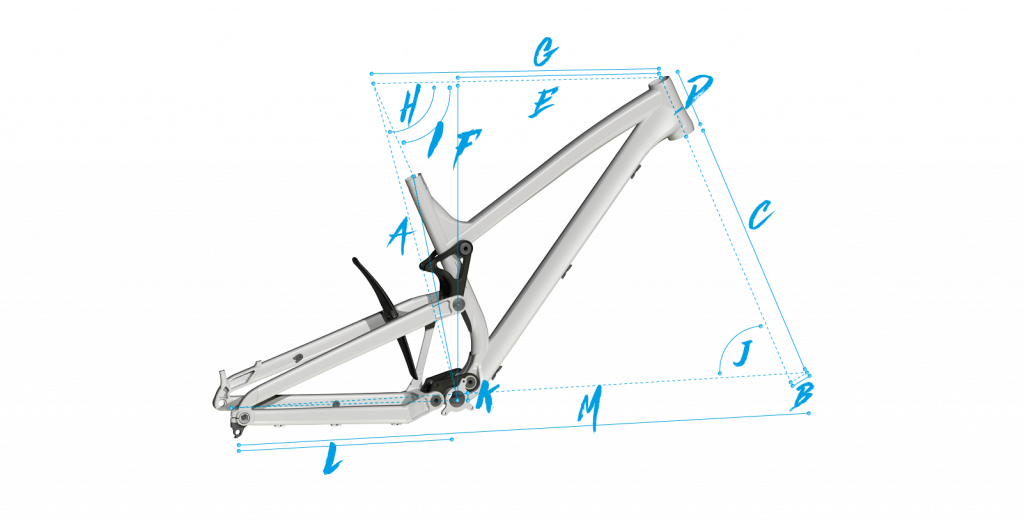

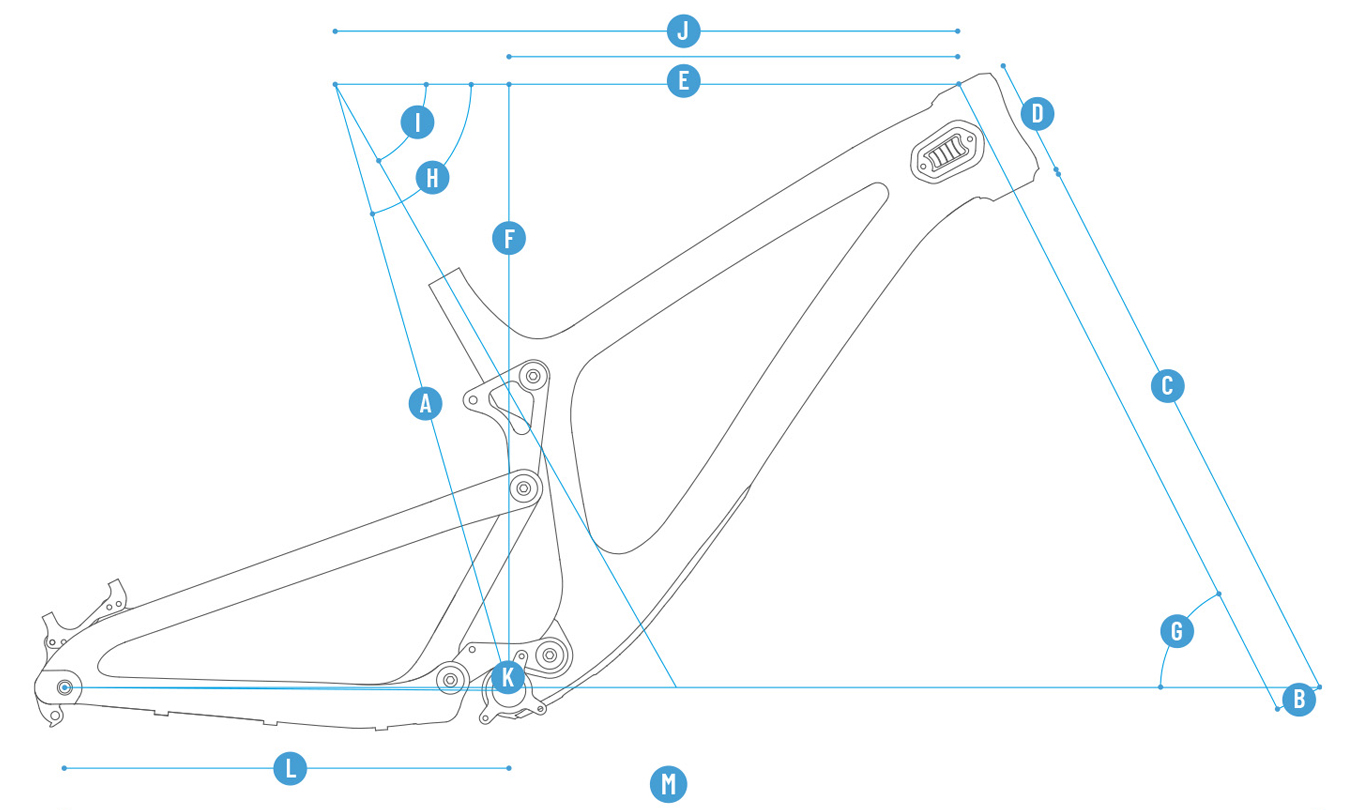

Geometry

SIZE M -10 SIZE M 0 SIZE M +10
Frame height (A) 420 mm / 16,5″ 420 mm / 16,5″ 420 mm / 16,5″
Wheelbase – short chainstay (M) 1.218 mm 1.228 mm 1.238 mm
Wheelbase – long chainstay (M) 1.232 mm 1.242 mm 1.252 mm
Top tube length (G) 585 mm 595 mm 605 mm
Fork offset (B) 48 mm 48 mm 48 mm
Fork length (C) 583 mm 583 mm 583 mm
Chainstay length – short (L) 445 mm 445 mm 445 mm
Chainstay length – long (L) 459 mm 459 mm 459 mm
Reach (E) 411 mm 421 mm 431 mm
Stack (F) 604 mm 608 mm 612 mm
Head angle (J) 63° 63° 63°
Seat angle – real (H) 60,5° 60,5° 60,5°
Seat angle – effective (I) 74° 74° 74°
Head tube length (D) 120 mm 120 mm 120 mm
BB offset (K) 3 mm 3 mm 3 mm
SIZE L -10 SIZE L 0 SIZE L +10
Frame height (A) 420 mm / 16,5″ 420 mm / 16,5″ 420 mm / 16,5″
Wheelbase – short chainstay (M) 1.248 mm 1.258 mm 1.258 mm
Wheelbase – long chainstay (M) 1.262 mm 1.272 mm 1.282 mm
Top tube length (G) 615 mm 625 mm 635 mm
Fork offset (B) 48 mm 48 mm 48 mm
Fork length (C) 583 mm 583 mm 583 mm
Chainstay length – short (L) 445 mm 445 mm 445 mm
Chainstay length – long (L) 459 mm 459 mm 459 mm
Reach (E) 441 mm 451 mm 461 mm
Stack (F) 604 mm 608 mm 612 mm
Head angle (J) 63° 63° 63°
Seat angle – real (H) 60,5° 60,5° 60,5°
Seat angle – effective (I) 74° 74° 74°
Head tube length (D) 120 mm 120 mm 120 mm
BB offset (K) 3 mm 3 mm 3 mm
SIZE XL -10 SIZE XL 0 SIZE XL +10
Frame height (A) 420 mm / 16,5″ 420 mm / 16,5″ 420 mm / 16,5″
Wheelbase – short chainstay (M) 1.278 mm 1.288 mm 1.298 mm
Wheelbase – long chainstay (M) 1.292 mm 1.302 mm 1.312 mm
Top tube length (G) 645 mm 655 mm 665 mm
Fork offset (B) 48 mm 48 mm 48 mm
Fork length (C) 590 mm 590 mm 590 mm
Chainstay length – short (L) 445 mm 445 mm 445 mm
Chainstay length – long (L) 459 mm 459 mm 459 mm
Reach (E) 471 mm 481 mm 491 mm
Stack (F) 610 mm 614 mm 618 mm
Head angle (J) 63° 63° 63°
Seat angle – real (H) 60,5° 60,5° 60,5°
Seat angle – effective (I) 74° 74° 74°
Head tube length (D) 120 mm 120 mm 120 mm
BB offset (K) 3 mm 3 mm 3 mm
SIZE L -10 SIZE L 0 SIZE L +10
Frame height (A) 420 mm / 16,5″ 420 mm / 16,5″ 420 mm / 16,5″
Wheelbase (M) 1.262 mm 1.272 mm 1.282 mm
Top tube length (G) 620 mm 630 mm 640 mm
Fork offset (B) 48 mm 48 mm 48 mm
Fork length (C) 590 mm 590 mm 590 mm
Chainstay length (L) 459 mm 459 mm 459 mm
Reach (E) 437 mm 447 mm 457 mm
Stack (F) 612 mm 616 mm 620 mm
Head angle (J) 63° 63° 63°
Seat angle – real (H) 60,5° 60,5° 60,5°
Seat angle – effective (I) 73,5° 73,5° 73,5°
Head tube length (D) 120 mm 120 mm 120 mm
BB offset (K) 16 mm 16 mm 16 mm
SIZE XL -10 SIZE XL 0 SIZE XL +10
Frame height (A) 420 mm / 16,5″ 420 mm / 16,5″ 420 mm / 16,5″
Wheelbase (M) 1.292 mm 1.302 mm 1.312 mm
Top tube length (G) 650 mm 660 mm 670 mm
Fork offset (B) 48 mm 48 mm 48 mm
Fork length (C) 590 mm 590 mm 590 mm
Chainstay length (L) 459 mm 459 mm 459 mm
Reach (E) 467 mm 477 mm 487 mm
Stack (F) 612 mm 616 mm 620 mm
Head angle (J) 63° 63° 63°
Seat angle – real (H) 60,5° 60,5° 60,5°
Seat angle – effective (I) 73,5° 73,5° 73,5°
Head tube length (D) 120 mm 120 mm 120 mm
BB offset (K) 16 mm 16 mm 16 mm
