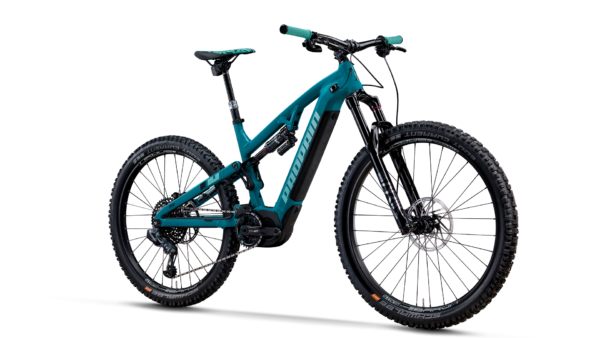

Ekano 165


  • Frame material
    Aluminium
  • Wheel size
    27,5" / Mix / 29"
  • Travel front
    170mm
  • Travel rear
    165mm

Ekano – the electrified version of the Japanese name Kano. His character is described as versatile, adventurous and visionary, just like our new bike. He’s rebellious and is fighting against rules and breaks with conventions. We also had to break with several of our conventions before we started with the Ekano project, but once you push the boundaries in your head the fun on this E-MTB is endless. The versatility of the Ekano is its biggest strength. The bike is completely configurable, and you can choose almost anything according to your riding style. Due to customizable components, wheel size, and suspension travel the usage spectrum covers everything from All-Mountain to E-Enduro Racing. Combined with the complete Drive unit from Shimano, the Ekano is our definition of a perfect and also service-oriented E-MTB.

Choose your wheelsize

Build Kits

We will help you on your way to your personal dream bike. Our options are only a preliminary recommendation, because your needs are as individual as you are. We have put together three pre-configured models for you. In our configuration tool, however, you can still adapt every single part of all models to your wishes. Have fun building your dream bike!

Ekano 165 Start

4.170
00
  • Fork: RockShox Yari 170mm
  • Shock: RockShox Super Deluxe Select R Coil 165mm
  • Front Brake: Magura MT5 203mm
  • Rear Brake: Magura MT5 203mm
  • Saddle: SIXPACK Kamikaze
  • Seatpost: Propain Seatpost
  • Wheels: Propain ZTR Baron S1
  • Crank: Shimano E8000 165mm / Eagle CR Steel
  • Derailleur: SRAM GX Eagle (1×12)
  • Trigger: SRAM GX Eagle (1×12)
  • Casette: SRAM XG1275 10-50 (1×12)
  • Handlebar: SIXPACK Millenium 805
  • Stem: SIXPACK Leader 50
  • Tires: Schwalbe Hans Dampf / Magic Mary
  • Weight: 23,2 kg
2020

Ekano 165 Performance

4.950
00
  • Fork: RockShox Lyrik Select+ 170mm
  • Shock: RockShox Super Deluxe Select+ RT Air 165mm
  • Front Brake: SRAM Code R 200mm
  • Rear Brake:SRAM Code R 200mm
  • Saddle: SIXPACK Kamikaze
  • Seatpost: Bikeyoke Revive
  • Wheels: Propain ZTR Baron S1
  • Crank: Shimano E8000 165 mm / Eagle CR Steel
  • Derailleur: SRAM X01 Eagle (1×12)
  • Trigger: SRAM X01 Eagle (1×12)
  • Casette: SRAM XG1275 10-50 (1×12)
  • Handlebar: SIXPACK Millenium 805
  • Stem: SIXPACK Leader 50
  • Tires: Schwalbe Hans Dampf / Magic Mary
  • Weight: 23,2 kg
2020

Ekano 165 High End

6.320
00
  • Fork: Fox 36 Factory Kashima 170mm
  • Shock: Fox DPX2 Factory Kashima 165mm
  • Front Brake: Magura MT7 203mm
  • Rear Brake: Magura MT7 203mm
  • Saddle: SIXPACK Kamikaze
  • Seatpost: Fox Factory Transfer Kashima
  • Wheels: Propain ZTR Baron S1
  • Crank: Shimano E8050 165 mm / Eagle CR Alloy
  • Derailleur: SRAM AXS X01 Eagle (1×12)
  • Trigger:SRAM AXS Eagle Controller
  • Casette: SRAM XG1275 10-50 (1×12)
  • Handlebar: SIXPACK Millenium Carbon 805
  • Stem: SIXPACK Leader 50
  • Tires: Schwalbe Magic Mary Addix Soft
  • Weight: 23,1 kg
2020

Frame Sizes

The frame size is an essential part of the bike performance and above all of the riding fun. Select your required frame size from the table. If you stand between two sizes, then you only have to decide whether you like it playful or smooth running. For smooth running choose the larger frame size, for playful the smaller.

Seatposts

The adjustable seat post is probably one of the most ingenious inventions of recent years. In order for it to function optimally on the trail, the proper seatpost travel is very important. The following table shows the recommended minimum inseam for the corresponding frame size. Please keep in mind that this is only a recommendation, as the respective sitting position depends very much on personal habits and preferences.

* inside leg length in cm
EKANO S M L XL
Bikeyoke Revive 125 73,5 75,5 77,5 79,5
Kind Shock Lev 125 74,5 76,5 78,5 80,5
Fox Transfer 125 75,5 77,5 79,5 81,5
Bikeyoke Revive 160 / Kinds Shock Lev 150 77,0 79,0 81,0 83,0
Fox Transfer 150 78,0 80,0 82,0 84,0

Technical Data

Drive Unit Shimano E8000
Battery Shimano BT-E8035 (504 Wh)
Shock length 230 mm
Shock travel 62,5 mm
Shock mount front 8 x 25 mm
Shock mount back Custom Flip Chip
Rear wheel travel 165 mm
Drive Unit Shimano 8000
Brake mount Postmount 200
Seatpost diameter 31,6 mm
Headset (S.H.I.S) Top: 7544 / Bottom: 7556
Rear wheel axle 148 mm x 12 mm (X12)
Front derailleur none
Chainline 52 mm (Boost)
Chainguide mount Shimano 8000 chain guide mount
Wheel size 27,5", 29"
Maximum fork travel 170 mm

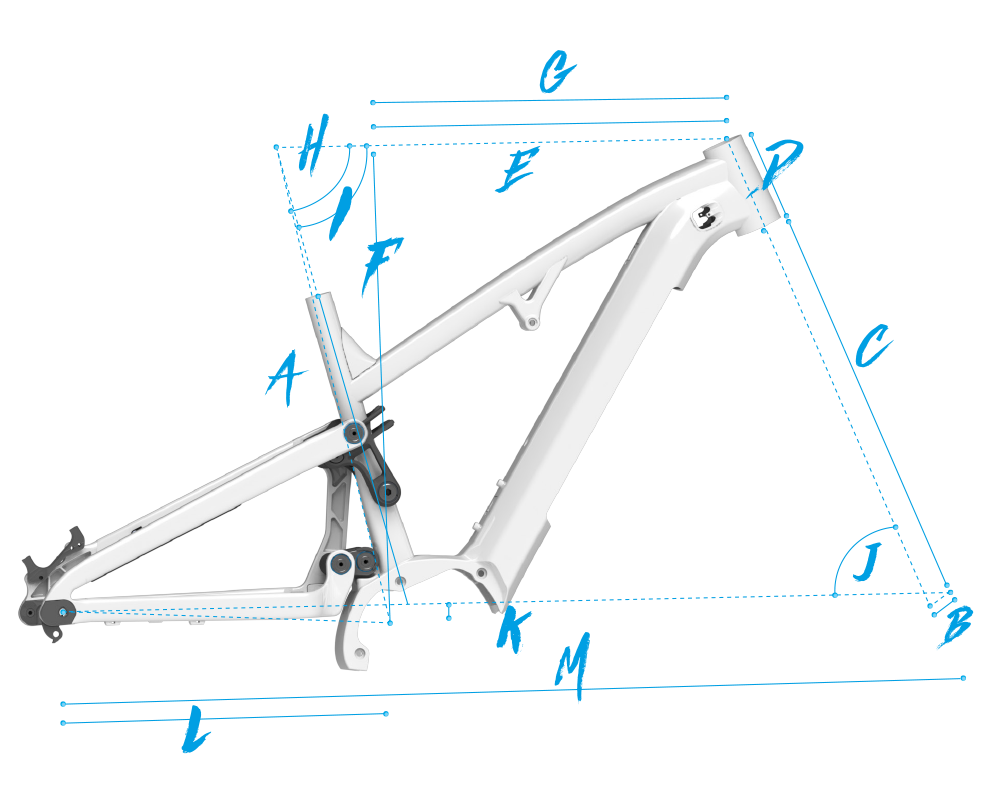

Geometry

 SIZE SSIZE MSIZE LSIZE XL
Frame height (A)420 mm / 16,5″440 mm / 17,5″460 mm / 18,5″480 mm / 19,5″
Wheelbase (M)1.197 mm1.221 mm1.242 mm1.265 mm
Top tube length (G)574 mm597 mm618 mm639 mm
Fork offset (B)42 mm42 mm42 mm42 mm
Fork length (C)584 mm584 mm584 mm584 mm
Chainstay length (L)445 mm445 mm445 mm445 mm
Reach (E)420 mm440 mm460 mm480 mm
Stack (F)623 mm633 mm637 mm641 mm
Head angle (J)65°65°65°65°
Seat angle – real (H)73,1°73,1°73,1°73,1°
Seat angle – effective (I)76,1°76,1°76,1°76,1°
Head tube length (D)110 mm120 mm125 mm130 mm
BB offset (K)12 mm12 mm12 mm12 mm
 SIZE SSIZE MSIZE LSIZE XL
Frame height (A)420 mm / 16,5″440 mm / 17,5″460 mm / 18,5″480 mm / 19,5″
Wheelbase (M)1.200 mm1.221 mm1.242 mm1.265 mm
Top tube length (G)577 mm600 mm621 mm642 mm
Fork offset (B)42 mm42 mm42 mm42 mm
Fork length (C)584 mm584 mm584 mm584 mm
Chainstay length (L)445 mm445 mm445 mm445 mm
Reach (E)412 mm432 mm452 mm472 mm
Stack (F)629 mm639 mm643 mm647 mm
Head angle (J)64,3°64,3°64,3°64,3°
Seat angle – real (H)72,3°72,3°72,3°72,3°
Seat angle – effective (I)75,3°75,3°75,3°75,3°
Head tube length (D)110 mm120 mm125 mm130 mm
BB offset (K)12 mm12 mm12 mm12 mm
 SIZE SSIZE MSIZE LSIZE XL
Frame height (A)420 mm / 16,5″440 mm / 17,5″460 mm / 18,5″480 mm / 19,5″
Wheelbase (M)1.213 mm1.234 mm1.255 mm1.276 mm
Top tube length (G)576 mm599 mm620 mm641 mm
Fork offset (B)42 mm42 mm42 mm42 mm
Fork length (C)584 mm584 mm584 mm584 mm
Chainstay length (L)459 mm459 mm459 mm459 mm
Reach (E)415 mm435 mm455 mm475 mm
Stack (F)626 mm636 mm640 mm644 mm
Head angle (J)64,6°64,6°64,6°64,6°
Seat angle – real (H)72,6°72,6°72,6°72,6°
Seat angle – effective (I)75,6°75,6°75,6°75,6°
Head tube length (D)110 mm120 mm125 mm130 mm
BB offset (K)20 mm20 mm20 mm20 mm
