Frame material
Aluminium -
Wheel size
20" -
Travel front
Rigid Fork / 80mm

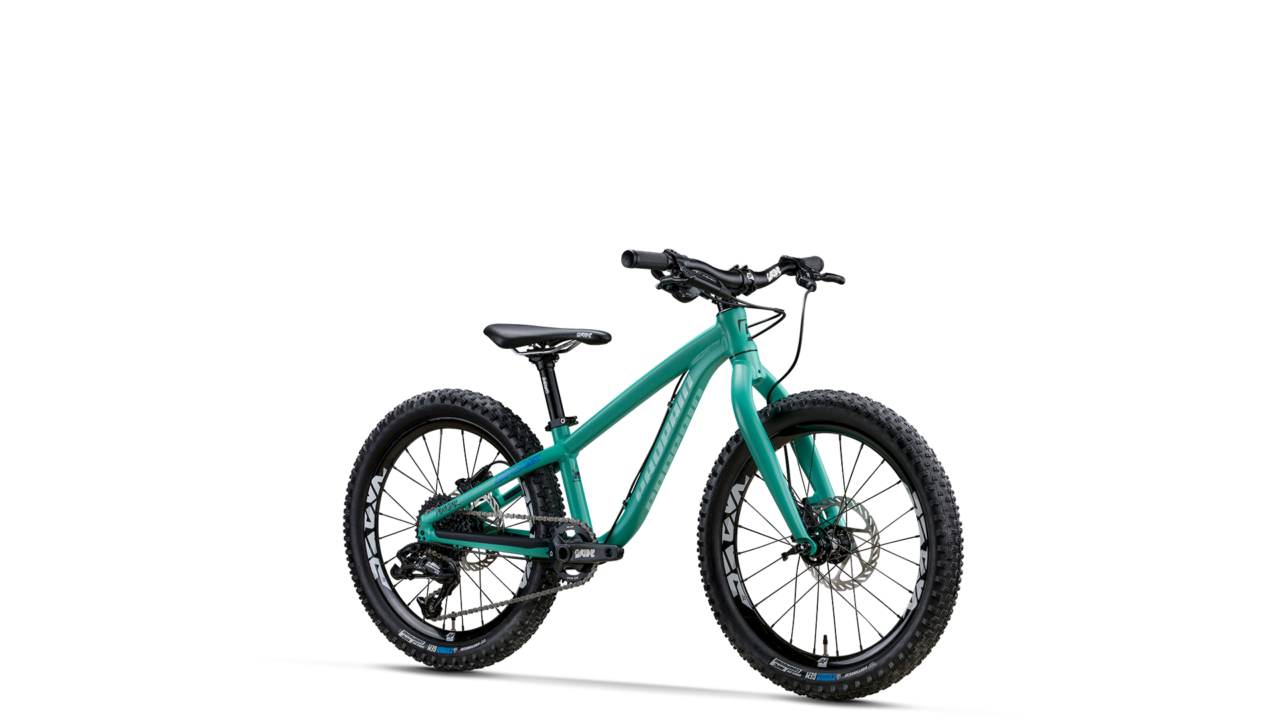

Our Dreckspatz joins the full-suspension bike Frechdax as a cheaper alternative in our range of high-end children’s mountain bikes. For those who are looking for a bike for trail riding or pump tracks, the Dreckspatz is the right choice. This is where this bike shows its strengths as a lightweight hardtail with great acceleration and a guaranty for maximum fun for the youngsters.
Choose your model
Dreckspatz AL 20"
Customize Dreckspatz AL 20"Build Kits
We will help you on your way to your personal dream bike. Our options are only a preliminary recommendation, because your needs are as individual as you are. We have put together three pre-configured models for you. In our configuration tool, however, you can still adapt every single part of all models to your wishes. Have fun building your dream bike!
Dreckspatz Start
-
Fork: Rigid Fork
-
Front Brake: SRAM Level 65 mm
-
Rear Brake: SRAM Level 125 mm
-
Saddle: 1st Ride Race
-
Seatpost: 1st Ride 27,7
-
Wheels: SunRingle Düroc 30
-
Crank: 1st Ride 115 mm
-
Derailleur: SRAM X-5 9-speed
-
Trigger: SRAM X-5 9-speed
-
Casette: SRAM PG 920
-
Handlebar: 1st Ride 550
-
Stem: 1st Ride 38
-
Tires: VEE Crown Gem 20″
-
Weight: 8,6 kg
Dreckspatz Performance
-
Fork: 1st Ride Carbon 80 mm
-
Front Brake: SRAM Level 65 mm
-
Rear Brake: SRAM Level 125 mm
-
Saddle: 1st Ride Race
-
Seatpost: 1st Ride 27,7
-
Wheels: SunRingle Düroc 30
-
Crank: 1st Ride 115 mm
-
Derailleur: SRAM X-5 9-speed
-
Trigger: SRAM X-5 9-speed
-
Casette: SRAM PG 920
-
Handlebar: 1st Ride 550
-
Stem: 1st Ride 38
-
Tires: VEE Crown Gem 20″
-
Weight: 8,6 kg
Frame Sizes
The frame size is an essential part of the bike performance and above all of the riding fun. Select your required frame size from the table. If you stand between two sizes, then you only have to decide whether you like it playful or smooth running. For smooth running choose the larger frame size, for playful the smaller.
Technical Data
| Bottom bracket BSA | 73 mm |
| Brake mount (frame) | Postmount 140 |
| Seatpost diameter | 27,7 mm |
| Headset (S.H.I.S.) | Top: ZS44 / Bottom: ZS44 |
| Rear wheel axle | 135 mm x 10 mm |
| Front derailleur | none |
| Chainline | 49 mm |
| Chainguide mount | ISCG 05 |
| Wheelset | 20" |
| Maximum fork travel | 100 mm |
| Maximum rider weight | 40 kg |

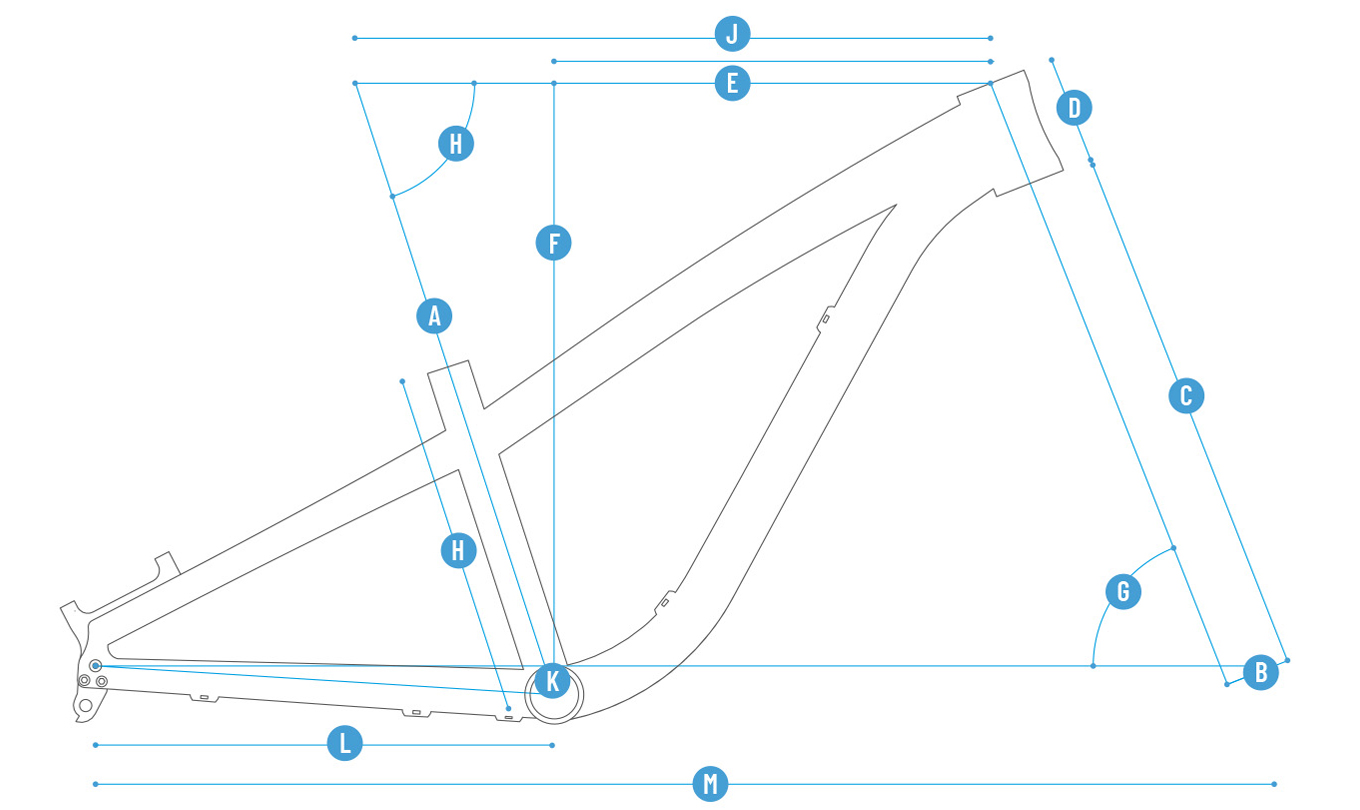

Geometry
| Frame height (A) | 240 mm / 9,5″ |
| Wheel base (M) | 821 mm |
| Top tube length (G) | 442 mm |
| Fork offset (B) | 35 mm |
| Fork length (C) | 375 mm |
| Chainstay length (L) | 320 mm |
| Reach (E) | 304 mm |
| Stack (F) | 426 mm |
| Head angle (J) | 68,5° |
| Seat angle (I) | 72° | BB offset (K) | 20 mm |
