TOOLS FOR YOUNG SHREDDERS

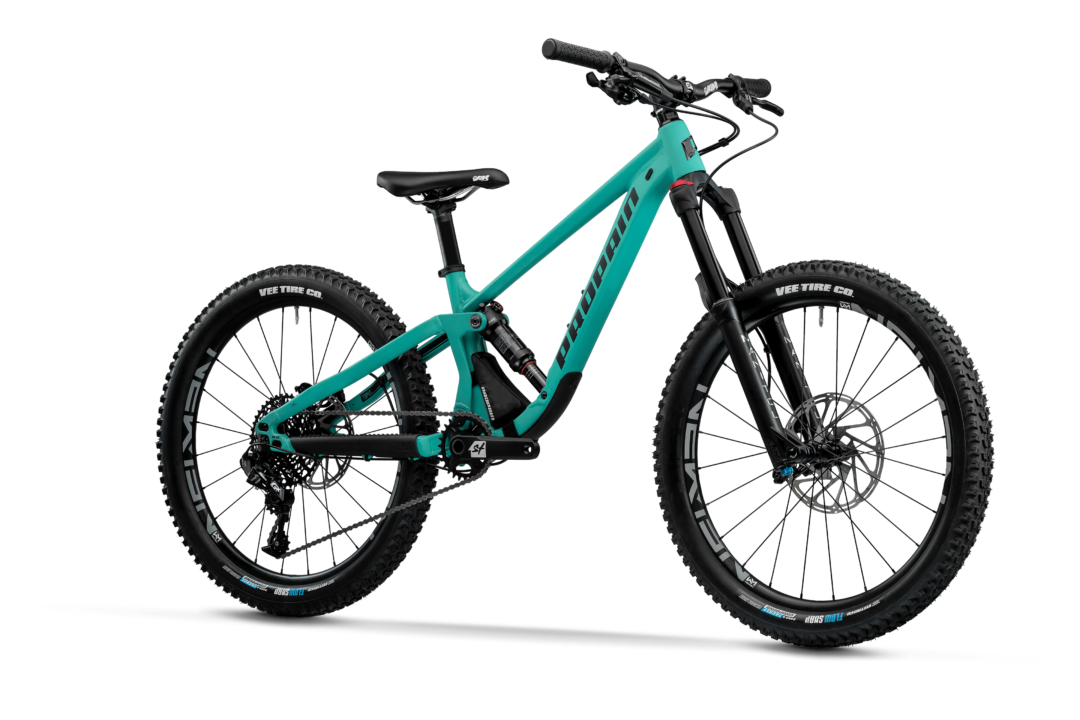

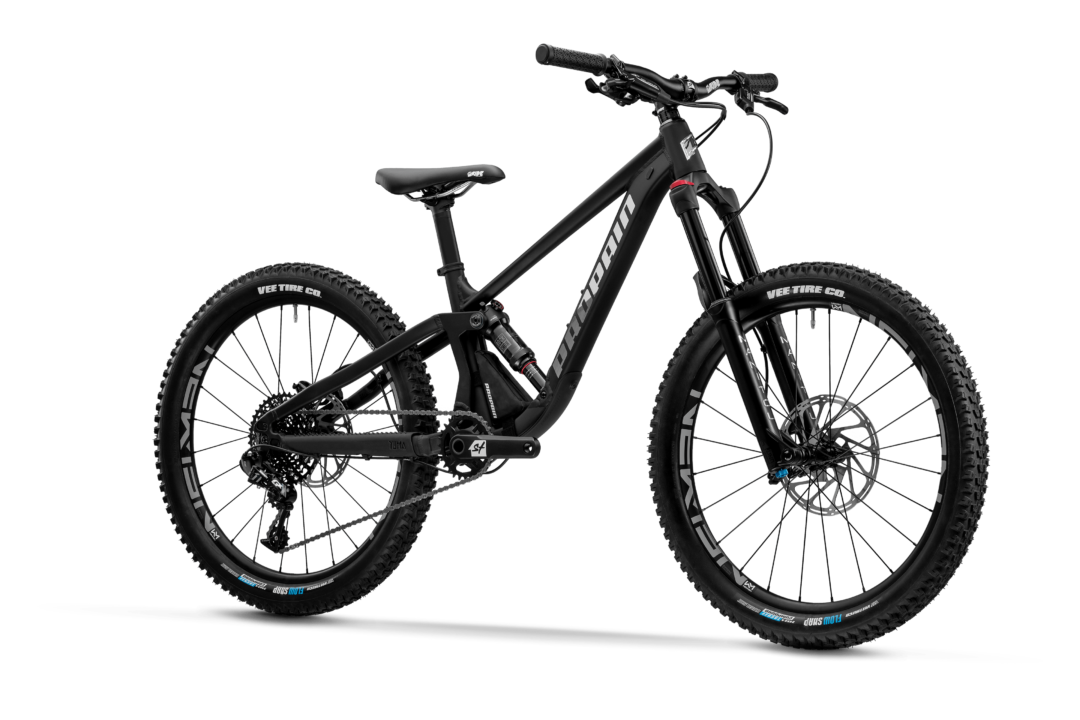

The Yuma is a juvenile gravity bike, which is especially tailored to the characteristics and needs of riders with a body height taller than 1.30 m and the respective low body weight.

Delivered with 24″ wheels, the Yuma can be converted to 26″ wheels using the “Grown Up” kit, which is available separately.

Frame material
Aluminium

Wheel Sizes
24″ / 26″

Travel front
140 mm

Travel rear
145 mm

Terrain
Enduro

Category
5

Warranty
3 Years

Weight
from 13 kg

Choose your model

Availability

Unfortunately the Yuma is currently not in stock. We will notify you by email via our newsletter when the Yuma can be ordered again.

Build Kits

Yuma

1.899
00
incl. VAT
  • Fork Manitou Machete 140 mm
  • Shock RockShox Deluxe R 145 mm
  • Brakes SRAM Guide T 203 mm / 180 mm
  • Wheels 1st Ride Enduro 24″
  • Seatpost PROPAIN Seatpost
  • Saddle 1st Ride Enduro
  • Crank 1st Ride 155 mm
  • Derailleur SRAM GX Eagle (1×11)
  • Trigger SRAM GX Eagle (1×11)
  • Cassette SRAM XG1150
  • Handlebar 1st Ride 680
  • Stem 1st Ride 40
  • Tires VEE Flow SNAP 24″
  • Weight: 13,0 kg

frame size

105 cm
3'4"
115 cm
3'7"
125 cm
4'1"
135 cm
4'4"
145 cm
4'7"
155 cm
5'0"
165 cm
5'4"
Frechdax
Dreckspatz
Yuma

Technical Data

Shock length 185 mm
Shock travel 55 mm
Shock mount Top: Trunnion / Bottom: 8 x 25 mm
Travel (Frame) 145 mm
Maximum fork travel 150 mm
Bottom bracket BSA 73 mm
Brake mount Postmount 160
Seatpost diameter 31.6 mm
Headset (S.H.I.S) Tapered - Top: IS42 / Bottom: IS52
Rear wheel axle 148 mm x 12 mm (X12)
Chainline 52 mm (Boost)
Chainguide mount ISCG 05
Wheel sizes 24" / 26"
Frame weight 2.8 kg

Geometry

24" 26"
Frame height (A) 352 mm / 14" 352 mm / 14"
Fork offset (B) 42 mm 42 mm
Fork length (C) 520 mm 520 mm
Reach (E) 380 mm 380 mm
Stack (F) 553 mm 553 mm
Head angle (G) 65° 65°
Seat angle - real (H) 73.5° 73.5°
Seat angle - effective (I) 75° 75°
Top tube length (J) 529 mm 529 mm
BB offset (K) 3 mm 3 mm
Chainstay length (L) 408 mm 420 mm
Wheelbase (M) 1,092 mm 1,104 mm
