• Frame material
  • Wheel size
  • Travel front
    140mm / 150mm
  • Travel rear

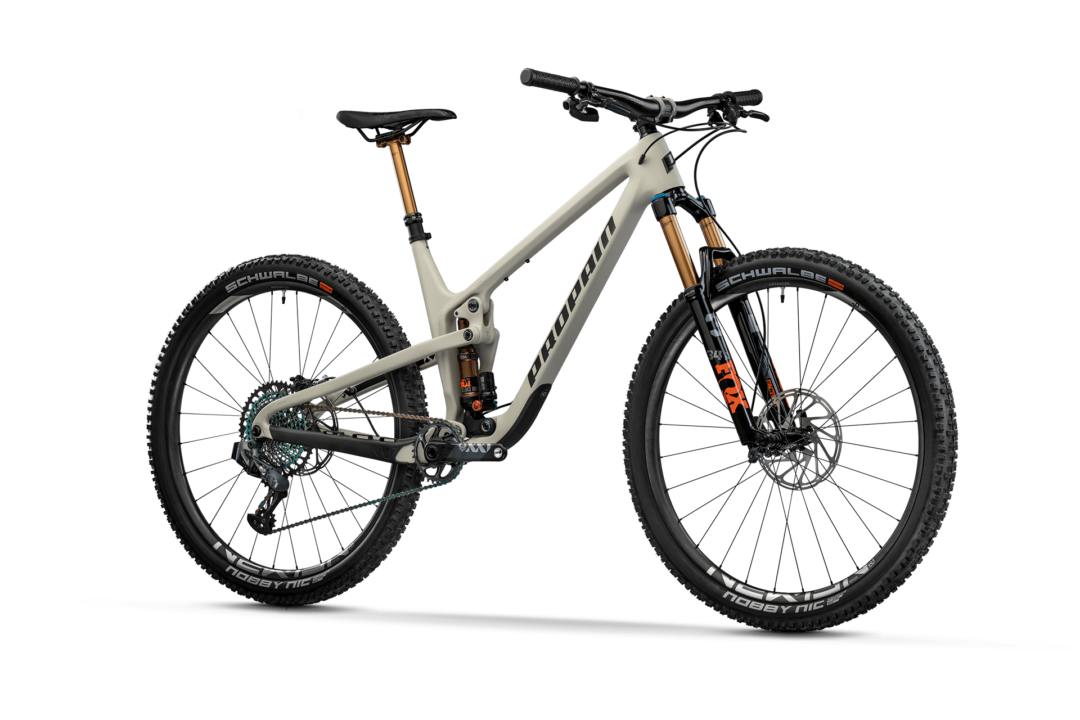

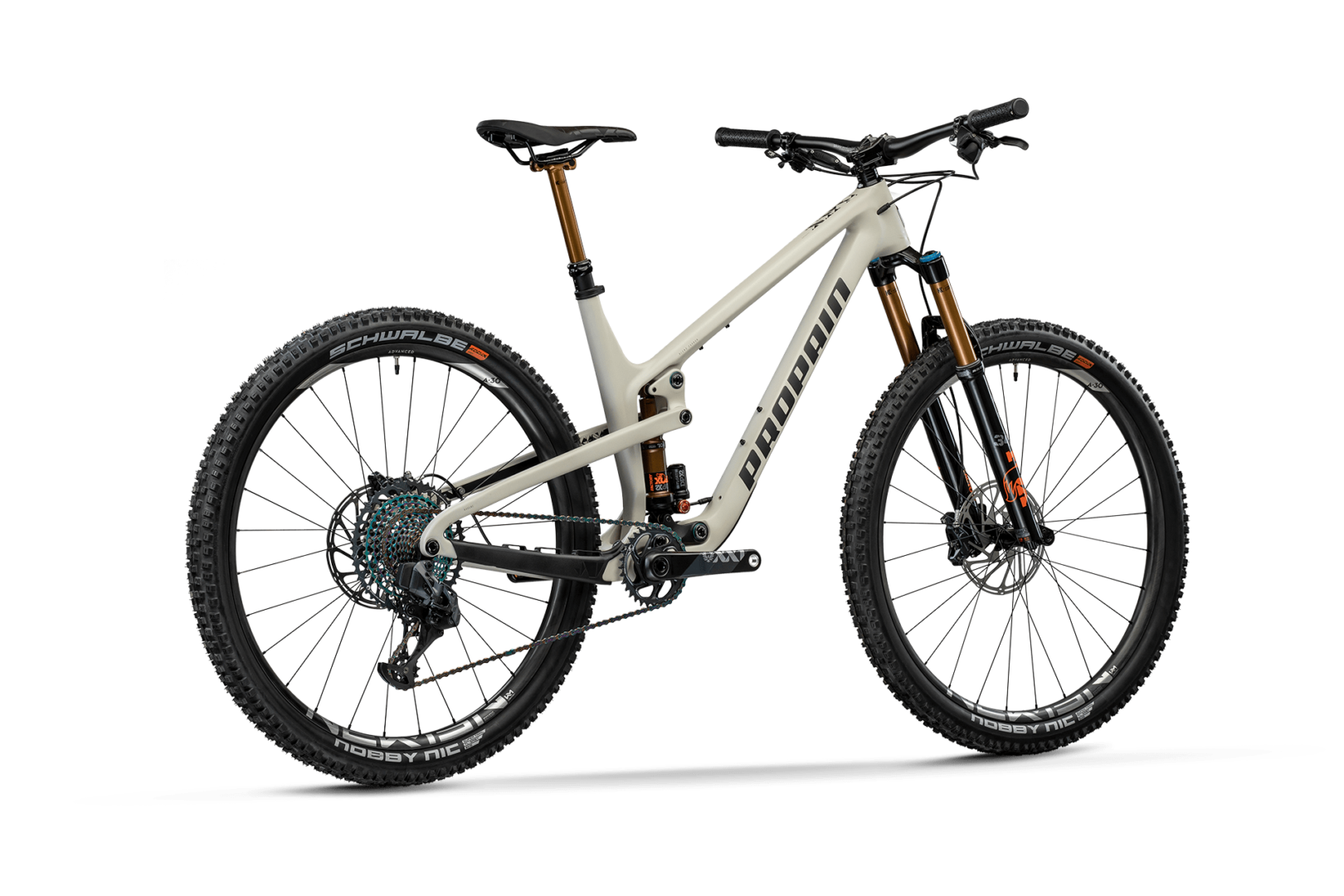

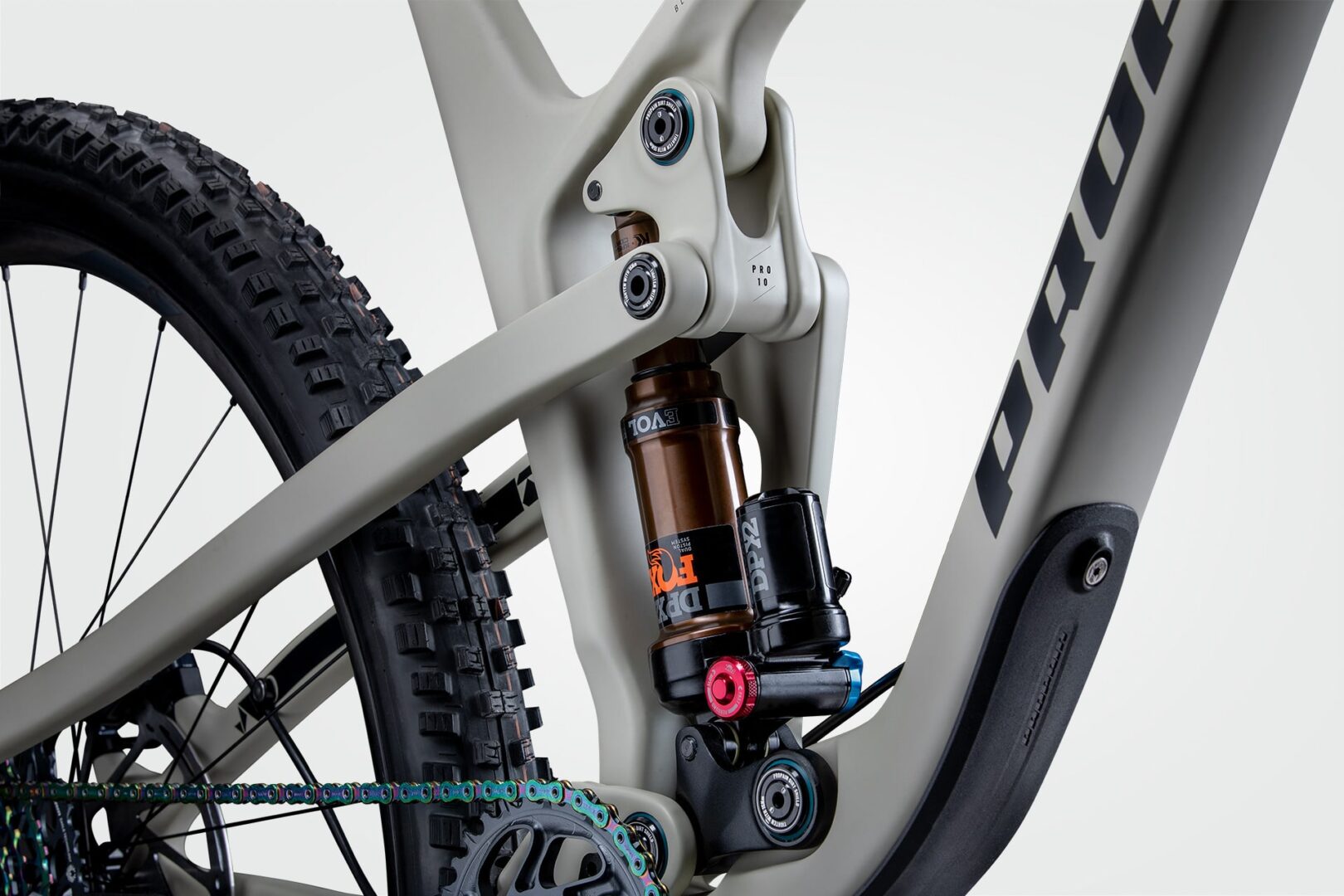

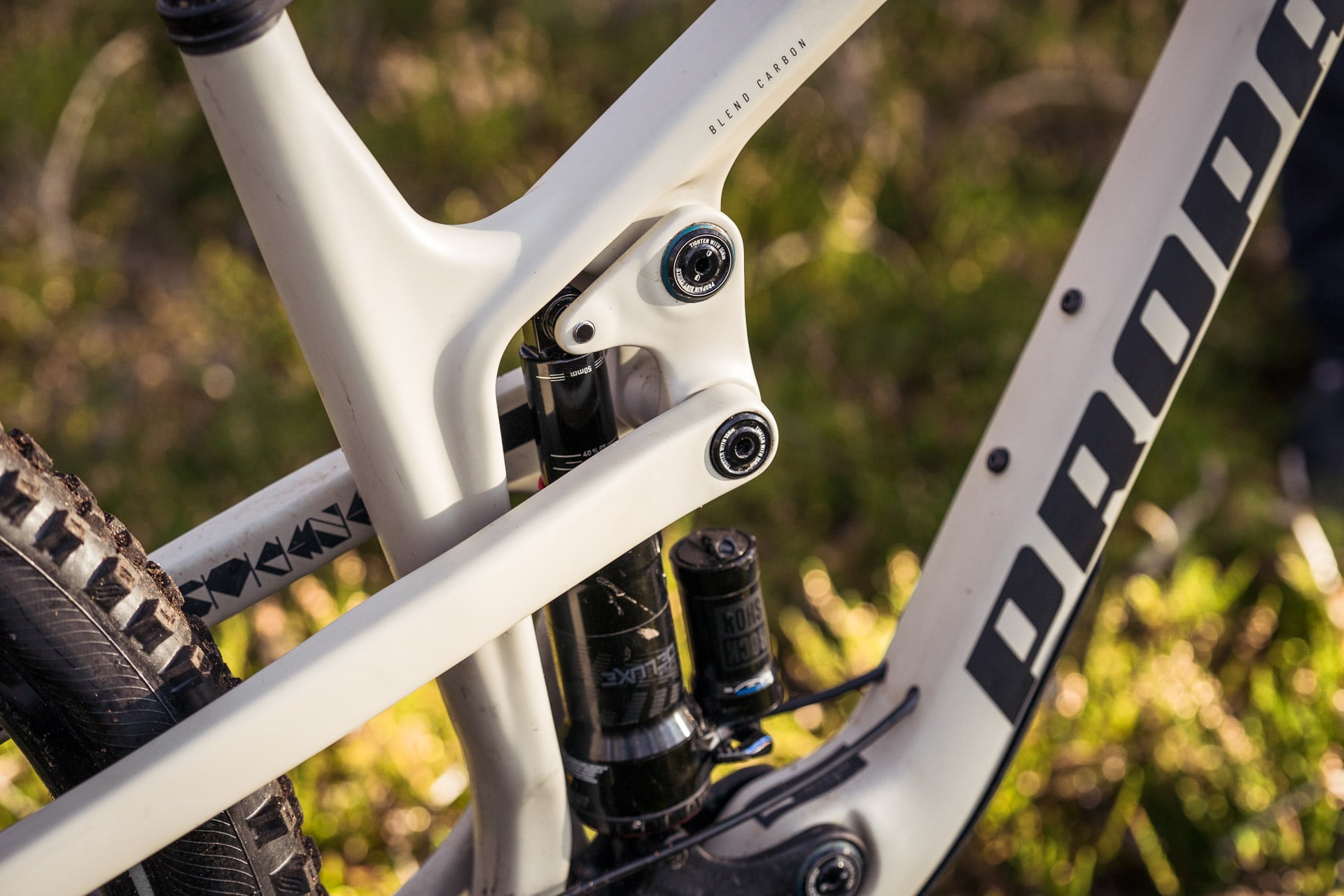

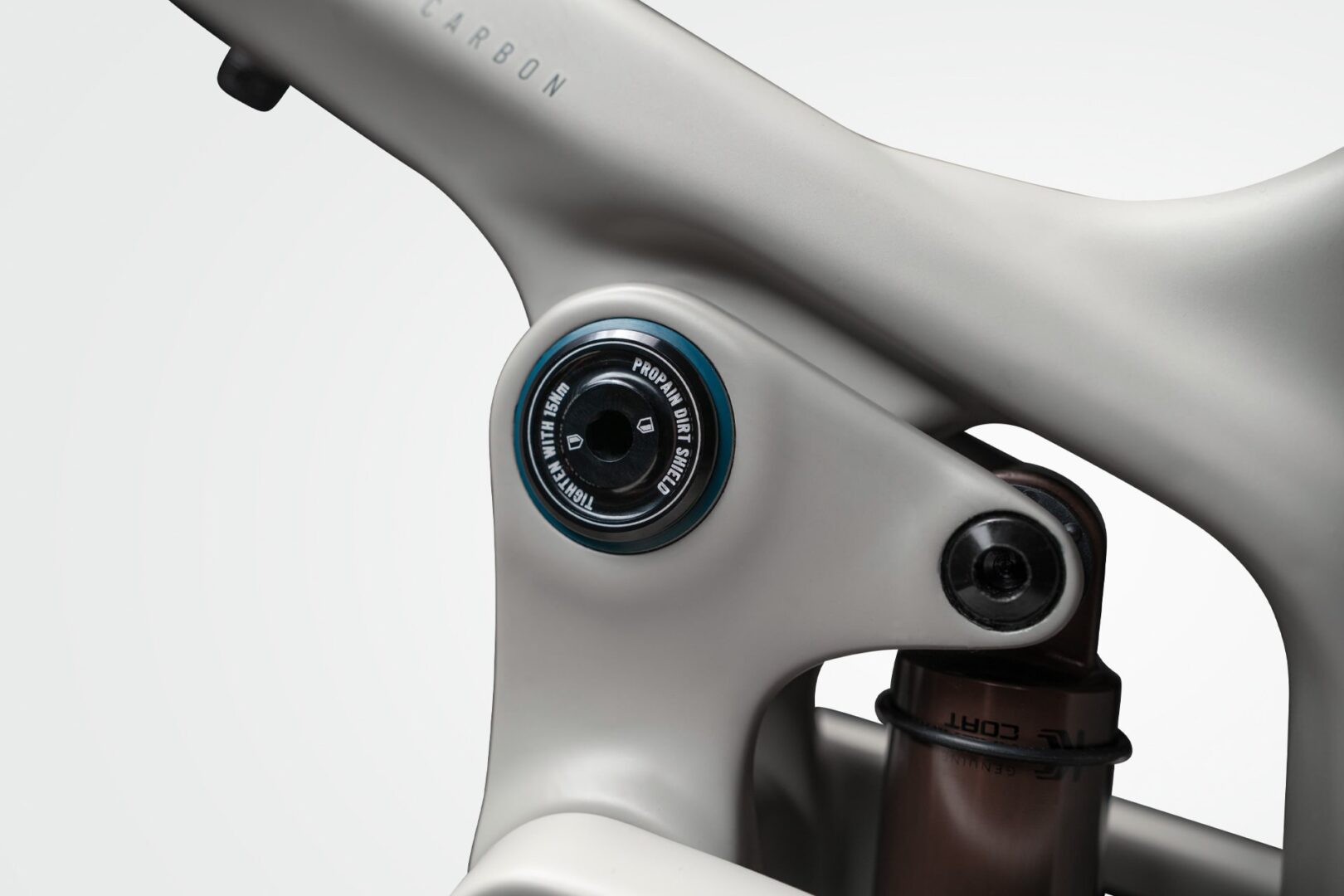

Hugene is our interpretation of the perfect trailbike. A bike that flies up mountains with ease and puts a fat smile on your face on the way back down. For the first time, we are relying on large 29″ wheels and have optimized our proven PRO10 suspension system for them. This results in a great balance between stability and playfulness, providing lots of safety for the rider without feeling boring. The shock sits in front of the seatpost and is perfectly protected against dirt and mud. To make the Hugene a agile trailbike, we’ve paid particular attention to its drive efficiency. Providing 100% anti-squat, the chainstay always keeps its cool on the uphills. The Hugene climbs almost like a hardtail but also offers sturdy downhill performance due to its progressive suspension kinematics that have been optimized offering both perfect sensitivity and bottom out resistance.

Choose your model

Build Kits

We will help you on your way to your personal dream bike. Our options are only a preliminary recommendation, because your needs are as individual as you are. We have put together three pre-configured models for you. In our configuration tool, however, you can still adapt every single part of all models to your wishes. Have fun building your dream bike!

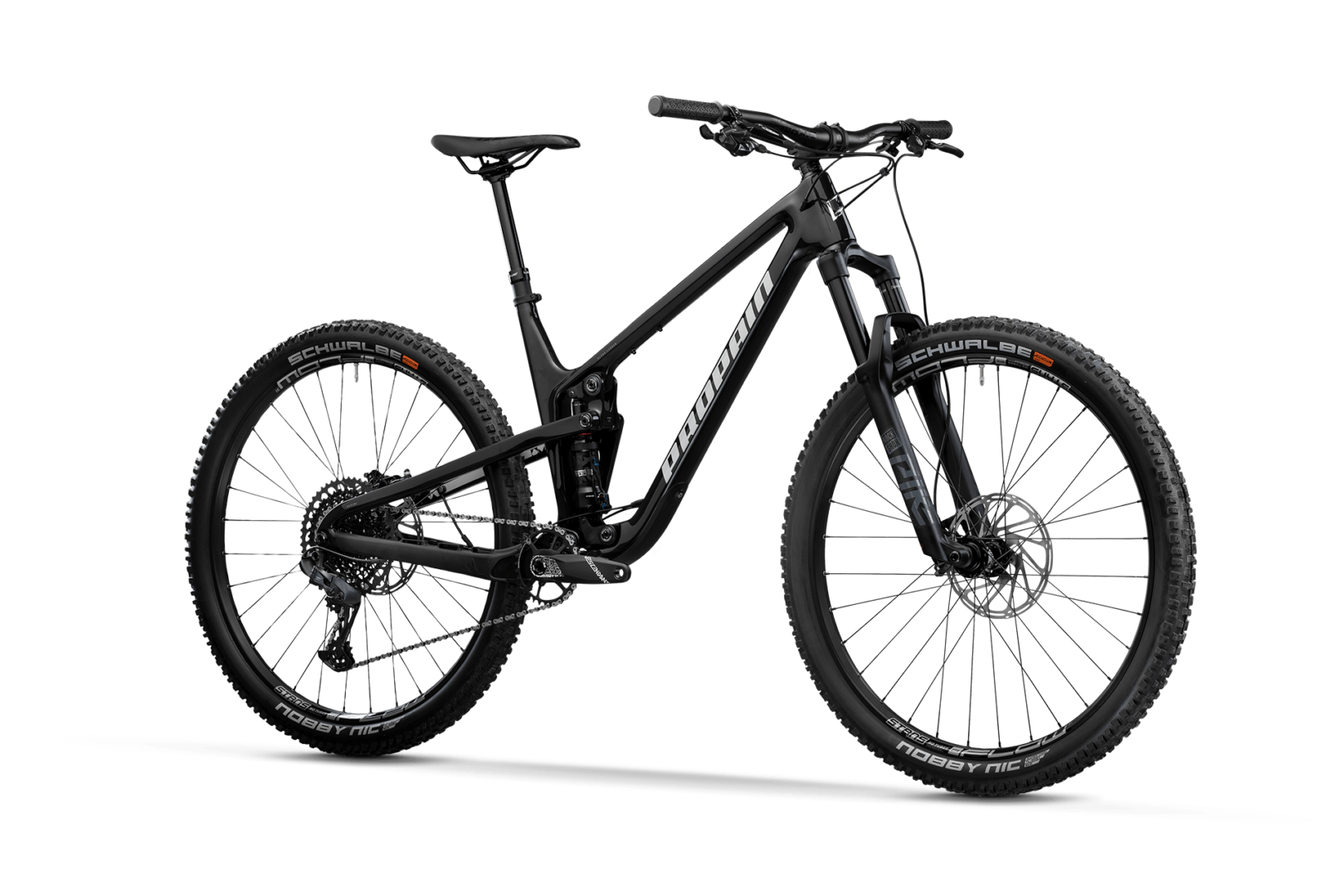

Hugene Start

  • Fork: RockShox Revelation RC 150mm
  • Shock: RockShox Deluxe Select R 130mm
  • Front Brake: SRAM Guide R 200mm
  • Rear Brake: SRAM Guide R 180mm
  • Saddle: SIXPACK Kamikaze
  • Seatpost: Propain Seatpost
  • Wheels: Propain ZTR FLOW S1
  • Crank: Truvativ Descendant Eagle 175mm 32Z
  • Derailleur: SRAM GX Eagle (1×12)
  • Trigger: SRAM GX Eagle (1×12)
  • Casette: SRAM XG1275 10-50 (1×12)
  • Handlebar: SIXPACK Millenium 805
  • Stem: SIXPACK Leader 50
  • Tires: Schwalbe Magic Mary Addix Soft
  • Weight: 13,6 kg

Hugene Performance

  • Fork: RockShox Pike Ultimate RCT3 140mm
  • Shock: RockShox Deluxe Ultimate RCT 130mm
  • Front Brake: SRAM G2 Ultimate 200mm
  • Rear Brake: SRAM G2 Ultimate 180mm
  • Saddle: SIXPACK Kamikaze
  • Seatpost: Bikeyoke Revive
  • Wheels: Propain ZTR FLOW MK3
  • Crank: Truvativ Descendant Carbon Eagle 175mm 32Z
  • Derailleur: SRAM X01 Eagle (1×12)
  • Trigger: SRAM X01 Eagle (1×12)
  • Casette: SRAM XG1275 10-50 (1×12)
  • Handlebar: SIXPACK Millenium 805
  • Stem: SIXPACK Leader 50
  • Tires: Schwalbe Magic Mary/Hans Dampf Addix Soft
  • Weight: 13,3 kg

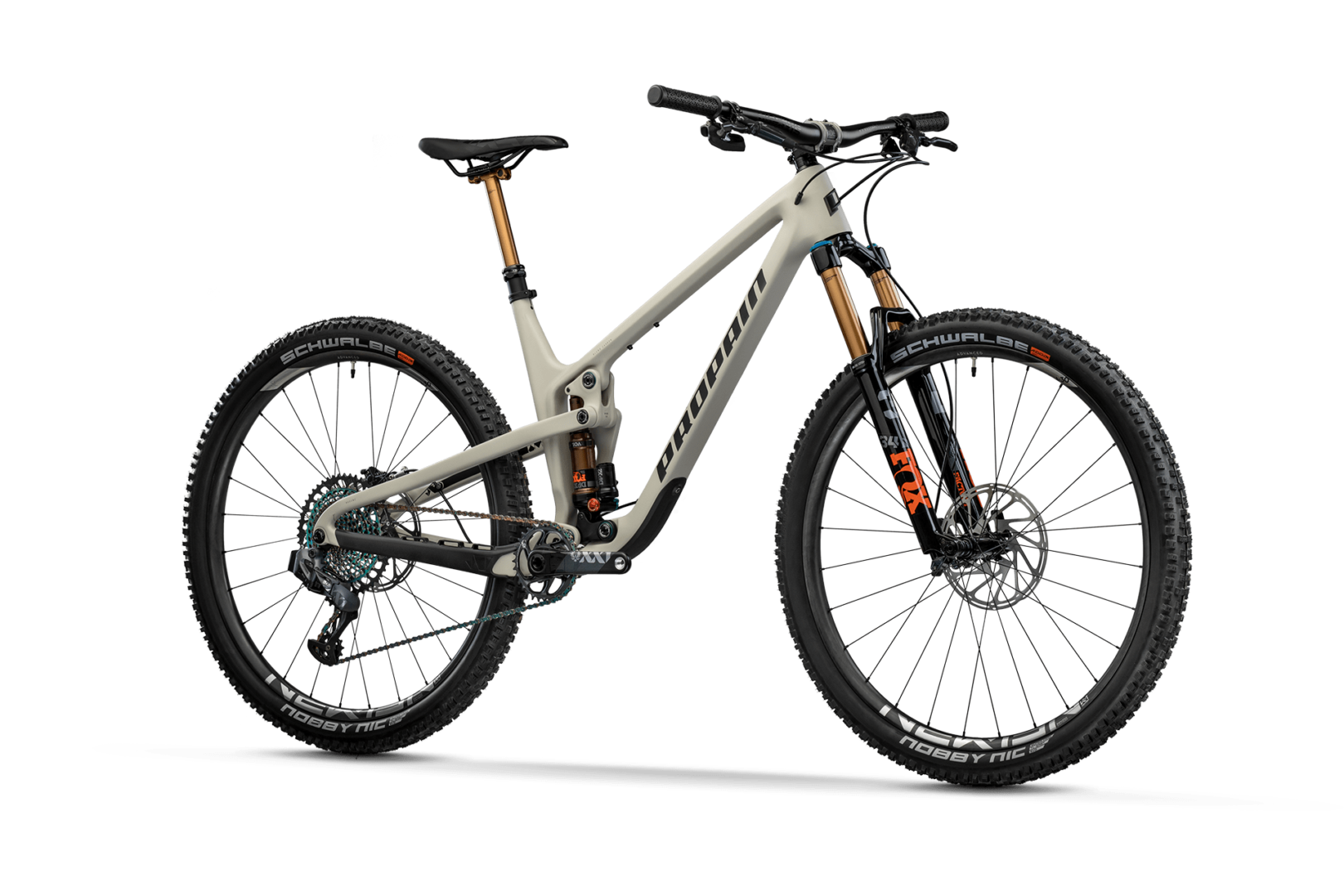

Hugene High End

  • Fork: Fox 36 Factory Kashima 150mm
  • Shock: Fox DPX2 Factory Kashima 130mm
  • Front Brake: Magura MT7 203mm
  • Rear Brake: Magura MT7 180mm
  • Saddle: SIXPACK Kamikaze
  • Seatpost: Fox Factory Transfer Kashima
  • Wheels: Reynolds Black Label Carbon Enduro
  • Crank: SRAM XX1 Carbon Eagle 175mm 32Z
  • Derailleur: SRAM AXS XX1 Eagle (1×12)
  • Trigger: SRAM AXS Eagle Controller
  • Casette: SRAM XG-1299 Eagle Rainbow
  • Handlebar: SIXPACK Millenium Carbon 805
  • Stem: SIXPACK Leader 50
  • Tires: Schwalbe Magic Mary/Hans Dampf Addix Soft
  • Weight: 13,1 kg

Frame Sizes

The frame size is an essential part of the bike performance and above all of the riding fun. Select your required frame size from the table. If you stand between two sizes, then you only have to decide whether you like it playful or smooth running. For smooth running choose the larger frame size, for playful the smaller.


The adjustable seat post is probably one of the most ingenious inventions of recent years. In order for it to function optimally on the trail, the proper seatpost travel is very important. The following table shows the recommended minimum inseam for the corresponding frame size. Please keep in mind that this is only a recommendation, as the respective sitting position depends very much on personal habits and preferences.

* inside leg length in cm
Bikeyoke Revive 125 72,5 75,5 78,5 81,5
Kind Shock Lev 125 73,5 76,5 79,5 82,5
Fox Transfer 125 74,5 77,5 80,5 83,5
Bikeyoke Revive 160 / Kinds Shock Lev 150 76,0 79,0 82,0 85,0
Fox Transfer 150 77,0 80,0 83,0 86,0

Technical Data

Shock length 190 mm
Shock travel 45 mm
Shock mount 8 x 30 mm
Rear wheel travel 130 mm
Bottom bracket BSA 73 mm
Brake mount Postmount 180
Seatpost diameter 31,6 mm
Headset (S.H.I.S) Tapered - Top: IS42 / Bottom: IS52
Rear wheel axle 148 mm x 12 mm (X12)
Front derailleur none
Chainline 52 mm (Boost)
Chainguide mount none
Wheel size 29"
Maximum fork travel 150 mm
Frame weight 2,4 kg (Size M)


Frame height (A) 410 mm / 16,5″ 440 mm / 17,5″ 470 mm / 18,5″ 500 mm / 19,5″
Wheelbase (M) 1.146 mm 1.175 mm 1.204 mm 1.232 mm
Top tube length (G) 571 mm 599 mm 626 mm 654 mm
Fork offset (B) 51 mm 51 mm 51 mm 51 mm
Fork length (C) 546 mm 546 mm 546 mm 546 mm
Chainstay length (L) 445 mm 445 mm 445 mm 445 mm
Reach (E) 410 mm 435 mm 460 mm 485 mm
Stack (F) 602 mm 612 mm 621 mm 630 mm
Head angle (J) 67,5° 67,5° 67,5° 67,5°
Seat angle – real (H) 71° 71° 71° 71°
Seat angle – effective (I) 75° 75° 75° 75°
Head tube length (D) 95 mm 105 mm 115 mm 125 mm
BB offset (K) 30 mm 30 mm 30 mm 30 mm
Frame height (A)410 mm / 16,5″440 mm / 17,5″470 mm / 18,5″500 mm / 19,5″
Wheelbase (M)1.150 mm1.179 mm1.208 mm1.236 mm
Top tube length (G)573 mm601 mm628 mm656 mm
Fork offset (B)51 mm51 mm51 mm51 mm
Fork length (C)556 mm556 mm556 mm556 mm
Chainstay length (L)445 mm445 mm445 mm445 mm
Reach (E)407 mm432mm457 mm482 mm
Stack (F)605 mm615 mm624 mm633 mm
Head angle (J)67,0°67,0°67,0°67,0°
Seat angle – real (H)70,5°70,5°70,5°70,5°
Seat angle – effective (I)74,5°74,5°74,5°74,5°
Head tube length (D)95 mm105 mm115 mm125 mm
BB offset (K)28 mm28 mm28 mm28 mm
