Tyee AM 2019 – Carbon Allmountainbike in 27.5″

The Chief’s “little brother” (Tyee: native American for chief) is a trail bike with Enduro gens. Some bike magazines that have tested this bike in the past have therefore named it Trailduro. But it’s not there to define a new bike category, it’s simply a playful trailbike that is not scared of some serious downhill action. For 2019 the Tyee AM Carbon presents itself in new guise. Various changes on the bike promise to make the Tyee an even greater and more reliable ride than ever before.

We will help you on your way to your personal dream bike. Our options are only a preliminary recommendation, because your needs are as individual as you are. We have put together three pre-configured models for you. In our configuration tool, however, you can still adapt every single part of all models to your wishes. Have fun building your dream bike.

Colors
ForkRock Shox Revelation RC 150 mm
Rear shockRock Shox Deluxe R 145 mm
Brake frontSram Guide R 200 mm
Brake rearSram Guide R 180 mm
SaddleSixpack Kamikaze
SeatpostSixpack Menace
WheelsPropain ZTR FLOW S1
CranksTruvativ Descendant Eagle 175 mm 32Z
Rear derailleurSram GX Eagle (1×12)
ShifterSram GX Eagle (1×12)
CassetteSram XG1275 10-50 (1×12)
HandlebarSixpack Millenium 785
StemSixpack Leader 50
TiresSchwalbe Hans Dampf Addix Soft
Weight13,2 kg
Price€ 3.000
Colors
ForkRock Shox Pike RCT3 Solo Air 150 mm
Rear shockRock Shox Super Deluxe RC3 145 mm
Brake frontSram Guide RSC 200 mm
Brake rearSram Guide RSC 180 mm
SaddleSelle Italia XR
SeatpostBikeyoke Revive
WheelsPropain ZTR FLOW MK3
CranksTruvativ Descendant Carbon Eagle 175 mm 32Z
Rear DerailleurSram X01 Eagle (1×12)
ShifterSram X01 Eagle (1×12)
CassetteSram XG1275 10-50 (1×12)
HandlebarSixpack Millenium 785
StemSixpack Leader 50
TiresSchwalbe Hans Dampf Addix Soft
Weight12,9 kg
Price€ 4.155
Colors
ForkFox 34 Factory Kashima 150 mm
Rear shockFox DPX2 Factory Kashima 145 mm
Brake frontMagura MT7 203 mm
Brake rearMagura MT7 180 mm
SaddleSelle Italia SLR
SeatpostFox Factory Transfer
WheelsReynolds Black Label Carbon Enduro
CranksSram XX1 Carbon Eagle 175 mm 32Z
Rear derailleurSram XX1 Eagle (1×12)
ShifterSram XX1 Eagle (1×12)
CassetteSram XG1295 10-50 (1×12)
HandlebarSixpack Millenium Carbon 785
StemSixpack Leader 50
TiresSchwalbe Hans Dampf Addix Soft
Weight12,6 kg
Price€ 6.300

Frame size

The frame size is an essential part of the bike performance and above all of the riding fun. Select your required frame size from the table. If you stand between two sizes, then you only have to decide whether you like it playful or smooth running. For smooth running choose the larger frame size, for playful the smaller.

Seatpost

The adjustable seat post is probably one of the most ingenious inventions of recent years. In order for it to function optimally on the trail, the proper seatpost travel is very important. The following table shows the recommended minimum inseam for the corresponding frame size. Please keep in mind that this is only a recommendation, as the respective sitting position depends very much on personal habits and preferences

TYEE AM CARBONSMLXL
Bikeyoke Revive 12573,576,078,581,0
Kind Shock Lev 12574,577,079,582,0
Fox Transfer 12575,578,080,583,0
Bikeyoke Revive 160 / Kinds Shock Lev 15077,079,582,084,5
Fox Transfer 15078,080,583,085,5
Shock length210 mm
Shock travel50 mm
Shock mountTop: 8 x 30 mm / Bottom: 8 x 25 mm
Rear wheel travel145 mm
Bottom Bracket BSA73 mm
Brake mountPostmount 180
Seatpost diameter31,6 mm
Headset (S.H.I.S.)Tapered – Top: IS42 / Bottom: IS52
Rear wheel axle148 mm x 12 mm (X12)
Front deraillurenone
Chainline52 mm (Boost)
ChainguideISCG 05
Wheels650B
Maximum fork travel150 mm
Frame weight2,3 kg (Size M)

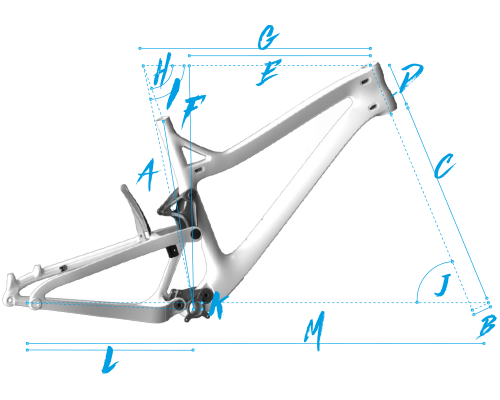

Tyee_CF
SIZE SSIZE MSIZE LSIZE XL
Frame size (A)420 mm / 16,5″445 mm / 17,5″470 mm / 18,5″490 mm / 19,5″
Wheelbase (M)1.173 mm1.202 mm1.224 mm1.249 mm
Top tube length (G)566 mm596 mm614 mm641 mm
Head tube lenght (D)111 mm121 mm126 mm137 mm
Fork offset (B)40 mm40 mm40 mm40 mm
Fork length (C)544 mm544 mm544 mm544 mm
Chainstay length (L)445 mm445 mm445 mm445 mm
Reach (E)420 mm445 mm465 mm485 mm
Stack (F)586 mm592 mm602 mm612 mm
Head angle (J)65,5°65,5°65,5°65,5°
Seat angle (actual) (H)66,5°66,5°66,5°66,5°
Seat angle (effective) (I)76,3°76,3°76,3°76,3°
BB offset (K)9 mm9 mm9 mm9 mm
