Tyee 2019 – Carbon Endurobike in 27.5″

The Chief (Tyee: native American for chief) presents itself in new guise. Various changes on the Tyee Carbon promise to make it an even greater and more reliable ride than ever before. At first glimpse not much has changed for the Tyee Carbon. But the inner values are the ones that really matter and beside some design details this is where most of the changes are hidden. Typically for Propain the frame was gradually improved and modernized. The new Tyee now features a new modern geometry, bigger bearings with additional dust cap seals, a new downtube protector and mud fender, and more clearance for additional shock options.

We will help you on your way to your personal dream bike. Our options are only a preliminary recommendation, because your needs are as individual as you are. We have put together three pre-configured models for you. In our configuration tool, however, you can still adapt every single part of all models to your wishes. Have fun building your dream bike.

Colors
ForkRock Shox Yari RC 160 mm
Rear shockRock Shox Deluxe R 160 mm
Brake frontSram Guide R 200 mm
Brake rearSram Guide R 180 mm
SaddleSixpack Kamikaze
SeatpostSixpack Menace
WheelsPropain ZTR FLOW S1
CranksTruvativ Descendant Eagle 175 mm 32Z
Rear derailleurSram GX Eagle (1×12)
ShifterSram GX Eagle (1×12)
CassetteSram XG1275 10-50 (1×12)
HandlebarSixpack Millenium 785
StemSixpack Leader 50
TiresSchwalbe Magic Mary Addix Soft
Weight13,4 kg
Price€ 3.000
Colors
ForkRock Shox Lyrik Ultimate RC2 Air 160 mm
Rear shockRock Shox Super Deluxe Coil RTR Twistloc 160 mm
Brake frontSram Code RSC 200 mm
Brake rearSram Code RSC 180 mm
SaddleSelle Italia XR
SeatpostBikeyoke Revive
WheelsPropain ZTR FLOW MK3
CranksTruvativ Descendant Carbon Eagle 175 mm 32Z
Rear derailleurSram X01 Eagle (1×12)
ShifterSram X01 Eagle (1×12)
CassetteSram XG1275 10-50 (1×12)
HandlebarSixpack Millenium 785
StemSixpack Leader 50
TiresSchwalbe Magic Mary Addix Soft
Weight13,1 kg
Price€ 4.295
Colors
ForkFox 36 Factory Kashima 160 mm
Rear shockFox DPX2 Factory Kashima 160 mm
Brake frontMagura MT7 203 mm
Brake rearMagura MT7 180 mm
SaddleSelle Italia SLR
SeatpostFox Factory Transfer
WheelsReynolds Black Label Carbon Enduro
CranksSram XX1 Carbon Eagle 175 mm 32Z
Rear derailleurSram XX1 Eagle (1×12)
ShifterSram XX1 Eagle (1×12)
CassetteSram XG1295 10-50 (1×12)
HandlebarSixpack Millenium Carbon 785
StemSixpack Leader 50
TiresSchwalbe Magic Mary Addix Soft
Weight12,8 kg
Price€ 6.455

Frame size

The frame size is an essential part of the bike performance and above all of the riding fun. Select your required frame size from the table. If you stand between two sizes, then you only have to decide whether you like it playful or smooth running. For smooth running choose the larger frame size, for playful the smaller.

Seatpost

The adjustable seat post is probably one of the most ingenious inventions of recent years. In order for it to function optimally on the trail, the proper seatpost travel is very important. The following table shows the recommended minimum inseam for the corresponding frame size. Please keep in mind that this is only a recommendation, as the respective sitting position depends very much on personal habits and preferences.

TYEE CARBONSMLXL
Bikeyoke Revive 12573,576,078,581,0
Kind Shock Lev 12574,577,079,582,0
Fox Transfer 12575,578,080,583,0
Bikeyoke Revive 160 / Kinds Shock Lev 15077,079,582,084,5
Fox Transfer 15078,080,583,085,5
Shock length210 mm
Shock travel55 mm
Shock mountTop: 8 x 30 mm / Bottom: 8 x 25 mm
Rear wheel travel160 mm
Bottom Bracket BSA73 mm
Brake mountPostmount 180
Seatpost diameter31,6 mm
Headset (S.H.I.S.)Tapered – Top: IS42 / Bottom: IS52
Rear wheel axle148 mm x 12 mm (X12)
Front deraillurenone
Chainline52 mm (Boost)
Chainguide mountISCG 05
Wheel size650B
Maximum fork travel170 mm
Frame weight2,3 kg (Size M)
Tyee_CF

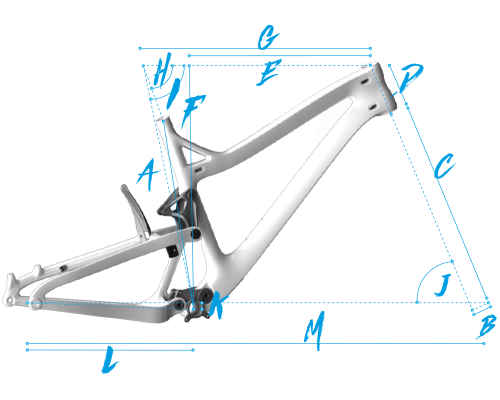

SIZE SSIZE MSIZE LSIZE XL
Frame size (A)420 mm / 16,5″445 mm / 17,5″470 mm / 18,5″490 mm / 19,5″
Wheelbase (M)1.177 mm1.206 mm1.229mm1.253 mm
Top tube length (G)568 mm596 mm617 mm642 mm
Head tube length (D)111 mm121 mm126 mm137 mm
Fork offset (B)40 mm40 mm40 mm40 mm
Fork length (C)554 mm554 mm554 mm554 mm
Chainstay length (L)445 mm445 mm445 mm445 mm
Reach (E)415 mm440 mm460 mm480 mm
Stack (F)590 mm600 mm606 mm616 mm
Head angle (J)65°65°65°65°
Seat angle (actual) (H)66°66°66°66°
Seat angle (effective) (I)76°76°76°76°
BB offset (K)6 mm6 mm6 mm6 mm
