1.399,00 €

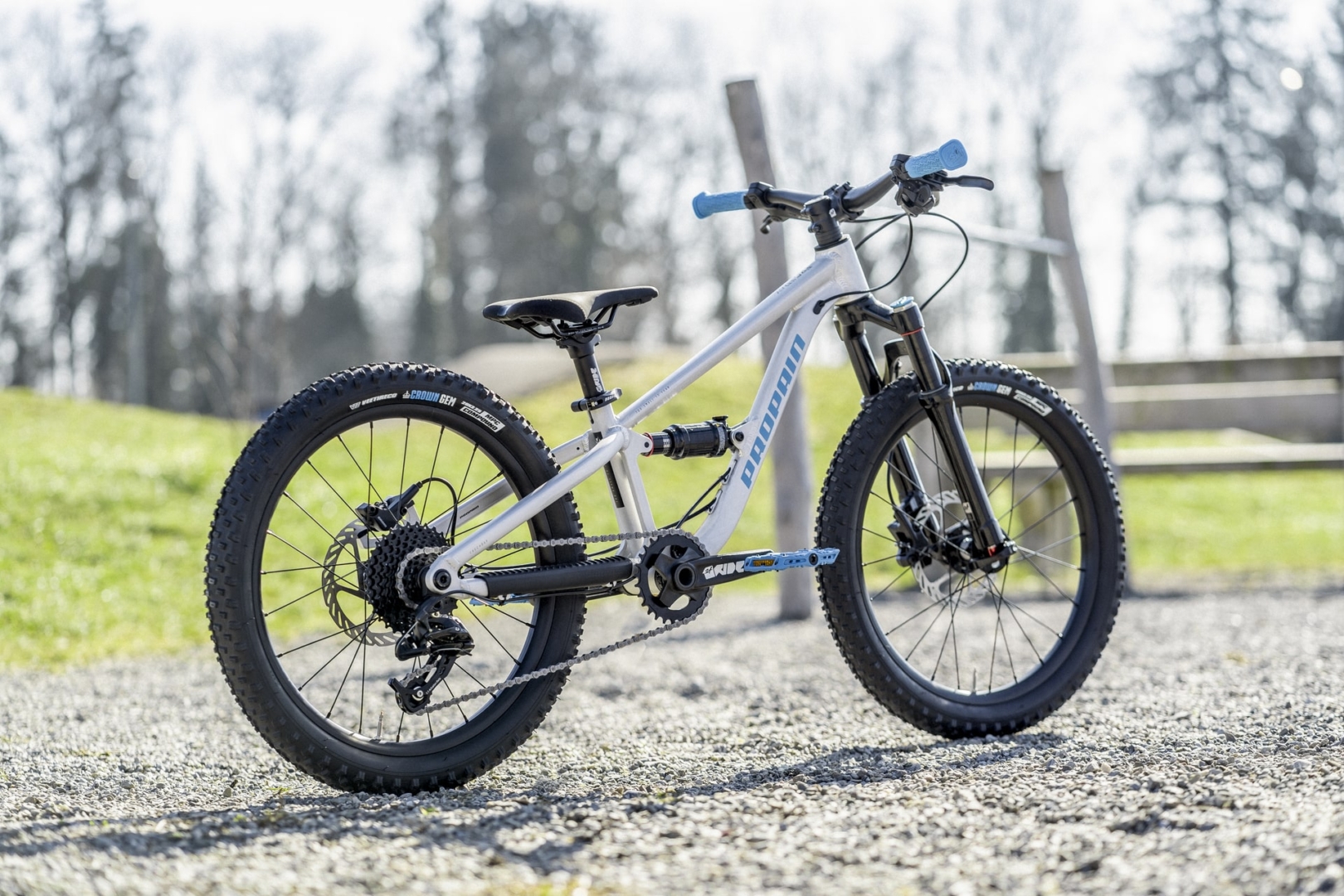

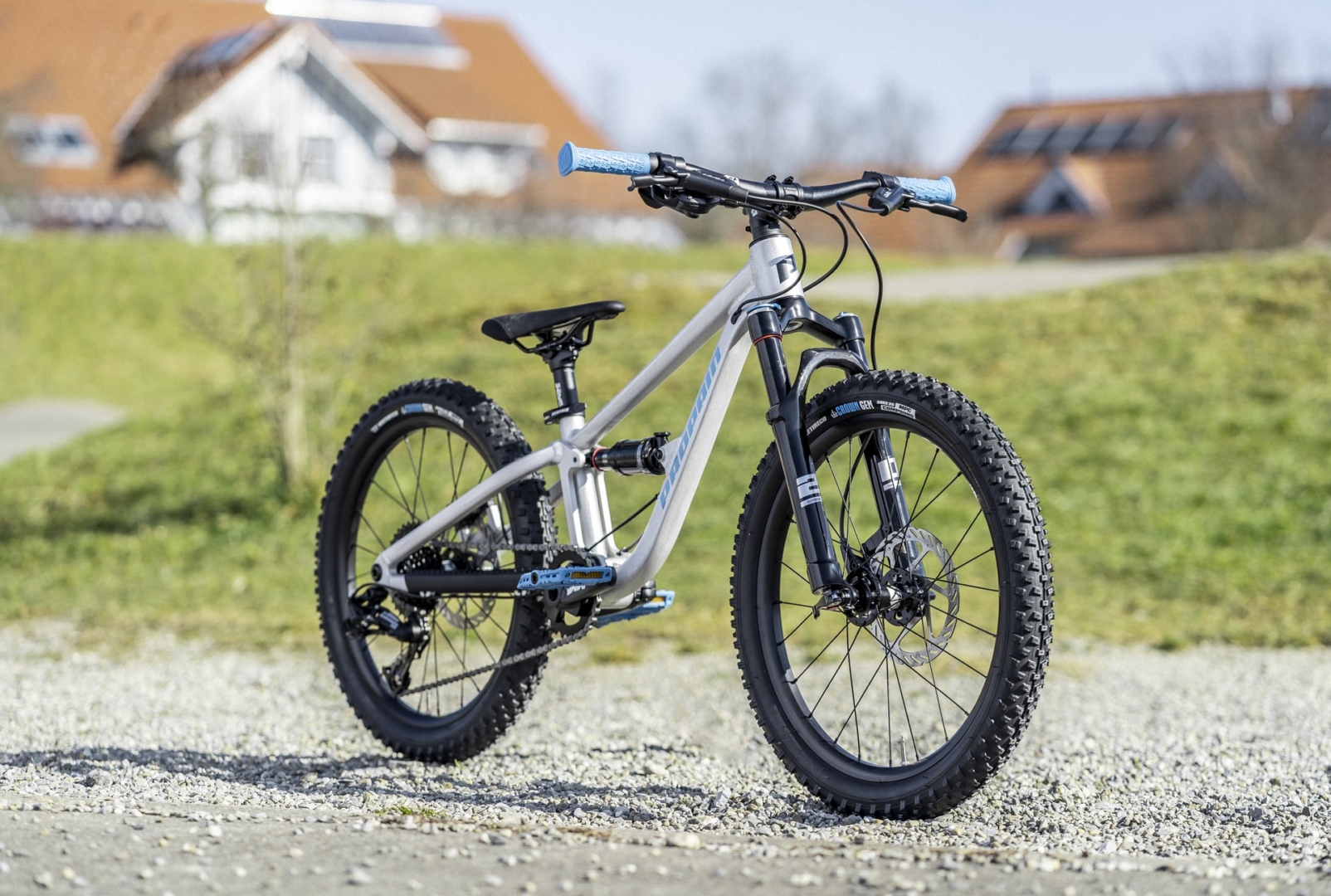

It’s really amazing what kids today are capable of on two wheels at an ever-younger age. For a long time, the limiting factor with kids mountain bikes were the equipment. The Frechdax 3 offers exactly that and opens up the world of full suspension mountain bikes for the next generation. With Sixpack 1st Ride components, that were developed just for kids and paired with selected components from the best brands along with carefully engineered geometry, gives kids a fun ride for every challenge. This is what makes the Frechdax 3 what it is: The tool for Young Shredders, that sets no limits!
The Frechdax 3 is recommended for children between 110 and 135 cm (5 to 8 years).
1.399,00 €

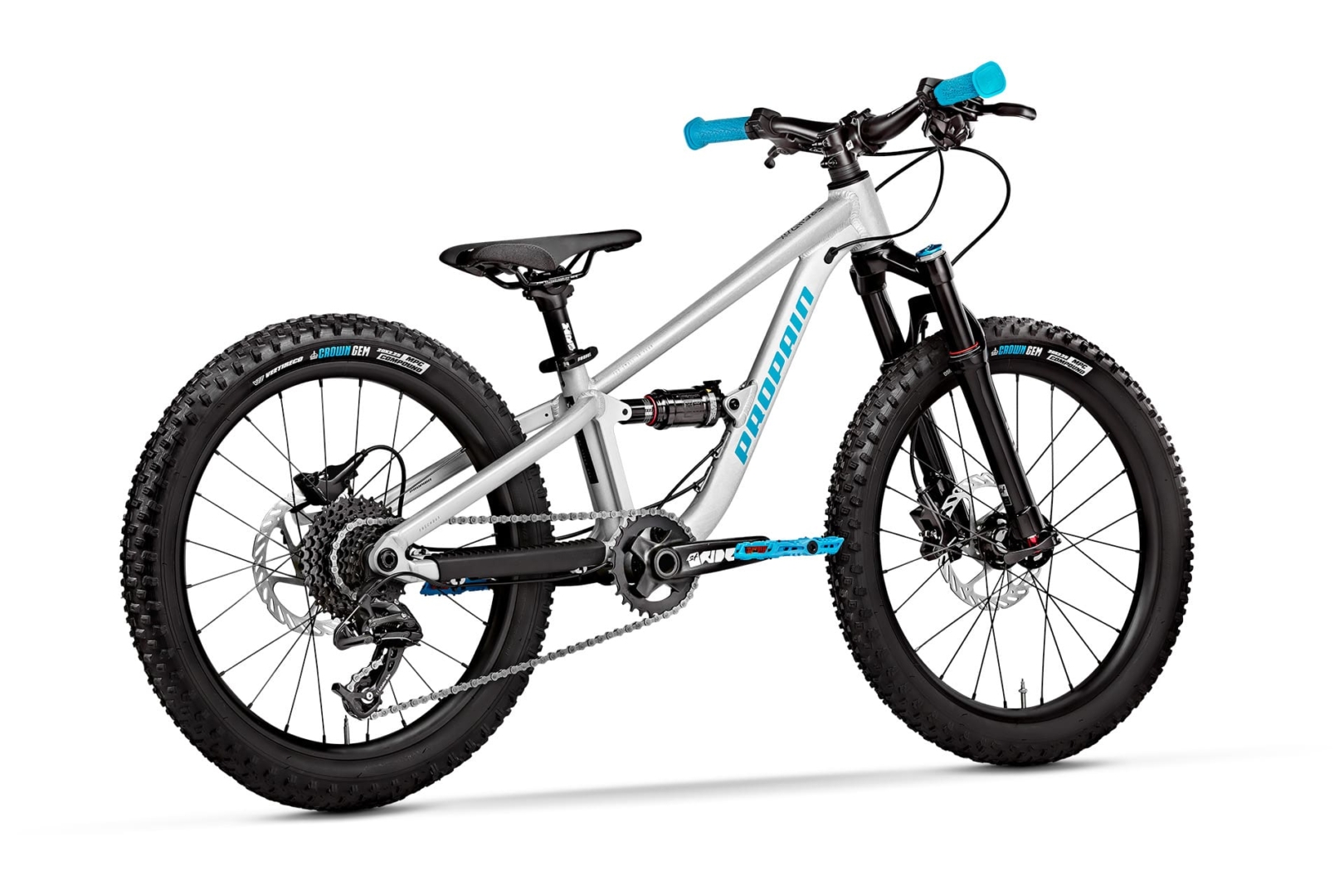

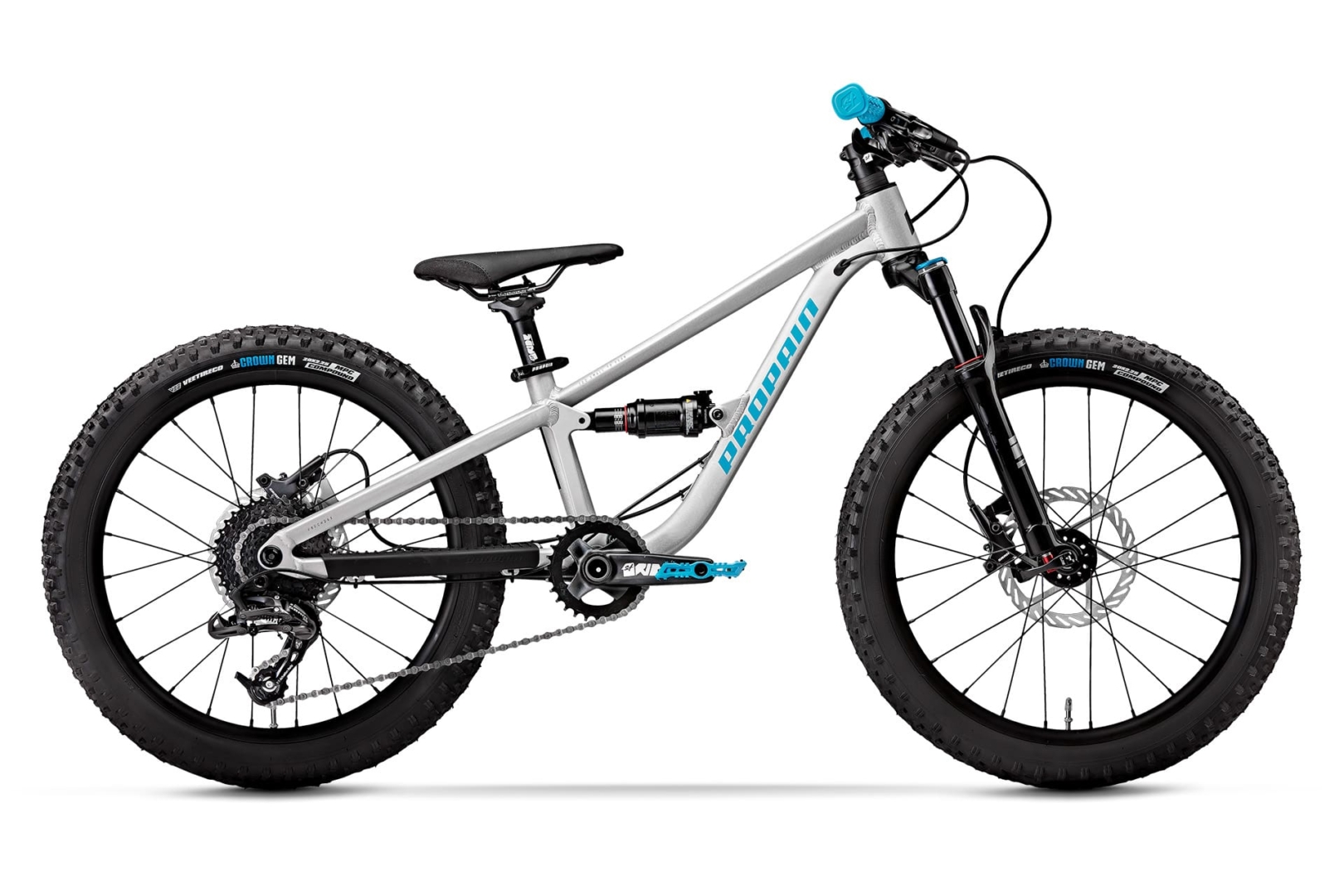

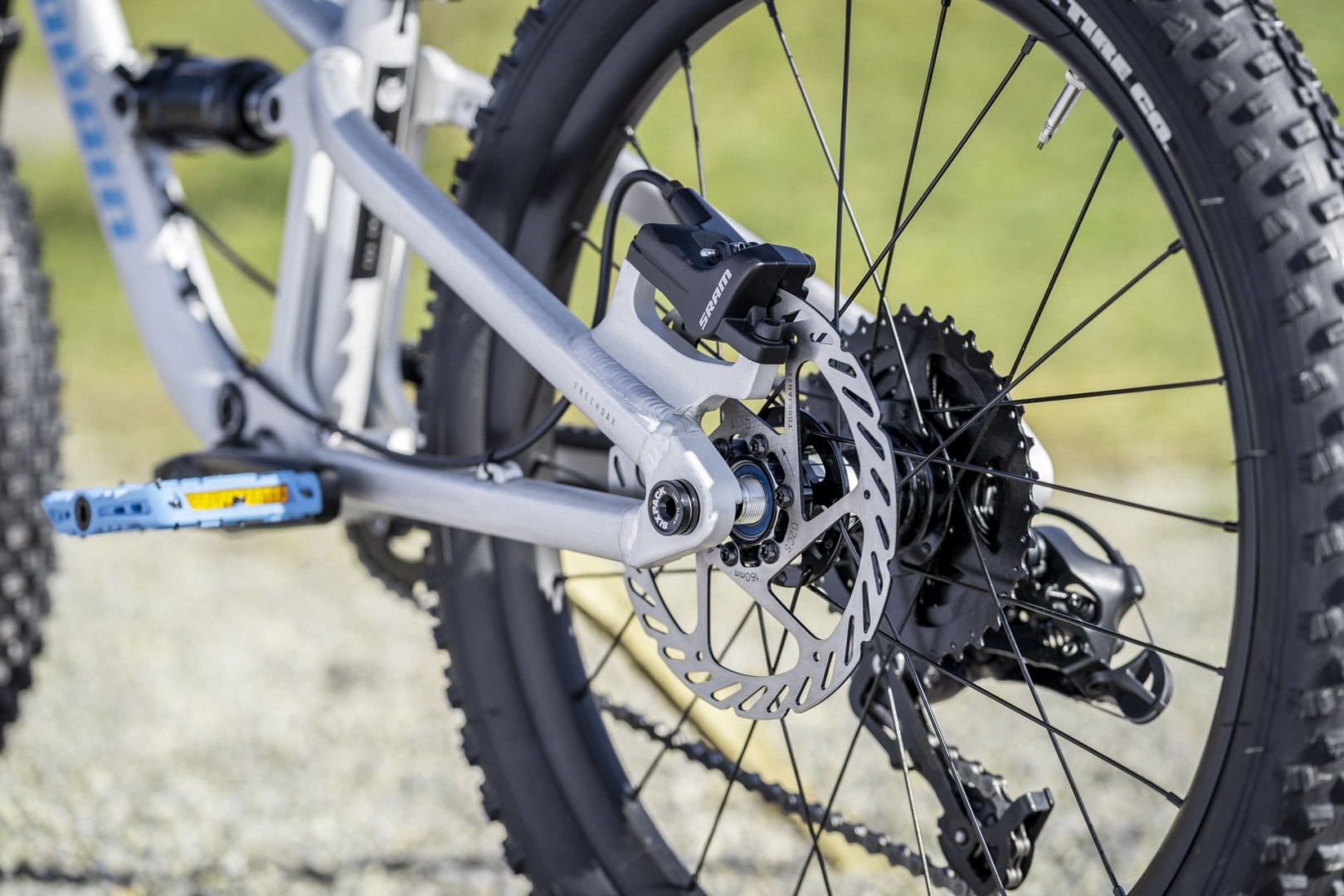

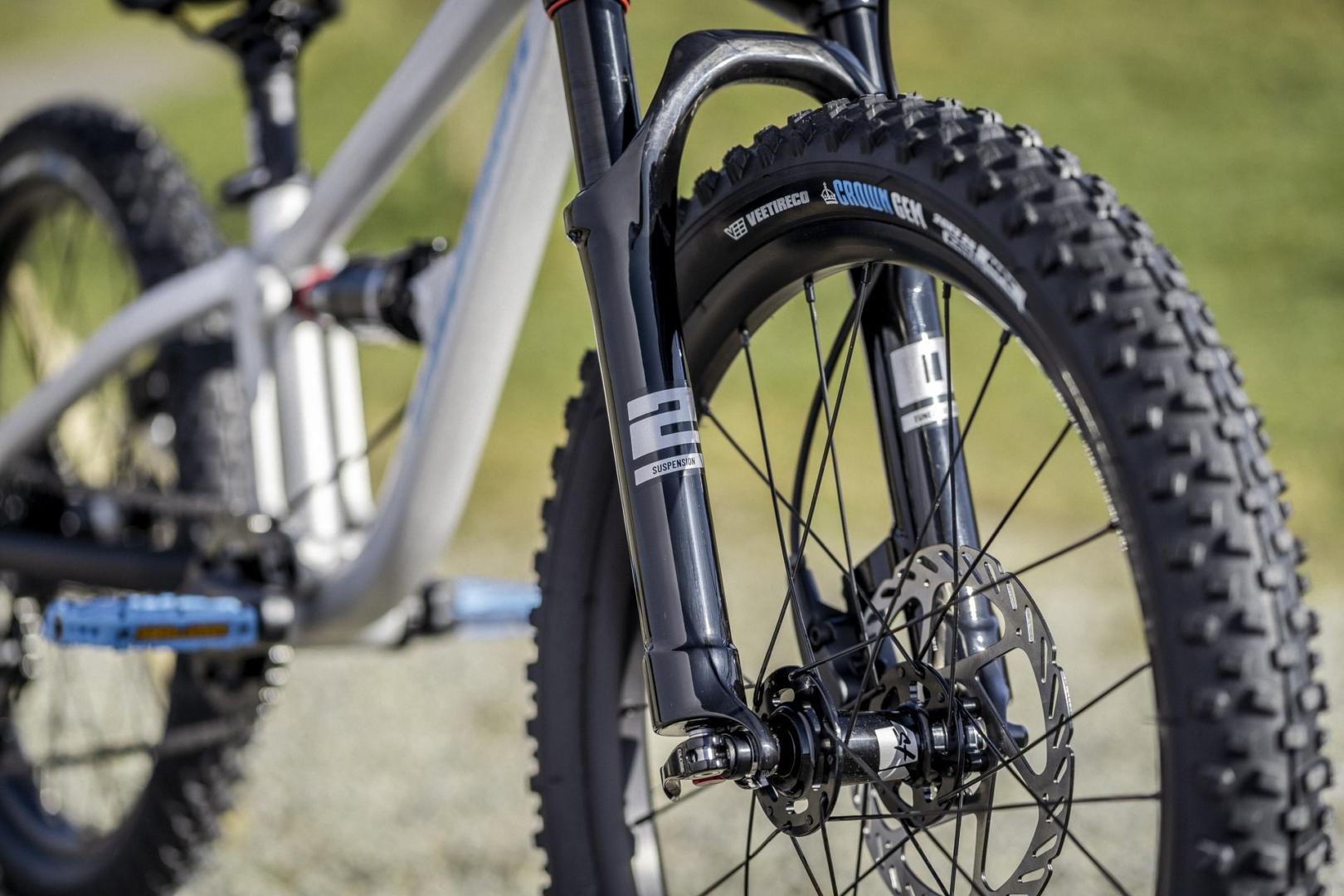

The geometry of the Frechdax 3 offers a safe and smooth ride even when it gets faster, but still offers an agile and easy to control bike on technical trails and in tight corners. The classic single-pivot rear triangle with an optimized pivot point, in combination with the specially tuned RockShox rear shock, give the Frechdax 3 small bump sensitivity and a minimal pedal bob. The 1st Ride suspension fork with carbon reinforced crown, adapted air chamber and negative spring completes the suspension and provides the best ride for kids between 20 and 40 kg body weight. In our experience, the 20″ wheels offer the best combination between easy handling and low rolling resistance for the Frechdax 3 age group.

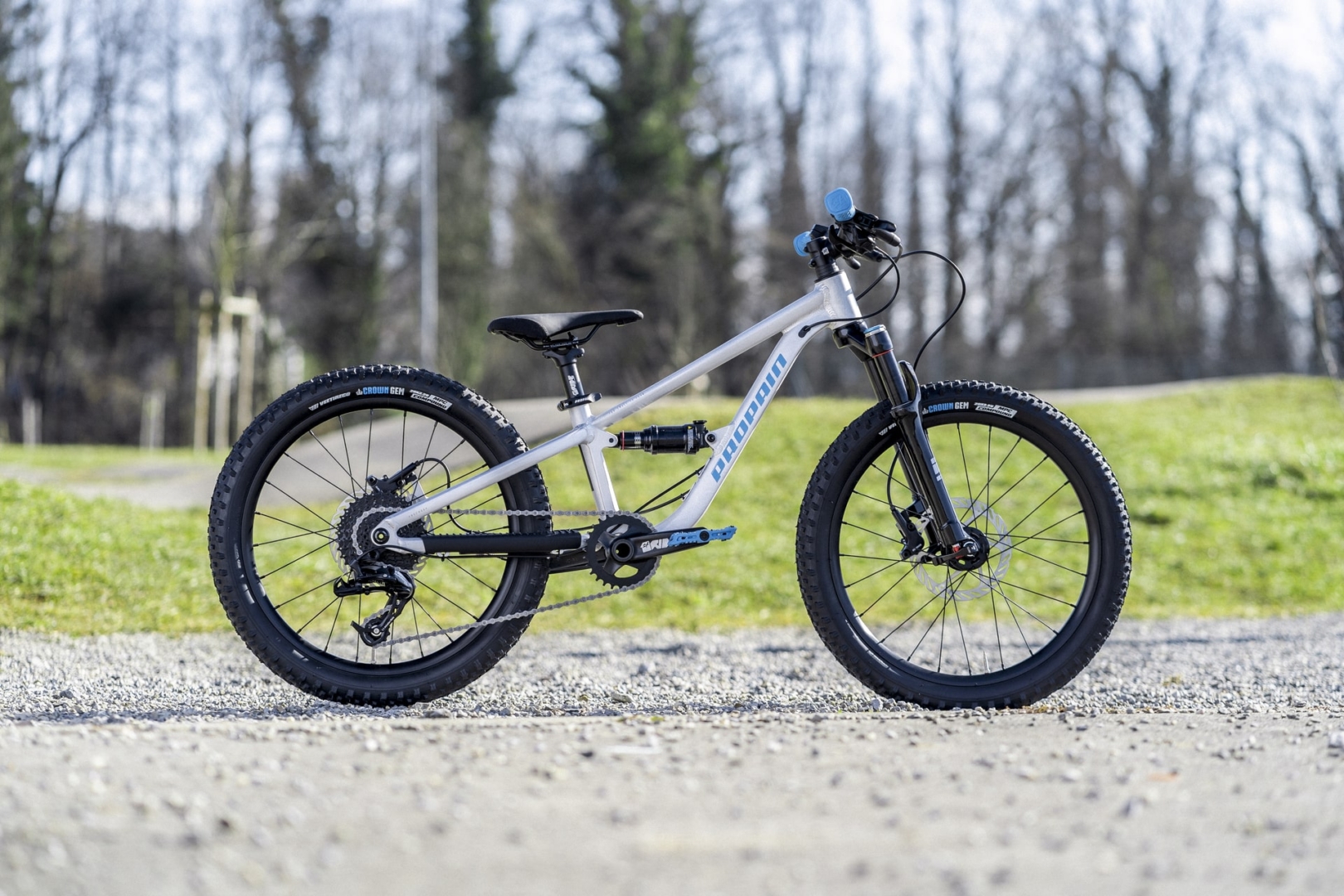

The frame of the Frechdax 3 is manufactured from a hydroformed aluminum tubeset designed specifically to the requirements of small riders. High strength with minimal weight allow the Frechdax 3 to easily withstand the first jumps and drops. Internally routed cables, a BSA bottom bracket and a SRAM UDH derailleur hanger, which can be quickly replaced if necessary, round off the Frechdax 3.
We fit a SRAM 9-speed derailleur to the Frechdax 3, that offers an optimum range of gear ratios with low maintenance and reliability. This means that the little ones can easily climb even steep hills – unless they run out of energy and the parents are once again obliged to tow them up the hill.

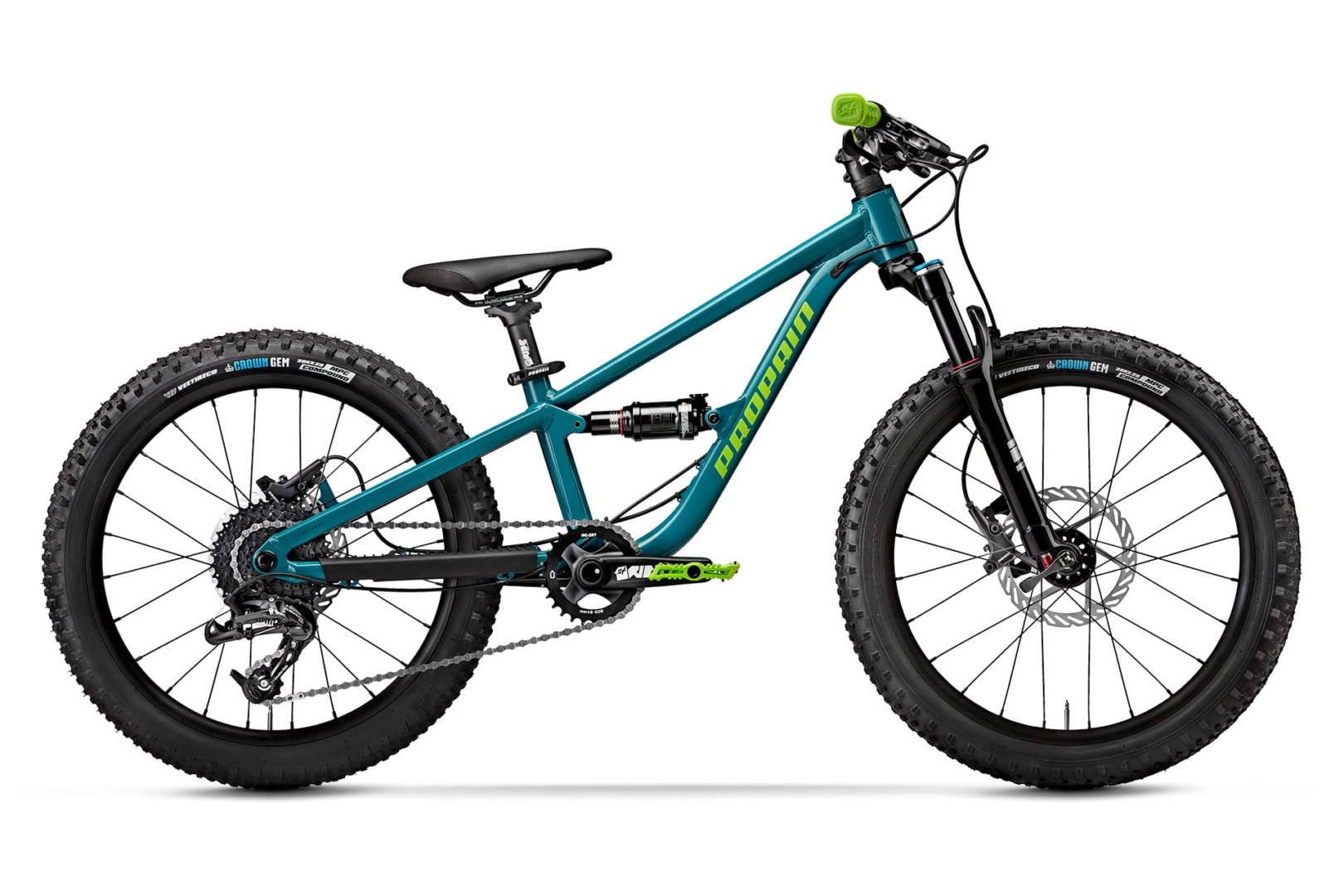

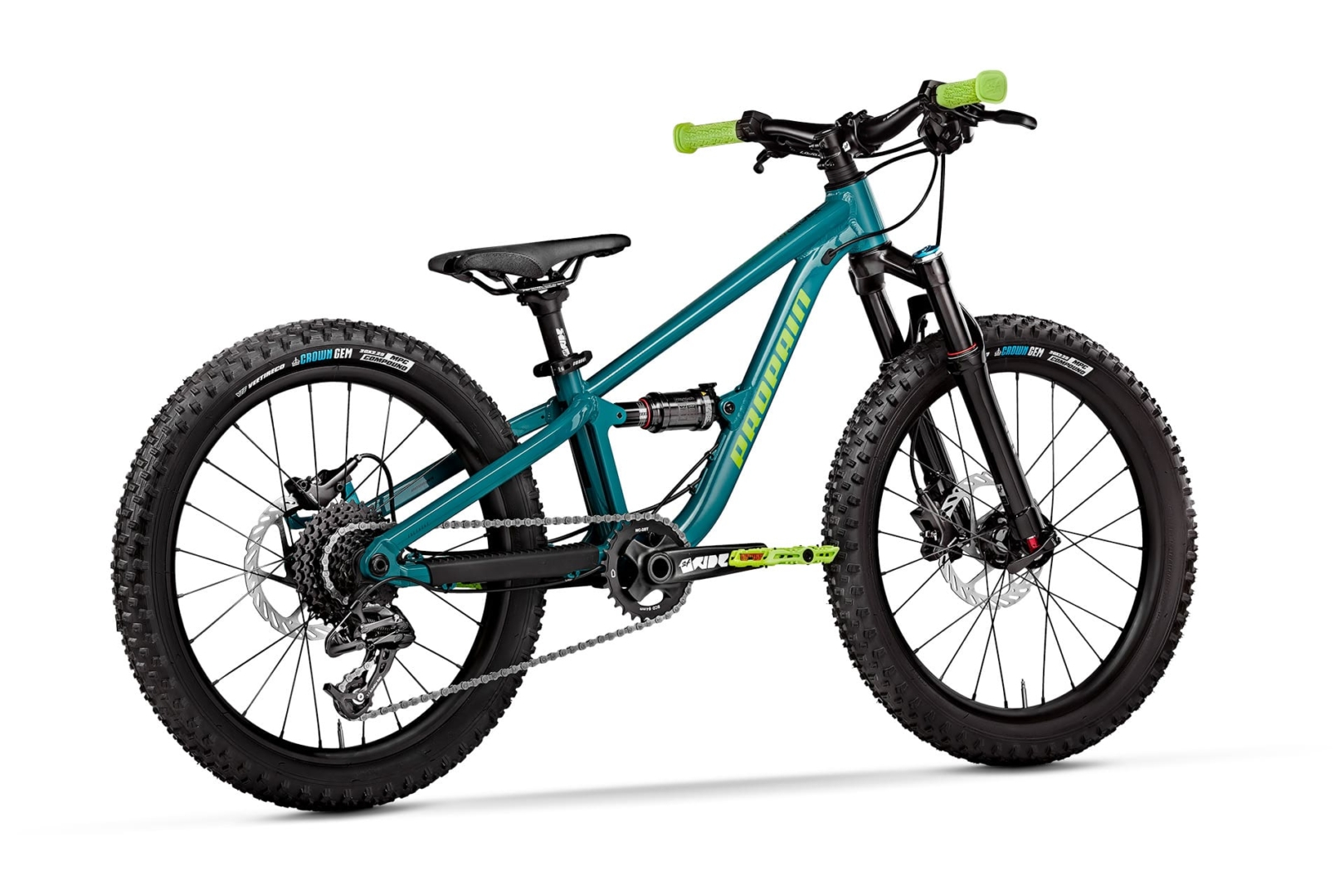

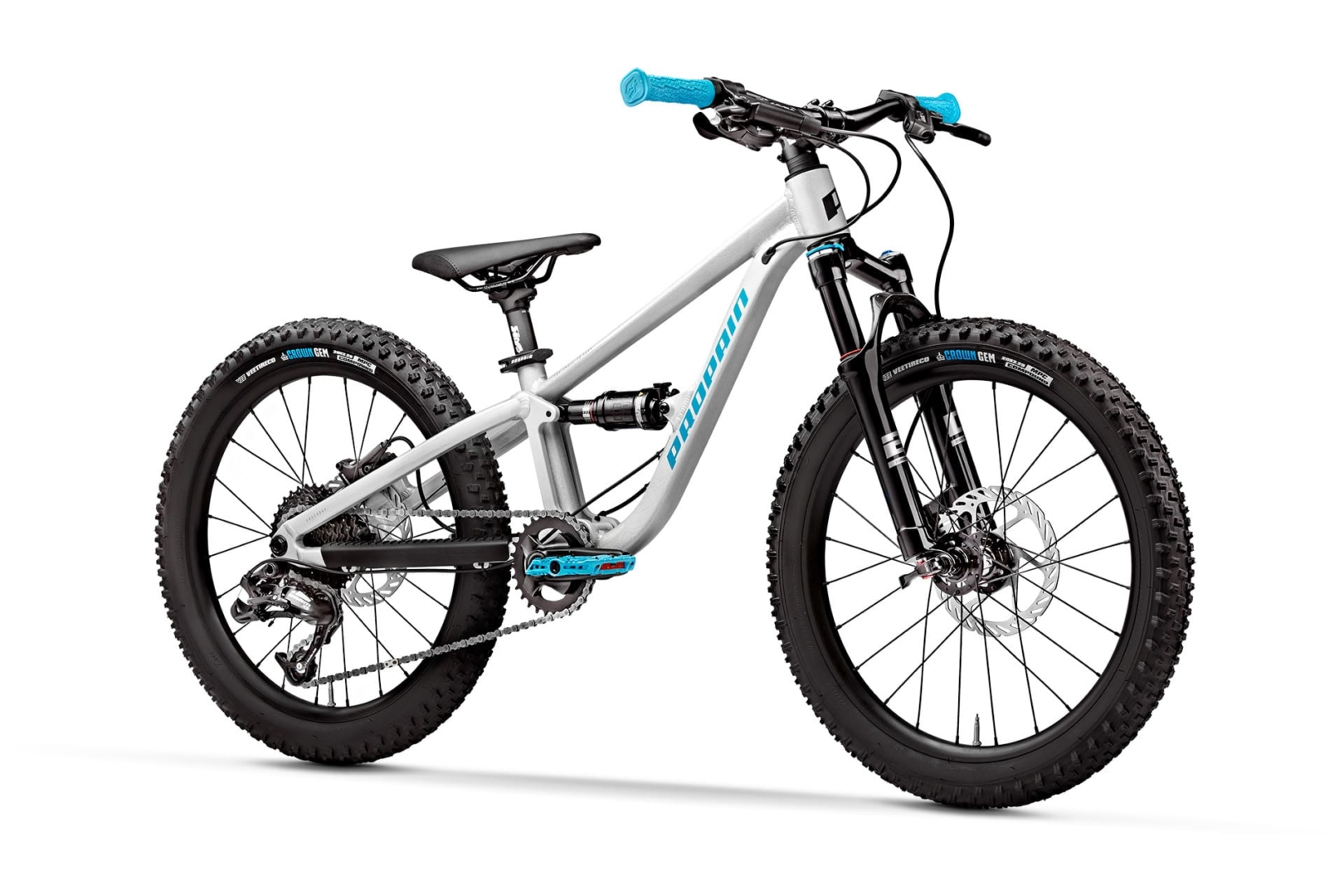

With our configurator you have the possibility to create your own Frechdax 3. Choose from two frame colors and four colors for pedals, grips and decals. Try it out right away!
Fork
1st Ride Fork
80 mm
Shock
RockShox Monarch
90 mm
Brakes
SRAM Level
160mm / 160mm
Wheels
NEWMEN 1st Ride 20″
Frequently Asked Questions – bitte leer lassen
Seatpost
1st Ride
Drive train unit
SRAM X5 (1×9)
Trigger
SRAM X5 (1×9)
Derailleur
SRAM X5 (1×9)
Cassette
SRAM PG-920
Crank
1st Ride 115 mm
Handlebar
1st Ride 560 mm
Stem
1st Ride 31.8 mm
Saddle
1st Ride
Tires
VEE Crown Gem
Weight
10.5 kg
14″: 90-110 cm / 16″: 95-115 cm / 20″: 110-135 cm / 24″: 130-145 cm / 24″: 145-160 cm
| 90 cm | 100 cm | 110 cm | 120 cm | 130 cm | 140 cm | 150 cm | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 14″ | |||||||||||
| 16″ | |||||||||||
| 20″ | |||||||||||
| 24″ | |||||||||||
| 26″ | |||||||||||
| Shock length | 152 mm |
| Shock travel | 31 mm |
| Shock bushings | Top: 8 x 18 mm / Bottom: 8 x 41 mm |
| Travel (Frame) | 90 mm |
| Max. Travel (Fork) | 100 mm |
| Bottom bracket BSA | 73 mm |
| Brake mount (Frame) | Postmount 160 |
| Seatpost diameter | 27.2 mm |
| Max. Seatpost insert length | 195 mm |
| Headset (S.H.I.S.) | Top: ZS44 / Bottom: ZS44 |
| Rear wheel axle | 142 mm x 12 mm |
| Chainline | 49 mm |
| Derailleur hanger | SRAM UDH |
| Wheel size | 20″ |
| Frame weight | 1.7 kg |
| Max. rider weight | 40 kg |

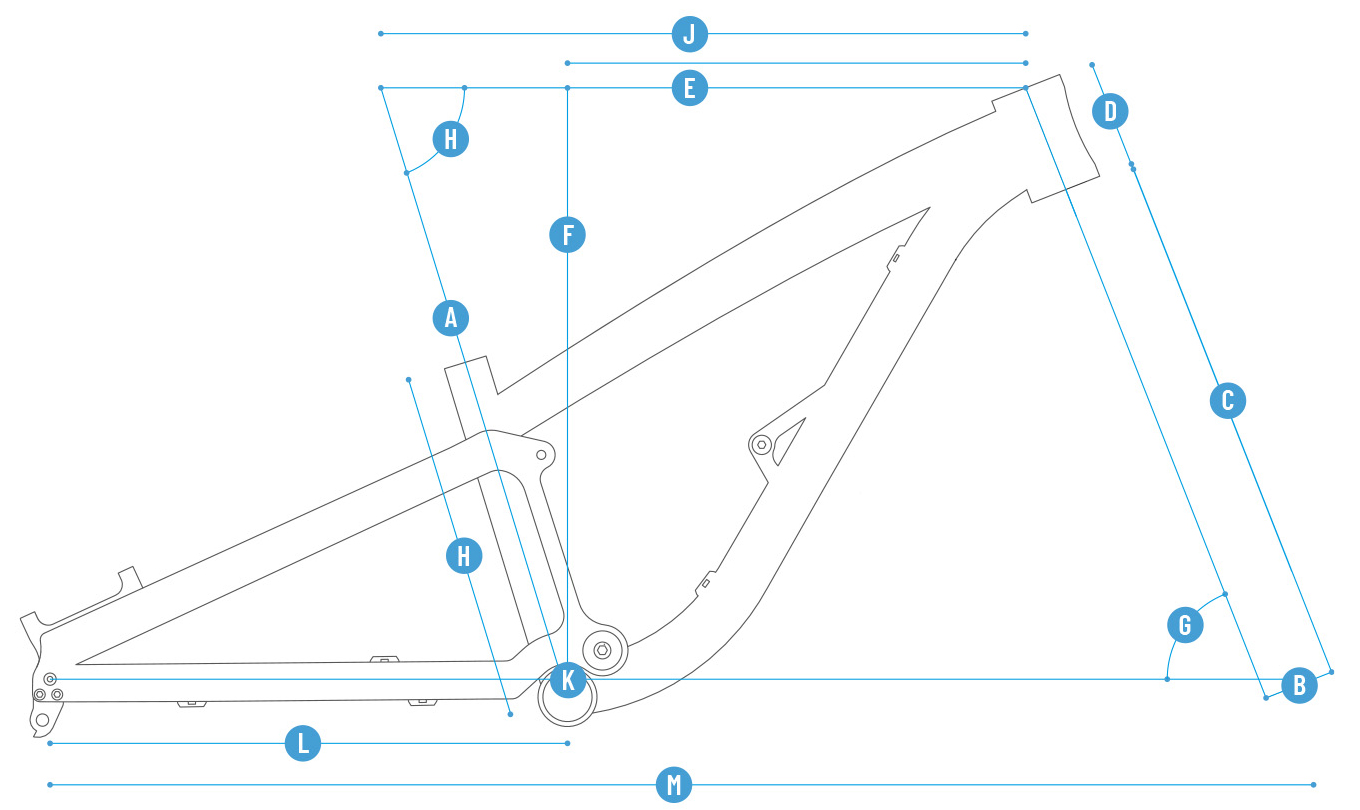

| Frame height (A) | 240 mm |
| Fork offset (B) | 35 mm |
| Fork length (C) | 375 mm |
| Head tube length (D) | 75 mm |
| Reach (E) | 314 mm |
| Stack (F) | 421 mm |
| Head angle (G) | 68.5° |
| Seat angle (H) | 73° |
| Top tube length (I) | 442 mm |
| BB offset (J) | 12 mm |
| Chainstay length (K) | 360 mm |
| Wheelbase (L) | 872 mm |
| Standover height (M)* | 537 mm |
