This is it, your first proper mountain bike. With 140 mm travel and a great spec, it’s the perfect playmate for your next adventure. Whether on the pump track, a bike park session or in the woods behind the house. Grab your Yuma 3 and have a great time you'll never forget.
from 1.931,93 €
Out of stock
The first day of summer vacation – you and your buddy grab your bikes and go. Build kickers, explore the woods behind your house and just have fun. The whole day on the bike. That’s what the Yuma 3 is made for.
From 1.25m it’s good to go. Thanks to the reduced standover height the Yuma 3 is easy to handle. The kinematics are specially designed so that the suspension works well even with light weight riders.
Everyone grows up and progresses and so does the Yuma 3, it can grow with you. Our “rookie launcher” comes with 24″ wheels. With a flip chip, the bike can be converted to 26″ wheels in the blink of an eye. So, the bike grows with you and lasts a long time.
The Grown-Up Kit on 26″ wheels can be purchased in our web shop and is not included with the bike.
Components specially selected for the needs of kids round off the Yuma 3 as a proper mountain bike for young and ambitious riders. Make the world as you like it: As with all PROPAIN bikes, you can freely combine the frame color with decals and grips.
Fork
RockShox Reba
140mm
Shock
RockShox Deluxe Select R 140mm
Brakes
SRAM Guide T 200mm / 180mm
Wheels
Newmen Evolution XA25
Frequently Asked Questions – please leave blank
Seatpost
SIXPACK seat post
Drivetrain
SRAM GX (1×11)
Derailleur
SRAM GX (1×11)
Trigger
SRAM GX (1×11)
Cassette
SRAM XG-1150 10-42
Crank
1stRide 155mm 28T
Handlebar
1stRide 680
Headset & Stem
1stRide 40
Saddle
1st Ride Enduro
Tires
VEE Flow SNAP
Weight
12.7kg
The suspension system of the Yuma 3 is ideally designed for kids and their needs. It is very light and at the same time provides the optimum sensitivity and progression. In addition, it is easy to maintain and simple to handle.
A tool, snacks or spare tube – a practical storage bag for all the important little things on the next trail ride.
The Yuma 3 is equipped for any challenge thanks to the superior shifting performance of the 1×11 SRAM GX drivetrain. Even steep ramps can be climbed easily. The frame is protected by our chainstay protector for those times when you really hit it.
The Yuma 3 may be small, but it doesn’t lag behind the big sibling bikes and therefore comes with many thoughtful details.
14″: 90-110cm / 16″: 95-115cm / 20″: 110-135cm / 24″: 130-145cm / 26″: 145-160cm
90cm | 100cm | 110cm | 120cm | 130cm | 140cm | 150cm | |||||
---|---|---|---|---|---|---|---|---|---|---|---|
14″ | |||||||||||
16″ | |||||||||||
20″ | |||||||||||
24″ | |||||||||||
26″ | |||||||||||
Smoothly running Well-balanced Playful |
Shock length | 185mm |
Shock travel | 55mm |
Shock bushings | Top: Trunnion / Bottom: 8 x 35 mm |
Travel (Frame) | 140mm |
Max. Travel (Fork) | 150mm |
Bottom bracket BSA | 73mm |
Brake mount (Frame) | Postmount 160 |
Seatpost diameter | 31.6mm |
max. Seatpost insert length | 300mm |
Headset (S.H.I.S.) | Top: IS42 / Bottom: IS52 |
Rear wheel axle | 148mm x 12mm |
Chainline Offset | 3mm offset |
Chainline | 52mm (Boost) |
Chainguide mount | ISCG 05 |
Derailleur hanger | PROPAIN Yuma derailleur hanger |
Wheel size | 24″ / 26″ |
Frame weight | 2.7kg |
Max. system weight | 80kg |

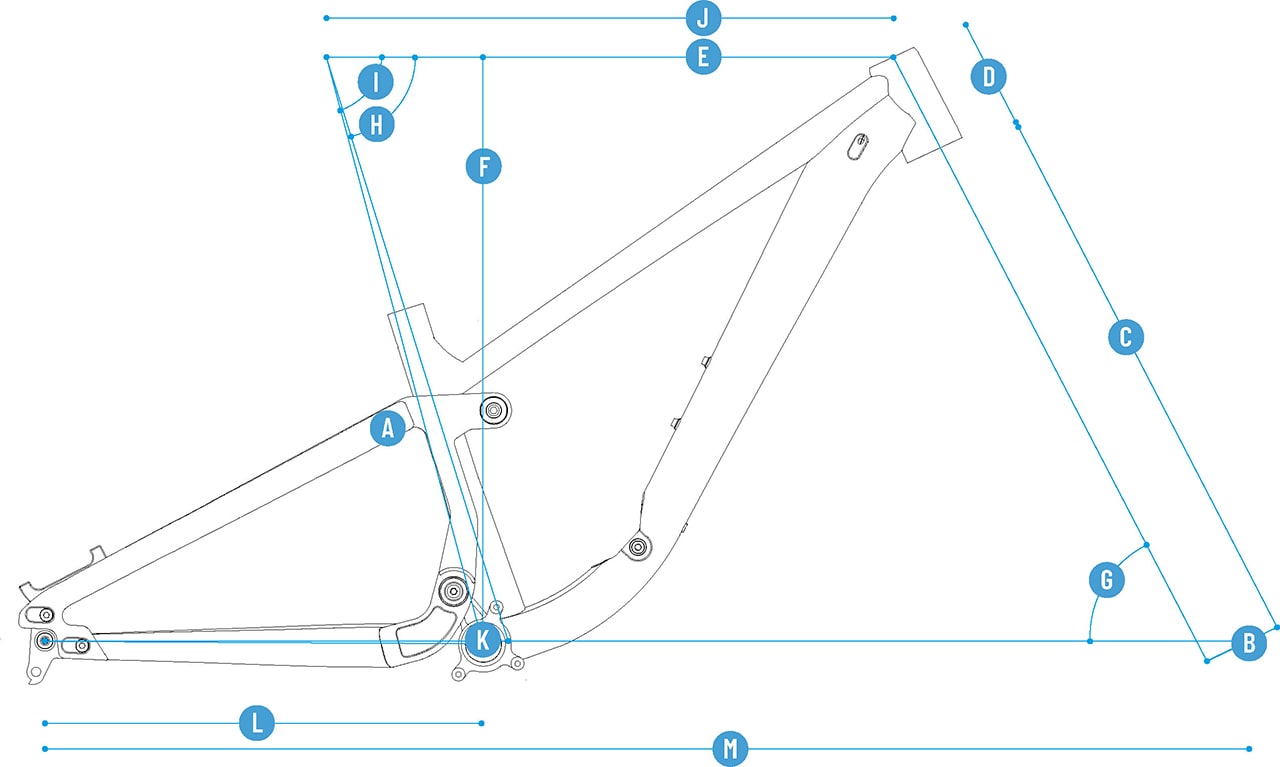

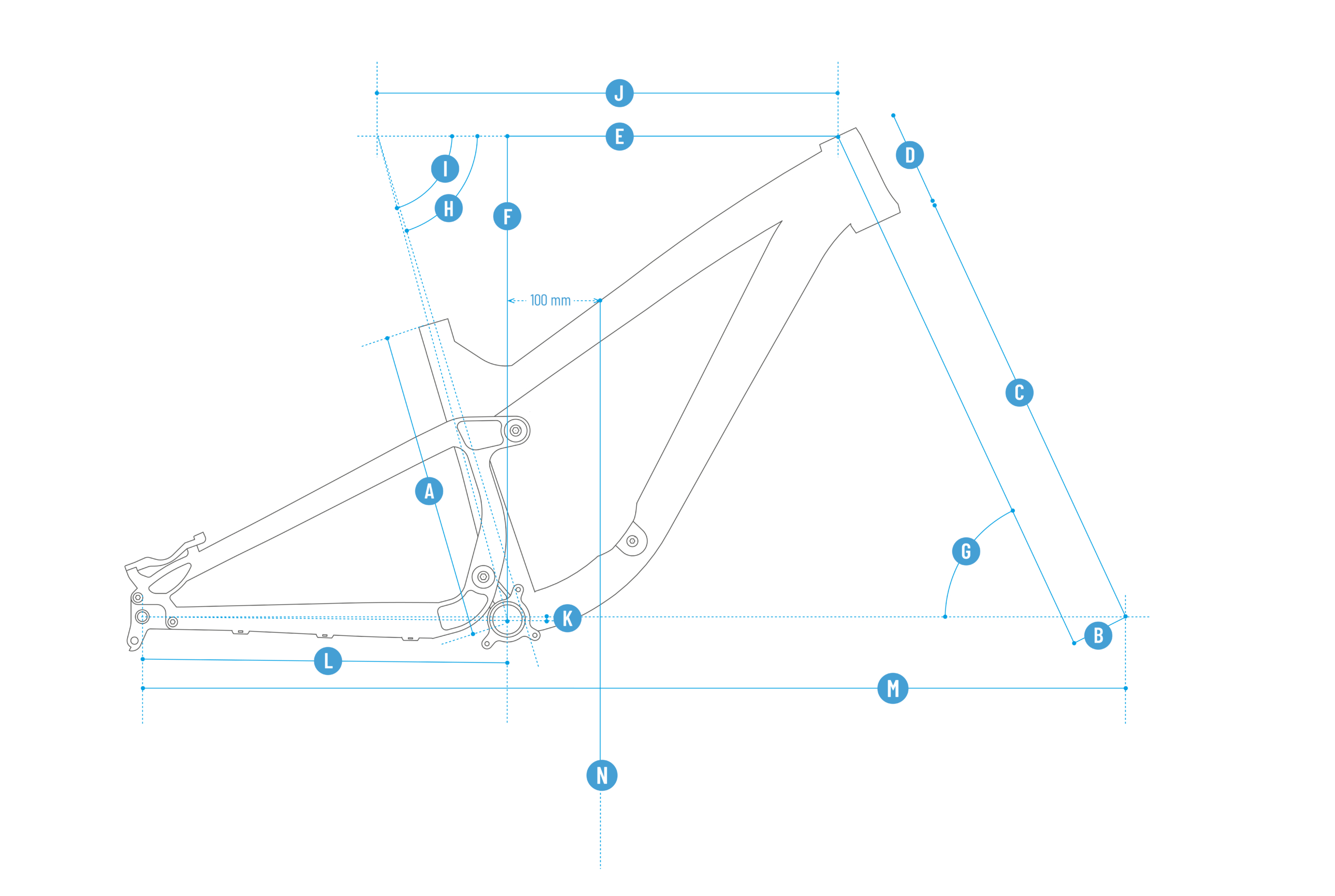

24″ | 26″ | |
---|---|---|
Frame height (A) | 320mm | 320mm |
Fork offset (B) | 42mm | 42mm |
Fork length (C) | 520mm | 520mm |
Head tube length (D) | 95mm | 95mm |
Reach (E) | 380mm | 380mm |
Stack (F) | 545mm | 545mm |
Head angle (G) | 65° | 65° |
Seat angle – real (H) | 72.5° | 72.5° |
Seat angle – effective (I) | 75° | 75° |
Top tube length (J) | 526mm | 526mm |
BB offset (K) | 3mm | 3mm |
Chainstay length (L) | 420mm | 432mm |
Wheelbase (M) | 1,099mm | 1,111mm |
Standover height (N)* | 662mm | 687mm |
BB height | 317mm | 343mm |
Is it possible to order the Yuma directly as a 26″ build?
Unfortunately not. For production and process-related reasons, we only offer the 26″ upgrade kit for additional purchase.
Which dropouts are necessary for a conversion from 24″ to 26″?
Thanks to the flip chip on the Yuma, no additional dropouts are necessary. The existing dropouts can simply be used to convert from 24" to 26".
Which body size is recommended for the Yuma?
We recommend the Yuma in 24″ for a body height of 1.25 m or more. The full size chart can be found on our website.
Is the Yuma compatible with a dropper seat post?

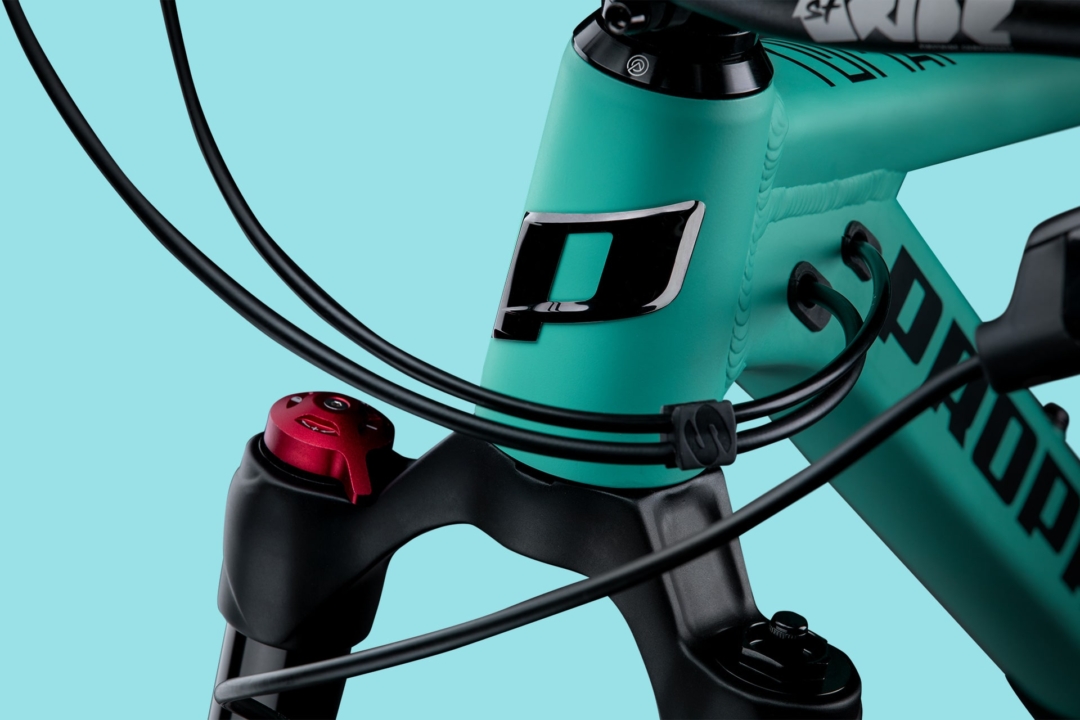

The Yuma has cable channels prepared inside the frame for the cable routing of a dropper seat post. Therefore, dropper seat posts can be retrofitted if required.
Do you also offer other components thar are not listed in the configurator?
We offer the Yuma in one configuration. Decals, grips and the head tube badge can be selected and configured as desired.

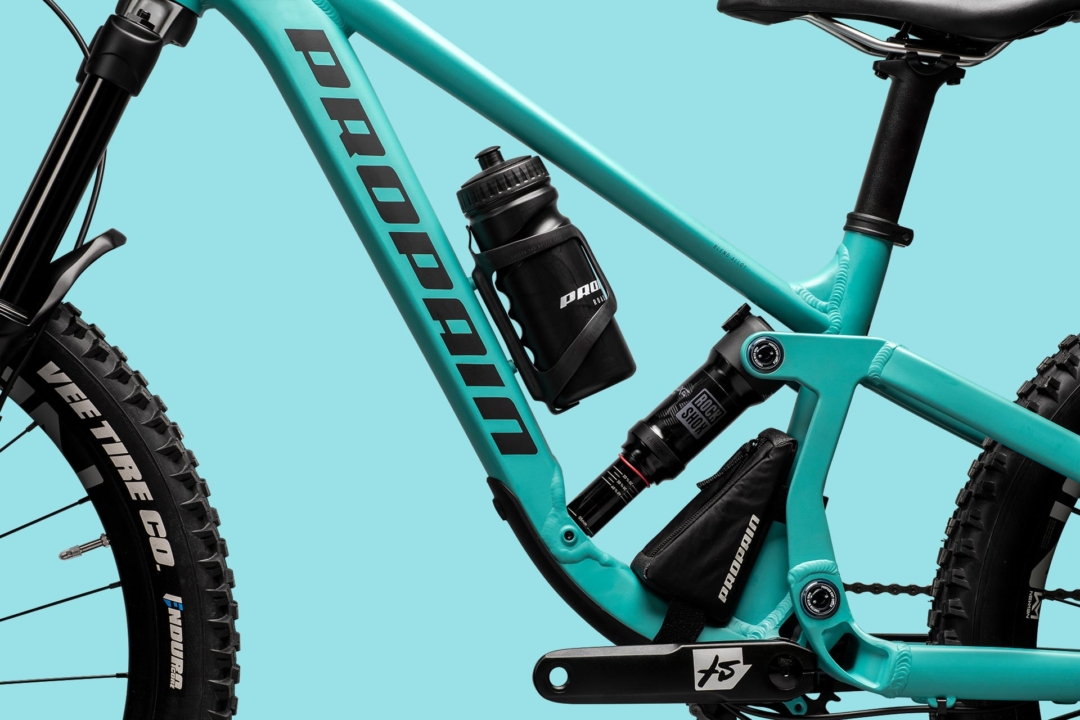

Which bottle size fits in the frame?
Attaching drinking bottles up to 0.5 l is no problem.
What is included in delivery?
The bike comes with all the instructions and manuals you need. We also offer further equipment such as pedals and a shock pump in our online store.
What kind of terrain is the Yuma suitable for?
The Yuma is classified in category 5 and thus approved for the bike park. Therefore, the Yuma can be used from a simple ice cream ride up to action in the bike park.
What is the maximum tire width that fits the bike?
Tires up to a width of 2.4 can be fitted to the Yuma.
