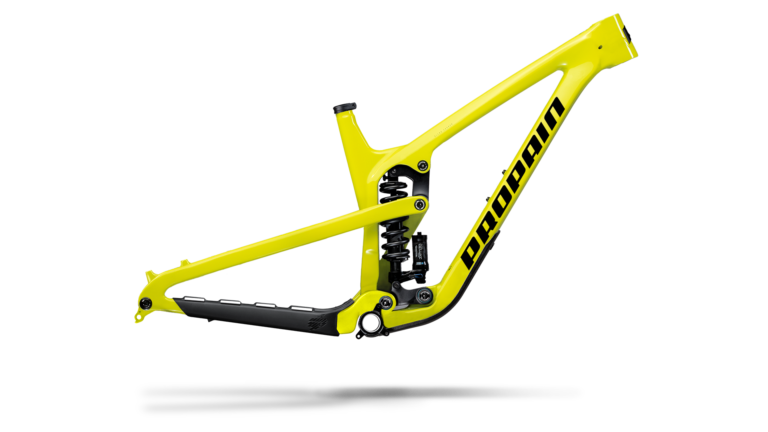

Frameset Spindrift 4 CF 29″

SKU 18487 Category

incl. Headset Acros AZX-209 ZS49/ZS56, Seatclamp SIXPACK Skywalker 34,9 mm black, SIXPACK 148 mm x 12 mm thru-axle and a fitting rear derailleur hanger

2.249,00

VAT included., plus shipping
ready to ship approx. 4 weeks *
Build your own

Description

Beyond The Elements

Our Freeride Bike – a bike that unites all elements. No matter if it is steep root sections, high drops, flowy jump-lines, or the relaxing after-work session. Whether bike park or home trail – just FULL SEND!

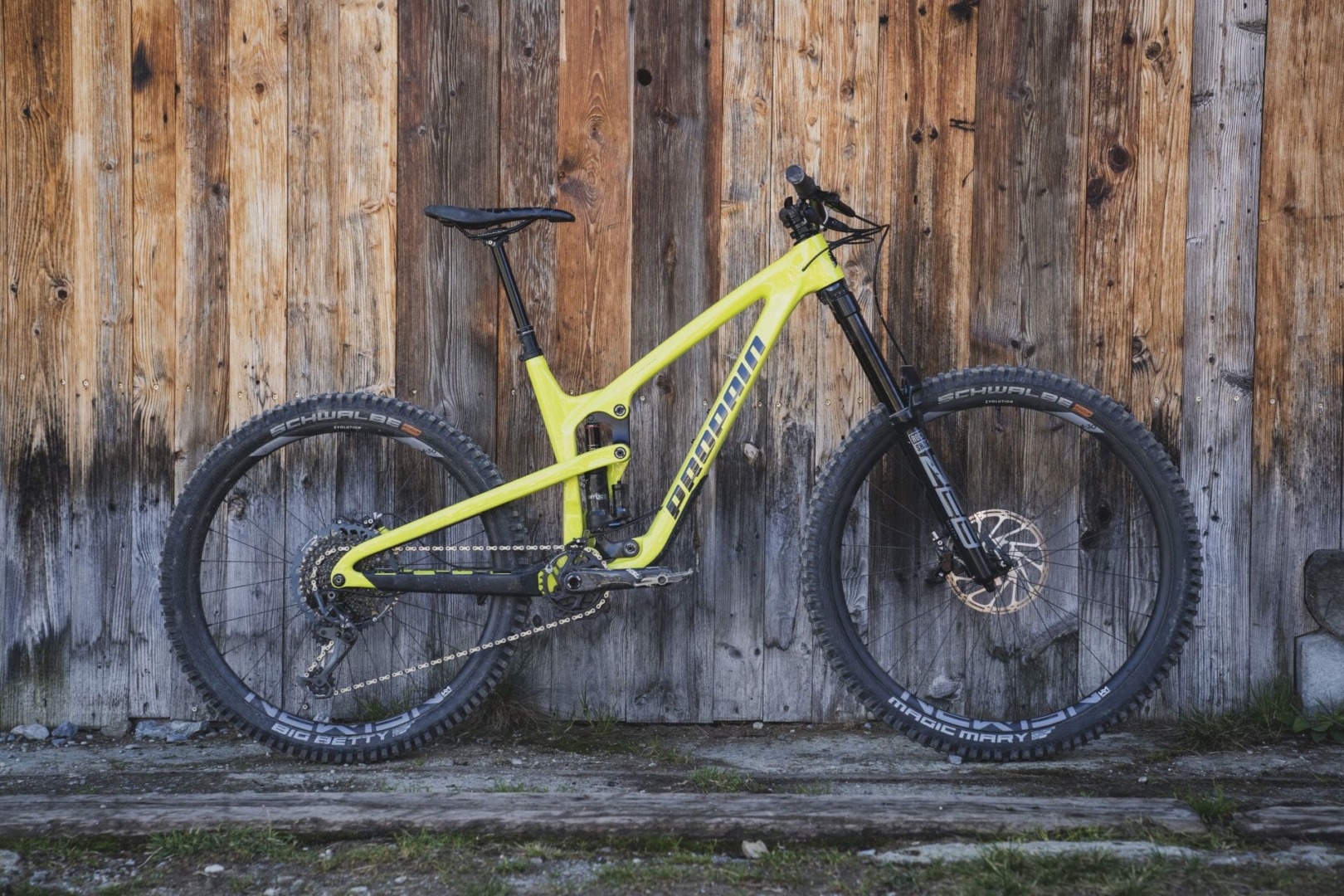

The Spindrift 4 CF is our interpretation of a modern Freeride Bike.

Play Video

Highlights

From 3,349 €

Down to earth

Whether sand, roots or stones, wet or dust-dry, the Spindrift 4 CF copes with every surface. And that does not only apply downhill. Uphill the bike stays on the ground and climbs up every trail with you.

Flow like water

Smooth as a flowing mountain stream. Brute like a roaring river. With the Spindrift 4 CF you send every line and stay always agile. In rough and steep terrain, you will rush over every obstacle with smoothness.

Lit like fire

A bike that gets you up to speed and takes your breath away. You always find your line and take what you can, both downhill and uphill. With the Spindrift 4 CF you are unstoppable.

Up in the air

Flying is your element? Go for it, the Spindrift 4 CF takes you up in the air. No matter what maneuver you pull, the Spindrift 4 CF gives you a feeling of lightness. Airtime guaranteed.

Smart Details

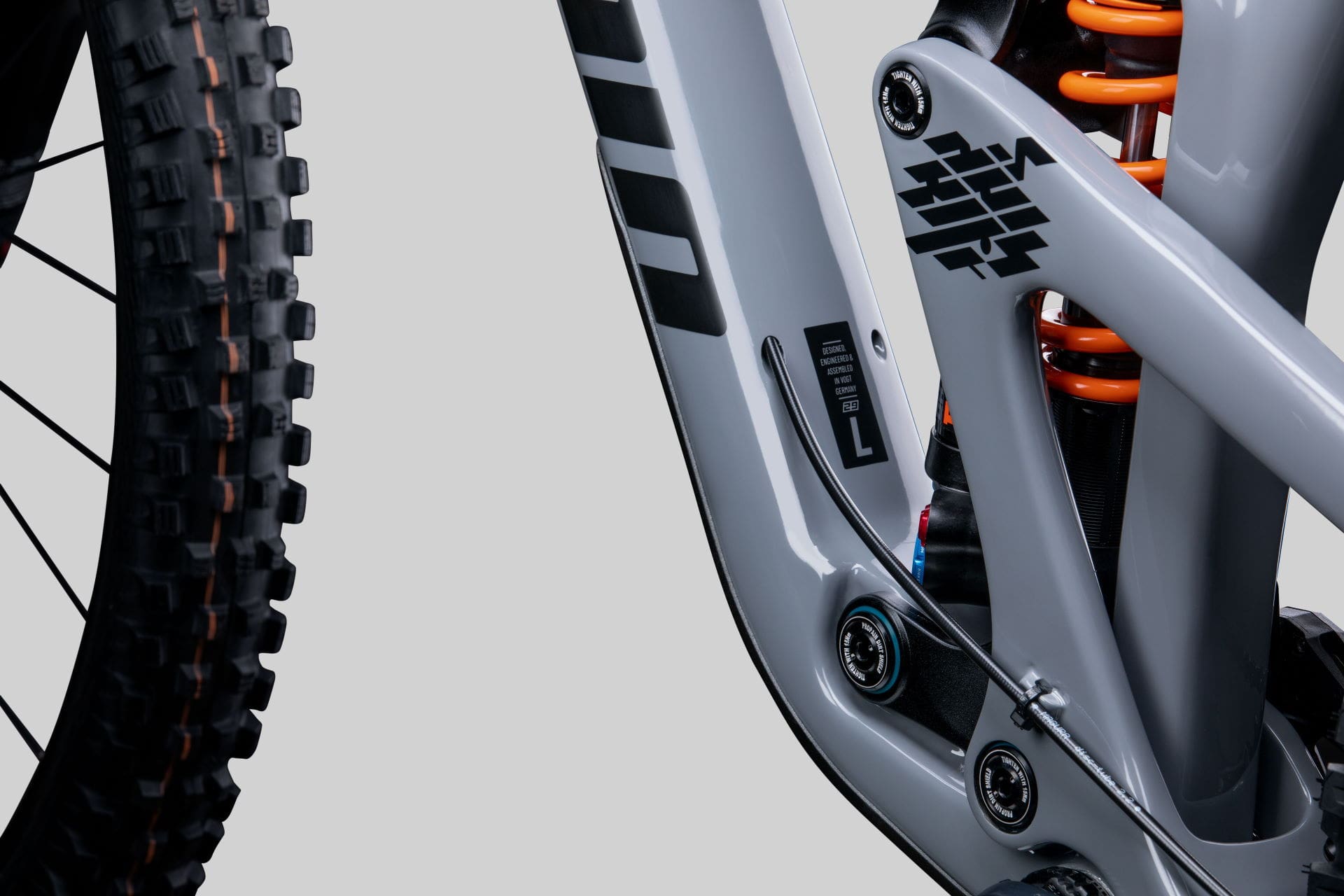

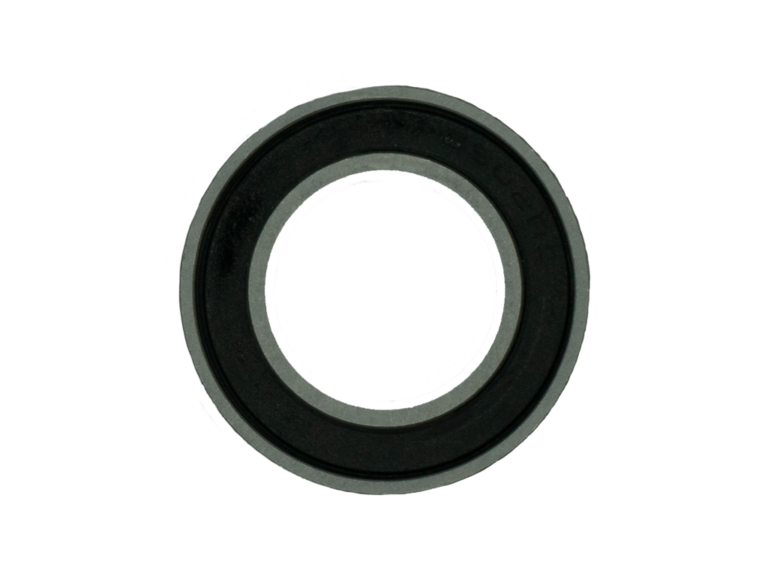

Good looks are not everything. Our Spindrift 4 CF also impresses with its inner values and smart details. With quick-change chain guard, durable bearings and internal cable routing, you’ll get more time on the bike than in your garage.

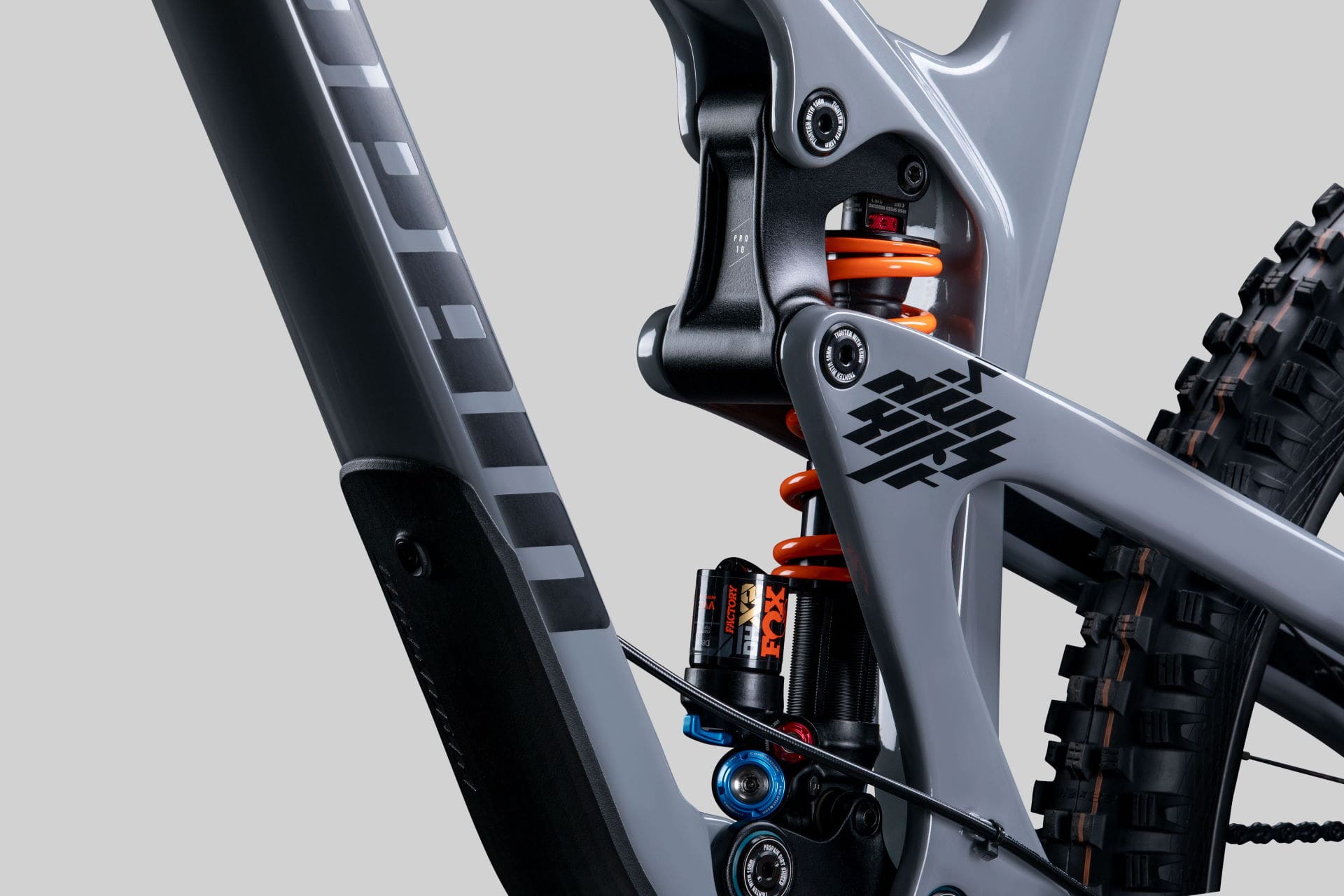

New chainstay protection

High drops and hard landings can get your chain swinging pretty hard. Our newly designed chainstay protector absorbs them, eliminates noise and protects the chainstay from damage.

Clean & Modern

Thanks to the versatility of our Blend Carbon our Spindrift 4 CF also convinces with its elegant design. Many visible edges and flowing shapes paired with a futuristic logo guarantee envious looks on and off the trails.

Internal Cable Routing

Internal cable routing became a standard for modern bikes. We are taking this to a new level by equipping the carbon frames with internal cable channels in which the cables run. This makes the fitting super easy and any cable noise in the frame is eliminated.

Highlights

Intense bikepark action or local hometrail session. Massive jumpline or wet root passage, quick curves or steep drops. Your Spindrift 4 CF offers the performance you need in any terrain.

Please leave empty

The size of the frame plays an important role in the bike’s performance and, above all, in its enjoyment. Select the frame size you need from the table. If you are between two sizes, then you only have to decide whether you like it playful or smooth. For smooth riding, choose the larger frame size, for playful riding, choose the smaller frame size.

S: 158-172 cm / M: 168-182 cm / L: 178-192 cm / XL: 188-202 cm
*S only in 27,5" / XL only in Mix and 29"
 150cm
4’11“
160cm
5’3″
170cm
5’7″
180cm
5’11“
190cm
6’3″
200cm
6’7″
S*




M




L




XL*





Smoothly running
Well-balanced
Playful

The adjustable seatpost is probably one of the most ingenious inventions of recent years. In order to function optimally on the trail, the proper seatpost travel is very important. The following chart shows the recommended minimum inseam for the corresponding frame size. Please keep in mind that this is only a recommendation, as the respective sitting position depends very much on personal habits and preferences.

* Inside leg length in cm
SPINDRIFT CFSMLXL
Kind Shock Lev 12574,576,578,580,5
Kind Shock Lev 15077,079,081,083,0
Bikeyoke Revive 12573,575,577,579,5
Bikeyoke Revive 16077,079,081,083,0
Bikeyoke Revive 18583,583,583,585,5
Fox 12575,577,579,581,5
Fox Transfer 15078,080,082,084,0
Fox Transfer 17584,584,584,586,5
RockShox Reverb AXS12573,575,577,579,5
RockShox Reverb AXS15076788082
Shock length 230mm
Shock travel 65mm
Shock bushings Top: 8 x 20 mm / Bottom: 8 x 30 mm
Travel (Frame) 180mm
Max. Travel (Fork) 190mm
Bottom bracket BSA 73mm
Brake mount (Frame) Postmount 180
Seatpost diameter 31.6mm
max. Seatpost insert length 29″ & Mix: M 215 mm / L 220 mm / XL 250 mm 27.5″: S 200 mm / M 220 mm / L 230 mm
Headset (S.H.I.S.) Top: ZS49 / Bottom: ZS56
Rear wheel axle 148mm x 12mm
Chainline Offset 3mm offset
Chainline 52mm (Boost)
Chainguide mount ISCG 05
Derailleur hanger SRAM UD
Wheel size 29″ / 27.5″
Frame weight 3 kg (size L, 29″)
max. rider weight 120kg

Our well known PRO10 system has once again been further developed and improved for the Spindrift. The shock moved in front of the seat tube and is now ideally integrated in the main frame. So, the Spindrift is even more agile and more balanced. The combination of a slack headtube angle of 64.5° and a steep, effective seat angle of 78° ensures that you can climb the steepest climbs on a Freeride Bike without getting out of breath.

Frequently Asked Questions – please leave blank

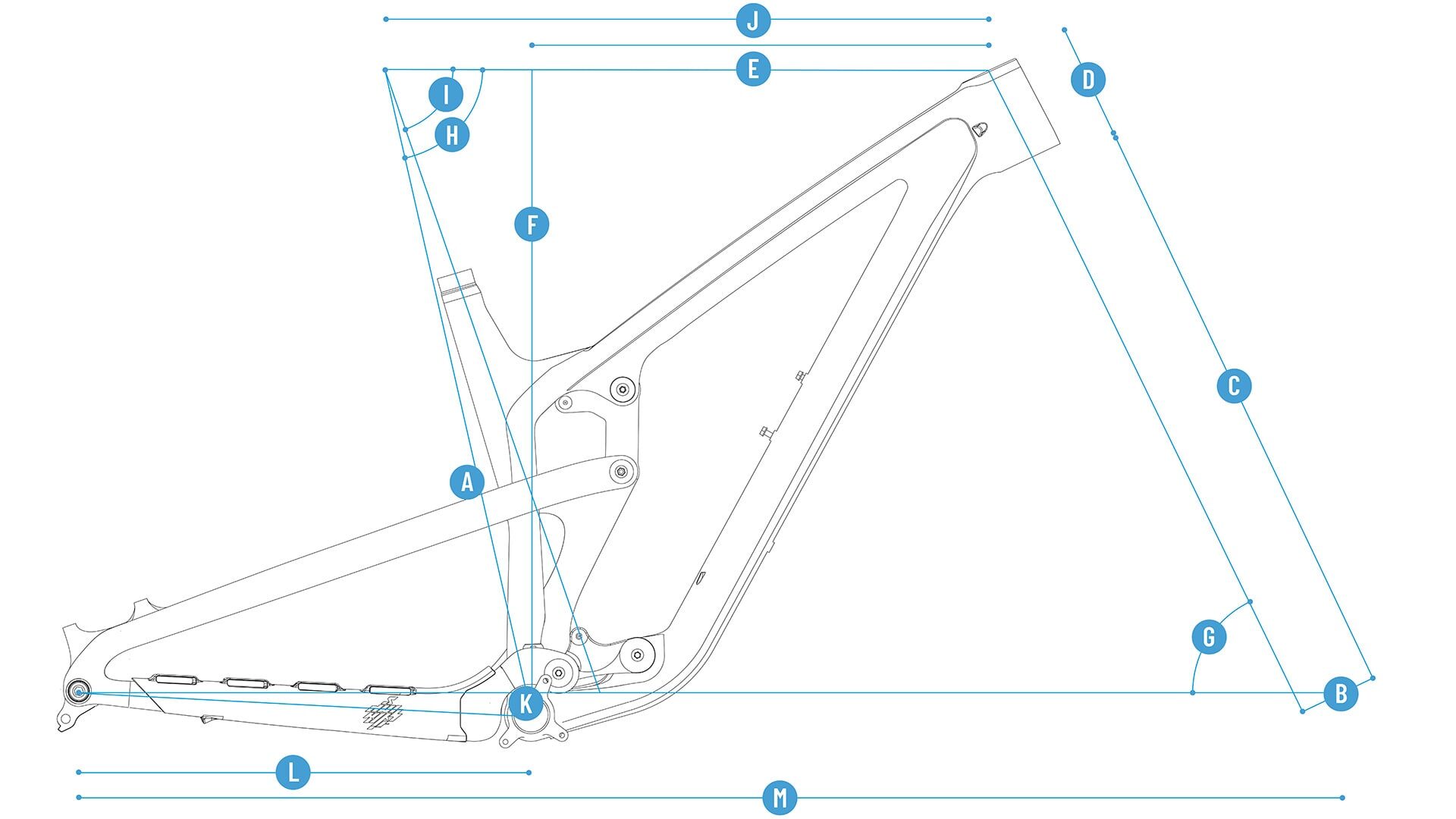

Size M Size L Size XL
Frame height (A) 440mm 460mm 480mm
Fork offset (B) 44mm 44mm 44mm
Fork length (C) 598mm 598mm 598mm
Head tube length (D) 95mm 110mm 125mm
Reach (E) 450mm 475mm 500mm
Stack (F) 633mm 646mm 660mm
Head angle (G) 64.5° 64.5° 64.5°
Seat angle – effective (H) 78° 78° 78°
Seat angle – real (I) 73.5° 73.5° 73.5°
Top tube length (J) 584mm 612mm 640mm
BB offset (K) 23mm 23mm 23mm
Chainstay length (L) 445mm 445mm 445mm
Wheelbase (M) 1,234mm 1,265mm 1,297mm
BB height 352mm 352mm 352mm
Size M Size L Size XL
Frame height (A) 440mm 460mm 480mm
Fork offset (B) 44mm 44mm 44mm
Fork length (C) 598mm 598mm 598mm
Head tube length (D) 95mm 110mm 125mm
Reach (E) 441mm 466mm 491mm
Stack (F) 640mm 653mm 667mm
Head angle (G) 63.7° 63.7° 63.7°
Seat angle – effective (H) 77.2° 77.2° 77.2°
Seat angle – real (I) 72.7° 72.7° 72.7°
Top tube length (J) 586mm 614mm 642mm
BB offset (K) R11 / F29mm R11 / F29mm R11 / F29mm
Chainstay length (L) 445mm 445mm 445mm
Wheelbase (M) 1,243mm 1,274mm 1,306mm
BB height 345mm 345mm 345mm
Sise S Size M Size L
Frame height (A) 420mm 440mm 460mm
Fork offset (B) 38mm 38mm 38mm
Fork length (C) 577mm 577mm 577mm
Head tube length (D) 100mm 110mm 120mm
Reach (E) 425mm 450mm 475mm
Stack (F) 608mm 617mm 626mm
Head angle (G) 64.5° 64.5° 64.5°
Seat angle – effective (H) 78° 78° 78°
Seat angle – real (I) 73.5° 73.5° 73.5°
Top tube length (J) 554mm 581mm 608mm
BB offset (K) 10mm 10mm 10mm
Chainstay length (L) 435mm 435mm 435mm
Wheelbase (M) 1,187mm 1,216mm 1,246mm
BB height 345mm 345mm 345mm

Frequently Asked Questions – please leave blank

Yes, the Spindrift is approved for 200mm DH forks.
Please note the installation height of the suspension fork. You can find this information in the geometry table.

Attaching drinking bottles up to 0.5 l is no problem. With larger frame sizes, 0.7 l bottles can also be stowed.

No, because our frames are specially developed and adapted for the respective wheel size.

A general statement is not possible here due to the tolerances of the tire manufacturers’ width specifications.

E.g. Schwalbe tires fit up to 2.4, VEE up to 2.35 and Maxxis up to 2.5WT.

Due to the large selection of components and frame sizes, we cannot make a statement for all combinations. However, we have given weights for our build kits, which you can see in the table above. In the configurator you will also find weight information for each component.

No, we only offer the components and color variants that we show in the configurator.

The bike comes with three stem spacers, uncut handlebars and all the instructions you need.

We offer further equipment like Pedals in our online store.

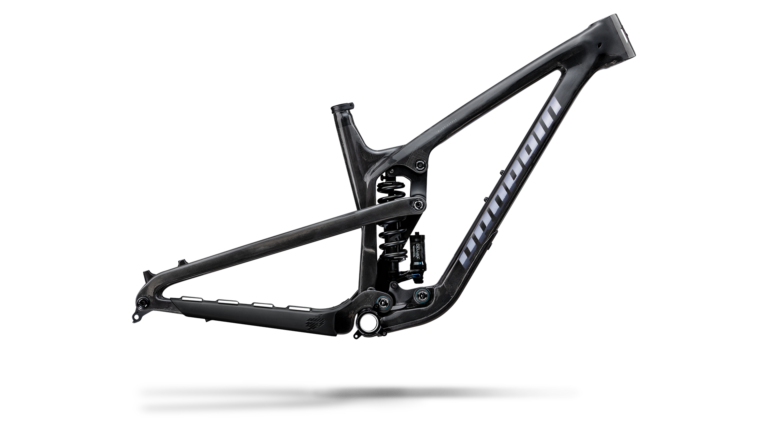

Carbon raw is a real beauty! The frames are getting a special treatment before we paint them so the carbon surface, which is shining through the paint, is showing its best side. Besides the clear paint there is also a light dark coating applied. This results in a light dark shine of carbon material, especially in sunlight. Each model is different so every method and also materials will differ. That also means every single frame is a unique.

Fits your Spindrift 4 CF

Additional information

Frame material

Blend Carbon

Terrain

Freeride

Frame sizes

M, L, XL

Wheel size

29"

Frame Color

Lime, Moongrey Dark, Raw (Carbon)

Bike Model

Spindrift 4
