Frame Size

Frame Size S not compatible with Range Extender.

Frame size

Design

Frame color S

Frame color M

Frame color L

Frame color XL

Decal Kit

Badge

Build Kit

Build Kit

+ USD $0.00
Select from countless configuration options to build your individual dream bike!

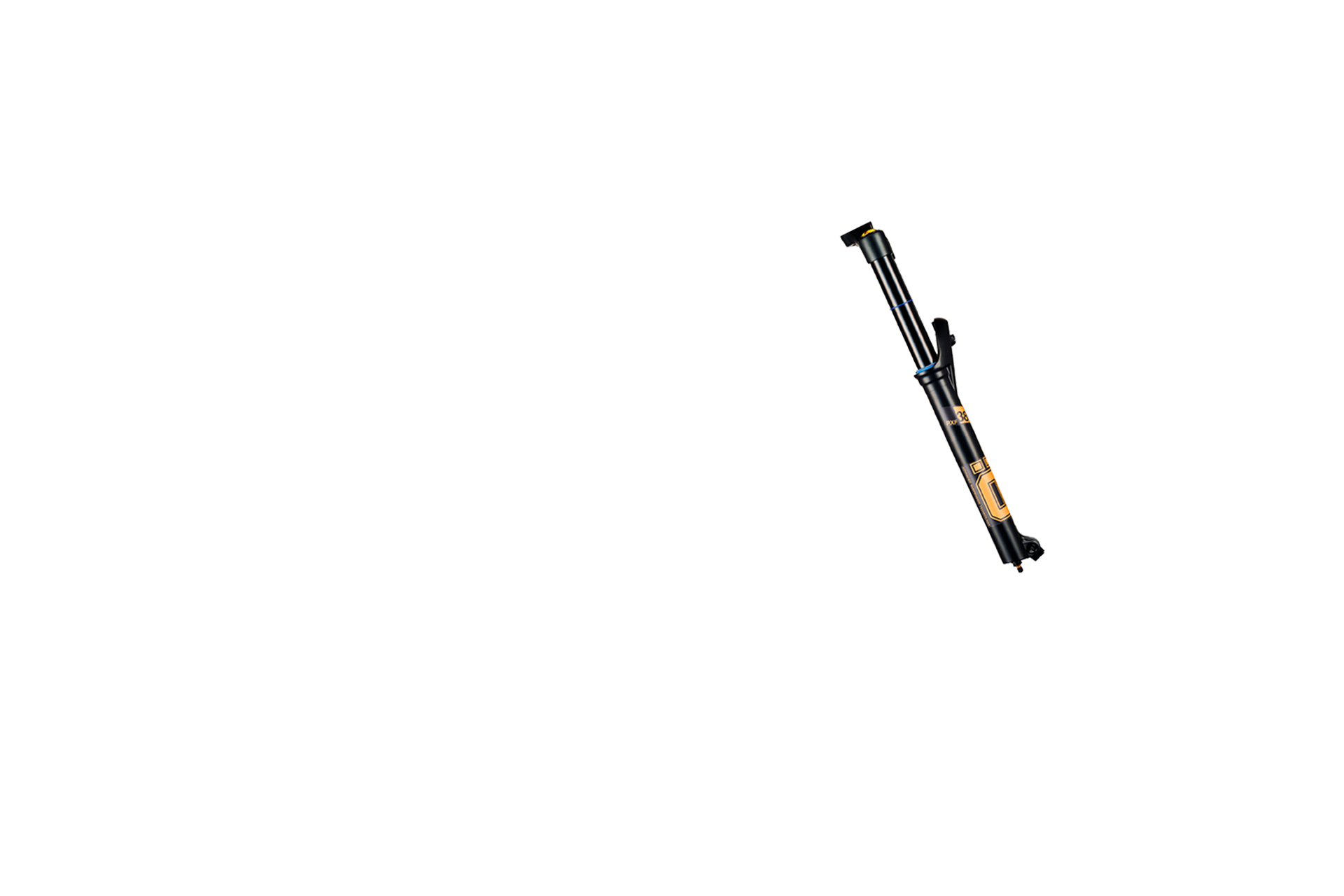

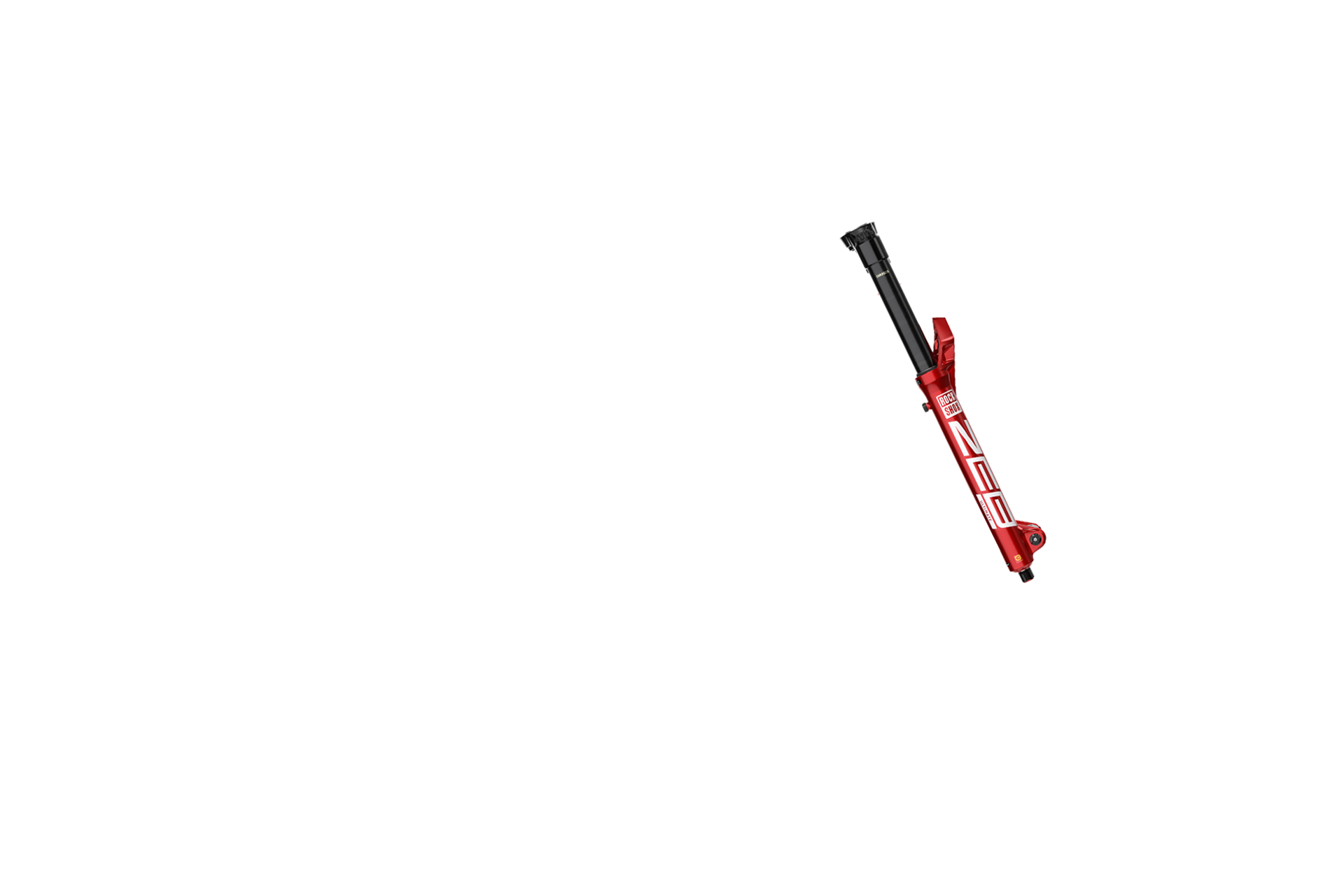

Fork

Fork

+ USD $0.00
180 mm travel
DebonAir+ Air suspension fork / Rush-RC-Damping
Adjustment: rebound, low speed compression
2.341 g
+ USD $395.00
180 mm travel
DebonAir+ ButterCups / Charger 3 RC2-Damping
Adjustment: rebound, Low and High speed compression
2.341 g
+ USD $495.00
180 mm travel
Air suspension fork
Adjustment: low and high speed rebound, low and high speed compression
2.460 g

Shock

Shock

+ USD $0.00
Coil shock, comes with the spring rate of your choice
Adjustment: rebound control
989 g

choose Springrate:

300lb (44-50 kg)
350lb (50-56 kg)
400lb (56-64 kg)
450lb (64-72 kg)
500lb (72-80 kg)
550lb (80-87 kg)
600lb (87-94 kg)
650lb (94-101 kg)
+ USD $220.00
Air shock, adjust spring rate through air pressure
Adjustment: rebound & hydraulic bottom out
680 g
+ USD $270.00
Air shock, adjust spring rate through air pressure
Adjustment: Lowspeed rebound control and compression, 2 Pos-Adj.
460 g
+ USD $350.00
Air shock, adjust spring rate through air pressure
Adjustment: compression, rebound & hydraulic bottom out
680 g
+ USD $440.00
Air shock, adjust spring rate through air pressure
Adjustment: high/low speed rebound, high/low speed compression, 2 Pos-Adj.
530g
+ USD $560.00

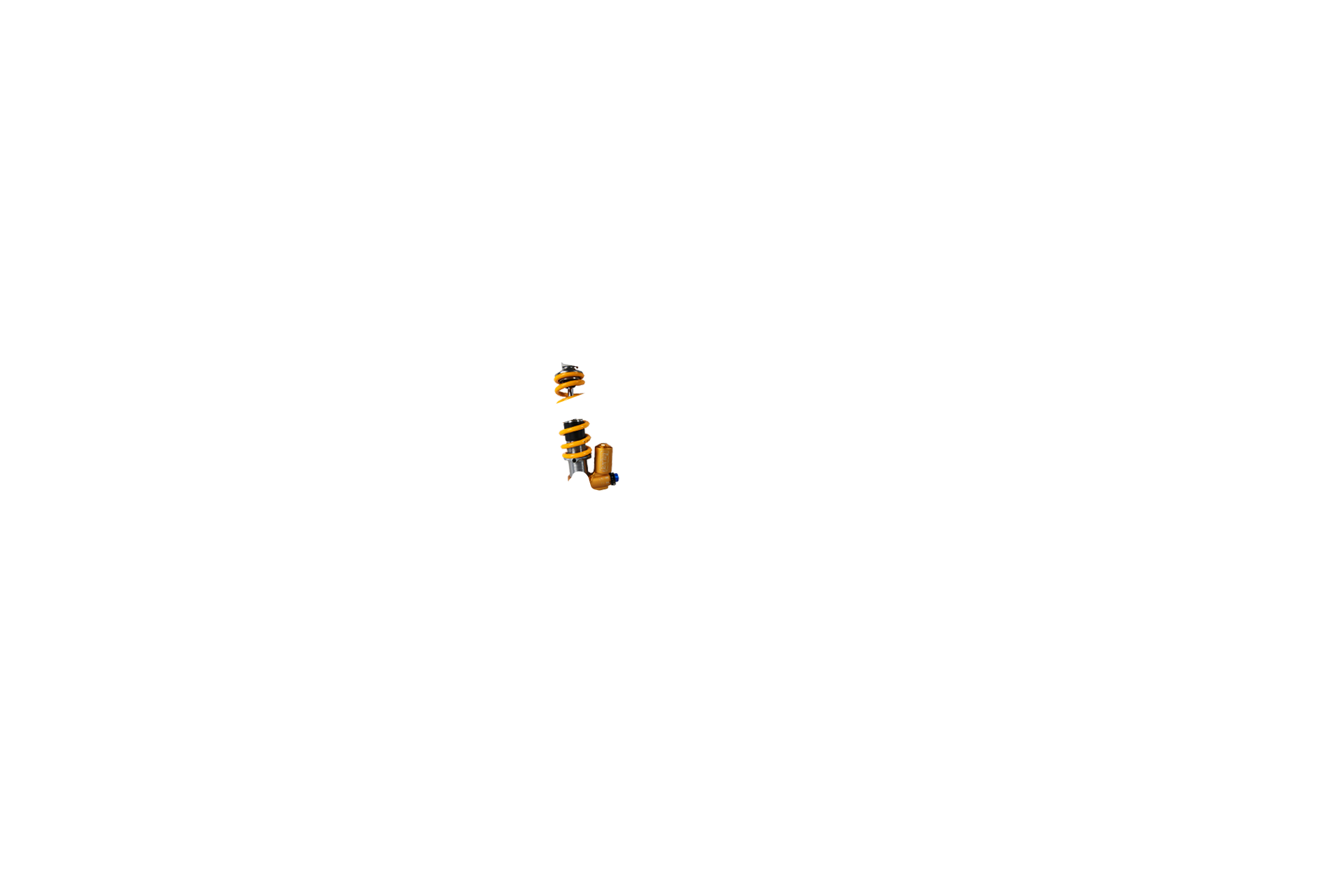

Coil shock, comes with the spring rate of your choice
Adjustment: High- and Lowspeed rebound control and compression
860 g

choose Springrate:

300lb (44-50 kg)
350lb (50-56 kg)
400lb (56-64 kg)
450lb (64-72 kg)
500lb (72-80 kg)
550lb (80-87 kg)
600lb (87-94 kg)
650lb (94-101 kg)

Drive Unit

Drive Unit

+ USD $0.00
The 3.1 kg light 630 Wh SRAM battery in conjunction with the SRAM Eagle Powertrain is in our eyes the best compromise between range and agile handling of the bike.
+ USD $0.00
USD $599.00
With the 250 Wh Range Extender, the total capacity of the Ekano 2 CF and SRAM Eagle Powertrain System is increased to 880 Wh, offering 40% more riding time.
+ USD $0.00
USD $599.00
With the 250 Wh Range Extender, the total capacity of the Ekano 2 CF and SRAM Eagle Powertrain System is increased to 880 Wh, offering 40% more riding time.

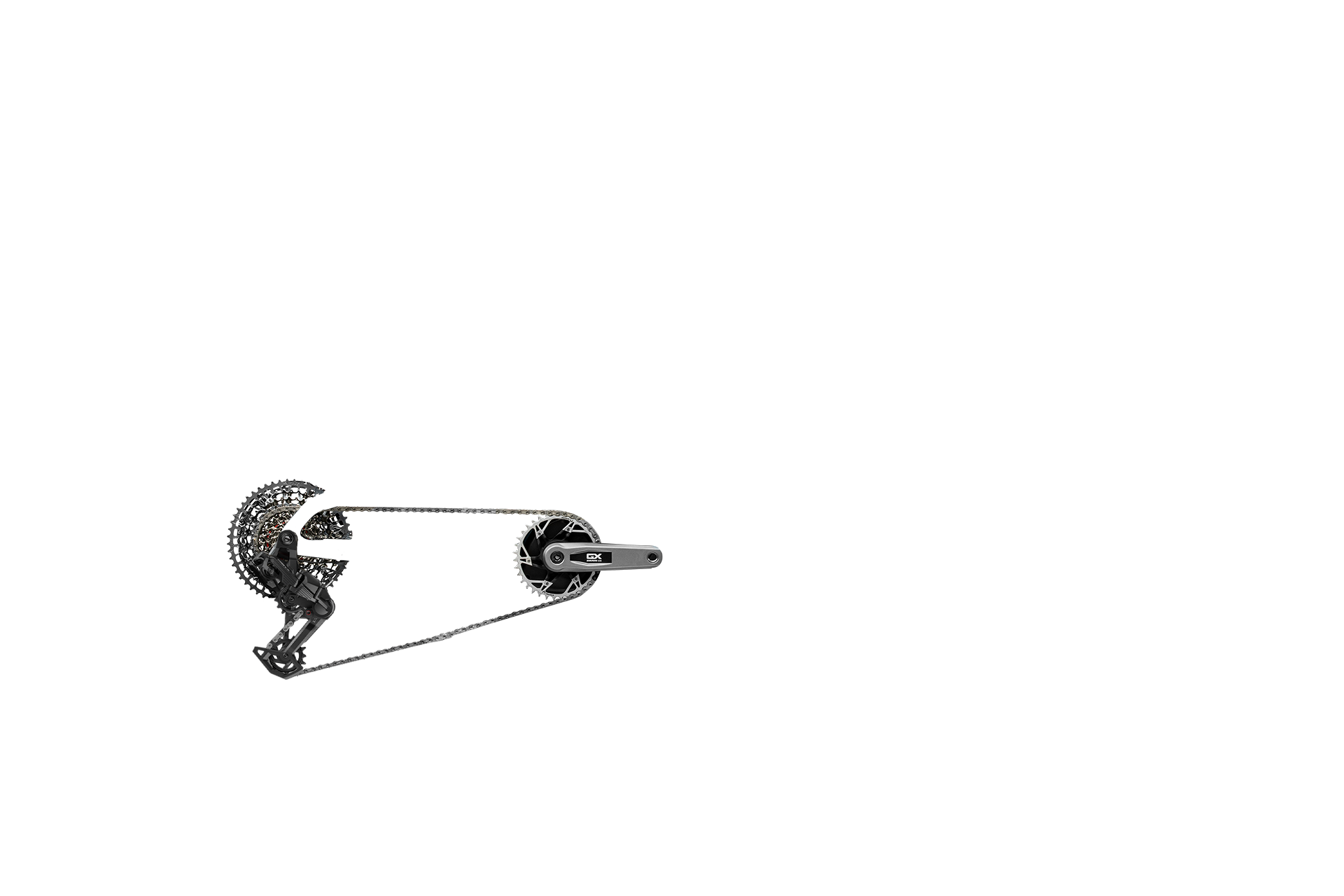

Drive train

+ USD $0.00
Wireless, electronic shifter

- Crank: SRAM GX Eagle Transmission 160 mm
- Derailleur: SRAM GX Eagle Transmission (1x12)
- Trigger: SRAM AXS Pod
- Chain: SRAM GX Eagle Transmission
- Cassette: SRAM GX Eagle Transmission
+ USD $465.00
Wireless, electronic shifter

- Crank: SRAM X0 Eagle Transmission 160 mm
- Derailleur: SRAM X0 Eagle Transmission (1x12)
- Trigger: SRAM AXS Pod Ultimate
- Chain: SRAM X0 Eagle Transmission
- Cassette: SRAM X0 Eagle Transmission
+ USD $950.00
Wireless, electronic shifter

- Crank: SRAM XX Eagle Transmission 165 mm
- Derailleur: SRAM XX Eagle Transmission (1x12)
- Trigger: SRAM AXS Pod Ultimate
- Chain: SRAM XX Eagle Transmission
- Cassette: SRAM XX Eagle Transmission

Cockpit

Handlebar

+ USD $0.00
Aluminium
35 mm diameter
805 mm width, 20 mm rise
7° Backsweep, 5° Upsweep
330 g
+ USD $0.00
Aluminium
35 mm diameter
805 mm width, 30 mm rise
7° Backsweep, 5° Upsweep
330 g
+ USD $120.00
Carbon
35 mm Klemmung
800 mm breit, 35 mm Rise
8° Backsweep, 5° Upsweep
239 g
Stem

+ USD $0.00
35 mm length
35 mm diameter
SIXPACK Integrated Cable Routing
+ USD $0.00
50 mm length
35 mm diameter
SIXPACK Integrated Cable Routing

Saddle

Push Mode only available in combination with RockShox Reverb AXS.

Seatpost

+ USD $0.00
Adjustable dropper post
31,6 mm diameter
20 mm of adjustable travel

choose Seatpost travel:

150mm
180mm
210mm
+ USD $45.00
Adjustable dropper post
31,6 mm diameter

choose Seatpost travel:

125mm
160mm
Out of stock
185mm
Out of stock
213mm
Out of stock
+ USD $85.00
Adjustable dropper post
519 g

choose Seatpost travel:

125mm
150mm
175mm
200mm
+ USD $365.00
Adjustable dropper post
31,6 mm diameter
incl. AXS Wireless Remote, charger and rechargeable battery

choose Seatpost travel:

125mm
150mm
170mm
Saddle

+ USD $0.00
+ USD $120.00
- The Infinery Material is very robust and brings comfort to a whole new level
- BASF Infinergy® material "Made in Germany"
Determine saddle width

choose width:

13cm
14cm
15cm
16cm
Saddle Color

Brakes

Brakes

+ USD $0.00
220/200 mm Centerline rotors
4 piston brake caliper
lever reach adjustment with tool
592 g
+ USD $100.00
220/203 mm rotors
4 piston brake caliper
adjustable lever reach
380 g
+ USD $135.00
220/200 mm HS2 rotors
4 piston brake caliper
tool free lever reach adjustment
420 g
+ USD $250.00
220/203 mm rotors
4 piston brake caliper
adjustable lever reach
375 g
+ USD $260.00
220/200 mm HS2 rotors
4 piston brake caliper
tool free contact point and lever reach adjustment
420 g

Wheelset/Tireset

Wheelset

+ USD $0.00
Rims: Crankbrothers SYNTHESIS E-MTB ALLOY
Hubs: Synthesis Standard
Spokes: Sapim D-Lite/Sapim E-Light
Inner Rim Width: 29.5mm/31.5mm
2163g
+ USD $275.00
Rims: NEWMEN Evolution E.G.30
Hubs: NEWMEN Straightpull
Spokes: Pillar
Wide angle profile: 30 mm inside
1.970 g
+ USD $275.00
Rims: EX 511
Hubs: DT 350
Spokes: DT Competition
Wide angle profile: 30 mm
1,978 g
+ USD $495.00
Rims: FR 541
Hubs: DT 240
Spokes: DT Competition
Wide angle profile: 30 mm
2,021 g
+ USD $1,595.00
Rims: Crankbrothers Synthesis E-MTB Carbon
Hubs: Industry Nine 1/1
Inner Rim Width: 31.5mm
2091g
Tireset

+ USD $0.00
Magic Mary in the front and Big Betty in the rear. The new tyreset to set new records.
Dimension: 29 x 2.4 / 27.5 x 2.4
Casing:
Rubber:
+ USD $0.00
Dimension: 2.4WT Rear, 2.5WT Front
Casing: DD Rear, EXO+ Front
Compound: 3C MaxTerra Rear, MaxGrip Front
Weight: 1180 g/1220 g
Tube Kit

+ USD $0.00
- premounted tubes
Total:
plus shipping
USD $7,999.00

Pictures and Colors may differ from original product.
