DARKFEST APPROVED

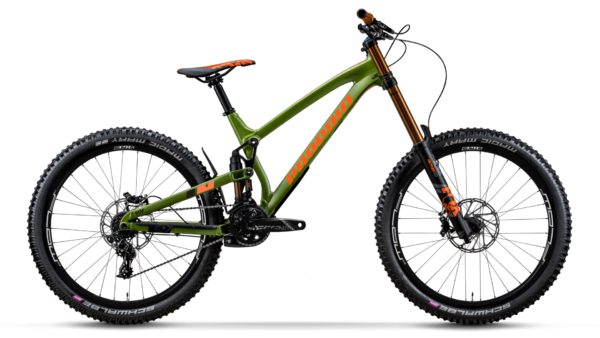

The new Rage AL has been completely redesigned, rolls on 27.5″ wheels, and is available in three frame sizes (S, M, L). The geometry is inspired by the Rage Carbon and based on the experience of our World Cup team.
A clean, sturdy and robust frame was the development goal for our engineering team. So we said “good bye” to some features of the previous Rage frame, such as the split seat tube design. The new design was inspired by the design of the popular Spindrift frame. In fact, some of PROPAIN’s customers and Propain staff were fantasizing about a long travel version of the Spindrift for some time – a “Spindrift on Steroids”.
Here it is, a downhill bike which focuses on reduced needs for maintenance whilst still delivering maximum performance for the high speeds and big hits that a park bike has to take.
Frame material
Aluminium
Wheel size
27.5″
Front travel
200 mm
Rear travel
200 mm
Terrain
Downhill
Category
5
Warranty
3 Years
Weight
from 16.8 kg
We help you on the way to your personal dream bike. In our configuration tool you can customize your bike by choosing coloured decals, grips and saddles.

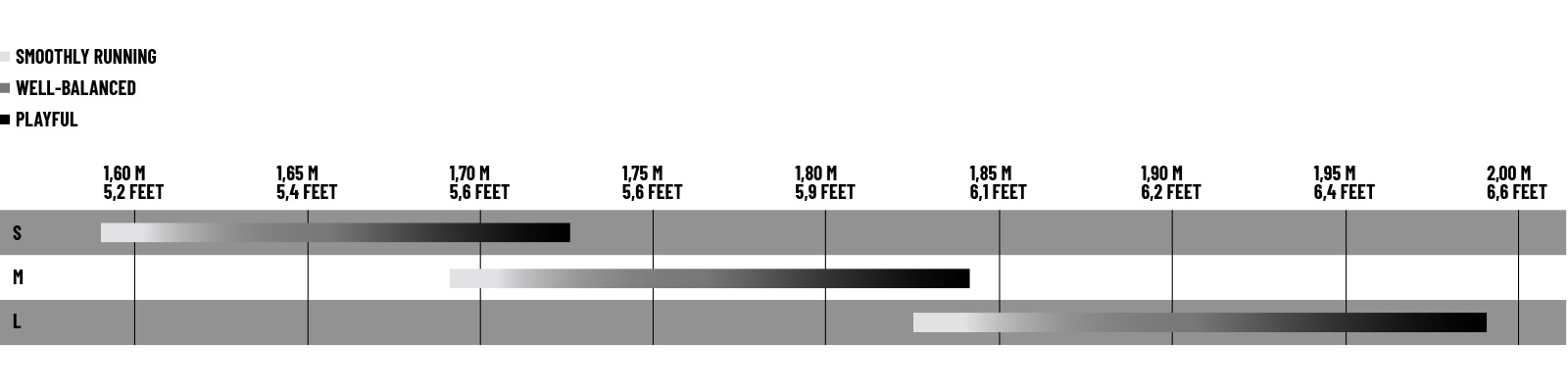

The frame size is an essential part of the bike performance and contributes significantly to the riding fun. Select your required frame size from the chart. If you are between two sizes, then you only have to decide whether you like it playful or smooth running. For smooth running choose the larger frame size, for playful the smaller one.
150 cm 4’11” | 160 cm 5’3″ | 170 cm 5’7″ | 180 cm 5’11” | 190 cm 6’3″ | |||||||
---|---|---|---|---|---|---|---|---|---|---|---|
S |
|
||||||||||
M |
|
||||||||||
L |
|
||||||||||
Smooth running
Well-balanced
Playful
|
Shock length | 230 mm |
Shock travel | 65 mm |
Shock mount | 8 x 25 mm |
Travel (Frame) | 200 mm |
Maximum fork travel | 203 mm |
Bottom bracket BSA | 83 mm |
Brake mount (Frame) | Postmount 180 |
Seatpost diameter | 31.6 mm |
Headset (S.H.I.S) | Tapered – Top: IS42 / Bottom: IS52 |
Rear wheel axle | 157 mm x 12 mm (X12) |
Chainline | 52 mm |
Chainguide mount | ISCG 05 |
Wheel size | 27.5″ |
Frame weight | 3.5 kg (Size M) |
Max. rider weight | 120 kg |

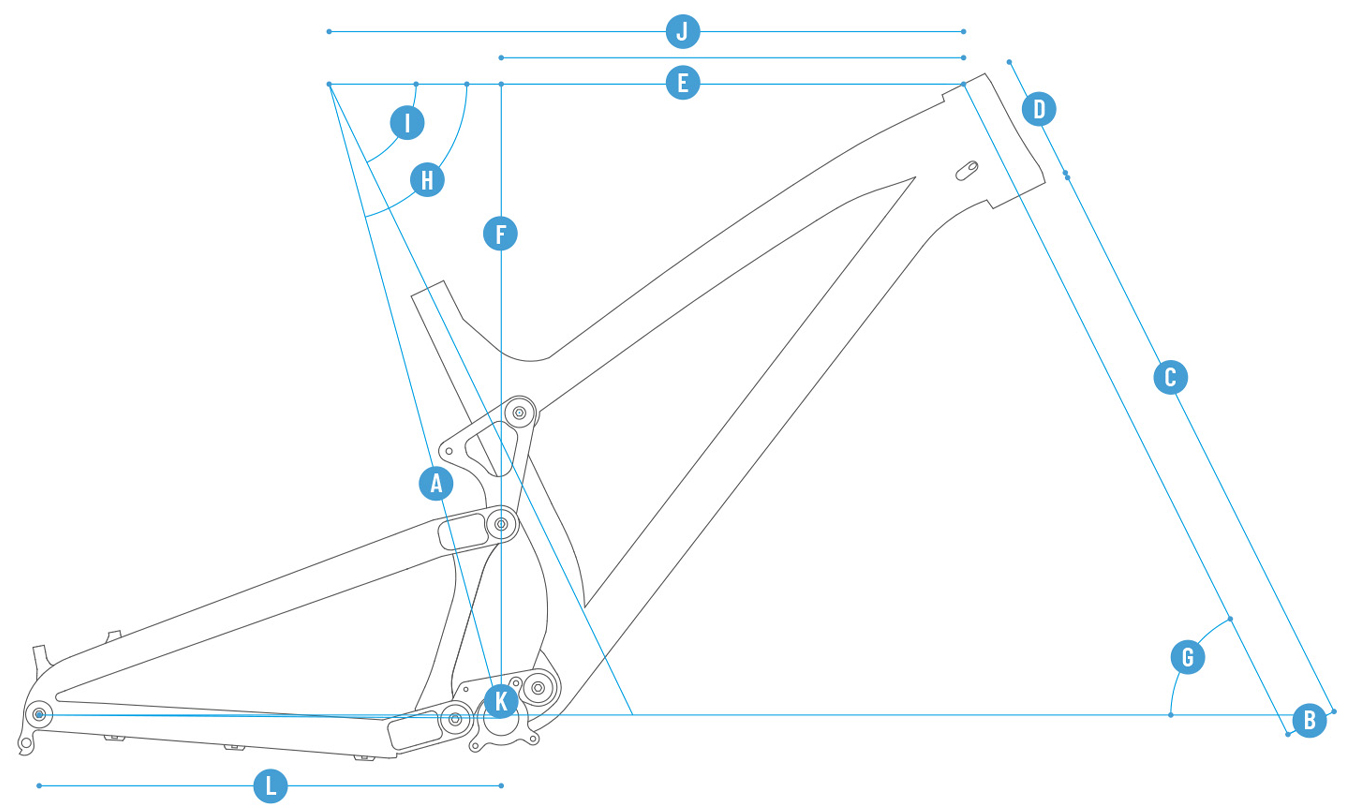

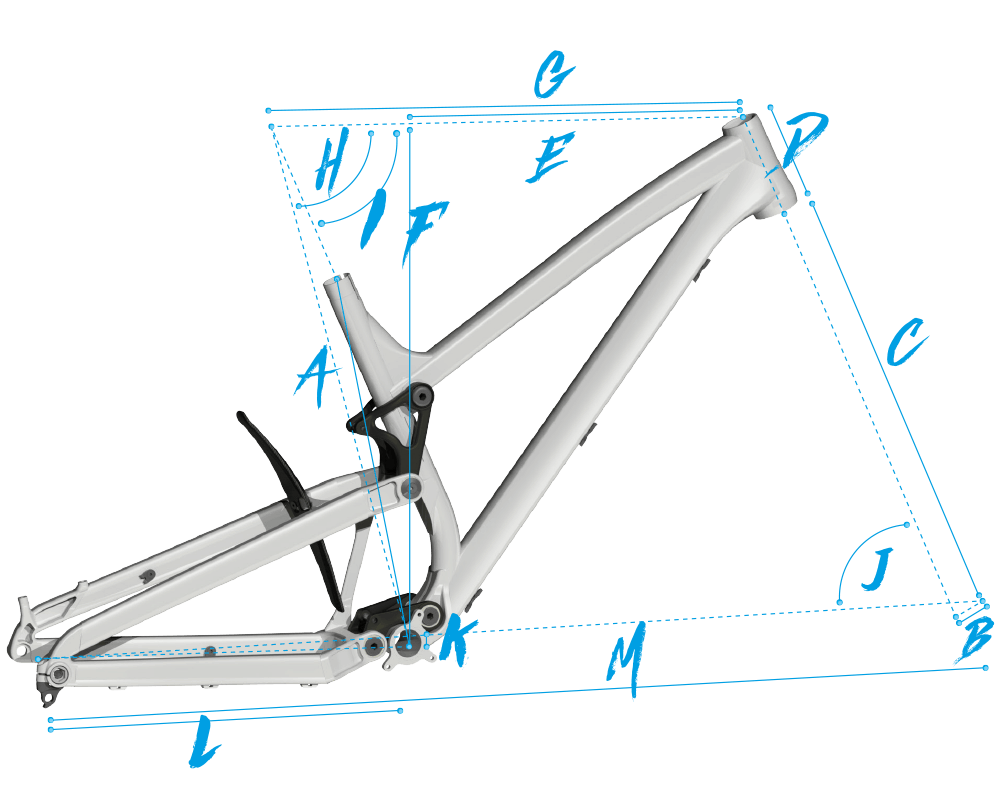

Size S | Size M | Size L | |
---|---|---|---|
Frame height (A) | 420 mm / 16.5″ | 420 mm / 16.5″ | 420 mm / 16.5″ |
Fork offset (B) | 42 mm | 42 mm | 42 mm |
Fork length (C) | 580 mm | 580 mm | 580 mm |
Head tube length (D) | 120 mm | 120 mm | 120 mm |
Reach (E) | 420 mm | 445 mm | 470 mm |
Stack (F) | 611 mm | 611 mm | 611 mm |
Head angle (G) | 63.5° | 63.5° | 63.5° |
Seat angle – real (H) | 64.5° | 64.5° | 64.5° |
Seat angle – effective (I) | 74.5° | 74.5° | 74.5° |
Top tube length (J) | 586 mm | 611 mm | 636 mm |
BB offset (K) | 3 mm | 3 mm | 3 mm |
Chainstay length (L) | 445 mm | 445 mm | 445 mm |
Wheelbase (M) | 1,215 mm | 1,240 mm | 1,265 mm |
