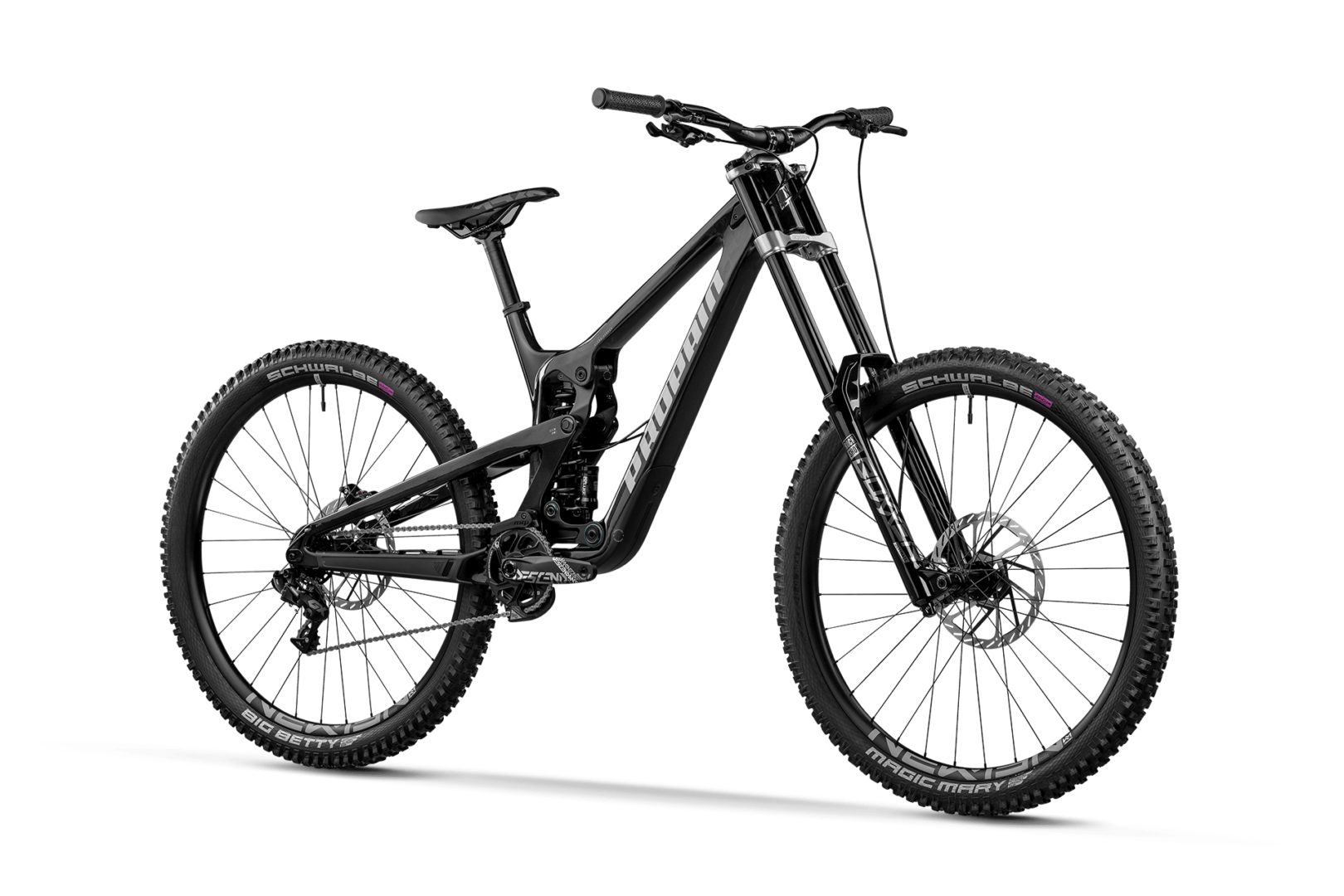

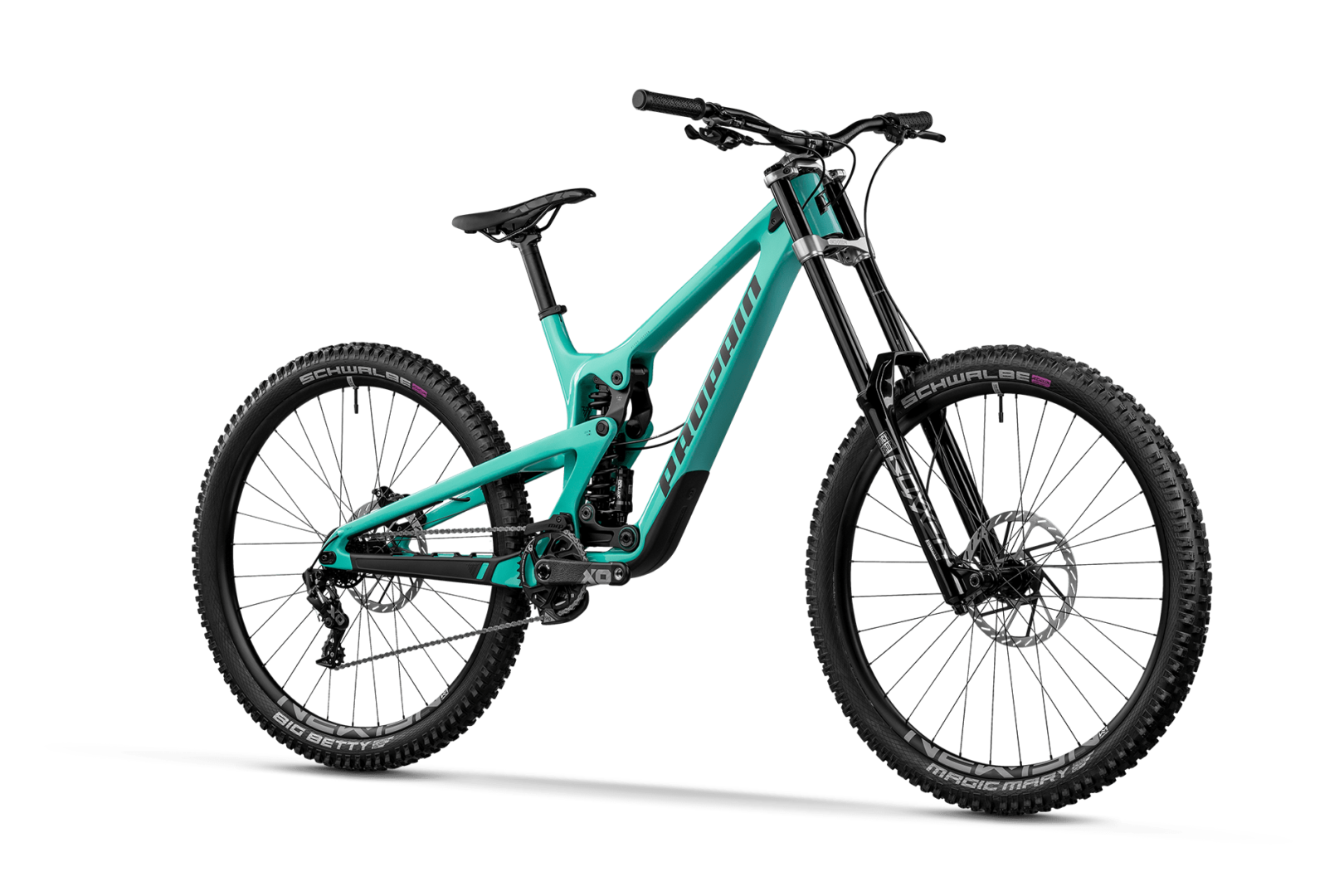

Rage CF 29"



You want to ride the same equipment as the World Cup professionals? Then you are on the right track with the Rage Carbon 29. Our World Cup-proven Rage Carbon has been further optimized and is even more uncompromising with its 29” wheels. Super fast and super light is just right to squeeze the last seconds out of your race run. With the award-winning Pro10 suspension system you can shred with unbelievable speed on the toughest downhill tracks on the planet. The ingenious Reach Adjustment System lets you adapt the bike perfectly to your size.

Choose your model

Build Kits

We help you on the way to your personal dream bike. In our configuration tool you can customize your bike by choosing coloured decals, grips and saddles.

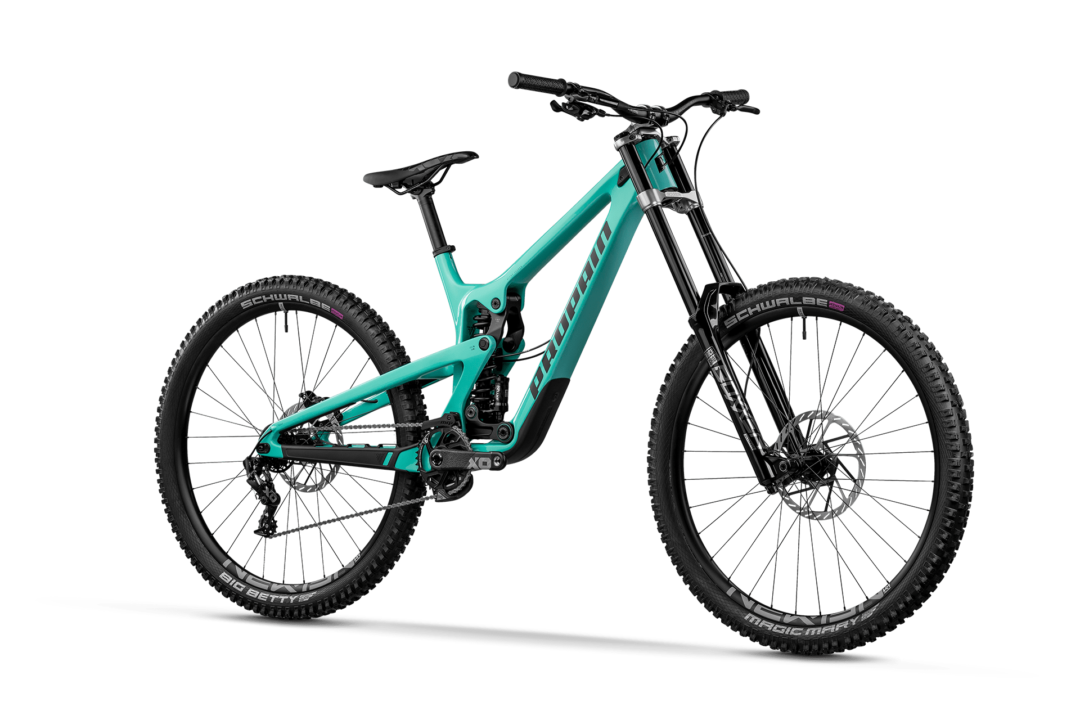

Rage CF 29" Launch Edition

$
  • Fork: RockShox Boxxer Ultimate 190mm
  • Shock: RockShox Super Deluxe Coil Ultimate DH
  • Front Brake: Magura MT7 203mm
  • Rear Brake: Magura MT7 203mm
  • Saddle: SIXPACK Kamikaze
  • Seatpost: Propain Seatpost
  • Wheels: Propain ZTR FLOW EX3
  • Crank: Truvativ Descendant DH 165 mm 36Z
  • Derailleur: SRAM GX DH (1×7)
  • Trigger: SRAM GX DH (1×7)
  • Casette: SRAM PG720 11-25 (1×7)
  • Handlebar: SIXPACK Millenium 785
  • Stem: SIXPACK Skywalker Direct Mount
  • Headset: Acros AIX-342
  • Tires: Schwalbe Magic Mary Ultra Soft
  • Bashguard: MRP G4 Mini
  • Weight: 34.83 lbs (15,8 kg)

Rage CF 29" Performance

$4.699
3,524 $
  • Fork: RockShox Boxxer RC 190mm
  • Shock: RockShox Super Deluxe Coil
  • Front Brake: Magura MT7 203mm
  • Rear Brake: Magura MT7 203mm
  • Saddle: SIXPACK Kamikaze
  • Seatpost: Propain Seatpost
  • Wheels: Propain ZTR FLOW EX3
  • Crank: Truvativ Descendant DH 165 mm 36Z
  • Derailleur: SRAM GX DH (1×7)
  • Trigger: SRAM GX DH (1×7)
  • Casette: SRAM PG720 11-25 (1×7)
  • Handlebar: SIXPACK Millenium 785
  • Stem: SIXPACK Skywalker Direct Mount
  • Headset: Acros AIX-342
  • Tires: Schwalbe Magic Mary Ultra Soft
  • Bashguard: MRP G4 Mini
  • Weight: 35.05 lbs (15,9 kg)
sale

Rage CF 29" High End

$6.199
4,649 $
  • Fork: Fox 49 Factory Kashima 190mm
  • Shock: Fox Float X2 Factory Kashima
  • Front Brake: SRAM Code RSC 200mm
  • Rear Brake: SRAM Code RSC 200mm
  • Saddle: SIXPACK Kamikaze
  • Seatpost: SIXPACK Seatpost
  • Wheels: Propain ZTR FLOW EX3
  • Crank: SRAM X01 DH 165 mm 36Z
  • Derailleur: SRAM X01 DH (1×7)
  • Trigger: SRAM X01 DH (1×7)
  • Casette: SRAM XG795 10-24 (1×7)
  • Handlebar: SIXPACK Millenium Carbon 785
  • Stem: SIXPACK Skywalker Direct Mount
  • Headset: Cane Creek 110
  • Tires: Schwalbe Magic Mary Ultra Soft
  • Bashguard: MRP G4 Mini
  • Weight: 34.39 lbs (15,6 kg)
Sale

Frame Sizes

The frame size is an essential part of the bike performance and above all of the riding fun. Select your required frame size from the table. If you stand between two sizes, then you only have to decide whether you like it playful or smooth running. For smooth running choose the larger frame size, for playful the smaller.

Technical Data

Shock length 250 mm
Shock travel 70 mm
Shock mount 8 x 25 mm
Rear wheel travel 200 mm
Bottom bracket BSA 83 mm
Brake mount Postmount 200
Seatpost diameter 31,6 mm
Headset (S.H.I.S) Tapered – Top: IS42 / Bottom: IS42
Rear wheel axle 157 mm x 12 mm (X12)
Front derailleur none
Chainline 56,5 mm
Chainguide mount ISCG 05
Wheel size 29″
Maximum fork travel 190 mm
Frame weight 3,1 kg

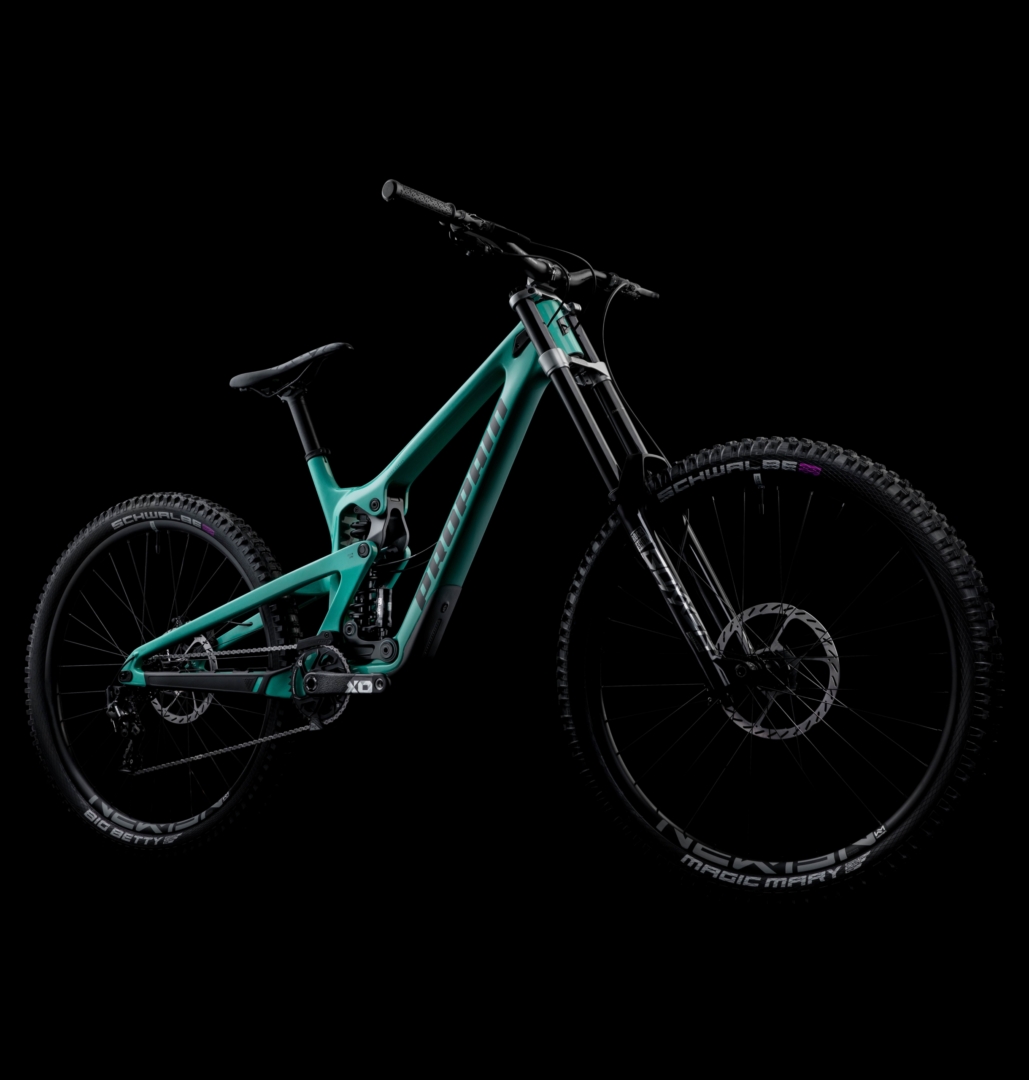

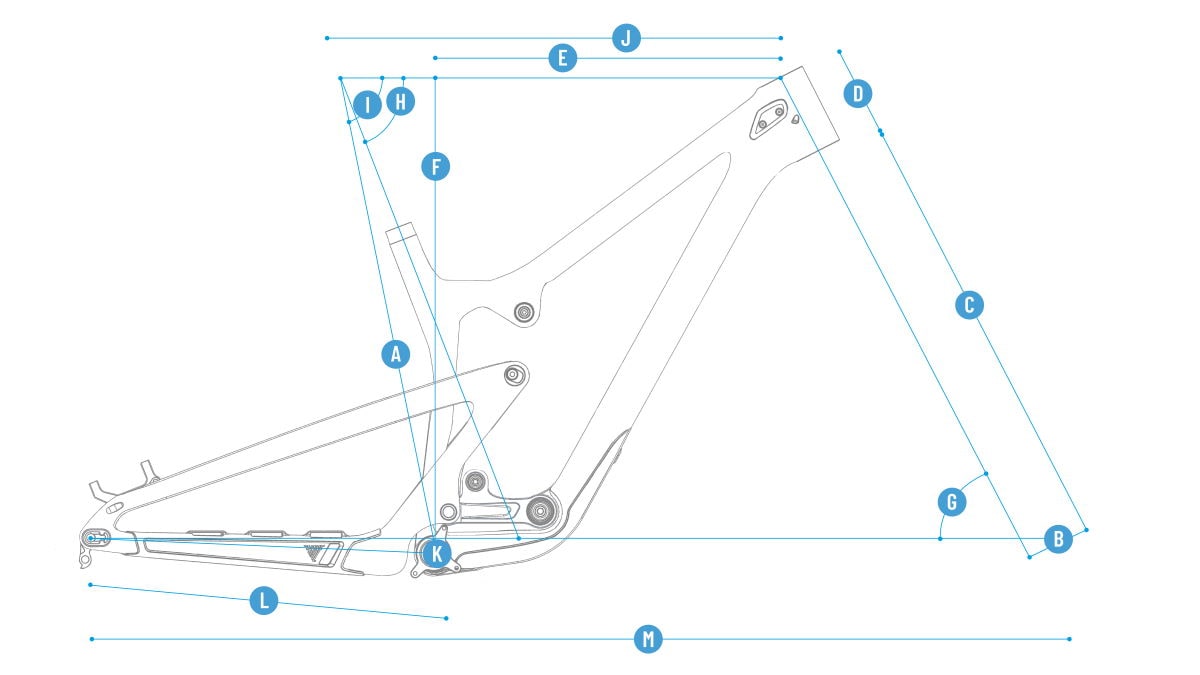

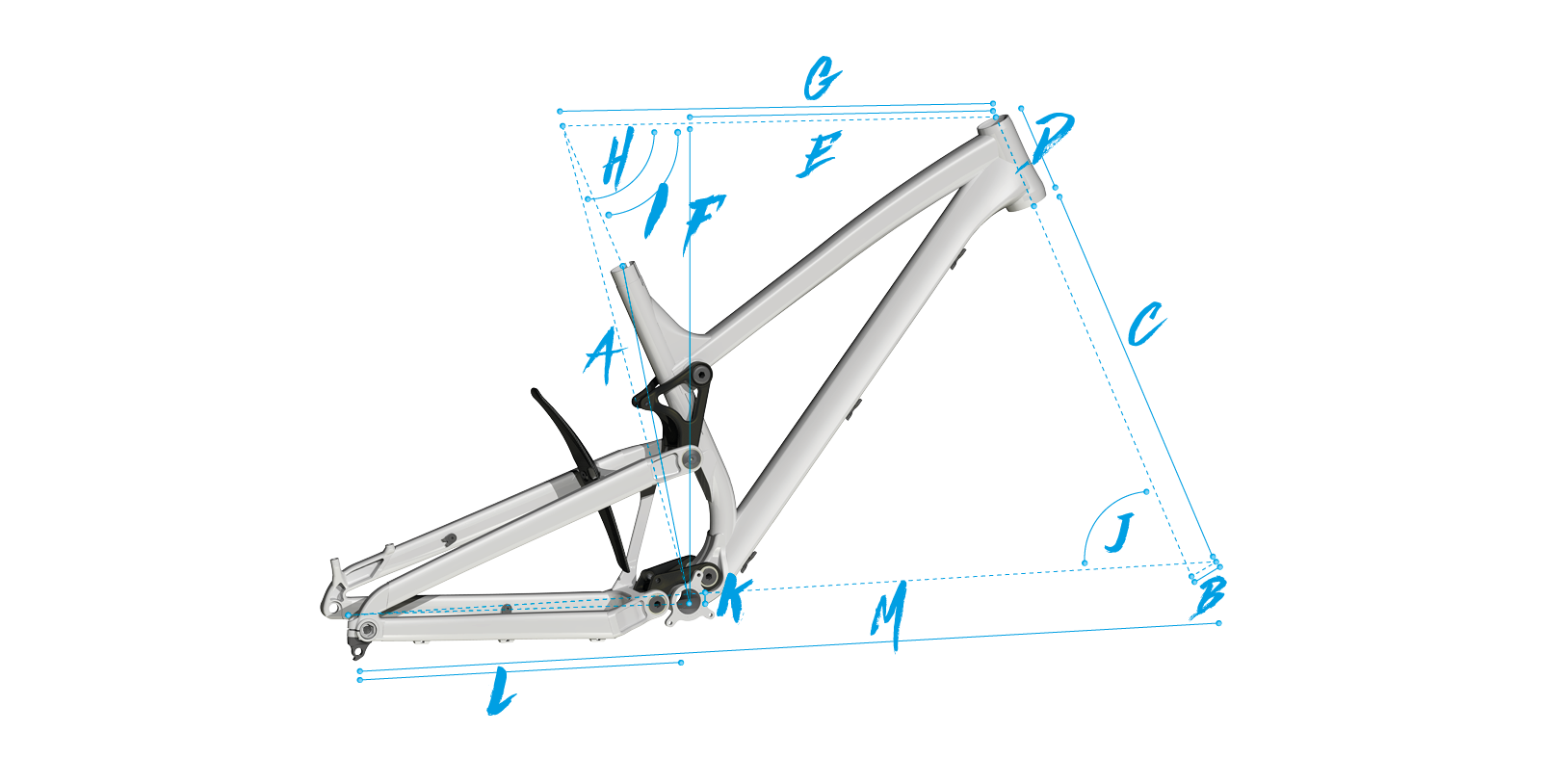

Geometry

SIZE L -10 SIZE L 0 SIZE L +10
Frame height (A) 420 mm / 16,5″ 420 mm / 16,5″ 420 mm / 16,5″
Wheelbase (M) 1.262 mm 1.272 mm 1.282 mm
Top tube length (G) 620 mm 630 mm 640 mm
Fork offset (B) 48 mm 48 mm 48 mm
Fork length (C) 590 mm 590 mm 590 mm
Chainstay length (L) 459 mm 459 mm 459 mm
Reach (E) 437 mm 447 mm 457 mm
Stack (F) 612 mm 616 mm 620 mm
Head angle (J) 63° 63° 63°
Seat angle – real (H) 60,5° 60,5° 60,5°
Seat angle – effective (I) 73,5° 73,5° 73,5°
Head tube length (D) 120 mm 120 mm 120 mm
BB offset (K) 16 mm 16 mm 16 mm
SIZE XL -10 SIZE XL 0 SIZE XL +10
Frame height (A) 420 mm / 16,5″ 420 mm / 16,5″ 420 mm / 16,5″
Wheelbase (M) 1.292 mm 1.302 mm 1.312 mm
Top tube length (G) 650 mm 660 mm 670 mm
Fork offset (B) 48 mm 48 mm 48 mm
Fork length (C) 590 mm 590 mm 590 mm
Chainstay length (L) 459 mm 459 mm 459 mm
Reach (E) 467 mm 477 mm 487 mm
Stack (F) 612 mm 616 mm 620 mm
Head angle (J) 63° 63° 63°
Seat angle – real (H) 60,5° 60,5° 60,5°
Seat angle – effective (I) 73,5° 73,5° 73,5°
Head tube length (D) 120 mm 120 mm 120 mm
BB offset (K) 16 mm 16 mm 16 mm
