No matter which adventure you choose, the Ekano is your ideal companion. Once the power button is pressed, nothing stops you from having fun and enjoying adventure. Due to the wide range of design options, the Ekano will always remain your individual dream E-nduro!

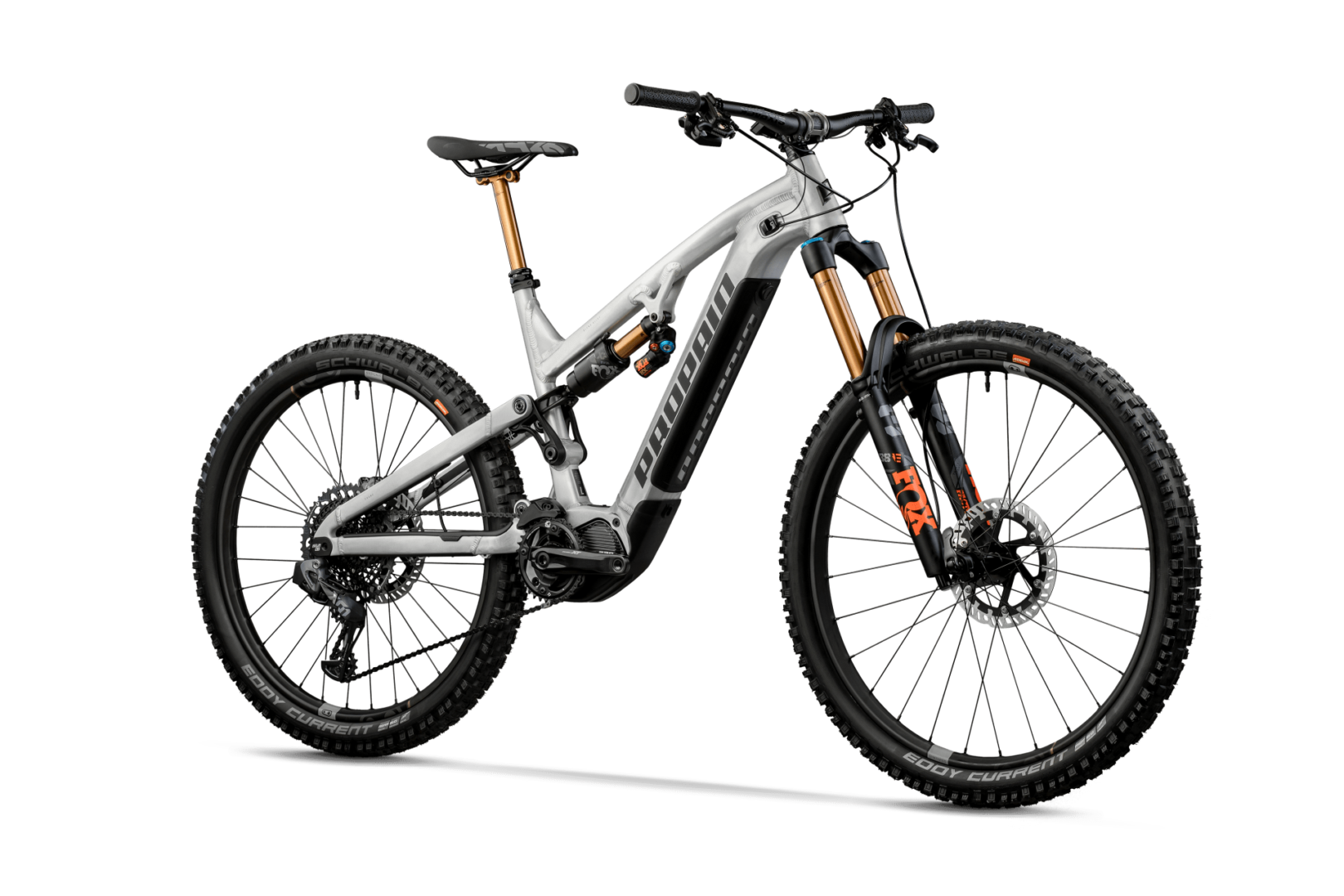

The Ekano is our interpretation of a perfect Performance E-Bike.
The advantages are obvious: the quieter and lighter 85 Nm motor gives the impression of riding a classic bike through its easy and efficient pedalling. Thanks to the optimised software, the motor delivers the right power at the right time. The Shimano E-TUBE app also offers a wide range of setting options and can even be adjusted “on tour”. On the trail, the Shimano EP8 offers three support levels: Eco, Trail and Boost.
Thanks to the combination of a steep seat angle, moderately long reach and chainstays and a flat steering angle, the frame of the Ekano manages this balancing act without any problems. On the trails, these features make for an agile ride and the powerful support of the Shimano EP8 gives you a whole new riding experience.
You can choose from a wide range of components and adapt your bike perfectly to your needs. You can also create an individual look for your Ekano by choosing from the different frame colours, decals, grips and badges on the head tube.
Use the following voucher code to save 20% on your dream bike:
– Only valid for selected bike models in our configurator
– Discout will be automatically applied at Checkout
– No changes of configuration possible afterwards
– Existing orders are not affected by the promotion
– Only while stocks last, only valid for orders in our US webshop
You decide the intended purpose and decide whether you prefer the playful 27.5″, the all-round Mix version, or the smooth running 29″ wheels. Your individual Ekano offers you the performance you need in any terrain. With 170 mm travel at the front and 165 mm at the rear, there are no limits to your fun.
You prefer smooth running ? Then the Ekano 29″ is exactly the right choice for you!
With the mix variant you have the best of both worlds! The Allrounder for Up- and Downhill.
May it be playful? Ideal for those who like it a little more agile and prefer smaller wheels.
We will help you on your way to your personal dream bike. The three build kits are our recommendations from us to you, as this is exactly how we would build our own bikes. We prepared a well-thought-out predefined spec for all purposes and every budget, with which you instantly are “ready to shred”. However, we at PROPAIN always remain “custom” so you can still choose individual components to customize your dream bike in our configurator.
Frequently Asked Questions – bitte leer lassen
Trigger
SRAM X01 Eagle
(1×12)
Derailleur
SRAM X01 Eagle (1×12)
Cassette
SRAM XG-1275 10-52
(1×12)
Crank
Shimano Eagle CR Alloy
Handlebar
SIXPACK Millenium 805
Stem
SIXPACK Millenium 35
Saddle
SIXPACK Kamikaze
Tires
Schwalbe Eddy Current
Weight
23.0 kg
Frequently Asked Questions – bitte leer lassen
Trigger
SRAM X01 Eagle
(1×12)
Derailleur
SRAM X01 Eagle (1×12)
Cassette
SRAM XG-1275 10-52
(1×12)
Crank
Shimano Eagle CR Steel
Handlebar
SIXPACK Millenium 805
Stem
SIXPACK Vertic 50
Saddle
SIXPACK Kamikaze
Tires
Schwalbe Eddy Current
Weight
23.2 kg
Frequently Asked Questions – bitte leer lassen
Trigger
SRAM GX Eagle
(1×12)
Derailleur
SRAM GX Eagle (1×12)
Cassette
SRAM XG-1275 10-52
(1×12)
Crank
Shimano Eagle CR Steel
Handlebar
SIXPACK Millenium 805
Stem
SIXPACK Vertic 50
Saddle
SIXPACK Kamikaze
Tires
Schwalbe Eddy Current
Weight
23.5 kg
Good looks are not everything. Our Ekano also impresses with its inner values and smart details. With quick-change chain guard, durable bearings and internal cable routing, you’ll get more time on the bike than in your garage.

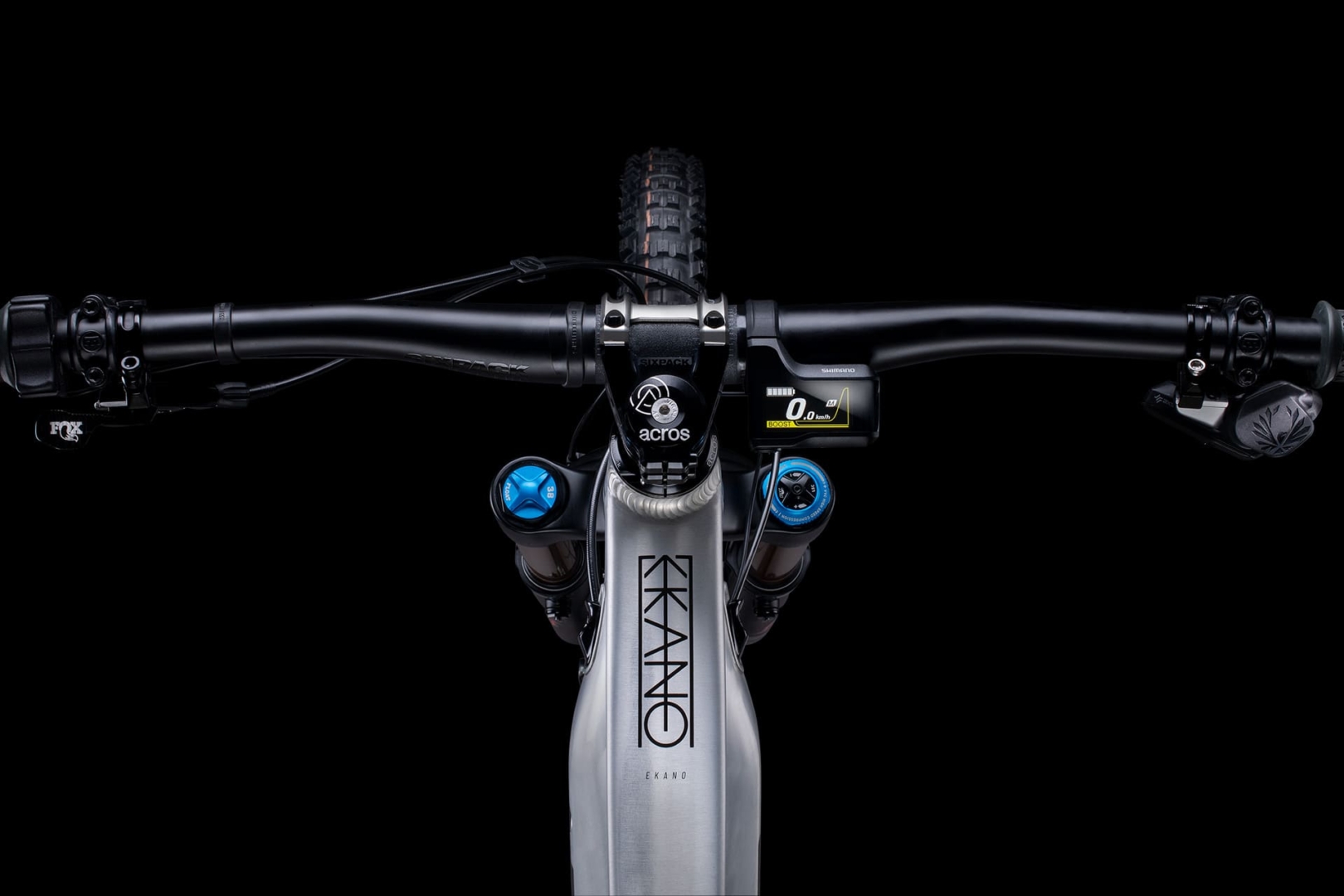

Many small details make our Ekano a real eye-catcher. The tidy cockpit not only ensures clarity and ease of use, the newly developed Ekano logo also shows the direction: always forward!

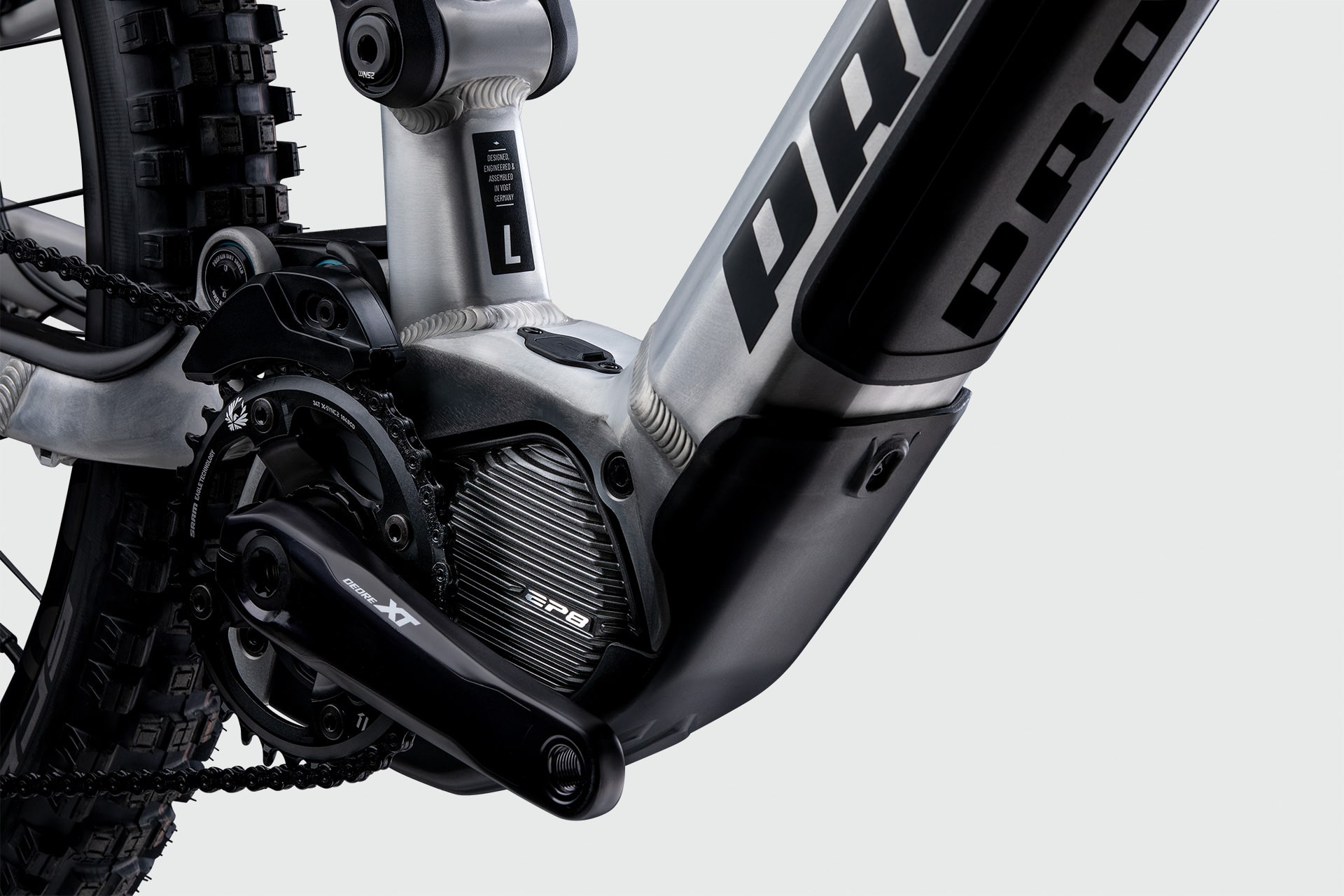

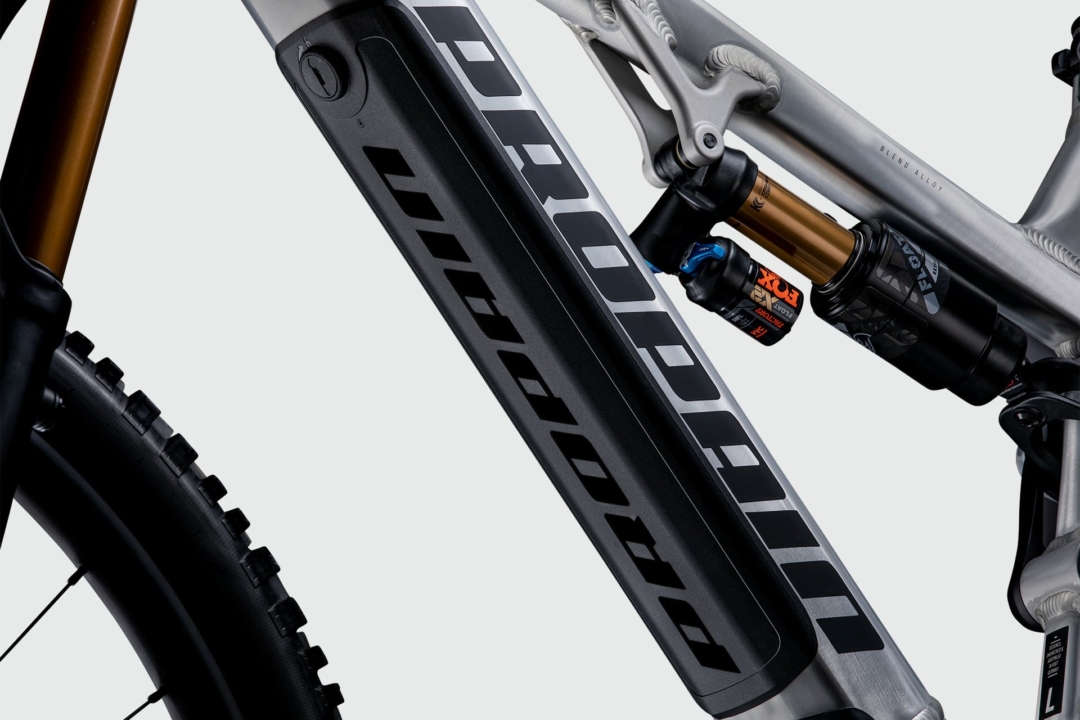

To protect the motor and down tube against stone hits, and to protect your frame against damage to the paintwork caused by the chain jumping, your Ekano comes with our motor and chain stay protection as standard. The optimised chain stay protection absorbs vibrations of the chain and protects the stay from damage. The down tube and motor are optimally protected by a cover against damage and dirt.

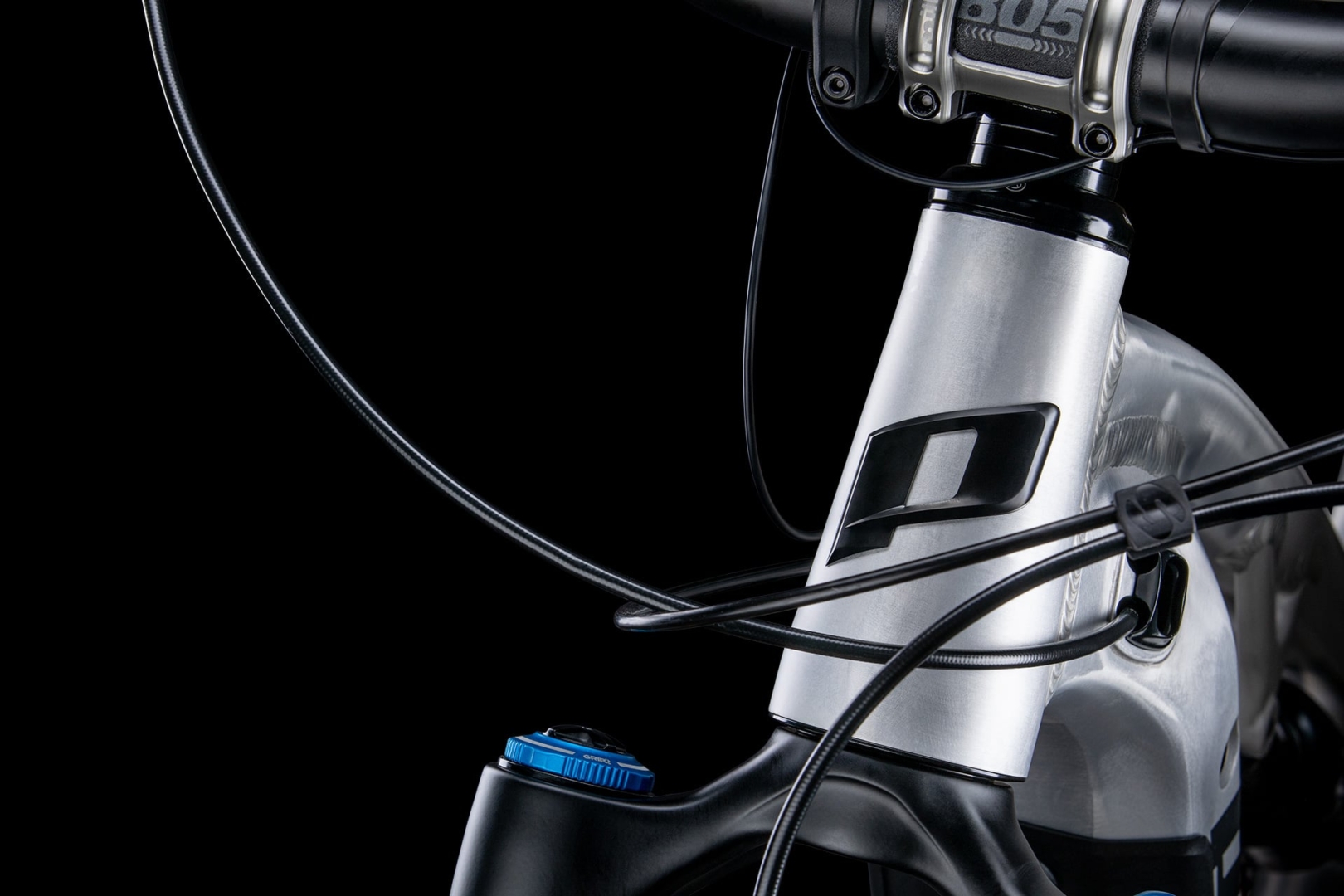

Internal cable routing became a standard for modern bikes. It is the smartest, safest and, above all, the cleanest way to route the cables. For the perfect look you can choose from three different head tube badges.
Whether it’s an adventurous tour or action in the bike park – your Ekano offers you the performance you need in any terrain.
Powerful & enduring!
No trail is like the other. Everyone has his own preferences when it comes to riding. With the new Shimano EP8, you get the power when you need it! No matter if it’s steep & challenging terrain or a flowing single trail, you decide how the engine supports you. Thanks to the many setting options you can adjust the engine to your needs.
E-Tube Project App
Eco, Trail or Boost modes are well known by now. With the Shimano E-Tube Project App you can now adjust the support of your engine to suit your riding style. Whether you’re on single trail or on the way to work, the quickly changed profiles ensure that your bike is always optimally adjusted.
| 150cm 4’11” | 160cm 5’3″ | 170cm 5’7″ | 180cm 5’11” | 190cm 6’3″ | 200cm 6’7″ | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| S* |
|
||||||||||
| M |
|
||||||||||
| L |
|
||||||||||
| XL |
|
||||||||||
|
|
|||||||||||
| EKANO | S | M | L | XL |
|---|---|---|---|---|
| Bikeyoke Divine 125 | 73.5 | 75.5 | 77.5 | 79.5 |
| Bikeyoke Divine 160 | 77.0 | 79.0 | 81.0 | 83.0 |
| Bikeyoke Divine 185 | 83.5 | 83.5 | 83.5 | 85.5 |
| Bikeyoke Revive 125 | 73.5 | 75.5 | 77.5 | 79.5 |
| Bikeyoke Revive 160 | 77.0 | 79.0 | 81.0 | 83.0 |
| Bikeyoke Revive 185 | 83.5 | 83.5 | 83.5 | 85.5 |
| Fox Transfer 125 | 75.5 | 77.5 | 79.5 | 81.5 |
| Fox Transfer 150 | 78.0 | 80.0 | 82.0 | 84.0 |
| Fox Transfer 175 | 84.5 | 84.5 | 84.5 | 86.5 |
| RockShox Reverb AXS 125 | 73.5 | 75.5 | 77.5 | 79.5 |
| RockShox Reverb AXS 150 | 76 | 78 | 80 | 82 |
| Drive Unit | Shimano EP8 |
| Battery | Shimano BT-E8035 (504 Wh) |

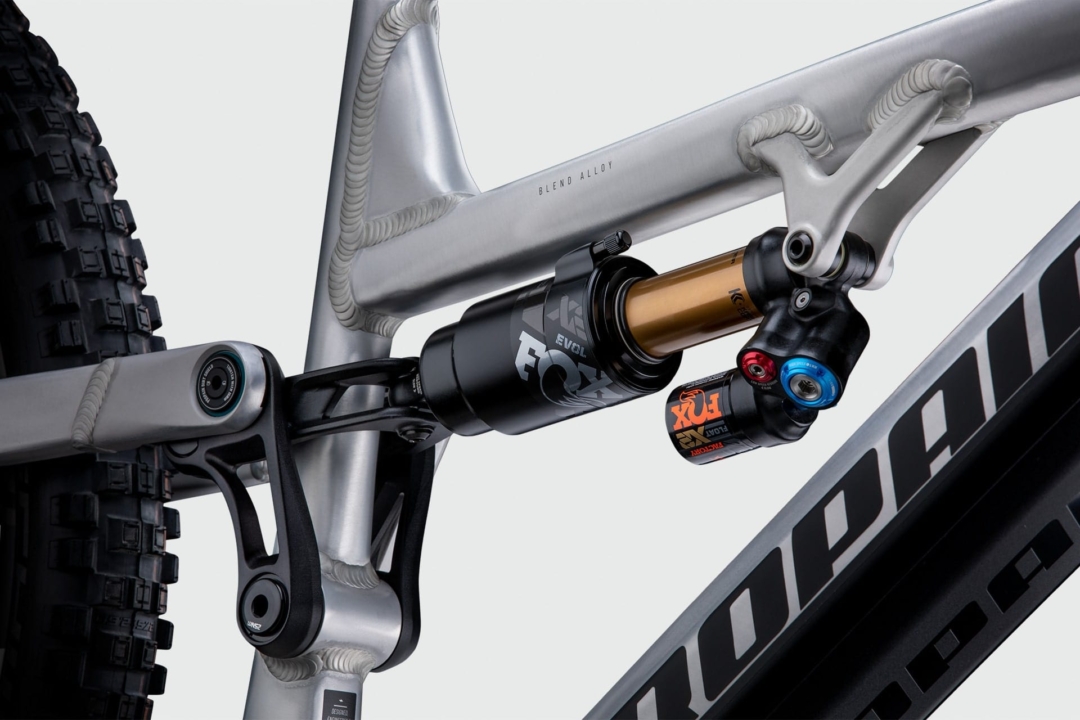

| Shock length | 230 mm |
| Shock travel | 65 mm |
| Shock bushings | Top: 8 x 25 mm / Bottom: Custom Flip Chip |
| Travel (Frame) | 165 mm |
| Max. Travel (Fork) | 170 mm |
| Brake mount (Frame) | Postmount 203 |
| Seatpost diameter | 31.6 mm |
| Max. seatpost insert length | S 232 mm / M 245 mm / L 265 mm / XL 270 mm |
| Headset (S.H.I.S.) | Top: ZS44 / Bottom: ZS56 |
| Rear wheel axle | 148 mm x 12 mm |
| Chainline | 52 mm (Boost) |
| Chainguard mount | Shimano EP8 Chainguard-Standard |
| Wheel sizes | 29″ / Mix / 27.5″ |
| Frame weight | 5.3 kg (Size M, without Drive Unit) |
| Drive Unit weight | 2.6 kg |
| Battery weight | 2.9 kg (averaged) |
| Max. system weight | 130 kg |
A geometry that works well on downhill as well as on demanding and long uphill sections is key for an E-Mountain Bike. The Ekano manages this balancing act with ease by the combination of a steep seat angle, moderately long reach and chain stays and a flat head angle. These characteristics paired with the powerful support of the Shimano EP8 drive unit ensure an agile handling on the trails and an overall new riding experience.
Frequently Asked Questions – bitte leer lassen
| Size M | Size L | Size XL | |
|---|---|---|---|
| Frame height (A) | 440 mm | 460 mm | 480 mm |
| Fork offset (B) | 42 mm | 42 mm | 42 mm |
| Fork length (C) | 584 mm | 584 mm | 584 mm |
| Head tube length (D) | 120 mm | 125 mm | 130 mm |
| Reach (E) | 435 mm | 455 mm | 475 mm |
| Stack (F) | 636 mm | 640 mm | 644 mm |
| Head angle (G) | 64.6° | 64.6° | 64.6° |
| Seat angle – real (H) | 72.6° | 72.6° | 72.6° |
| Seat angle – effective (I) | 75.6° | 75.6° | 75.6° |
| Top tube lenght (J) | 599 mm | 620 mm | 641 mm |
| BB offset (K) | 20 mm | 20 mm | 20 mm |
| Chainstay length (L) | 459 mm | 459 mm | 459 mm |
| Wheelbase (M) | 1,234 mm | 1,255 mm | 1,276 mm |
| Size S | Size M | Size L | Size XL | |
|---|---|---|---|---|
| Frame height (A) | 420 mm | 440 mm | 460 mm | 480 mm |
| Fork offset (B) | 42 mm | 42 mm | 42 mm | 42 mm |
| Fork length (C) | 584 mm | 584 mm | 584 mm | 584 mm |
| Head tube length (D) | 110 mm | 120 mm | 125 mm | 130 mm |
| Reach (E) | 412 mm | 432 mm | 452 mm | 472 mm |
| Stack (F) | 629 mm | 639 mm | 643 mm | 647 mm |
| Head angle (G) | 64.3° | 64.3° | 64.3° | 64.3° |
| Seat angle – real (H) | 72.3° | 72.3° | 72.3° | 72.3° |
| Seat angle – effective (I) | 75.3° | 75.3° | 75.3° | 75.3° |
| Top tube length (J) | 577 mm | 600 mm | 621 mm | 642 mm |
| BB offset (K) | 12 mm | 12 mm | 12 mm | 12 mm |
| Chainstay length (L) | 445 mm | 445 mm | 445 mm | 445 mm |
| Wheelbase (M) | 1,200 mm | 1,221 mm | 1,242 mm | 1,265 mm |
| Size S | Size M | Size L | Size XL | |
|---|---|---|---|---|
| Frame height (A) | 420 mm | 440 mm | 460 mm | 480 mm |
| Fork offset (B) | 42 mm | 42 mm | 42 mm | 42 mm |
| Fork length (C) | 584 mm | 584 mm | 584 mm | 584 mm |
| Head tube length (D) | 110 mm | 120 mm | 125 mm | 130 mm |
| Reach (E) | 412 mm | 432 mm | 452 mm | 472 mm |
| Stack (F) | 629 mm | 639 mm | 643 mm | 647 mm |
| Head angle (G) | 64.3° | 64.3° | 64.3° | 64.3° |
| Seat angle – real (H) | 72.3° | 72.3° | 72.3° | 72.3° |
| Seat angle – effective (I) | 75.3° | 75.3° | 75.3° | 75.3° |
| Top tube length (J) | 577 mm | 600 mm | 621 mm | 642 mm |
| BB offset (K) | 12 mm | 12 mm | 12 mm | 12 mm |
| Chainstay length (L) | 445 mm | 445 mm | 445 mm | 445 mm |
| Wheelbase (M) | 1,200 mm | 1,221 mm | 1,242 mm | 1,265 mm |
Frequently Asked Questions – don’t fill any text in here
Due to the many possible purposes of use it’s difficult to name a number. The terrain, weather conditions and driver weight have an impact on the distance you can reach with the Ekano. As far as our experience goes our Ekano can reach a distance between approx. 40 to 80 kilometers.
Please make sure you handle the battery according the specifications in the Shimano manual to achieve the longest durability.
A Shimano BT-8035 battery costs 699,00 €. You can find the battery here.
With the included adapter you can charge the battery outside of your Ekano.
You can get assistance for your battery and all other Shimano components at any Shimano STEPS dealer worldwide. You can find all STEPS dealers here: Shimano STEPS dealers
Alternatively, you can submit any question to us directly. Simply use our service form.
Drinking bottles up to 0,5l fit in the frame if you are using a sideload cage, which fits perfectly in the frame triangle.
The bike comes with three stem spacers, uncut handlebars, shock pump and all the instructions you need.
No, we only offer the components and color variants that we show in the configurator.
Our Ekano will soon be available in the United States. Don’t miss any update with our email notification below.
