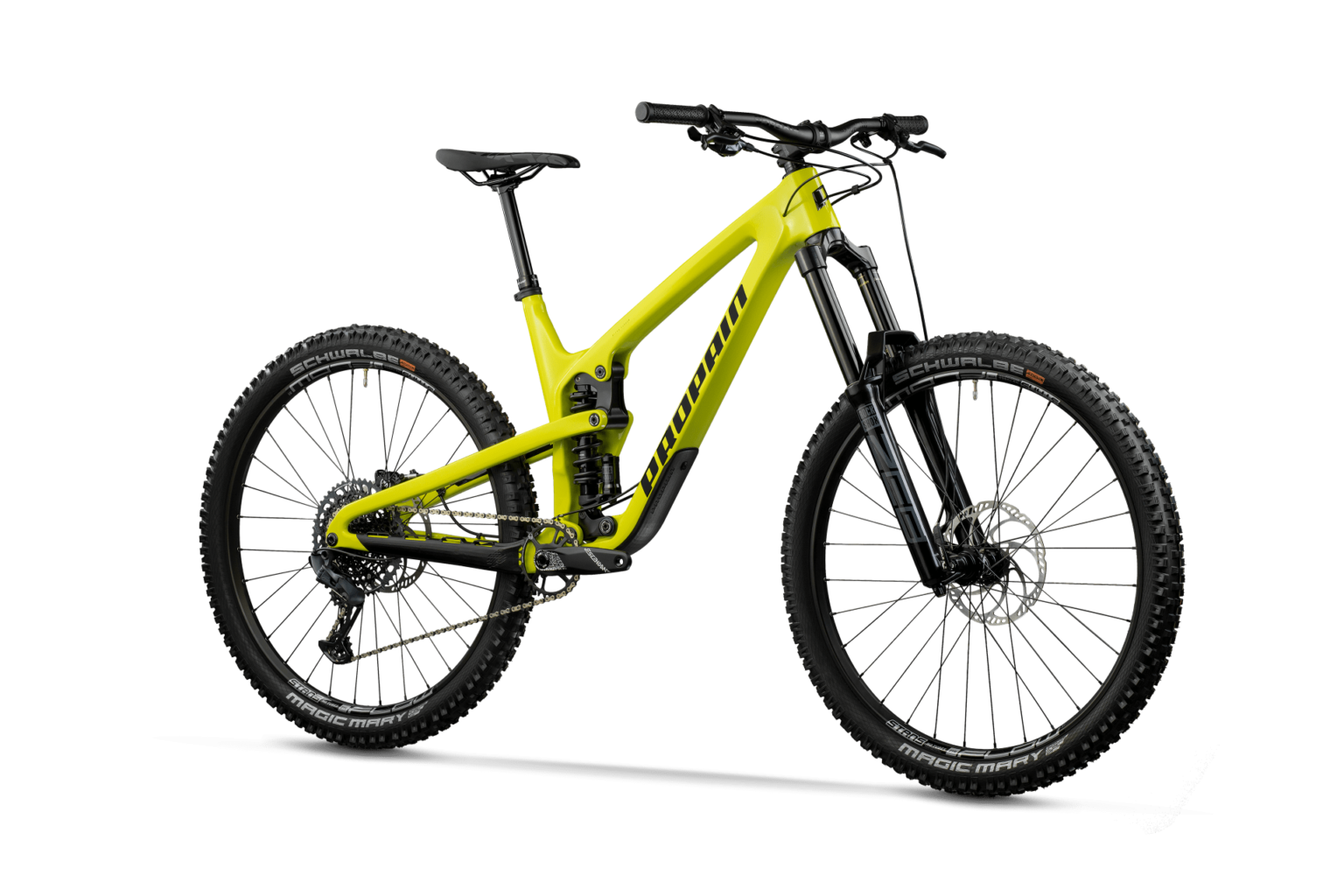

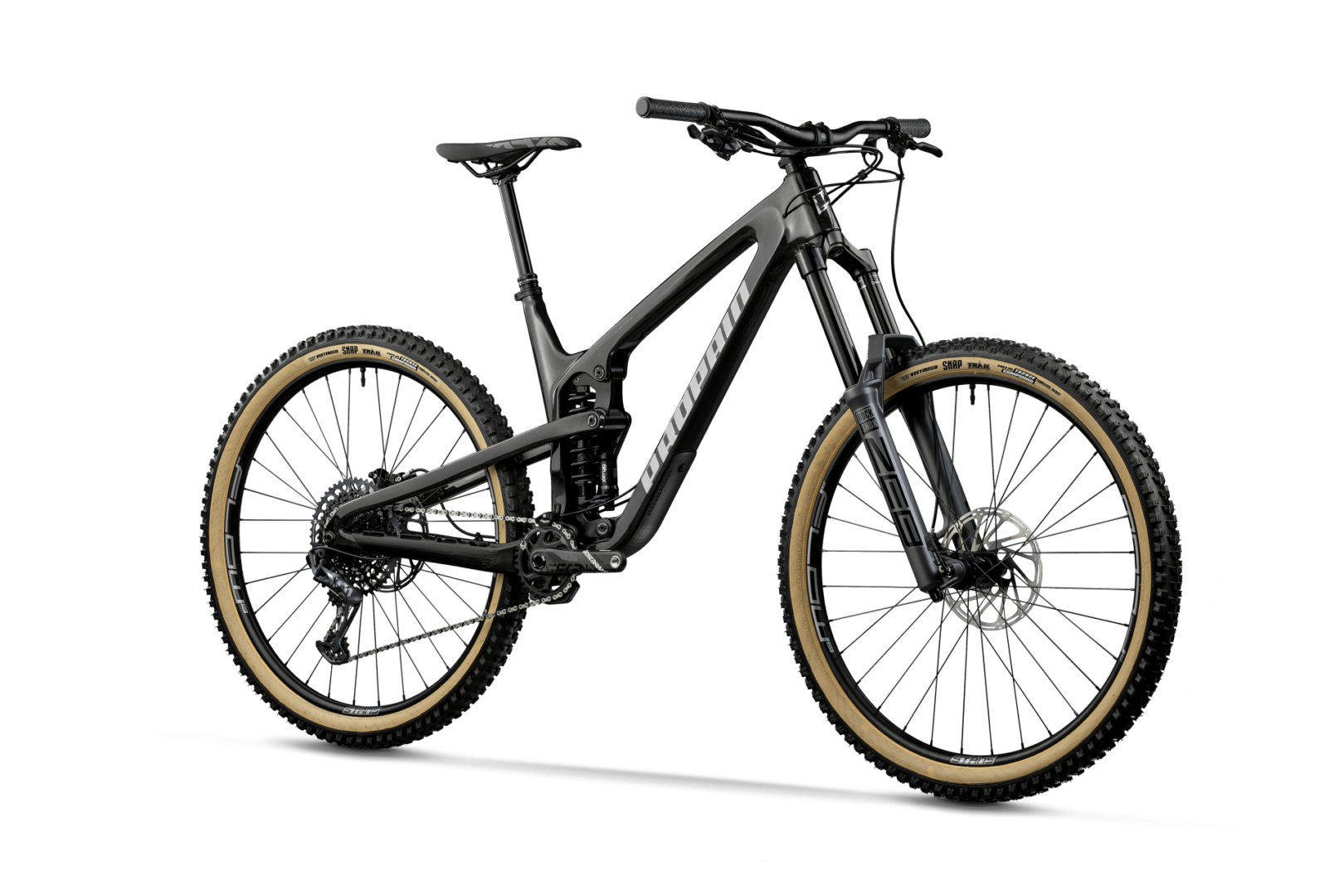

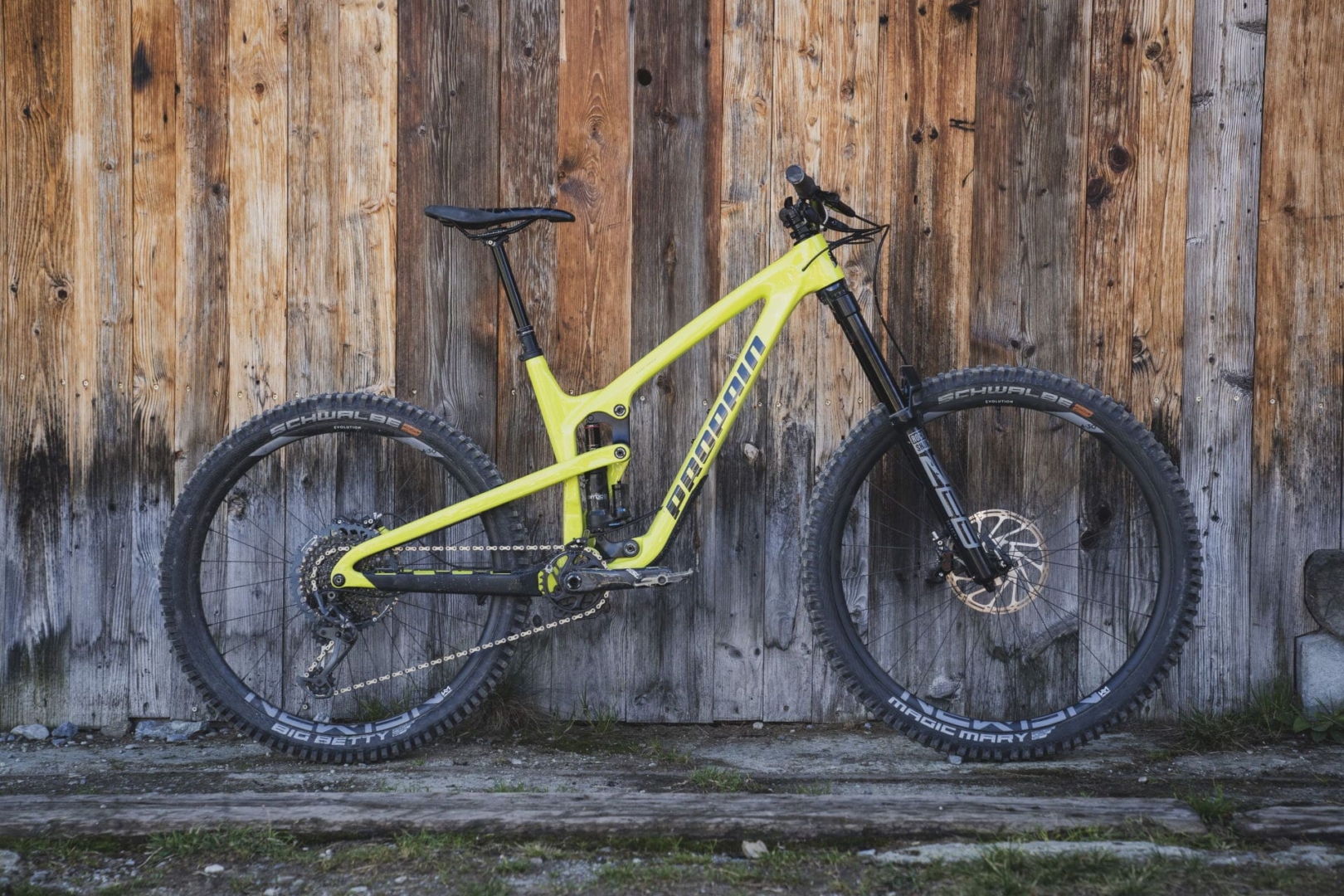

Spindrift

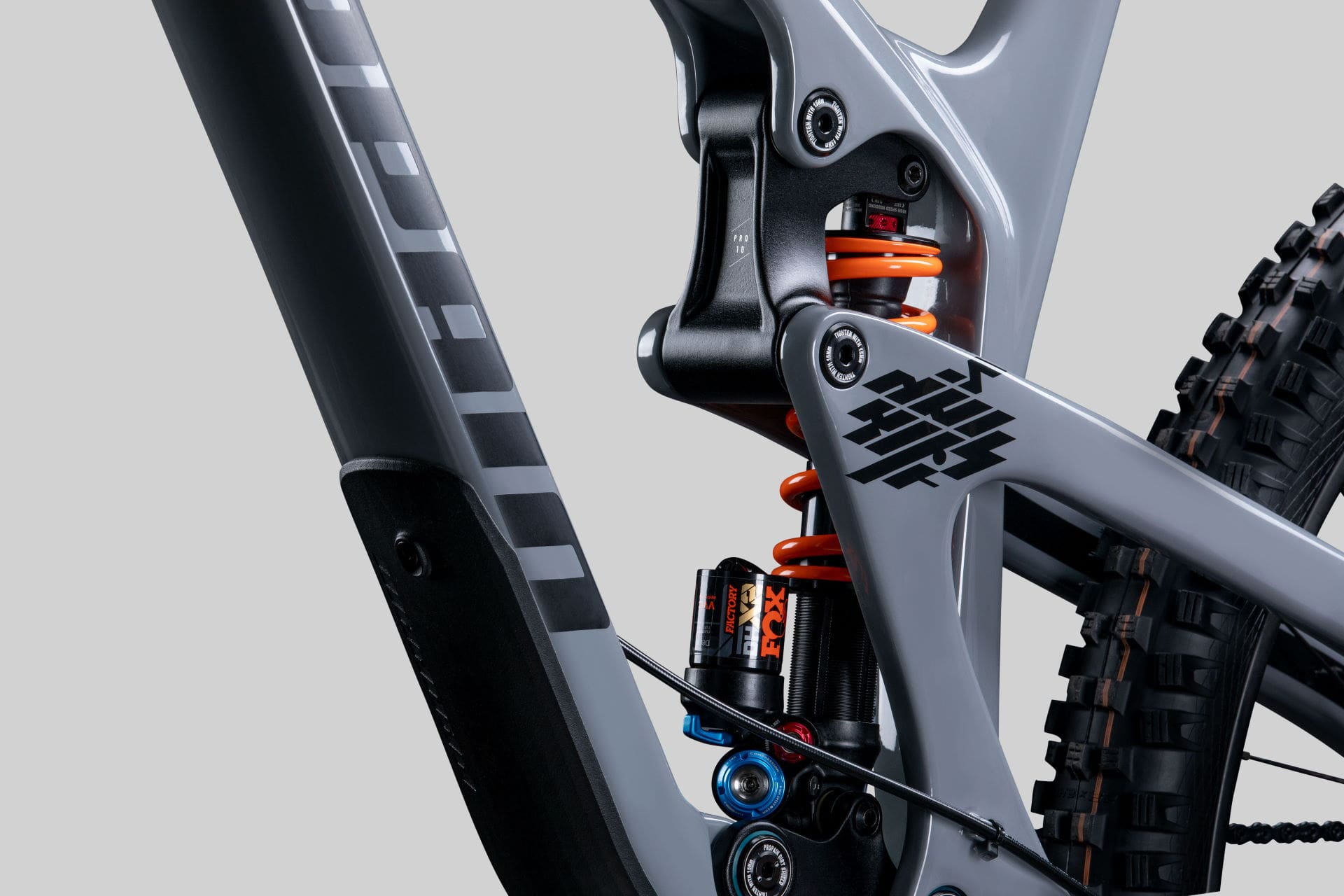

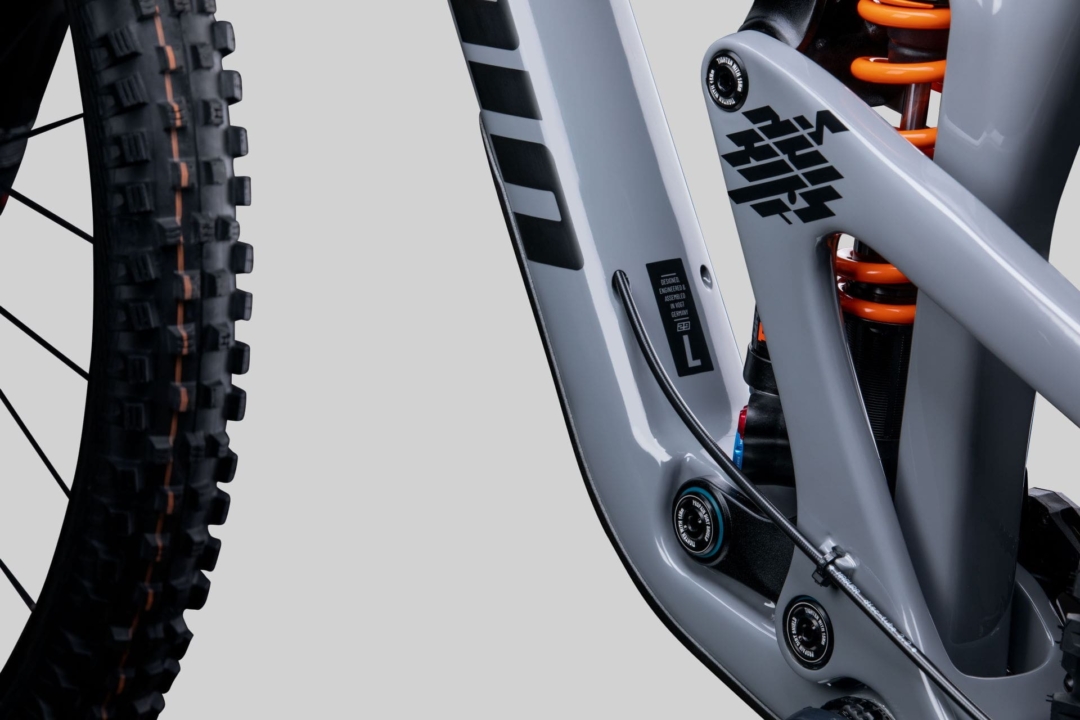

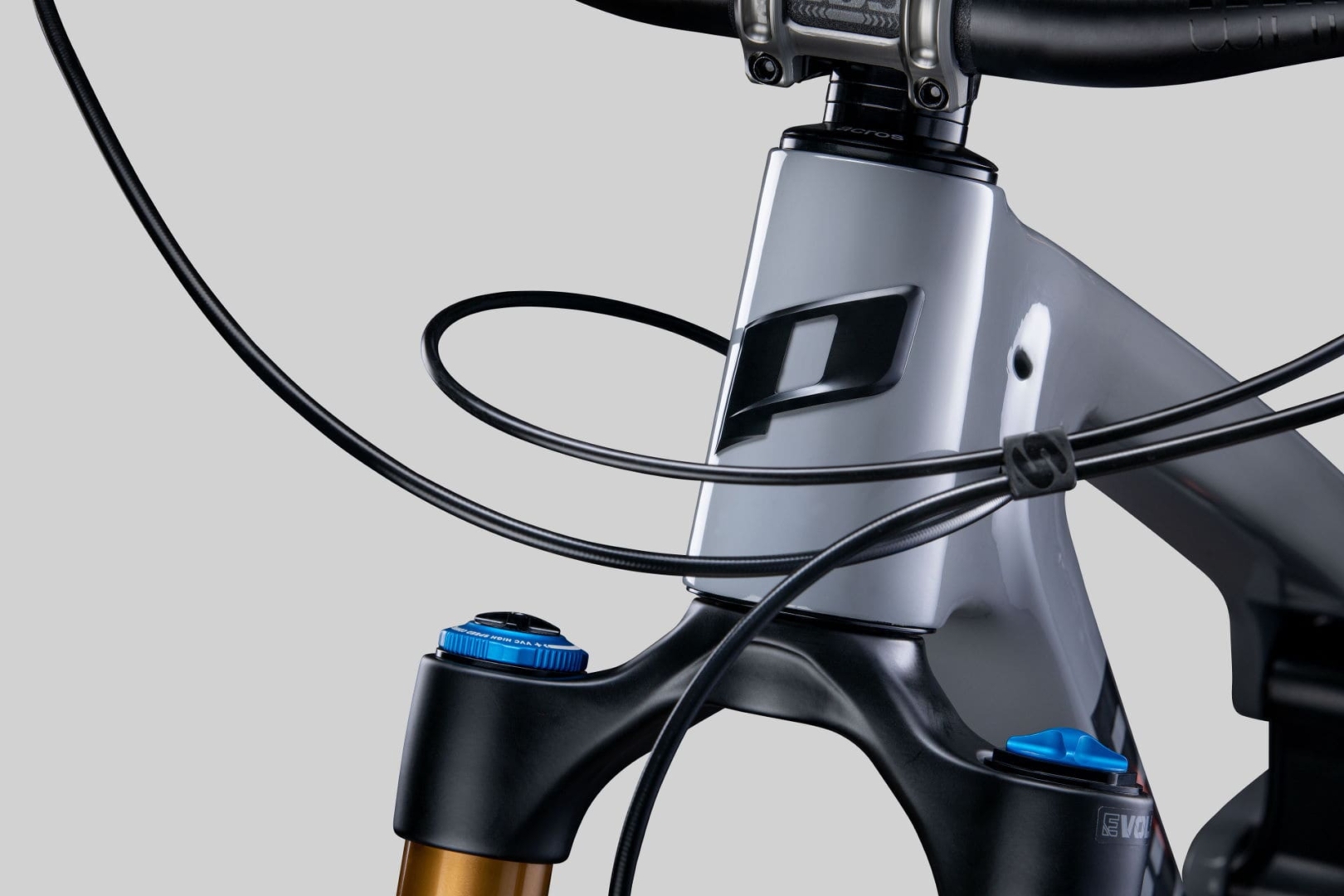

The new Spindrift will push your boundaries. Since its launch, the Spindrift has whipped up a considerable amount of dust and cleaned up on the award front. It is no surprise as it straddles the divide between an enduro and a big bike with ease thanks to its versatility. This means you can work your way up the climb and get full downhill performance with riding pleasure not seen before. For the current model year, the Spindrift’s reliability has been boosted thanks to sealed frame bearings, internal cable routing, and generous down tube protection. A bike just like a fun buddy, who will not let you down whatever the situation.

Choose your model

Build Kits

We help you on the way to your personal dream bike. In our configuration tool you can customize your bike by choosing coloured decals, grips and saddles.

Spindrift Performance

4,399
00
$
  • Fork: RockShox Lyrik Ultimate RC2 180mm
  • Shock: RockShox Super Deluxe Coil Ultimate
  • Front Brake: Magura MT7 203mm
  • Rear Brake: Magura MT7 200mm
  • Saddle: SIXPACK Kamikaze
  • Seatpost: Bikeyoke Revive
  • Wheels: Propain ZTR FLOW MK3
  • Crank: Truvativ Descendant Carbon 175mm 32Z
  • Derailleur: SRAM X01 Eagle (1×12)
  • Trigger: SRAM X01 Eagle (1×12)
  • Casette: SRAM XG1275 10-50 (1×12)
  • Chain: SRAM GX Eagle (1x12)
  • Handlebar: SIXPACK Millenium 785
  • Stem: SIXPACK Leader 50
  • Headset: Acros AIX-342
  • Tires: Schwalbe Magic Mary Addix Soft
  • Bashguard: Sixpack
  • Weight: 32.40 lbs (14,7 kg)

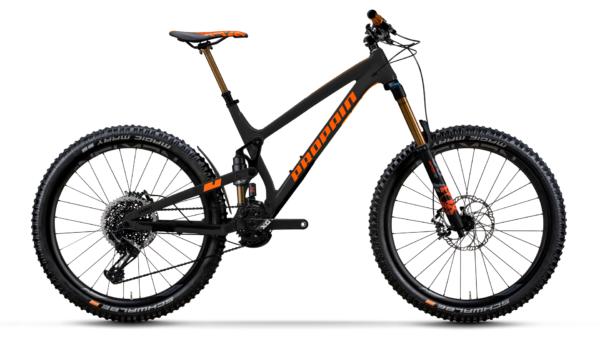

Spindrift High End

6,299
00
$
  • Fork: Fox 36 Grip2 Factory 180mm
  • Shock: Fox FloatX2 Air Shock
  • Front Brake: SRAM Code RSC 200mm
  • Rear Brake: SRAM Code RSC 200mm
  • Saddle: SIXPACK Kamikaze
  • Seatpost: Fox Transfer Factory
  • Wheels: Newmen Evo 30
  • Crank: SRAM X01 Eagle Carbon 175mm 32Z
  • Derailleur: SRAM X01 Eagle (1×12)
  • Trigger: SRAM X01 Eagle (1×12)
  • Casette: SRAM XG1295 Eagle (1x12)
  • Chain: SRAM XX1 Eagle (1x12)
  • Handlebar: SIXPACK Millenium 785 Carbon
  • Stem: SIXPACK Leader 50
  • Headset: Cane Creek 110
  • Tires: Schwalbe Magic Mary Addix Soft
  • Bashguard: Sixpack
  • Weight: 31.08 lbs (14,1 kg)

Frame Sizes

The frame size is an essential part of the bike performance and above all of the riding fun. Select your required frame size from the table. If you stand between two sizes, then you only have to decide whether you like it playful or smooth running. For smooth running choose the larger frame size, for playful the smaller.

Seatposts

The adjustable seat post is probably one of the most ingenious inventions of recent years. In order for it to function optimally on the trail, the proper seatpost travel is very important. The following table shows the recommended minimum inseam for the corresponding frame size. Please keep in mind that this is only a recommendation, as the respective sitting position depends very much on personal habits and preferences.

* Inside leg length in cm
SPINDRIFT S M L XL
Bikeyoke Revive 125 73,5 75,5 77,5 79,5
Kind Shock Lev 125 74,5 76,5 78,5 80,5
Fox Transfer 125 75,5 77,5 79,5 81,5
Bikeyoke Revive 160 / Kind Shock Lev 150 77,0 79,0 81,0 83,0
Fox Transfer 150 78,0 80,0 82,0 84,0

Technical Data

Shock length 230 mm
Shock travel 60 mm
Shock mount 8 x 25 mm
Rear wheel travel 180 mm
Bottom bracket BSA 73 mm
Brake mount Postmount 180
Seatpost diameter 31,6 mm
Headset (S.H.I.S) Tapered - Top: IS42 / Bottom: IS52
Rear wheel axle 148 mm x 12 mm (X12)
Front derailleur none
Chainline 52 mm (Boost)
Chainguide mount ISCG 05
Wheel size 27,5"
Maximum fork travel 180 mm
Frame weight 3,3 kg (Size M)

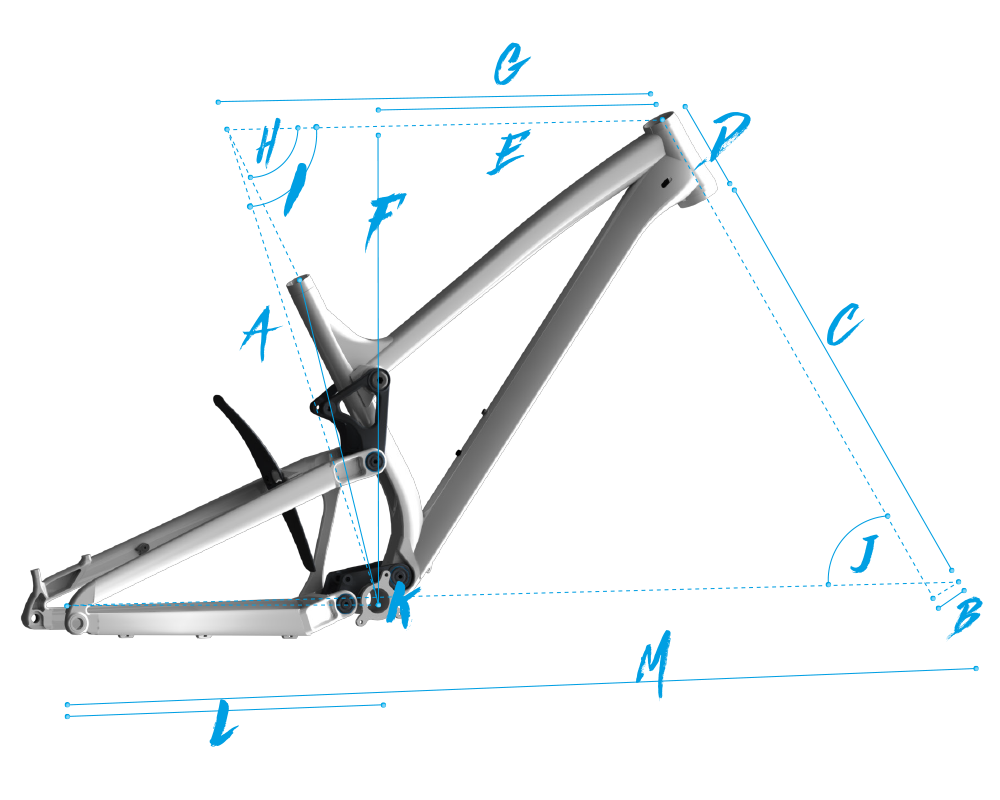

Geometry

SIZE S SIZE M SIZE L SIZE XL
Frame height (A) 420 mm / 16,5" 440 mm / 17,5" 460 mm / 18,5" 480 mm / 19,5"
Wheelbase (M) 1.202 mm 1.227 mm 1.247 mm 1.270 mm
Top tube length (G) 579 mm 603 mm 623 mm 640 mm
Fork offset (B) 37 mm 37 mm 37 mm 37 mm
Fork length (C) 574 mm 574 mm 574 mm 574 mm
Chainstay length (L) 445 mm 445 mm 445 mm 445 mm
Reach (E) 425 mm 445 mm 465 mm 485 mm
Stack (F) 602 mm 611 mm 611 mm 627 mm
Head angle (J) 64,5° 64,5° 64,5° 64,5°
Seat angle - real (H) 65,5° 65,5° 65,5° 66,4°
Seat angle - effective (I) 75,5° 75,5° 75,5° 76,0°
Head tube length (D) 110 mm 120 mm 120 mm 130 mm
BB offset (K) 3 mm 3 mm 3 mm 9 mm
