Frechdax



Tools for young shredders

The Frechdax was one of our special projects. As bikers and fathers it was time to develop a bike that meets the requirements of our very little ones without compromise, but at the same time uses the technology of our regular mountain bikes. The result is the Frechdax, which brings a big smile to every child’s face. It’s the right choice for kids who are already shredding bike parks or who are already venturing into demanding, technical terrain.

Stay tuned!

As you may have heard, the whole bicycle industry is facing unusually long delivery times, most of it is due to unavailable bike components.

To our situation statement.

Because of this availability issues the Frechdax and the Dreckspatz models will be unavailable for the 2021 season. We are sorry for this but will notify you by email via our newsletter when the Frechdax and Dreckspatz can be ordered again. Thanks for your understanding.

TOOLS FOR YOUNG SHREDDERS

The Frechdax was one of our special projects. As bikers and fathers it was time to develop a bike that meets the requirements of our very little ones without compromise, but at the same time uses the technology of our regular mountain bikes. The result is the Frechdax, which brings a big smile to every child’s face. It’s the right choice for kids who are already shredding bike parks or who are already venturing into demanding, technical terrain.

Frame material
Aluminium

Wheel size
20″

Travel front
80 mm

Travel rear
90 mm

Terrain
Enduro

Category
5

Warranty
3 Years

Weight
from 9.8 kg

Build Kits

Frechdax

TBA $ excl. VAT
  • Fork 1st Ride Carbon 80 mm
  • Shock RockShox Monarch R 90 mm
  • Brakes SRAM Level 165 mm / 125 mm
  • Wheels SunRingle Düroc 30
  • Seatpost 1st Ride
  • Trigger SRAM X5 (1x9)
  • Derailleur SRAM X5 (1x9)
  • Cassette SRAM PG-920
  • Crank 1st Ride 115 mm
  • Handlebar 1st Ride 550
  • Stem 1st Ride 38
  • Saddle 1st Ride Race
  • Tires VEE Crown Gem
  • Weight 21.60 lbs (9.8 kg)
Bitte leer lassen
105 cm
3’4″
115 cm
3’7″
125 cm
4’1″
135 cm
4’4″
145 cm
4’7″
155 cm
5’0″
165 cm
5’4″
Frechdax
Dreckspatz
Yuma
Shock length 152 mm
Shock travel 31 mm
Shock bushings Top: 8 x 22.2 mm / Bottom: 8 x 41 mm
Travel (Frame) 90 mm
Max. Travel (Fork) 100 mm
Bottom bracket BSA 73 mm
Brake mount Postmount 140
Seatpost diameter 27.2 mm
Headset (S.H.I.S.) Top: ZS44 / Bottom: ZS44
Rear wheel axle 135 mm x 10 mm
Chainline 49 mm
Chainguide mount ISCG 05
Wheel size 20″
Max. rider weight 40 kg

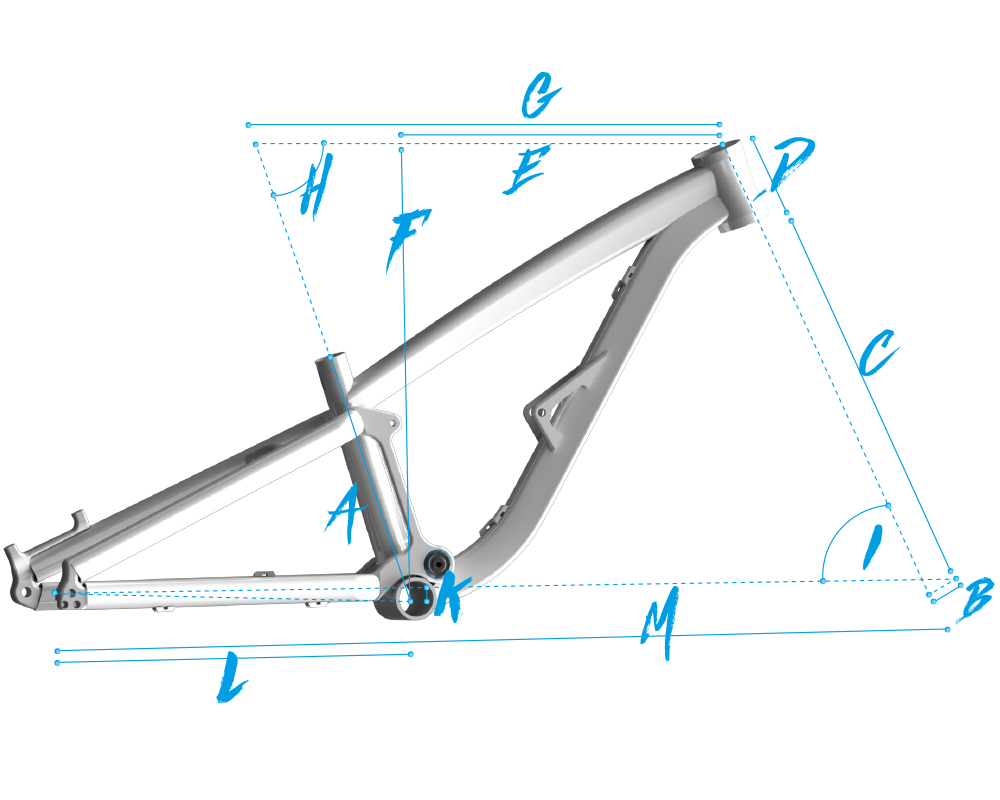

Frame height (A) 240 mm
Fork offset (B) 35 mm
Fork length (C) 375 mm
Head tube length (D) 75 mm
Reach (E) 314 mm
Stack (F) 418 mm
Head angle (G) 68.5°
Seat angle (H) 73°
Top tube length (J) 442 mm
BB offset (K) 12 mm
Chainstay length (L) 360 mm
Wheelbase (M) 872 mm
