TOOLS FOR YOUNG SHREDDERS

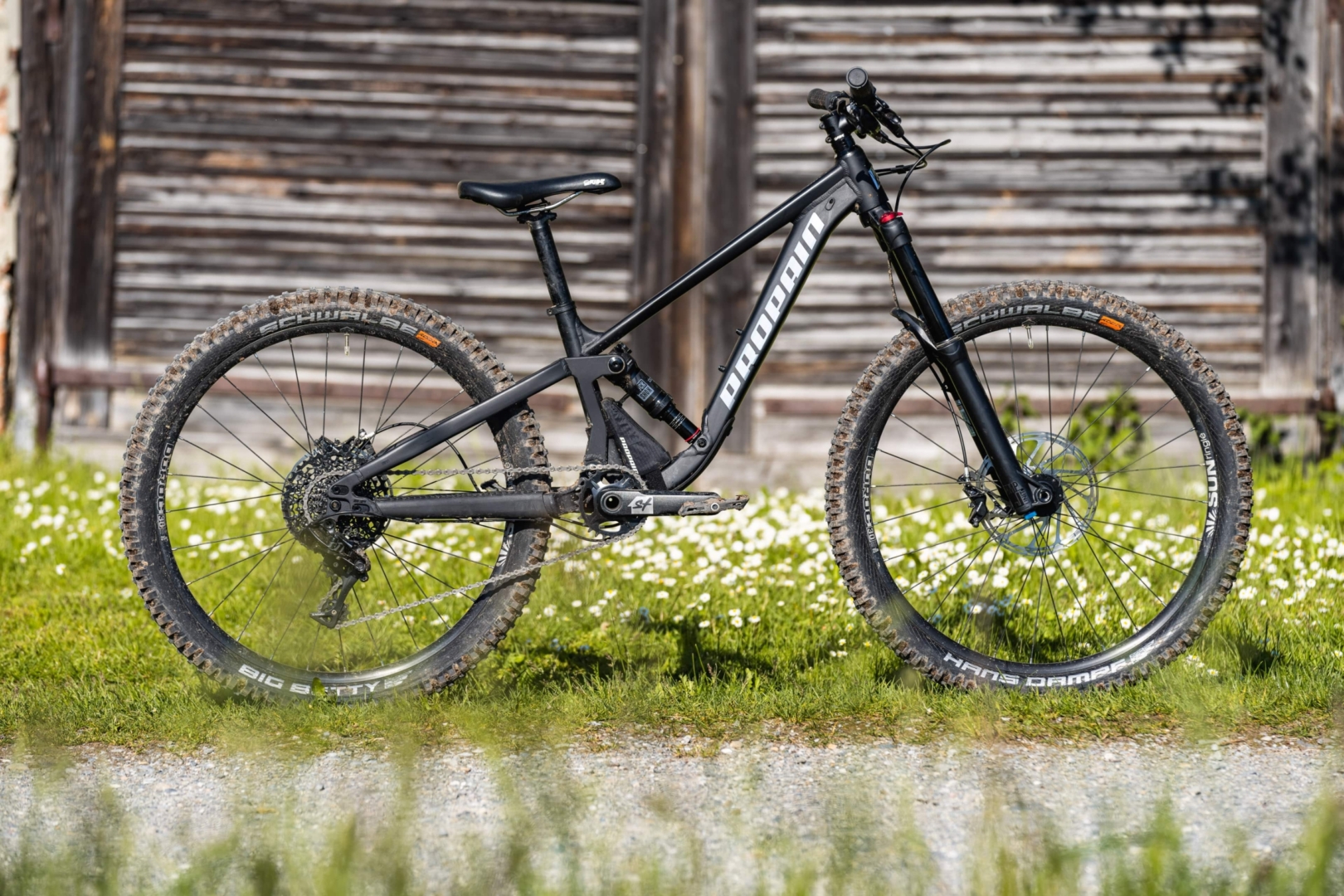

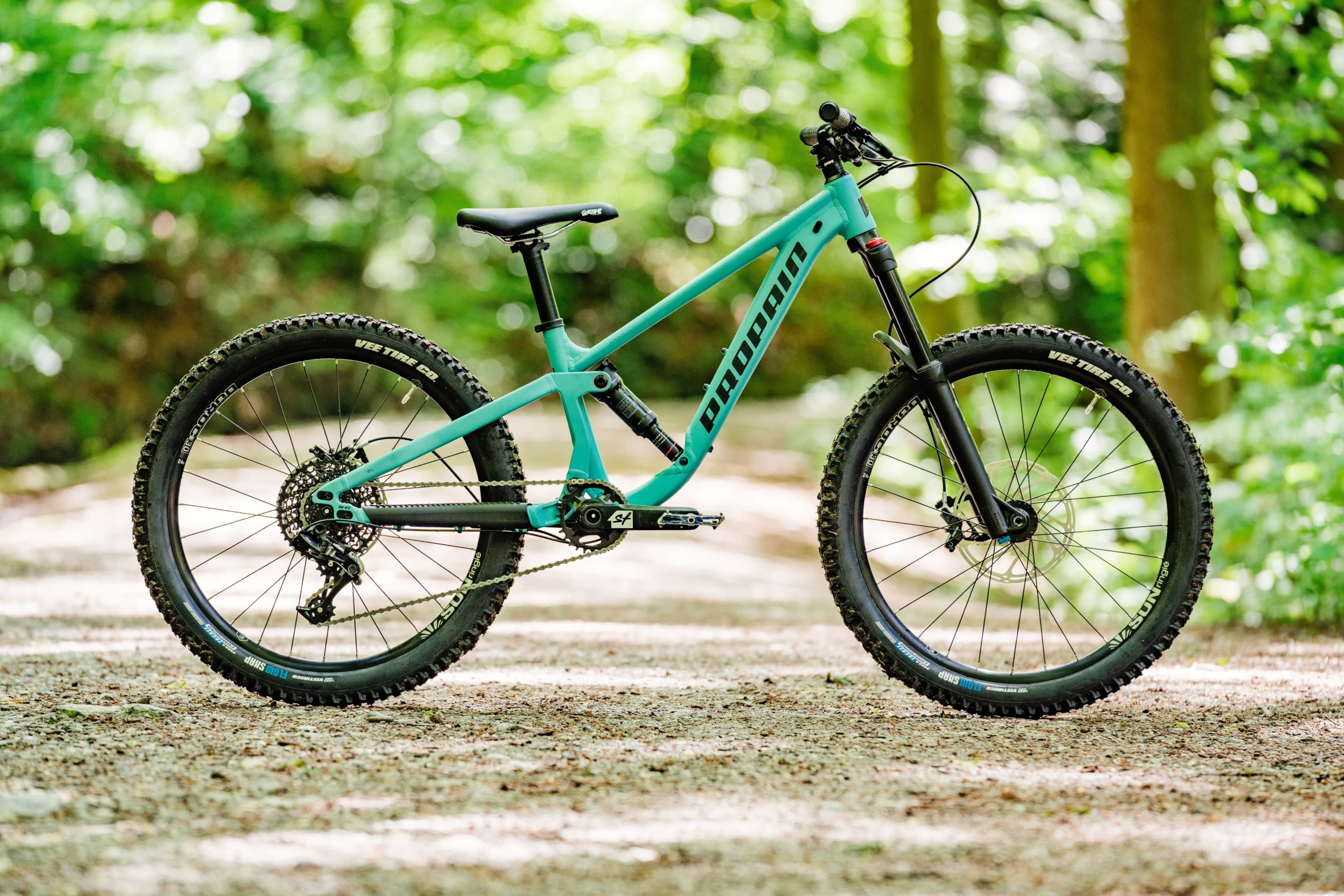

The Yuma is a juvenile gravity bike, which is especially tailored to the characteristics and needs of riders with a body height taller than 1.30 m and the respective low body weight.
Delivered with 24″ wheels, the Yuma can be converted to 26″ wheels using the “Grown Up” kit, which is available separately.
Frame material
Aluminium
Wheel Sizes
24″ / 26″
Travel front
140 mm
Travel rear
145 mm
Terrain
Enduro
Category
5
Warranty
3 Years
Weight
from 13 kg
105 cm 3'4" |
115 cm 3'7" |
125 cm 4'1" |
135 cm 4'4" |
145 cm 4'7" |
155 cm 5'0" |
165 cm 5'4" |
|||||
---|---|---|---|---|---|---|---|---|---|---|---|
Frechdax | |||||||||||
Dreckspatz | |||||||||||
Yuma |
Shock length | 185 mm |
Shock travel | 55 mm |
Shock mount | Top: Trunnion / Bottom: 8 x 25 mm |
Travel (Frame) | 145 mm |
Maximum fork travel | 150 mm |
Bottom bracket BSA | 73 mm |
Brake mount | Postmount 160 |
Seatpost diameter | 31.6 mm |
Headset (S.H.I.S) | Tapered - Top: IS42 / Bottom: IS52 |
Rear wheel axle | 148 mm x 12 mm (X12) |
Chainline | 52 mm (Boost) |
Chainguide mount | ISCG 05 |
Wheel sizes | 24" / 26" |
Frame weight | 2.8 kg |

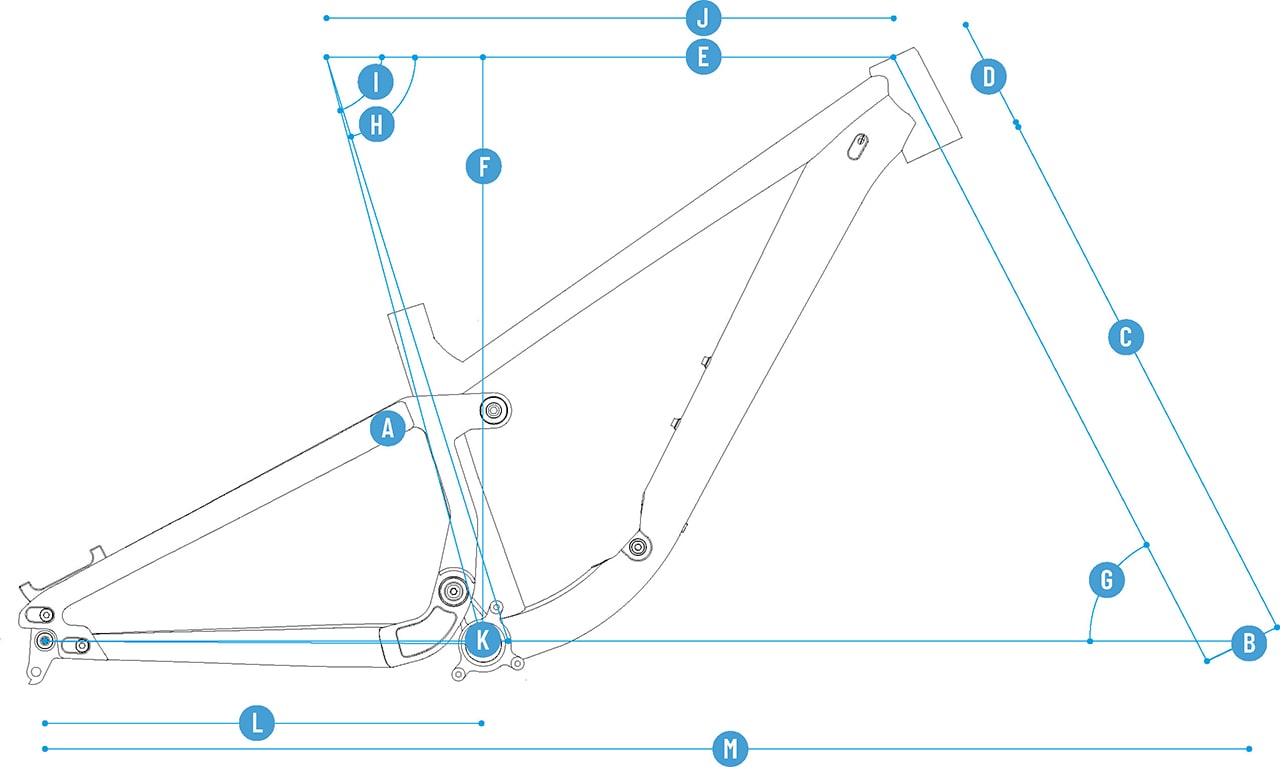

24" | 26" | |
---|---|---|
Frame height (A) | 352 mm / 14" | 352 mm / 14" |
Fork offset (B) | 42 mm | 42 mm |
Fork length (C) | 520 mm | 520 mm |
Reach (E) | 380 mm | 380 mm |
Stack (F) | 553 mm | 553 mm |
Head angle (G) | 65° | 65° |
Seat angle - real (H) | 73.5° | 73.5° |
Seat angle - effective (I) | 75° | 75° |
Top tube length (J) | 529 mm | 529 mm |
BB offset (K) | 3 mm | 3 mm |
Chainstay length (L) | 408 mm | 420 mm |
Wheelbase (M) | 1,092 mm | 1,104 mm |
