incl. Headset Acros AZX-209 ZS49/ZS56, Seatclamp SIXPACK Skywalker 34,9 mm black, SIXPACK 148 mm x 12 mm thru-axle and a fitting rear derailleur hanger
from USD $1,599.00
Out of stock
Our Freeride Bike – a bike that unites all elements. No matter if it is steep root sections, high drops, flowy jump-lines, or the relaxing after-work session. Whether bike park or home trail – just FULL SEND!

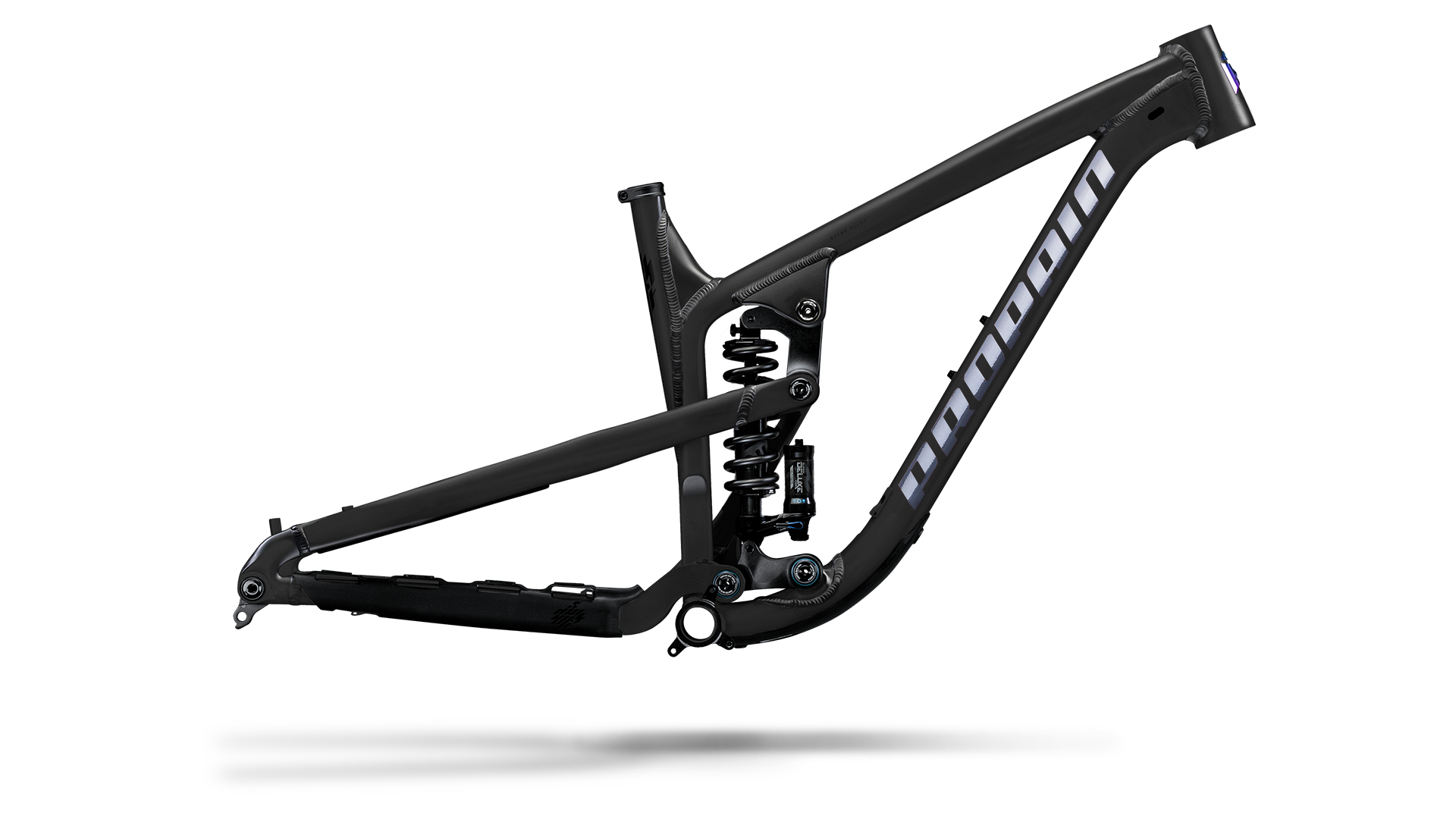

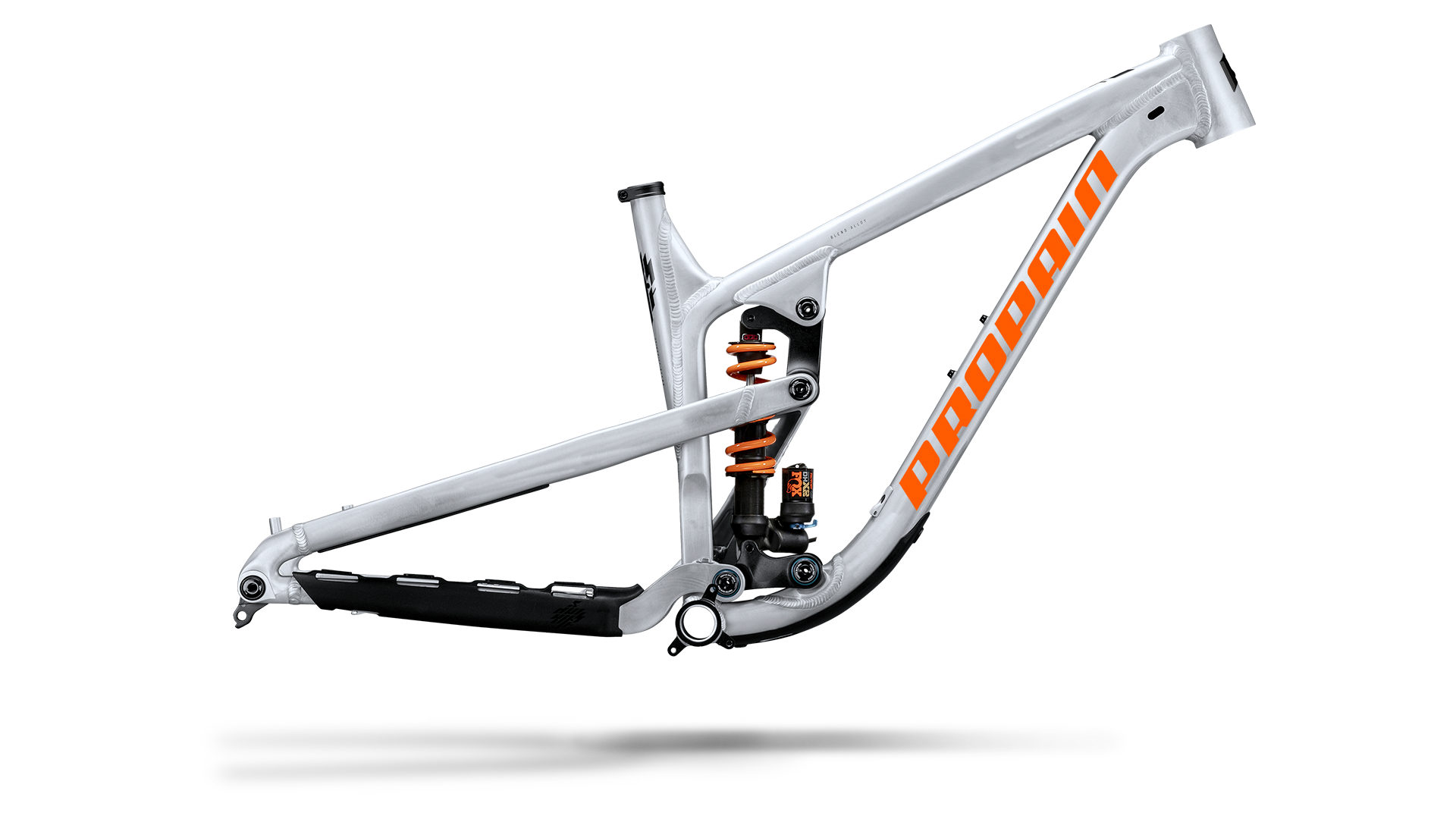

The Spindrift 4 AL is our interpretation of a modern Freeride Bike.
Whether sand, roots or stones, wet or dust-dry, the Spindrift 4 AL copes with every surface. And that does not only apply downhill. Uphill the bike stays on the ground and climbs up every trail with you.
Smooth as a flowing mountain stream. Brute like a roaring river. With the Spindrift 4 AL you send every line and stay always agile. In rough and steep terrain, you will rush over every obstacle with smoothness.
A bike that gets you up to speed and takes your breath away. You always find your line and take what you can, both downhill and uphill. With the Spindrift 4 AL you are unstoppable.
Flying is your element? Go for it, the Spindrift 4 AL takes you up in the air. No matter what maneuver you pull, the Spindrift 4 AL gives you a feeling of lightness. Airtime guaranteed.
Good looks are not everything. Our Spindrift 4 AL also impresses with its inner values and smart details. With quick-change chain guard, durable bearings and internal cable routing, you’ll get more time on the bike than in your garage.
Thanks to the versatility of our Blend Alloy our Spindrift 4 AL also convinces with its elegant design. Many visible edges and flowing shapes paired with a futuristic logo guarantee envious looks on and off the trails.
High drops and hard landings can get your chain swinging pretty hard. Our newly designed chainstay protector absorbs them, eliminates noise and protects the chainstay from damage.
Internal cable routing became a standard for modern bikes. It is the smartest, safest and, above all, the cleanest way to route the cables. For the perfect look you can choose from three different head tube badges.
Intense bikepark action or local hometrail session. Massive jumpline or wet root passage, quick curves or steep drops. Your Spindrift 4 AL offers the performance you need in any terrain.
| 150 cm 4’11” | 160 cm 5’3″ | 170 cm 5’7″ | 180 cm 5’11” | 190 cm 6’3″ | 200 cm 6’7″ | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| S* |
|
||||||||||
| M |
|
||||||||||
| L |
|
||||||||||
| XL* |
|
||||||||||
|
|
|||||||||||
| SPINDRIFT AL | S | M | L | XL |
|---|---|---|---|---|
| Kind Shock Lev 125 | 74.5 | 76.5 | 78.5 | 80.5 |
| Kind Shock Lev 150 | 77.0 | 79.0 | 81.0 | 83.0 |
| Bikeyoke Revive 125 | 73.5 | 755 | 77.5 | 79.5 |
| Bikeyoke Revive 160 | 77.0 | 79.0 | 81.0 | 83.0 |
| Bikeyoke Revive 185 | 83.5 | 83.5 | 83.5 | 85.5 |
| Fox Transfer 125 | 75.5 | 77.5 | 79.5 | 81.5 |
| Fox Transfer 150 | 78.0 | 80.0 | 82.0 | 84.0 |
| Fox Transfer 175 | 84.5 | 84.5 | 84.5 | 86.5 |
| RockShox Reverb AXS 125 | 73.5 | 75.5 | 77.5 | 79.5 |
| RockShox Reverb AXS 150 | 76.0 | 78.0 | 80.0 | 82.0 |
| Shock length | 230 mm |
| Shock travel | 65 mm |
| Shock bushings | Top: 8 x 20 mm / Bottom: 8 x 30 mm |
| Travel (Frame) | 180 mm |
| Maximum fork travel | 190 mm |
| Bottom bracket BSA | 73 mm |
| Brake mount (Frame) | Postmount 180 |
| Seatpost diameter | 31.6 mm |
| Max. seatpost insert length | 29″ & Mix: M 215 mm / L 220 mm / XL 250 mm 27.5″: S 200 mm / M 220 mm / L 230 mm |
| Headset (S.H.I.S.) | Top: ZS49 / Bottom: ZS56 |
| Rear wheel axle | 148 mm x 12 mm |
| Chainline offset | 3 mm offset |
| Chainline | 52 mm (Boost) |
| Chainguide mount | ISCG 05 |
| Derailleur Hanger | SRAM UDH |
| Wheel sizes | 29″ / Mix / 27.5″ |
| Frame weight | 3.9 kg (Size L, 29″) |
| Max. rider weight | 120 kg |
Our well known PRO10 system has once again been further developed and improved for the Spindrift. The shock moved in front of the seat tube and is now ideally integrated in the main frame. So, the Spindrift is even more agile and more balanced. The combination of a slack headtube angle of 64.5° and a steep, effective seat angle of 78° ensures that you can climb the steepest climbs on a Freeride Bike without getting out of breath.
| Size M | Size L | Size XL | |
|---|---|---|---|
| Frame height (A) | 440 mm | 460 mm | 480 mm |
| Fork offset (B) | 44 mm | 44 mm | 44 mm |
| Fork length (C) | 598 mm | 598 mm | 598 mm |
| Head tube length (D) | 95 mm | 110 mm | 125 mm |
| Reach (E) | 450 mm | 475 mm | 500 mm |
| Stack (F) | 633 mm | 646 mm | 660 mm |
| Head angle (G) | 64.5° | 64.5° | 64.5° |
| Seat angle – effective (H) | 78° | 78° | 78° |
| Seat angle – real (I) | 74.5° | 74.5° | 74.5° |
| Top tube length (J) | 582 mm | 610 mm | 641 mm |
| BB offset (K) | 23 mm | 23 mm | 23 mm |
| Chainstay length (L) | 445 mm | 445 mm | 445 mm |
| Wheelbase (M) | 1,234 mm | 1,265 mm | 1,297 mm |
| BB height | 352 mm | 352 mm | 352 mm |
| Size M | Size L | Size XL | |
|---|---|---|---|
| Frame height (A) | 440 mm | 460 mm | 480 mm |
| Fork offset (B) | 44 mm | 44 mm | 44 mm |
| Fork length (C) | 598 mm | 598 mm | 598 mm |
| Head tube length (D) | 95 mm | 110 mm | 125 mm |
| Reach (E) | 441 mm | 466 mm | 491 mm |
| Stack (F) | 640 mm | 653 mm | 667 mm |
| Head angle (G) | 63.7° | 63.7° | 63.7° |
| Seat angle – effective (H) | 77.2° | 77.2° | 77.2° |
| Seat angle – real (I) | 73.7° | 73.7° | 73.7° |
| Top tube length (J) | 584 mm | 612 mm | 643 mm |
| BB offset (K) | R11 / F29 mm | R11 / F29 mm | R11 / F29 mm |
| Chainstay length (L) | 445 mm | 445 mm | 445 mm |
| Wheelbase (M) | 1,243 mm | 1,274 mm | 1,306 mm |
| BB height | 345 mm | 345 mm | 345 mm |
| Size S | Size M | Size L | |
|---|---|---|---|
| Frame height (A) | 420 mm | 440 mm | 460 mm |
| Fork offset (B) | 38 mm | 38 mm | 38 mm |
| Fork length (C) | 577 mm | 577 mm | 577 mm |
| Head tube length (D) | 100 mm | 110 mm | 120 mm |
| Reach (E) | 425 mm | 450 mm | 475 mm |
| Stack (F) | 608 mm | 617 mm | 626 mm |
| Head angle (G) | 64.5° | 64.5° | 64.5° |
| Seat angle – effective (H) | 78° | 78° | 78° |
| Seat angle – real (I) | 76° | 76° | 76° |
| Top tube length (J) | 554 mm | 581 mm | 608 mm |
| BB offset (K) | 10 mm | 10 mm | 10 mm |
| Chainstay length (L) | 435 mm | 435 mm | 435 mm |
| Wheelbase (M) | 1,187 mm | 1,216 mm | 1,246 mm |
| BB height | 345 mm | 345 mm | 345 mm |
Does the Spindrift have a clearance for DH forks?
Yes, the Spindrift is approved for 200mm DH forks.
Please note the installation height of the suspension fork. You can find this information in the geometry table.
Which bottle size fits in the frame?
Attaching drinking bottles up to 0.5 l is no problem. With larger frame sizes, 0.7 l bottles can also be stowed.
Can the wheel size be changed afterwards?
No, because our frames are specially developed and adapted for the respective wheel size.
What is the maximum tire width that fits the frame?
A general statement is not possible here due to the tolerances of the tire manufacturers’ width specifications.
E.g. fit Schwalbe tires up to 2.4, VEE up to 2.35 and Maxxis up to 2.5WT.
How much does the Spindrift weigh in my build?
Due to the large selection of components and frame sizes, we cannot make a statement for all combinations. However, we have given weights for our build kits, which you can see in the table above. In the configurator you will also find weight information for each component.
Do you also offer other components that are not listed in the configurator?
No, we only offer the components and color variants that we show in the configurator.
What does the delivery include?
The bike comes with three stem spacers, uncut handlebars and all the instructions you need.
| Bike Model | Spindrift 4 |
|---|---|
| Frame Material | Blend Aluminium |
| Frame Size | S, M, L |
| Terrain | Freeride |
| Wheel Size | 27.5" |
