Pushing Boundaries
Ekano is derived from the Japanese name “Kano” and describes a visionary, versatile and adventurous character. Our Ekano unites all these traits in an impressive E-Mountain Bike. The powerful Shimano EP8 motor gives you the power to coper with every climb whilst being low-maintenance and very service orientated due to the large network of STEPS-dealers.
Thanks to the many customization options – like choice of wheel sizes and completely customizable specification, the Ekano’s range of use extends from All-Mountain Touring to E-nduro racing. No matter which adventure you choose, the Ekano is your ideal companion. Once the power button is pressed, nothing stops you from having fun and enjoying adventure. Due to the wide range of design options, the Ekano will always remain your individual dream E-nduro!
Frame Material
Blend Alloy
Wheel Size
29″ / Mix / 27,5″
The larger wheels ensure smooth running – roots, stones or other obstacles can be rolled over with ease. Furthermore, 29″ wheels are ideal for longer tours.
With a 29″ wheel at the front and 27.5″ at the rear, the advantages of both worlds are combined and offer the best all-round package for you. The large front wheel makes obstacles easy to overcome, the smaller rear wheel offers enough agility to get through all corners.
The agile version comes on 27.5″ wheels. The smaller wheel circumference makes them easier to handle and therefore perfect for technical terrain or playful riding.
We will help you on your way to your personal dream bike. Our options are only a roughrecommendation because your needs are as individual as you are. We have put together three pre-configured models for you. In our configuration tool, however, you can still adapt every single part of all models to your wishes. Have fun building your dream bike!
Many small details make our new Ekano a real eye-catcher. The tidy cockpit not only ensures clarity and ease of use, the newly developed Ekano logo also shows the direction: always forward!
To protect the motor and down tube against stone hits, and to protect your frame against damage to the paintwork caused by the chain jumping, your Ekano comes with our motor and chain stay protection as standard. The optimised chain stay protection absorbs vibrations of the chain and protects the stay from damage. The down tube and motor are optimally protected by a cover against damage and dirt.
Internal cable routing is a standard for us. Simply because it is the cleanest, safest and, above all, most beautiful way to manage cables. For the perfect look you can choose our Headtube Badge in three different colours.
The frame size is an essential part of the bike performance and contributes significantly to the riding fun. Select your required frame size from the chart. If you are between two sizes, then you only have to decide whether you like it playful or smooth running. For smooth running choose the larger frame size, for playful the smaller one.
| 150cm 4'11" |
160cm 5'3" |
170cm 5'7" |
180cm 5'11" |
190cm 6'3" |
200cm 6'7" |
||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| S* | |||||||||||
| M | |||||||||||
| L | |||||||||||
| XL | |||||||||||
The adjustable seatpost is probably one of the most ingenious inventions of recent years. In order to function optimally on the trail, the proper seatpost travel is very important. The following chart shows the recommended minimum inseam for the corresponding frame size. Please keep in mind that this is only a recommendation, as the respective sitting position depends very much on personal habits and preferences.
| EKANO | S | M | L | XL |
|---|---|---|---|---|
| Kind Shock Lev 125 | 74,5 | 76,5 | 78,5 | 80,5 |
| Kind Shock Lev 150 | 77,0 | 79,0 | 81,0 | 83,0 |
| Bikeyoke Revive 125 | 73,5 | 75,5 | 77,5 | 79,5 |
| Bikeyoke Revive 160 | 77,0 | 79,0 | 81,0 | 83,0 |
| Bikeyoke Revive 185 | 79,5 | 81,5 | 83,5 | 85,5 |
| Fox Transfer 125 | 75,5 | 77,5 | 79,5 | 81,5 |
| Fox Transfer 150 | 78,0 | 80,0 | 82,0 | 84,0 |
| Fox Transfer 175 | 80,5 | 82,5 | 84,5 | 86,5 |
| RockShox Reverb AXS 125 | 73,5 | 75,5 | 77,5 | 79,5 |
| RockShox Reverb AXS 150 | 76 | 78 | 80 | 82 |
| Drive Unit | Shimano EP8 |
| Battery | Shimano BT-E8035 (504 Wh) |
| Shock length | 230 mm |
| Shock travel | 65 mm |
| Shock bushings | Top: 8 x 25 mm / Bottom: Custom Flip Chip |
| Travel (Frame) | 165 mm |
| Brake mount (Frame) | Postmount 203 |
| Seatpost diameter | 31,6 mm |
| Max. seatpost insert length | S 114 mm / M 245 mm / L 265 mm / XL 270 mm |
| Headset (S.H.I.S.) | Top: ZS44 / Bottom: ZS56 |
| Rear wheel axle | 148 mm x 12 mm |
| Front derailleur | none |
| Chainline | 52 mm (Boost) |
| Chainguard mount | Shimano EP8 Chainguard-Standard |
| Wheel sizes | 29" / Mix / 27,5" |
| Maximum fork travel | 170 mm |
| Frame weight | 5,33 kg (Size M, without Drive Unit) |
| Drive Unit weight | 2,6 kg |
| Battery weight | 2,9 kg (averaged) |

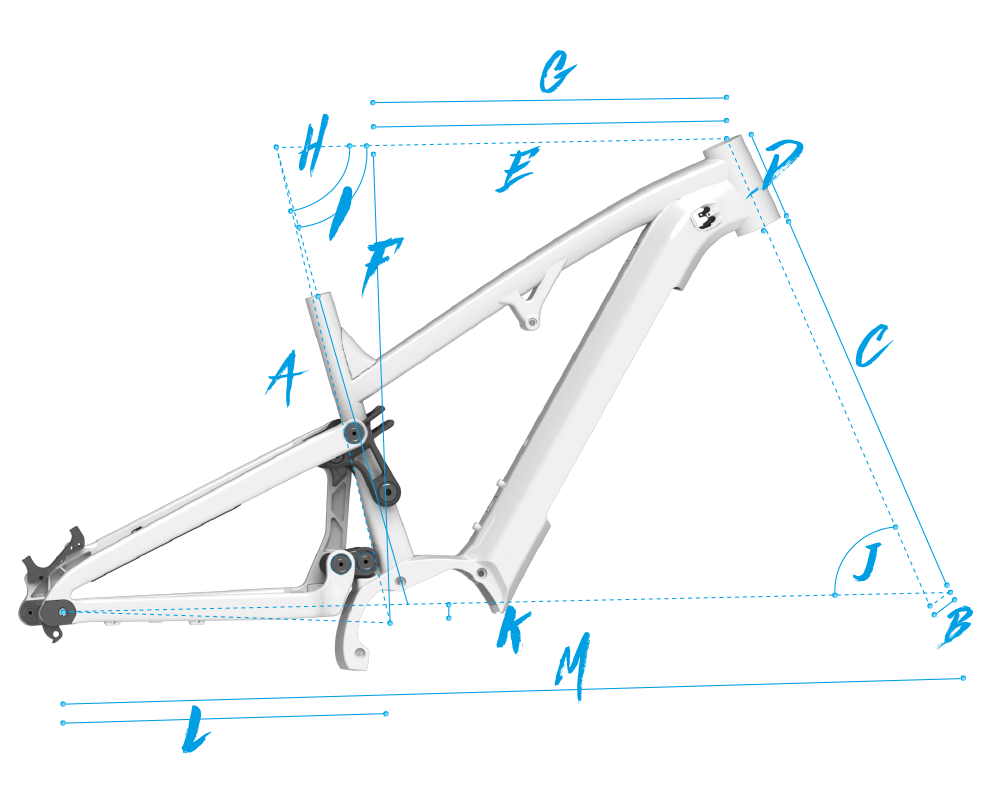

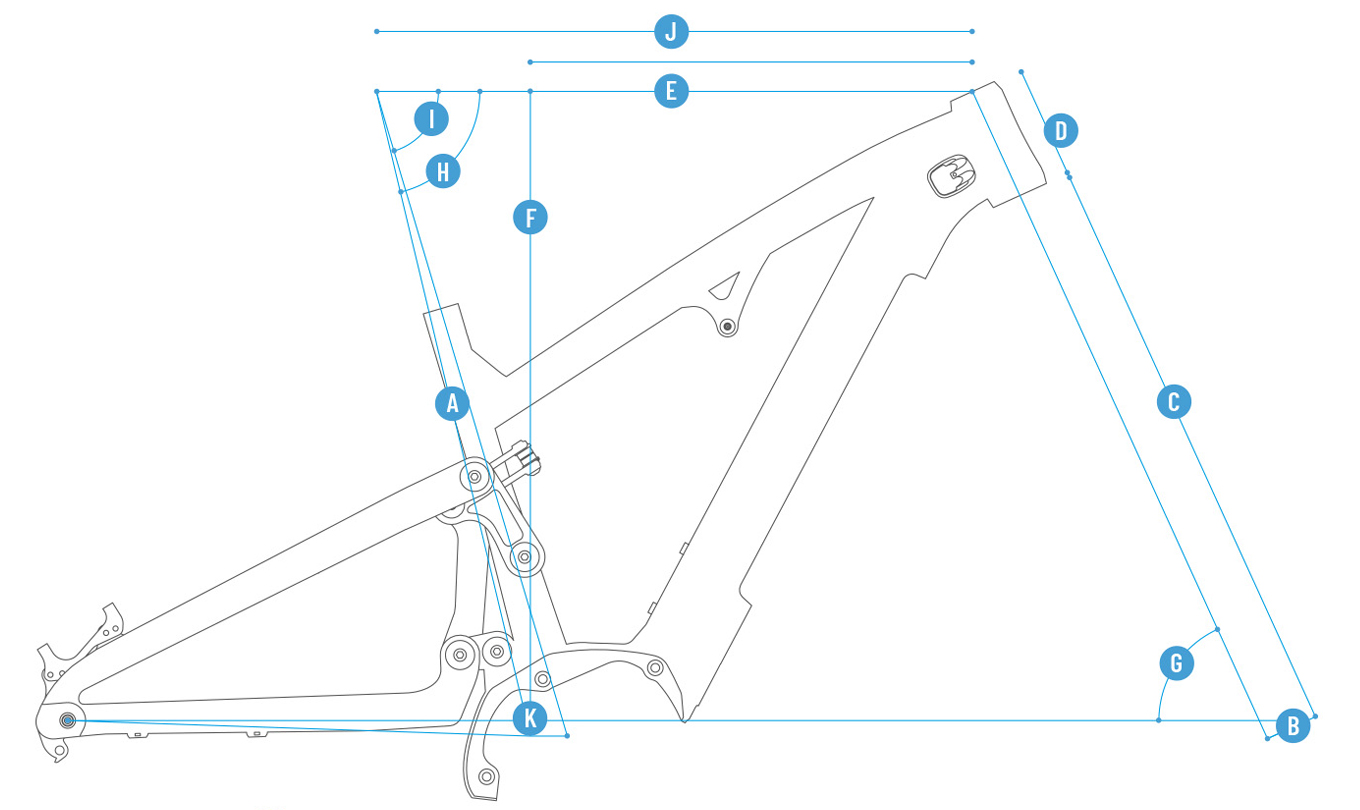

A geometry that works well on downhill as well as on demanding and long uphill sections is key for an E-Mountain Bike. The Ekano manages this balancing act with ease by the combination of a steep seat angle, moderately long reach and chain stays and a flat head angle. These characteristics paired with the powerful support of the Shimano EP8 drive unit ensure an agile handling on the trails and an overall new riding experience.
| Size M | Size L | Size XL | |
|---|---|---|---|
| Frame height (A) | 440 mm / 17,5″ | 460 mm / 18,5″ | 480 mm / 19,5″ |
| Wheelbase (M) | 1.234 mm | 1.255 mm | 1.276 mm |
| Top tube lenght (G) | 599 mm | 620 mm | 641 mm |
| Fork offset (B) | 42 mm | 42 mm | 42 mm |
| Fork lenght (C) | 584 mm | 584 mm | 584 mm |
| Chainstay length (L) | 459 mm | 459 mm | 459 mm |
| Reach (E) | 435 mm | 455 mm | 475 mm |
| Stack (F) | 636 mm | 640 mm | 644 mm |
| Head angle (J) | 64,6° | 64,6° | 64,6° |
| Seat angle – real (H) | 72,6° | 72,6° | 72,6° |
| Seat angle – effective (I) | 75,6° | 75,6° | 75,6° |
| Head tube length (D) | 120 mm | 125 mm | 130 mm |
| BB offset (K) | 20 mm | 20 mm | 20 mm |
| Size S | Size M | Size L | Size XL | |
|---|---|---|---|---|
| Frame height (A) | 420 mm / 16,5″ | 440 mm / 17,5″ | 460 mm / 18,5″ | 480 mm / 19,5″ |
| Wheelbase (M) | 1.200 mm | 1.221 mm | 1.242 mm | 1.265 mm |
| Top tube length (G) | 577 mm | 600 mm | 621 mm | 642 mm |
| Fork offset (B) | 42 mm | 42 mm | 42 mm | 42 mm |
| Fork length (C) | 584 mm | 584 mm | 584 mm | 584 mm |
| Chainstay length (L) | 445 mm | 445 mm | 445 mm | 445 mm |
| Reach (E) | 412 mm | 432 mm | 452 mm | 472 mm |
| Stack (F) | 629 mm | 639 mm | 643 mm | 647 mm |
| Head angle (J) | 64,3° | 64,3° | 64,3° | 64,3° |
| Seat angle – real (H) | 72,3° | 72,3° | 72,3° | 72,3° |
| Seat angle – effective (I) | 75,3° | 75,3° | 75,3° | 75,3° |
| Head tube length (D) | 110 mm | 120 mm | 125 mm | 130 mm |
| BB offset (K) | 12 mm | 12 mm | 12 mm | 12 mm |
| Size S | Size M | Size L | Size XL | |
|---|---|---|---|---|
| Frame height (A) | 420 mm / 16,5″ | 440 mm / 17,5″ | 460 mm / 18,5″ | 480 mm / 19,5″ |
| Wheelbase (M) | 1.197 mm | 1.221 mm | 1.242 mm | 1.265 mm |
| Top tube length (G) | 574 mm | 597 mm | 618 mm | 639 mm |
| Fork offset (B) | 42 mm | 42 mm | 42 mm | 42 mm |
| Fork length (C) | 584 mm | 584 mm | 584 mm | 584 mm |
| Chainstay length (L) | 445 mm | 445 mm | 445 mm | 445 mm |
| Reach (E) | 420 mm | 440 mm | 460 mm | 480 mm |
| Stack (F) | 623 mm | 633 mm | 637 mm | 641 mm |
| Head angle (J) | 65° | 65° | 65° | 65° |
| Set angle – real (H) | 73,1° | 73,1° | 73,1° | 73,1° |
| Set angle – effective (I) | 76,1° | 76,1° | 76,1° | 76,1° |
| Head tube length (D) | 110 mm | 120 mm | 125 mm | 130 mm |
| BB offset (K) | 12 mm | 12 mm | 12 mm | 12 mm |
Frequently Asked Questions – bitte leer lassen
Due to the many possible purposes of use it’s difficult to name a number. The terrain, weather conditions and driver weight have an impact on the distance you can reach with the Ekano. As far as our experience goes our Ekano can reach a distance between approx. 40 to 80 kilometers.
Please make sure you handle the battery according the specifications in the Shimano manual to achieve the longest durability.
With the supplied EC-E6000 charger, a complete charging process for the Shimano BT-8035 battery takes about 5 hours. For 80% 2.5h, and for 50% 2h. The charging times depend on the charger you are using. You can speed up the charging process with an optionally available quick charger.
With the included adapter you can charge the battery outside of your Ekano.
You can get assistance for your battery and all other Shimano components at any Shimano STEPS dealer worldwide. You can find all STEPS dealers here: Shimano STEPS dealers
Alternatively, you can submit any question to us directly. Simply use our service form.
Drinking bottles up to 0,5l fit in the frame if you are using a sideload cage, which fits perfectly in the frame triangle.
