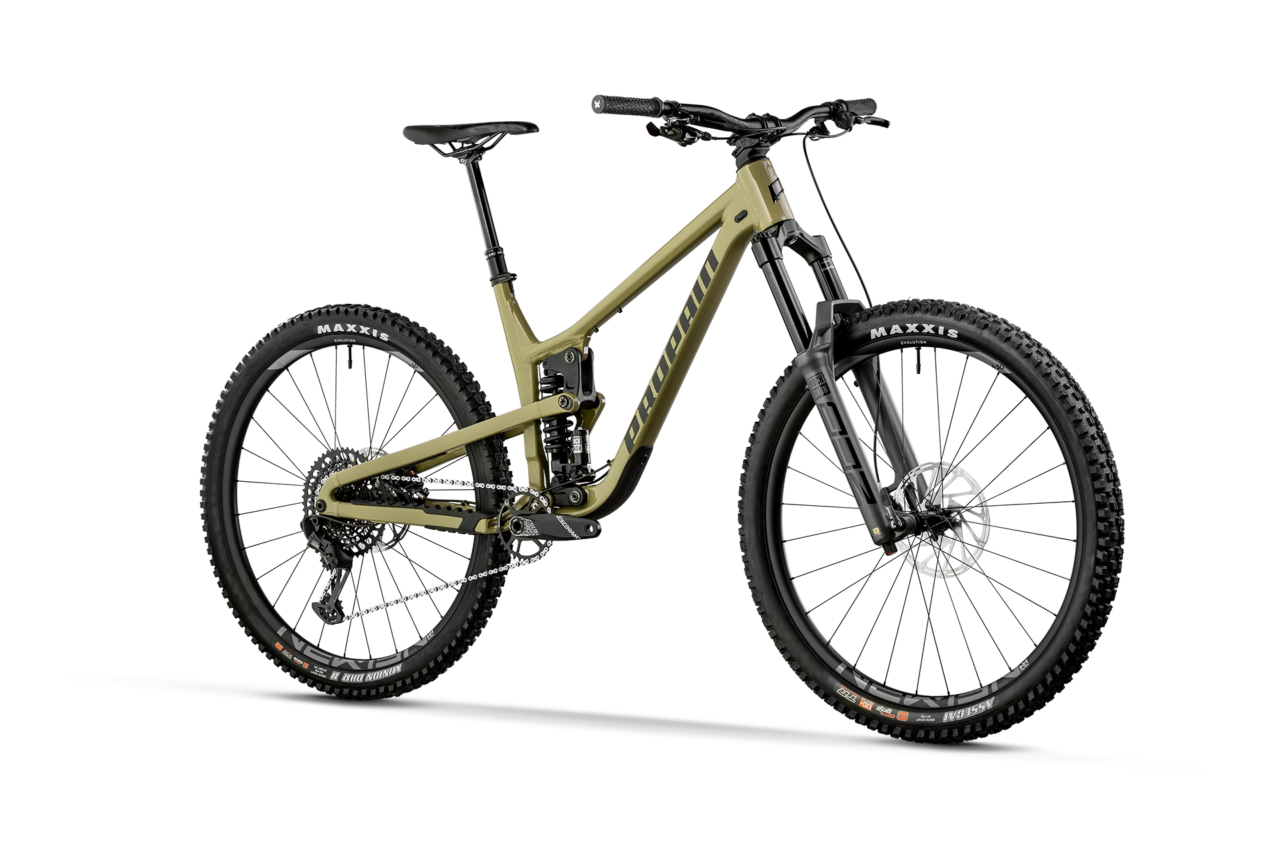

TYEE 6 AL

Name: Tyee 6 AL | PROPAIN Bicycles North America
SKU: TYEE6AL
Price: 2999.00 USD
Availability: InStock

from USD $2,999.00

Save up to 25%

Payment in installment
possible with Affirm

Buy now

Blackfriday deals – SAVE 25% ON YOUR Tyee 6 AL*

*The discount is applied in the shopping cart. Cannot be combined with other vouchers or discount promotions. Only while stocks last.

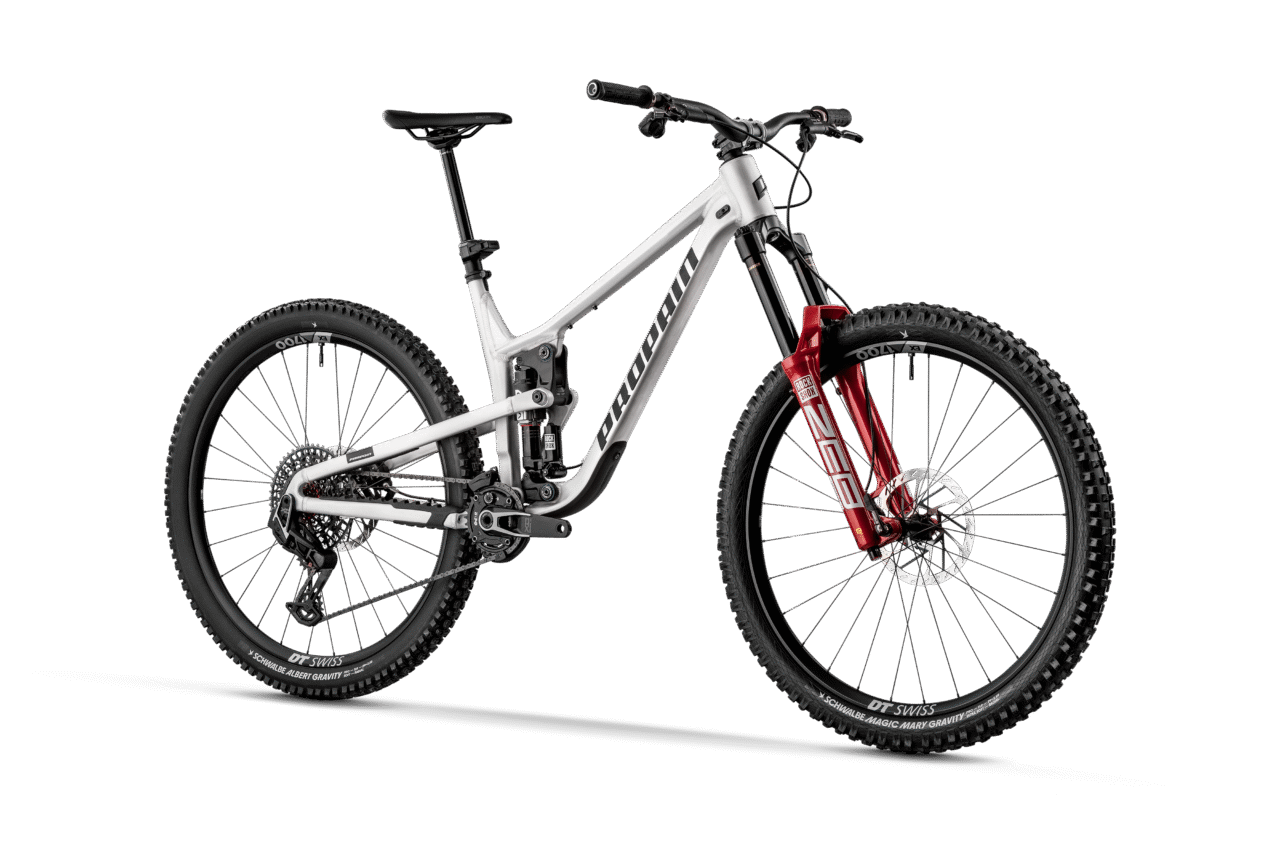

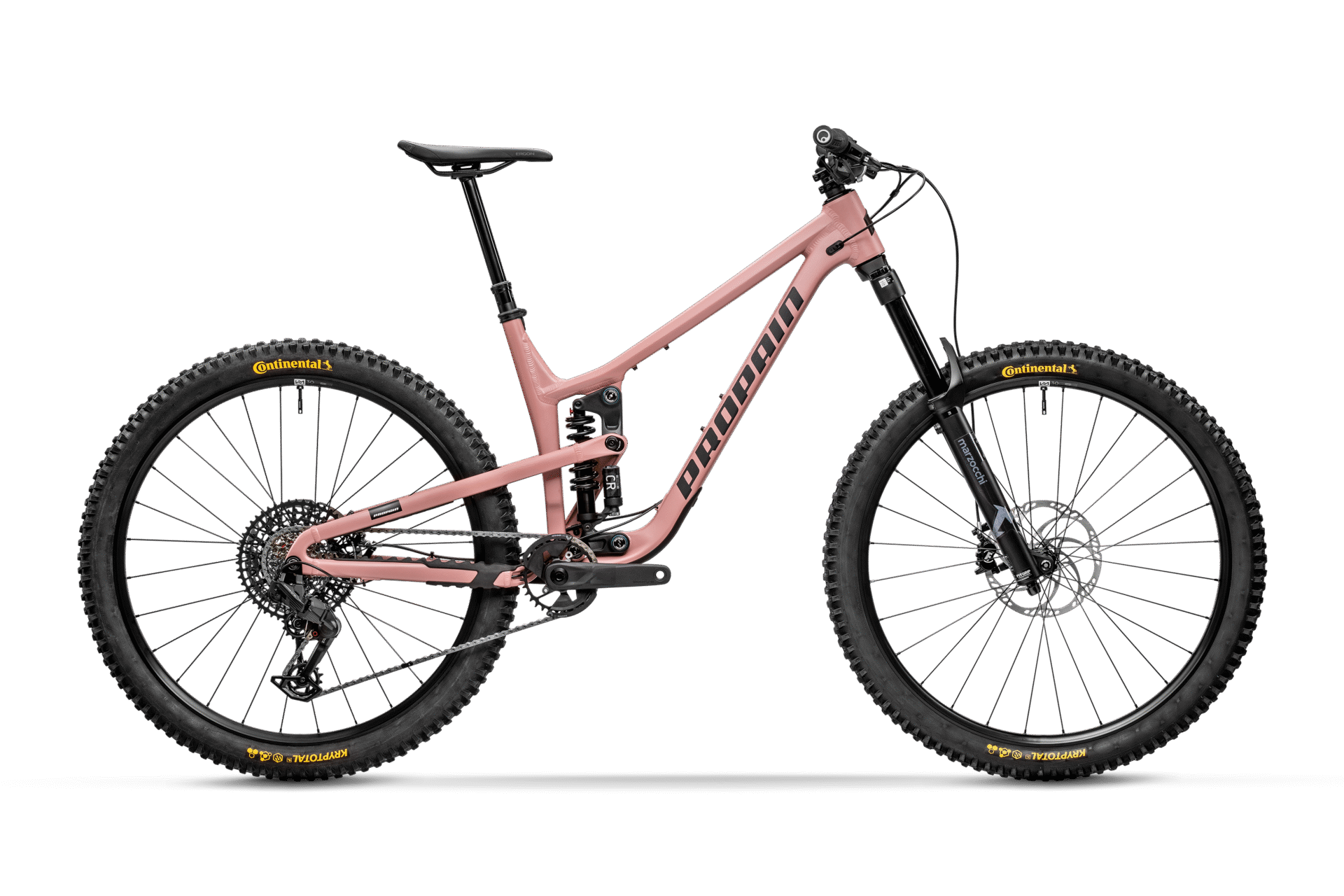

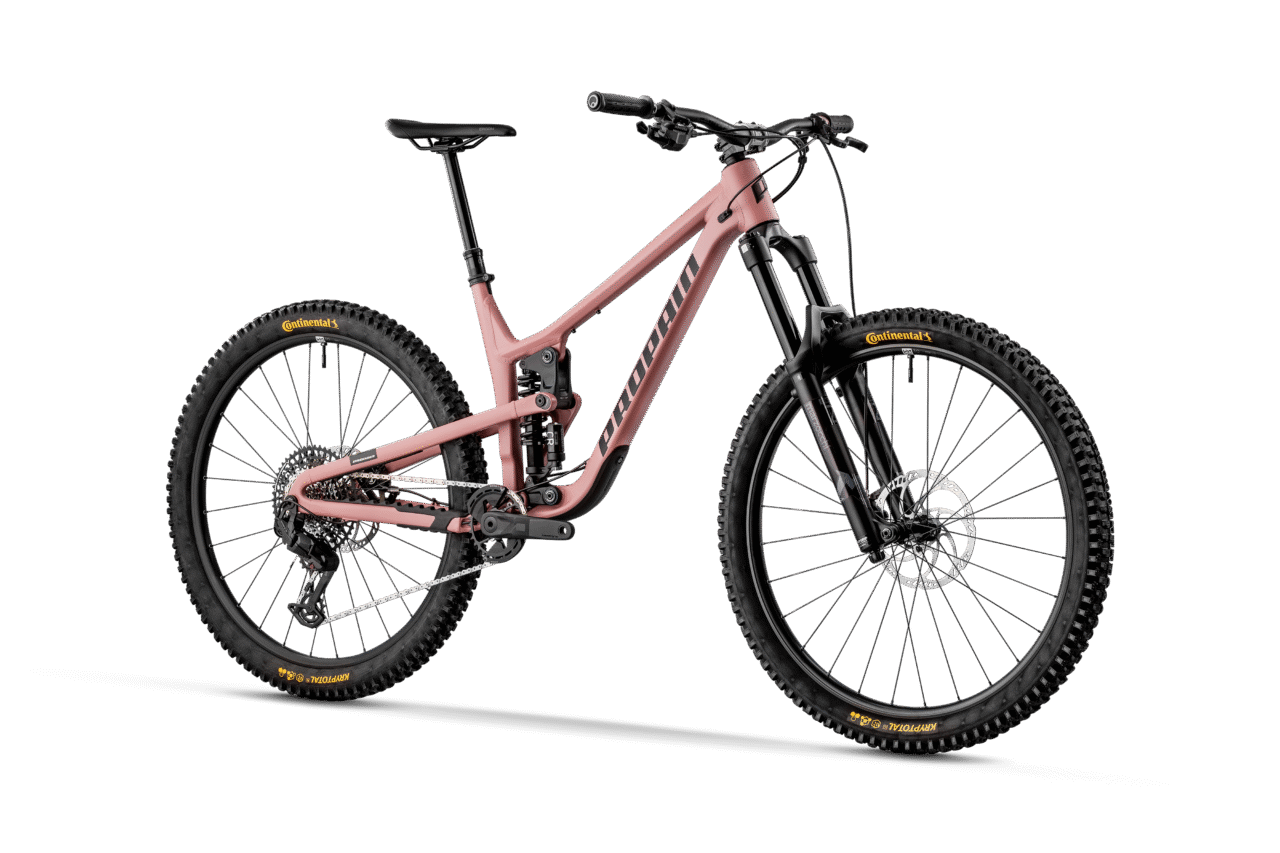

The All New Tyee

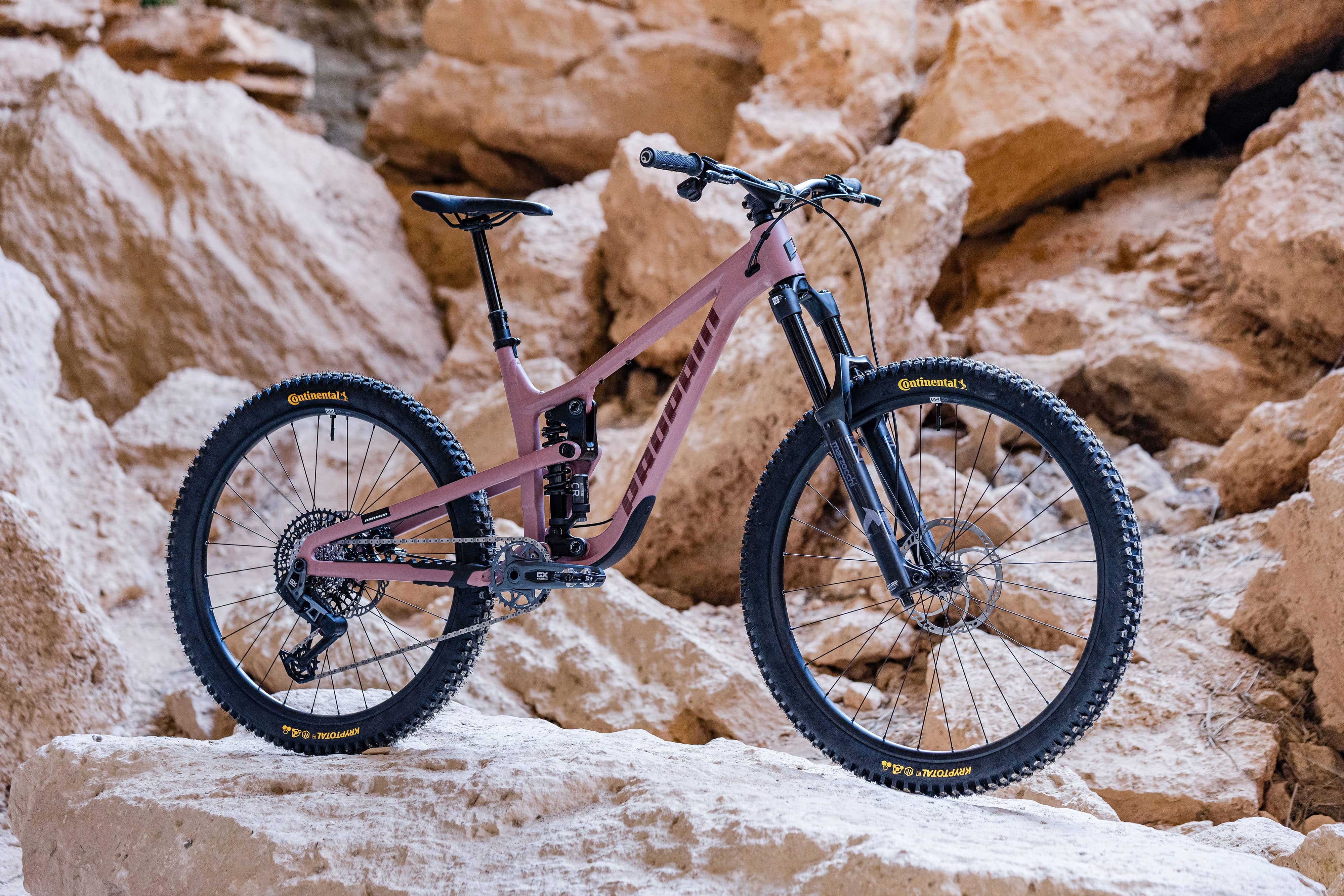

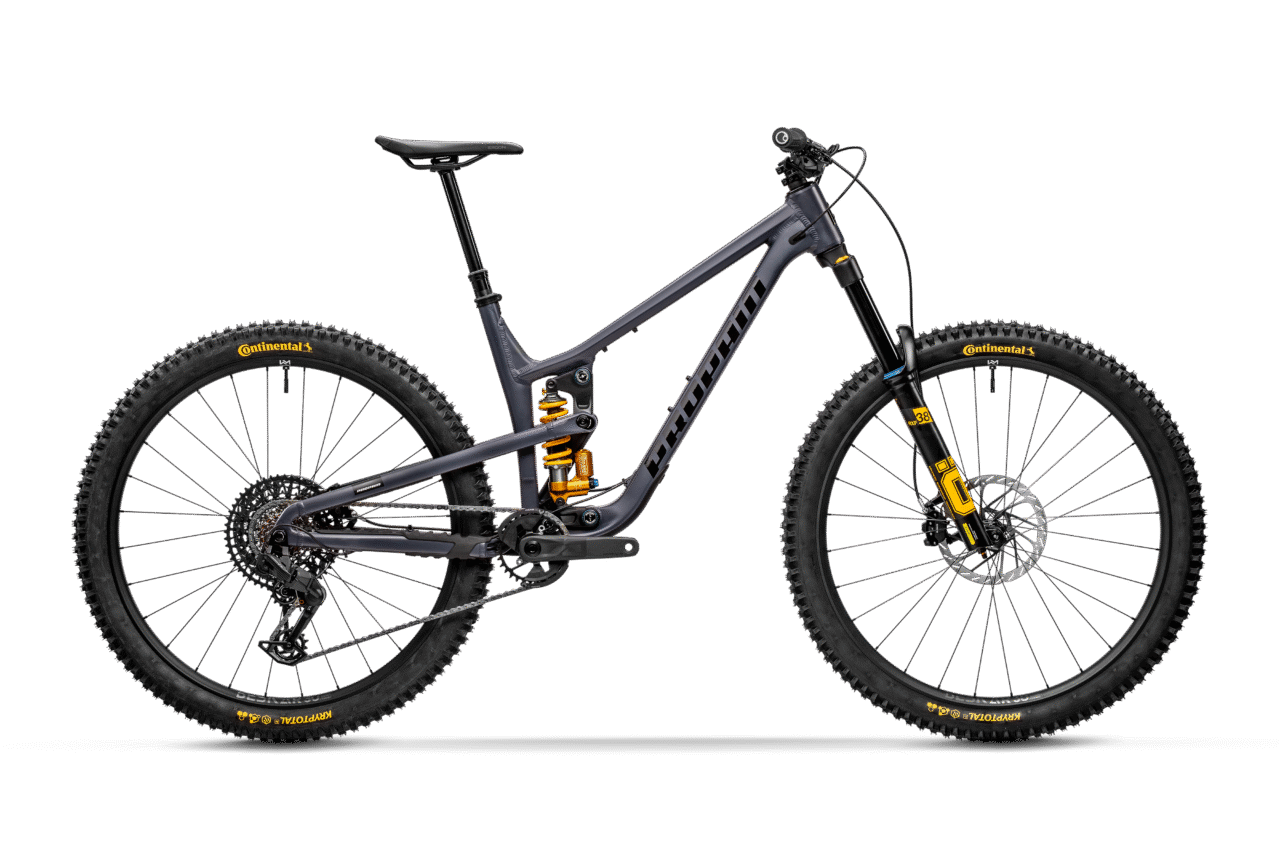

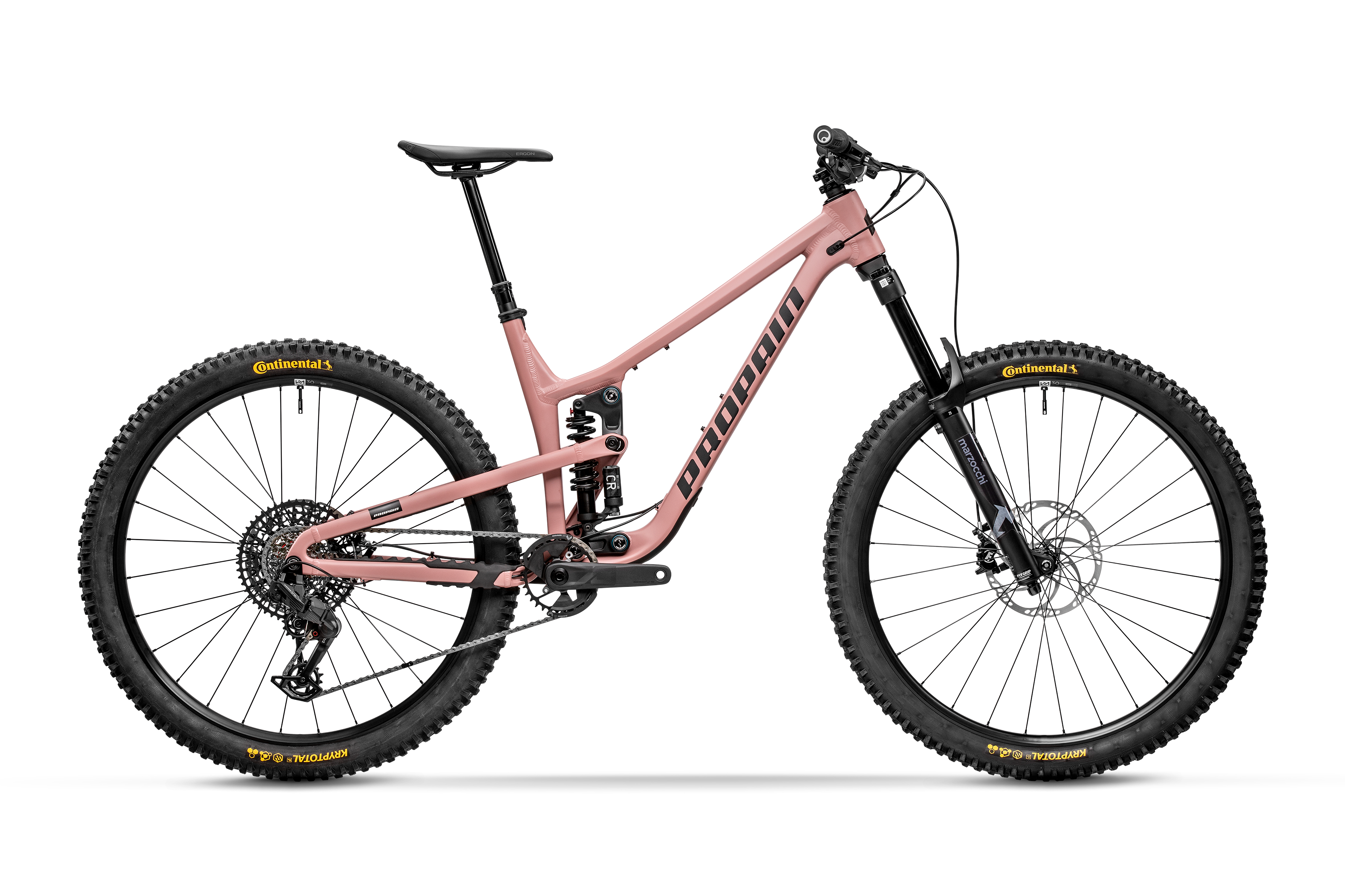

The Tyee 6 AL is the epitome of a perfect enduro bike. It combines all the features that you want from a modern enduro mountain bike. It climbs with ease and always puts a big smile on your face on every descent. On flowy trails it rides like a playful trail bike and in rough downhill sections it simply eats up stones and roots.

No matter what you’re up to, the Tyee 6 AL is always ready to go. Are you?

Play

The perfect balance

The Tyee 6 AL is a true enduro mountain bike, which convinces you with its balanced geometry and the well thought-out details on every ride. Whether enduro racing, flowy trails, jump lines or the after-work rides – the Tyee 6 AL is your ultimate all-rounder and fun is guaranteed.

Your individual all-rounder

Whether wheel size or components, you customize your bike according to your specific needs. You can also create an individual look for your Tyee 6 AL by choosing from the different frame colours, decals and badges on the head tube.

Silent is fast

With kinematics that let the Tyee 6 AL shy away from nothing, you will set new personal bests and experience completely new possibilities of lines choices. Our optimized cable routing and in-house developed seat- and chainstay protection, make the Tyee 6 AL ultra-silent and allow you to fully focus..

"From mellow flow trail to full-on downhill track, the bike never really feels out of place."

To the test

"The suspension platform provides a perfect mix of uphill and downhill capabilities, leaving you with a bike that covers all the bases."

To the test

"The frame is well judged and its range of appeal is broad enough to cover everything from trail riding through to bike park blasting."

To the test

"The Tyee is noticeably quiet with a lively character that still has the travel and composure to blast the rough stuff without feeling overwhelmed."

To the test

Wheel sizes

We offer you the ideal wheel configurations that, in our experience, corelate the best with each frame size. With a flip chip, the geometry can be adjusted for the respective wheel size.

Stability through 29"

M L XL

You prefer a smooth ride feel and usually do longer rides? Then the Tyee 6 AL 29″ is exactly the right choice for you. Speed, smoothness and grip, both uphill and downhill.

Allround-Use with Mix

M L XL

You want the best of both worlds? In the Mix setup with a 29″ front wheel and a 27.5″ rear wheel our Tyee 6 AL is the perfect allrounder. Ideal rolling properties in the front, great mobility and playfulness when cornering and jumping in the rear.

Wendigkeit mit 27,5"

XS S M

We are convinced that smaller frame sizes do not necessarily need larger wheels. The agility of the 27.5″ wheels and their rolling properties is the perfect match to the Tyee 6 AL in size XS and S.

Build Kits

We will help you on your way to your personal dream bike. The four build kits are our recommendations from us to you, as this is exactly how we would build our own bikes. We prepared a well-thought-out predefined spec for all purposes and every budget, with which you instantly are “ready to shred”. However, we at PROPAIN always remain “custom” so you can still choose individual components to customize your dream bike in our configurator.

$ 7644

Fork:
Fox 36 Factory Kashima
Shock:
Fox Float X Factory Kashima
Brakes:
Magura MT7 Performance
Wheels:
Crankbrothers Synthesis Enduro Carbon i9
Drivetrain:
SRAM XX Eagle Transmission (1x12)
Seatpost:
Fox Transfer Factory Kashima

$ 5984

Fork:
RockShox Lyrik Ultimate
Shock:
RockShox Super Deluxe Ultimate
Brakes:
SRAM Code RSC
Wheels:
NEWMEN Evolution SL E.G.30
Drivetrain:
SRAM X0 Eagle Transmission (1x12)
Seatpost:
RockShox Reverb AXS

$ 4484

Fork:
RockShox ZEB Ultimate
Shock:
RockShox Super Deluxe Coil Ultimate
Brakes:
SRAM Code R
Wheels:
NEWMEN Evolution E.G.30
Drivetrain:
SRAM GX Eagle (1x12)
Seatpost:
BikeYoke Revive

$ 3599

Fork:
Formula Selva S
Shock:
Formula MOD
Brakes:
Formula Cura 4
Weels:
NEWMEN Performance 30
Drivetrain:
SRAM GX Eagle (1x12)
Seatpost:
OneUp V3

Integrated Cable Routing

Together with Sixpack, we have developed a classic CNC machined stem, Made in Germany, that forms a molded fit to the top composite spacer. The cables therefore do not lead through the stem, but through the top spacer, through the headset, into the frame. This allows the stem to be switched effortlessly if necessary and the stem height can be adjusted by clip-in spacers without having to remove the stem at all.

In the configurator our Internal Cable Routing is available for carbon and aluminum frames in two options each. On the Tyee 6 AL you can choose our Sixpack full integration with matching stem and a classic cable routing via the side openings in the frame. In the headset we install Acros stainless steel bearings only, recognizable by the red seal.

Our Sixpack ICR full integration with Millenium stem, Made in Germany.

The classic cable routing via the side openings in the frame

Smart Details

Our Tyee 6 AL impresses with smart detail solutions. With a sophisticated frame concept, cable integration, clever cable routing and maximum efficient chainstay protection, you don’t need to worry about a thing when riding your bike.

Frame Concept and PRO10

We remain 100% convinced that our PRO10 system represents the best frame concept and therefore remains the quintessence of PROPAIN. With newly designed links we slightly adjusted leverage ratio, pedal kickback, anti squat and the axle path. We are proud to say the PRO10 frame of the new Tyee 6 AL is more capable than ever and at the same time remains extremely agile and efficient – The perfect balance!

Clever cable routing

The optimized cable routing, going directly across the main pivots of the rear triangle, represents the cleanest solution for us. Rattling or chafing is a thing of the past – at full compression the cables remain exactly where they belong.

Optimized frame protection

Absolute silence – the only thing you hear is the sound of the tires on the trail. To make this happen in addition to the cable integration and optimized routing we also developed new chain and seat stay protectors made of a soft TPR plastic with great damping properties. Air-filled nubs with an outward tilt stop chain vibrations with great efficiency.

Brake Integration

With the new Tyee 6 AL, the Postmount brake mount is integrated into the rear triangle. In addition to the sleek aesthetic aspects, this also achieves better transfer of braking forces into the frame. For 180 mm and 200 mm rotors no additional adapters are needed, just a quick adjustment of the Postmount bracket is all that needs to make the switch.

Flip Chip – 29“ / Mix

The flip chip on the top link of the PRO10 system allows the new Tyee 6 AL to switch between a pure 29“ configuration and a mixed wheel setup with minimal effort. The same geometry is maintained both in the mix and in the 29“ setup.

Bottle- and Toolmount

A good enduro bike of course needs the ability to carry enough hydration and the most necessary equipment for a tour or race right with the bike. The less weight in the backpack or hip bag the better. The bottle mount on the down tube and the tool mount on the bottom of the top tube provide the perfect basis for this.

Blend Alloy

The frame consists of at least three different alloys, which together create the optimum combination of stiffness, strength and weight. Frame parts such as rockers and axles are made of 7075 T6 aluminium, which has a very high strength. For the tubes of the frame a more fatigue-resistant 6066 T6 aluminium is used. In addition, the milled and forged parts are made of 6061 T6 aluminium. Blend Alloy thus represents our special and unique manufacturing process and ensures the optimum performance of the lightweight frames.

Bitte leer lassen

Frame size

The size of the frame plays an important role in the bike’s performance and, above all, in its enjoyment. Select the frame size you need from the table. If you are between two sizes, then you only have to decide whether you like it playful or smooth. For smooth riding, choose the larger frame size, for playful riding, choose the smaller frame size.

XS: 148 – 162 cm / S: 158 – 172 cm / M: 168-182 cm / L: 178-192 cm / XL: 188-202 cm
	140 cm / 4’7″	150 cm / 4’11″	160 cm / 5’3″	170 cm / 5’7″	180 cm / 5’11”	190 cm / 6’3″	200 cm / 6’7″
XS
S
M
L
XL
	Smoothly running Well-balanced Playful

Seatposts

The adjustable seatpost is probably one of the most ingenious inventions of recent years. In order to function optimally on the trail, the proper seatpost travel is very important. The following chart shows the recommended minimum inseam for the corresponding frame size. Please keep in mind that this is only a recommendation, as the respective sitting position depends very much on personal habits and preferences.

*Inside leg length in cm
Tyee AL	XS	S	M	L	XL
Bikeyoke Divine 125	73	73	74	76,5	79,5
Bikeyoke Divine 160	80	80	80	80,5	83
Bikeyoke Divine 185	85	85	85	85,5	85,5
Bikeyoke Revive 125	73	73	74	76,5	79,5
Bikeyoke Revive 160	80	80	80	80,5	83
Bikeyoke Revive 185	85	85	85	85,5	85,5
Bikeyoke Revive 213	91,5	91,5	91,5	92	92
Bikeyoke Revive 3 125	70,5	70,5	73	75,5	78,5
Bikeyoke Revive 3 160	77,5	77,5	77,5	79	82
Bikeyoke Revive 3 185	82,5	82,5	82,5	83	84,5
Bikeyoke Revive 3 213	89	89	89	89	89
Fox Transfer 125	71,5	71,5	74	76,5	79,5
Fox Transfer 150	77	77	77	79	82
Fox Transfer 175	82,5	82,5	82,5	83	84,5
Fox Transfer 200	88	88	88	88,5	88,5
RockShox Reverb AXS 125	74	74	76,5	79	82
RockShox Reverb AXS 150	79	79	79	81,5	84,5
RockShox Reverb AXS 170	83	83	83	83,5	86,5

Technical Data

Shock length

210 mm

Shock travel

55 mm

Shock bushings

30 mm / 30 mm

Travel (Frame)

160 mm

Max. Travel (Fork)

170 mm

Bottom bracket BSA

73 mm

Brake mount (Frame)

PM 180/200

Seatpost diameter

31.6 mm

Seatclamp diameter

CF: 36.4 mm / AL: 34.9 mm

Max. Seatpost insert length

	Tyee CF	Tyee AL
27.5″ – XS	182 mm	180 mm
27.5″ – S	202 mm	200 mm
27.5″ – M	222 mm	224 mm
29″/Mix – M	222 mm	224mm
29″/Mix – L	242 mm	247 mm
29″/Mix – XL	262 mm	277 mm

Headset

ZS56/ZS56

Rear wheel axle

148 mm

Chainline Offset

3-0

Chainline

52-55

Chainguide mount

ISCG05

Derailleur hanger

UDH

Wheel size

29″ / Mix / 27.5″

Frame weight size M

CF: 2.9 kg / AL: 3.4 kg

Max. system weight

120 kg ( Size XS max. 100 kg)

Geometry

We believe that an Enduro bike must be a true master of versatility. We achieved exactly that by combining a slack head angle of 64.5°, a very steep seat angle of 77.5°, a reach that gives room for movement, and a centrally located floating shock to concentrate the weight around a low bottom bracket. The new Tyee provides pedalling efficiency with lots of pressure on the front wheel on the uphill and an optimum weight distribution on the downhill. A characteristic that you will notice right away when you get on the bike and never want to miss again. We recommend running the full 29″ configuration in the “low” setting of the flip chip and the Mix and 27.5″ configuration in the “high” setting. Of course, the 27.5 “and Mix bikes can also be ridden in the “low” setting, the head angle becomes even flatter and the center of gravity of the bikes moves further down, which will work especially well for purely downhill-oriented bike park laps for sure. However, the bottom bracket height in this configuration is so low that pedal strikes in technical terrain become very likely. This setup is therefore recommended for experienced riders only.

160mm Fork

Recommended Position

* Measured 200 mm from center of bottom bracket
	Size XS	Size S	Size M	Size M	Size L	Size XL
Wheelsize -Flip Chip Position	27.5 -High	27.5 -High	27.5 -High	Mix -High 29 -Low	Mix -High 29 -Low	Mix -High 29 -Low
Frame height (A)	380 mm	400 mm	425 mm	425 mm	450 mm	480 mm
Fork offset (B)	37 mm	37 mm	37 mm	44 mm	44 mm	44 mm
Fork length (C)	553 mm	553 mm	553 mm	571 mm	571 mm	571 mm
Head tube length (D)	90 mm	110 mm	125 mm	105 mm	115 mm	125 mm
Reach (E)	405 mm	430 mm	455 mm	455 mm	480 mm	505 mm
Stack (F)	576 mm	594 mm	607 mm	621 mm	630 mm	639 mm
Head angle (G)	64.5°	64.5°	64.5°	64.5°	64.5°	64.5°
Seat angle – real (H)	73.5°	73.5°	73.5°	73.5°	73.5°	73.5°
Seat angle – effective (I)	77.9°	77.7°	77.6°	77.5°	77.5°	77.4°
Top tube length (J)	528 mm	559 mm	588 mm	592 mm	620 mm	647 mm
BB offset (K)	11 mm	11 mm	11 mm	27 mm	27 mm	27 mm
Chainstay length (L)	430 mm	430 mm	430 mm	445 mm	445 mm	445 mm
Wheelbase (M)	1145 mm	1178 mm	1210 mm	1231 mm	1260 mm	1290 mm
Standover height (N)*	783 mm	783 mm	783 mm	783 mm	783 mm	783 mm
BB height	348 mm	348 mm	348 mm	348 mm	348 mm	348 mm

Low Position with 27.5″ rear wheel

* Measured 200 mm from center of bottom bracket
	Size XS	Size S	Size M	Size M	Size L	Size XL
Wheelsize -Flip Chip Position	27.5 -Low	27.5 -Low	27.5 -Low	Mix -Low	Mix -Low	Mix -Low
Frame height (A)	380 mm	400 mm	425 mm	425 mm	450 mm	450 mm
Fork offset (B)	37 mm	37 mm	37 mm	44 mm	44 mm	44 mm
Fork length (C)	554 mm	554 mm	554 mm	571 mm	571 mm	571 mm
Head tube length (D)	90 mm	110 mm	125 mm	105 mm	115 mm	125 mm
Reach (E)	393 mm	418 mm	443 mm	446 mm	471 mm	496 mm
Stack (F)	584 mm	603 mm	616 mm	628 mm	637 mm	646 mm
Head angle (G)	63.4°	63.4°	63.4°	63.6°	63.6°	63.6°
Seat angle – real (H)	72.4°	72.4°	72.4°	72.6°	72.6°	72.6°
Seat angle – effective (I)	76.6°	76.6°	76.6°	76.6°	76.6°	76.6°
Top tube length (J)	531 mm	562 mm	591 mm	595 mm	623 mm	650 mm
BB offset (K)	26 mm	26 mm	26 mm	39 mm	39 mm	39 mm
Chainstay length (L)	430 mm	430 mm	430 mm	445 mm	445 mm	445 mm
Wheelbase (M)	1138 mm	1172 mm	1203 mm	1240 mm	1269 mm	1299 mm
Standover height (N)*	783 mm	783 mm	783 mm	783 mm	783 mm	783 mm
BB height	345 mm	345 mm	345 mm	345 mm	345 mm	345 mm

170mm Fork

Recommended Position

* Measured 200 mm from center of bottom bracket
	Size XS	Size S	Size M	Size M	Size L	Size XL
Wheelsize -Flip Chip Position	27.5 -High	27.5 -High	27.5 -High	Mix -High 29 -Low	Mix -High 29 -Low	Mix -High 29 -Low
Frame height (A)	380 mm	400 mm	425 mm	425 mm	450 mm	480 mm
Fork offset (B)	37 mm	37 mm	37 mm	44 mm	44 mm	44 mm
Fork length (C)	563 mm	563 mm	563 mm	581 mm	581 mm	581 mm
Head tube length (D)	90 mm	110 mm	125 mm	105 mm	115 mm	125 mm
Reach (E)	401 mm	426 mm	451 mm	451 mm	476 mm	501 mm
Stack (F)	579 mm	597 mm	610 mm	624 mm	633 mm	642 mm
Head angle (G)	64.1°	64.1°	64.1°	64.1°	64.1°	64.1°
Seat angle – real (H)	73.1°	73.1°	73.1°	73.1°	73.1°	73.1°
Seat angle – effective (I)	77.5°	77.5°	77.5°	77.1°	77.1°	77.1°
Top tube length (J)	528 mm	559 mm	588 mm	592 mm	620 mm	647 mm
BB offset (K)	8 mm	8 mm	8 mm	24 mm	24 mm	24 mm
Chainstay length (L)	430 mm	430 mm	430 mm	445 mm	445 mm	445 mm
Wheelbase (M)	1149 mm	1182 mm	1214 mm	1235 mm	1264 mm	1294 mm
Standover height (N)*	786 mm	786 mm	786 mm	786 mm	786 mm	786 mm
BB height	352 mm	352 mm	352 mm	352 mm	352 mm	352 mm

Low Position with 27.5″ rear wheel

* Measured 200 mm from center of bottom bracket
	Size XS	Size S	Size M	Size M	Size L	Size XL
Wheelsize -Flip Chip Position	27.5 -Low	27.5 -Low	27.5 -Low	Mix -Low	Mix -Low	Mix -Low
Frame height (A)	380 mm	400 mm	425 mm	425 mm	450 mm	480 mm
Fork offset (B)	37 mm	37 mm	37 mm	44 mm	44 mm	44 mm
Fork length (C)	554 mm	554 mm	554 mm	581 mm	581 mm	581 mm
Head tube length (D)	90 mm	110 mm	125 mm	105 mm	115 mm	125 mm
Reach (E)	389 mm	414 mm	439 mm	441 mm	462 mm	487 mm
Stack (F)	587 mm	606 mm	620 mm	631 mm	643 mm	652 mm
Head angle (G)	63.0°	63.0°	63.0°	63.2°	63.2°	63.2°
Seat angle – real (H)	72°	72°	72°	72.3°	72.3°	72.3°
Seat angle – effective (I)	76.2°	76.2°	76.2°	76.3°	76.3°	76.3°
Top tube length (J)	532 mm	563 mm	592 mm	596 mm	624 mm	651 mm
BB offset (K)	23 mm	23 mm	23 mm	42 mm	42 mm	42 mm
Chainstay length (L)	430 mm	430 mm	430 mm	445 mm	445 mm	445 mm
Wheelbase (M)	1151 mm	1184 mm	1226 mm	1245 mm	1278 mm	1308 mm
Standover height (N)*	786 mm	786 mm	786 mm	786 mm	786 mm	786 mm
BB height	349 mm	349 mm	349 mm	349 mm	349 mm	349 mm

Downloads

FAQ

Which bottle sizes fits in the frame?
Attaching bottles up to 0.5 l is no problem. With larger frame sizes, 0.7 l bottles can also be stowed.

Can the wheel size be changed afterwards?

The wheel size can be changed depending on the selected frame size thanks to the flip chip. To do this, for a 29” configuration set the flip chip to the “low” setting and the Mix and 27.5″ configuration to the “high” setting.

What is the maximum tire clearence?
2.5 Inch

How much does the Tyee weigh in my build?
Due to the large selection of components and frame sizes, we cannot make a statement for all combinations. However, we have given weights for our build kits, which you can see in the table above. In the configurator you will also find weight information for each component.

Do you also offer other componens that are not listed in the configurator?

No, we only offer the components and color variants that we show in the configurator.

What does the delivery include?

Your bike comes with all the instructions you need. We also offer additional equipment such as pedals or tools for assembly in our online shop. These parts are not included with the bikes as standard.

Fits your Tyee 6 AL

Decalset Big
USD $20.00
plus shipping
ready to ship approx. 10-15 business days *
Select options This product has multiple variants. The options may be chosen on the product page
Head Tube Badge
USD $4.95
plus shipping
ready to ship approx. 10-15 business days *
Select options This product has multiple variants. The options may be chosen on the product page

Spare parts for your Tyee 6 AL

Fork	Fox 36 Factory Kashima 160mm
Shock	Fox Float X Factory Kashima
Brakes	Magura MT7 Performance 203 mm / 203 mm
Wheels	Crankbrothers Synthesis Enduro Carbon i9
Drive train unit	SRAM XX Eagle Transmission (1x12)
Trigger	SRAM AXS Pod Controller
Derailleur	SRAM XX Eagle Transmission
Casette	SRAM XX Eagle Transmission
Crank	SRAM XX Eagle Transmission 170 mm 32t
Handlebar	SIXPACK Millenium 805
Stem	SIXPACK Millenium 35
Seatpost	Fox Transfer Factory Kashima
Saddle	SQLab 611 Infinergy
Tires	Schwalbe Magic Mary / Big Betty

Fork	RockShox Lyrik Ultimate 160 mm
Shock	RockShox Super Deluxe Ultimate
Brakes	SRAM Code RSC 200 mm / 200 mm
Wheels	NEWMEN Evolution SL A.30
Drive train unit	SRAM X0 Eagle Transmission (1x12)
Trigger	SRAM AXS Pod Controller
Derailleur	SRAM X0 Eagle Transmission
Cassette	SRAM X0 Eagle Transmission
Crank	SRAM X0 Eagle Transmission 170 mm 32t
Handlebar	SIXPACK Millenium 805
Stem	SIXPACK Millenium 35
Seatpost	RockShox Reverb AXS
Saddle	SQLab 611 Infinergy
Tires	Schwalbe Magic Mary / Big Betty

Fork	RockShox ZEB Ultimate 170mm
Shock	RockShox Super Deluxe Coil Ultimate
Brakes	SRAM Code R 200 mm / 200 mm
Wheels	NEWMEN Evolution E.G.30
Drive train unit	SRAM GX Eagle (1x12)
Trigger	SRAM GX Eagle
Derailleur	SRAM GX Eagle
Cassette	SRAM XG-1275 Eagle
Crank	Truvativ Descendant 170 mm 32t
Handlebar	SIXPACK Millenium 805
Stem	SIXPACK Millenium 35
Seatpost	BikeYoke Revive
Saddle	SIXPACK Kamikaze
Tires	Schwalbe Magic Mary / Big Betty

Fork	Formula Selva S 170 mm
Shock	Formula MOD
Brakes	Formula Cura 4 203 mm / 203 mm
Wheels	NEWMEN Performance 30
Drive train unit	SRAM GX Eagle (1x12)
Trigger	SRAM GX Eagle
Derailleur	SRAM GX Eagle
Cassette	SRAM XG-1275 Eagle
Crank	Truvative Descendant 170 mm 32t
Handlebar	SIXPACK Millenium 805
Stem	SIXPACK Vertic
Seatpost	OneUp Dropper V3
Saddle	SIXPACK Kamikaze
Tires	Schwalbe Magic Mary / Big Betty

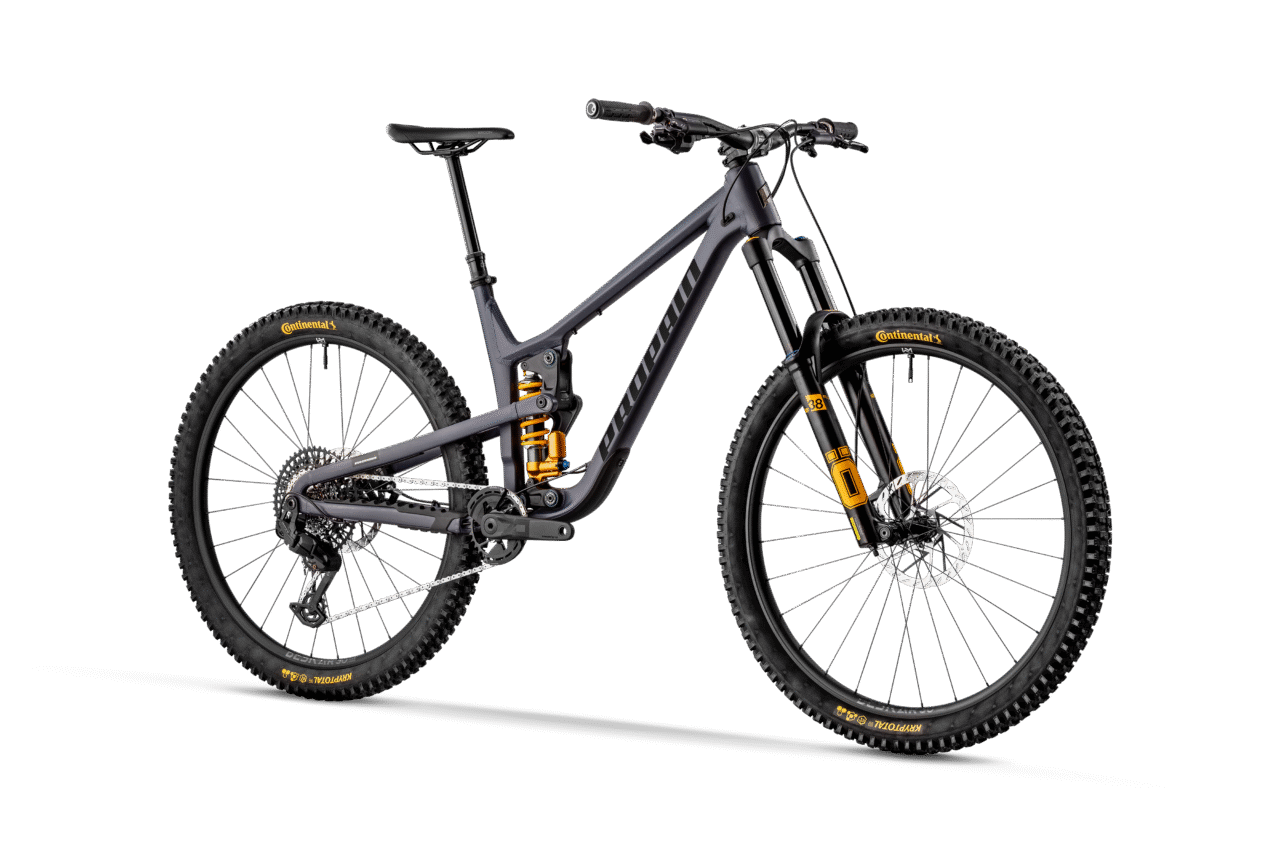

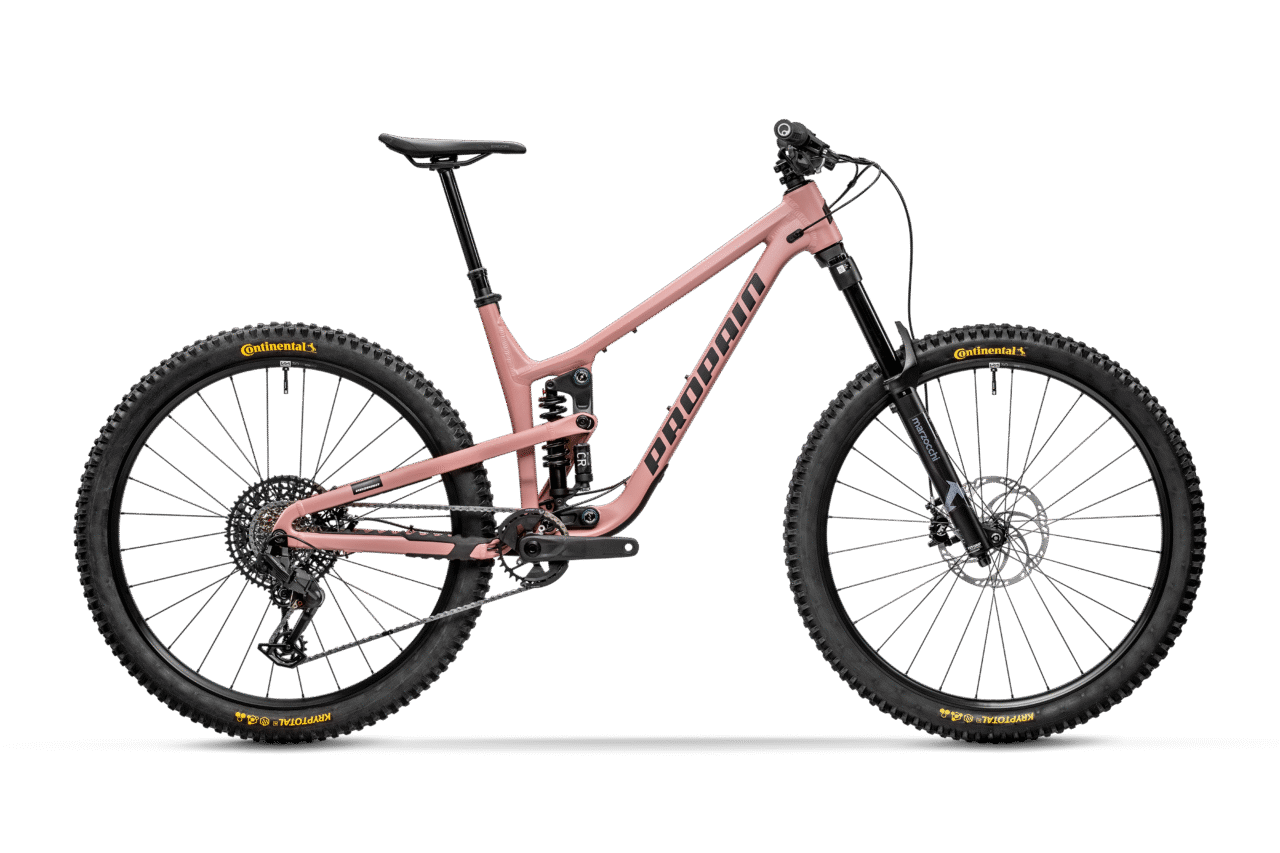

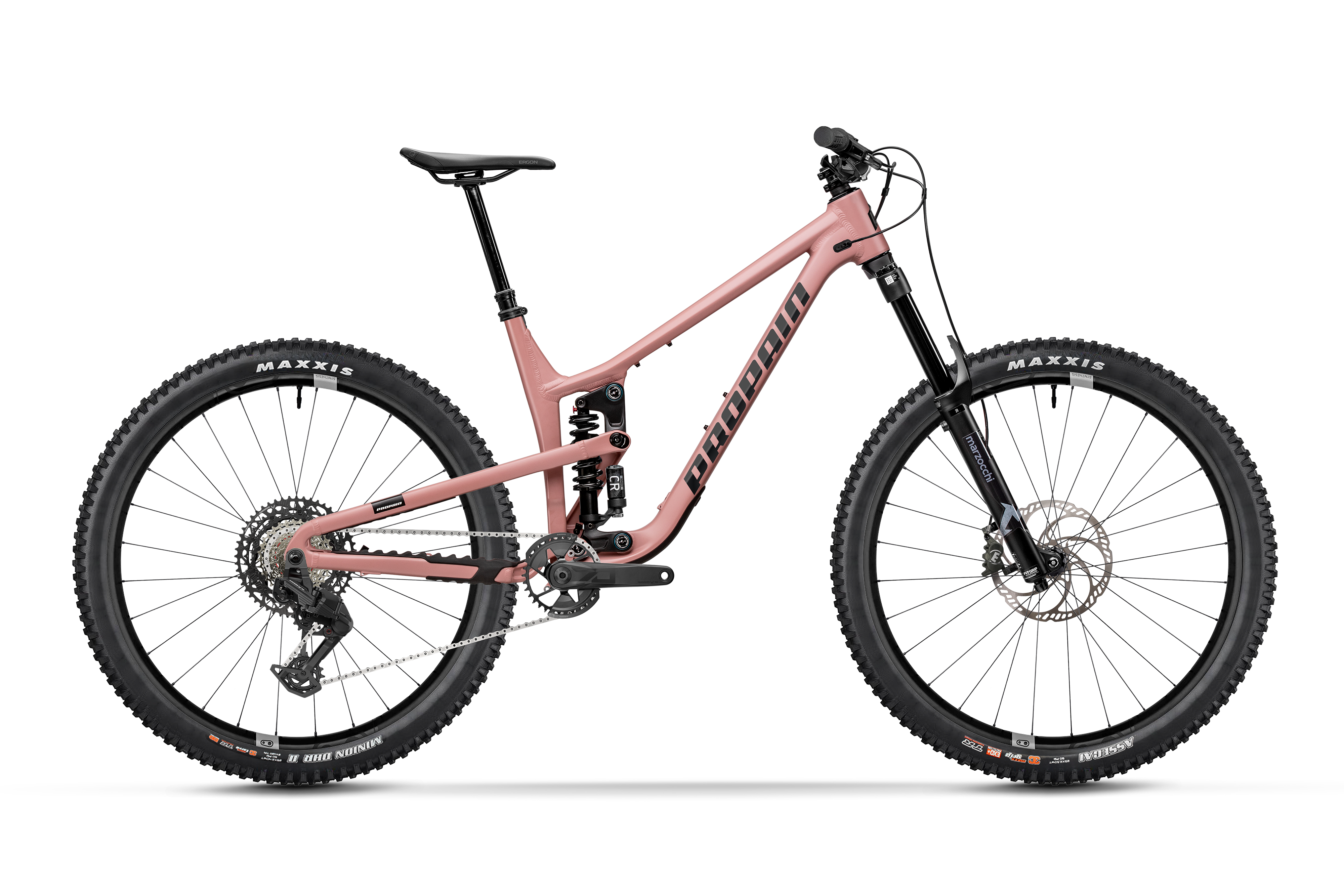

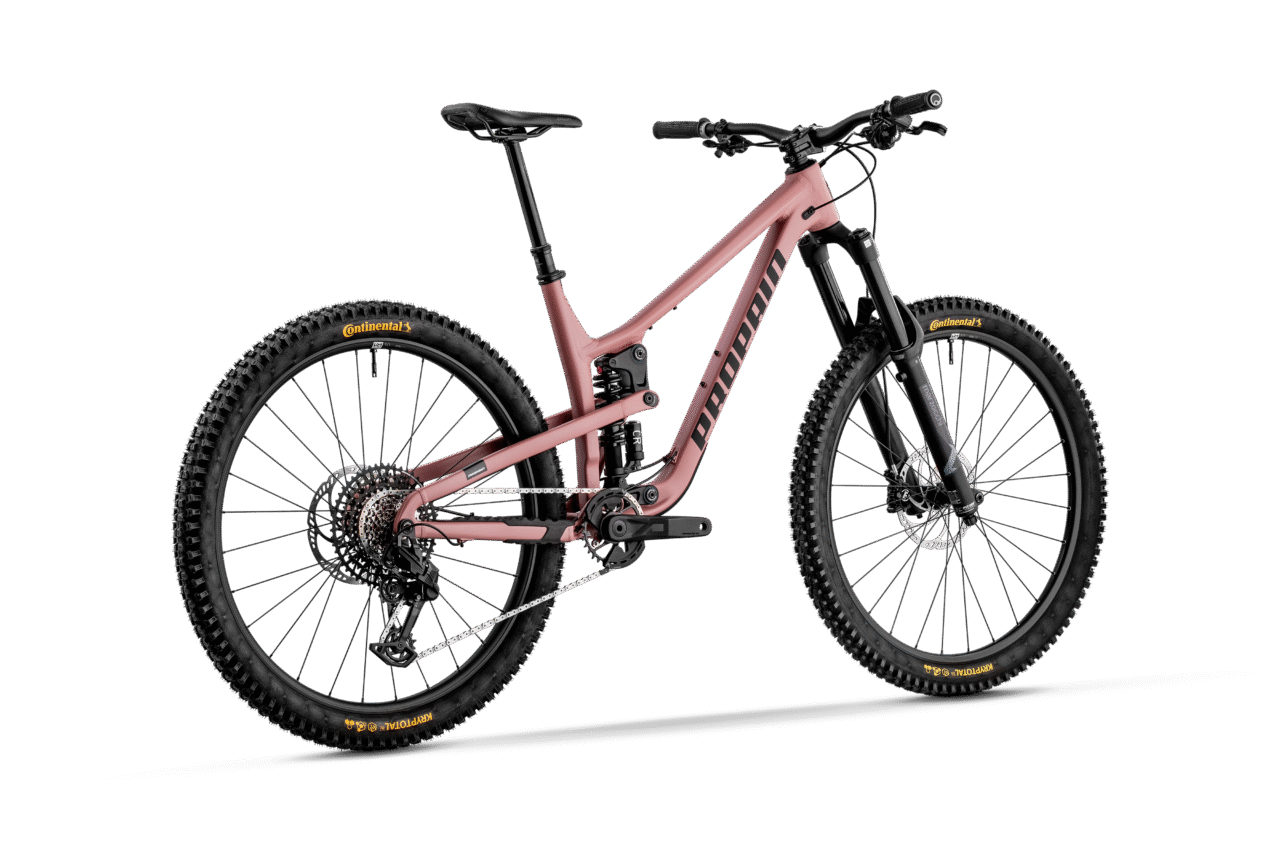

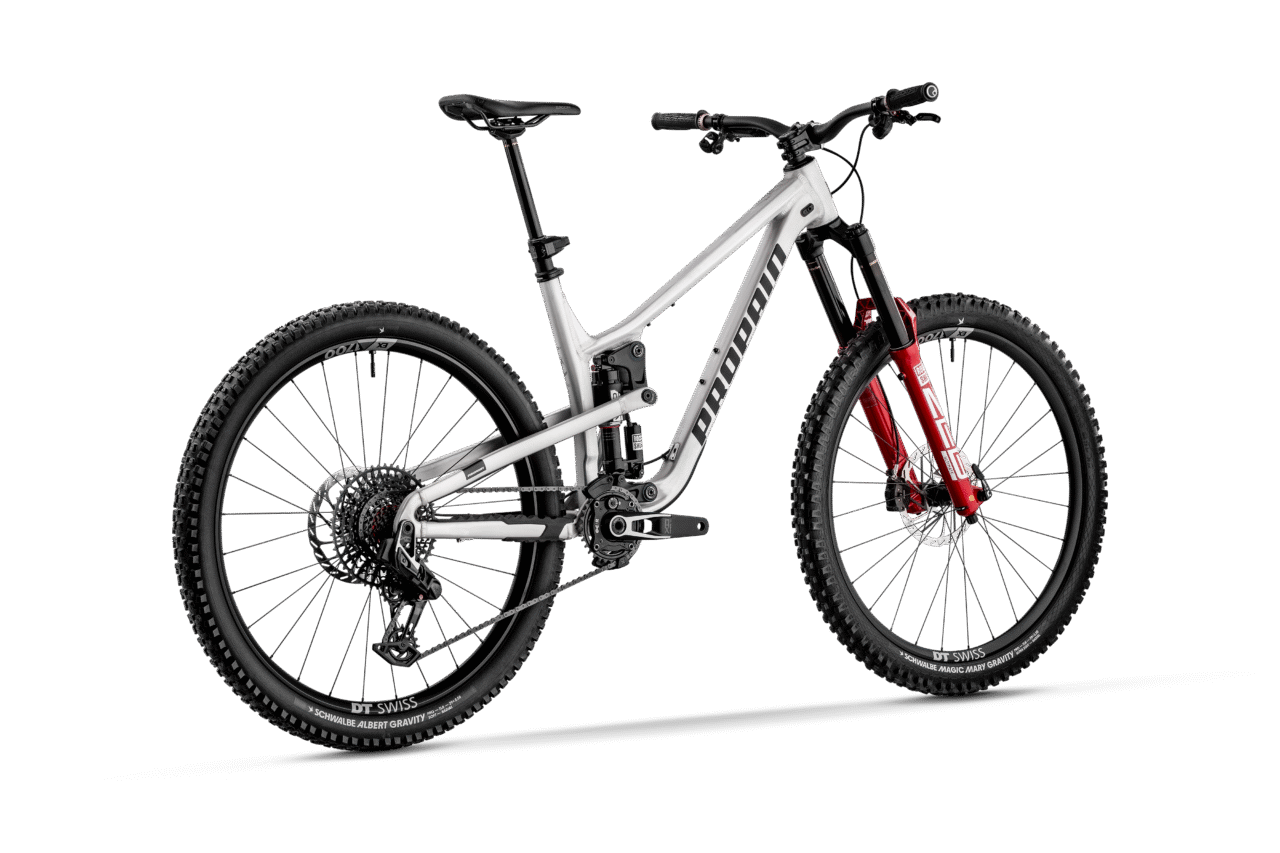

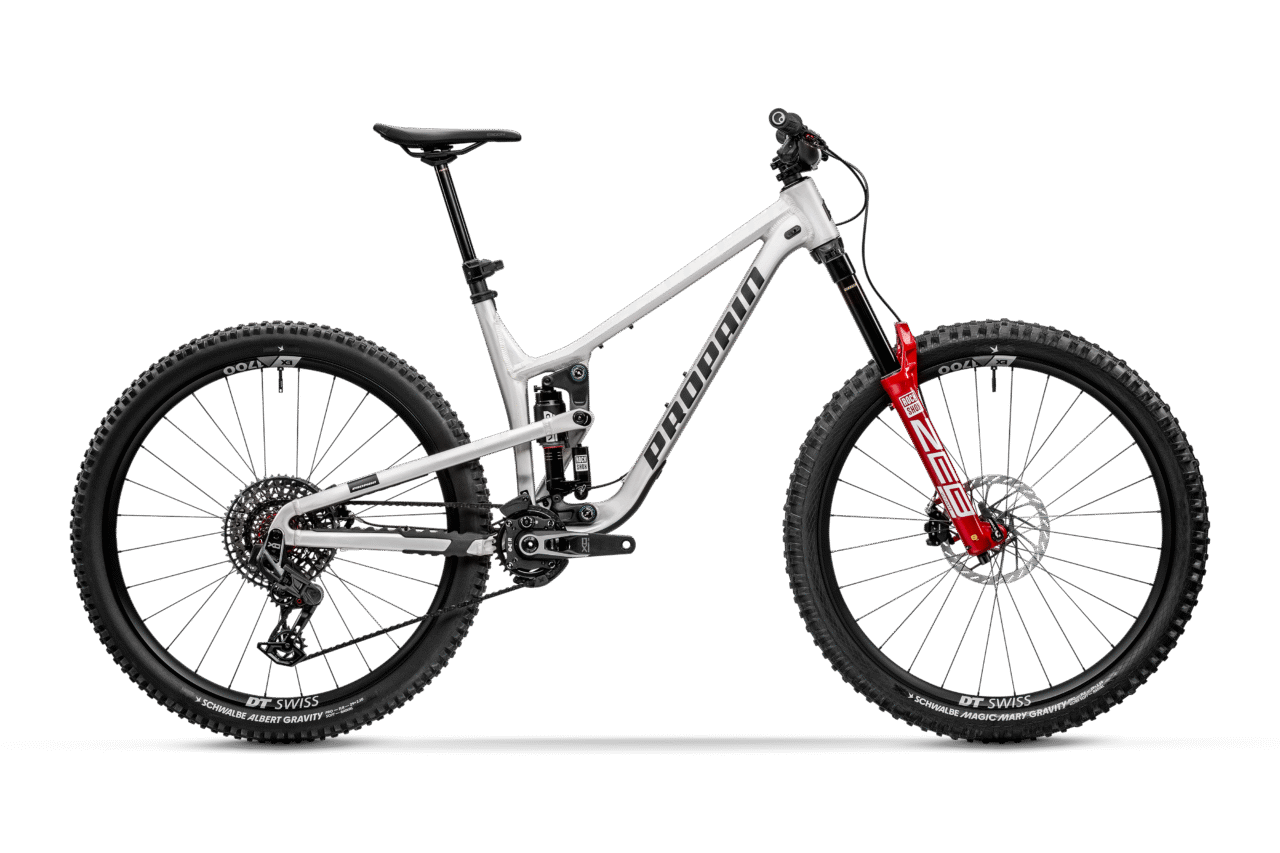

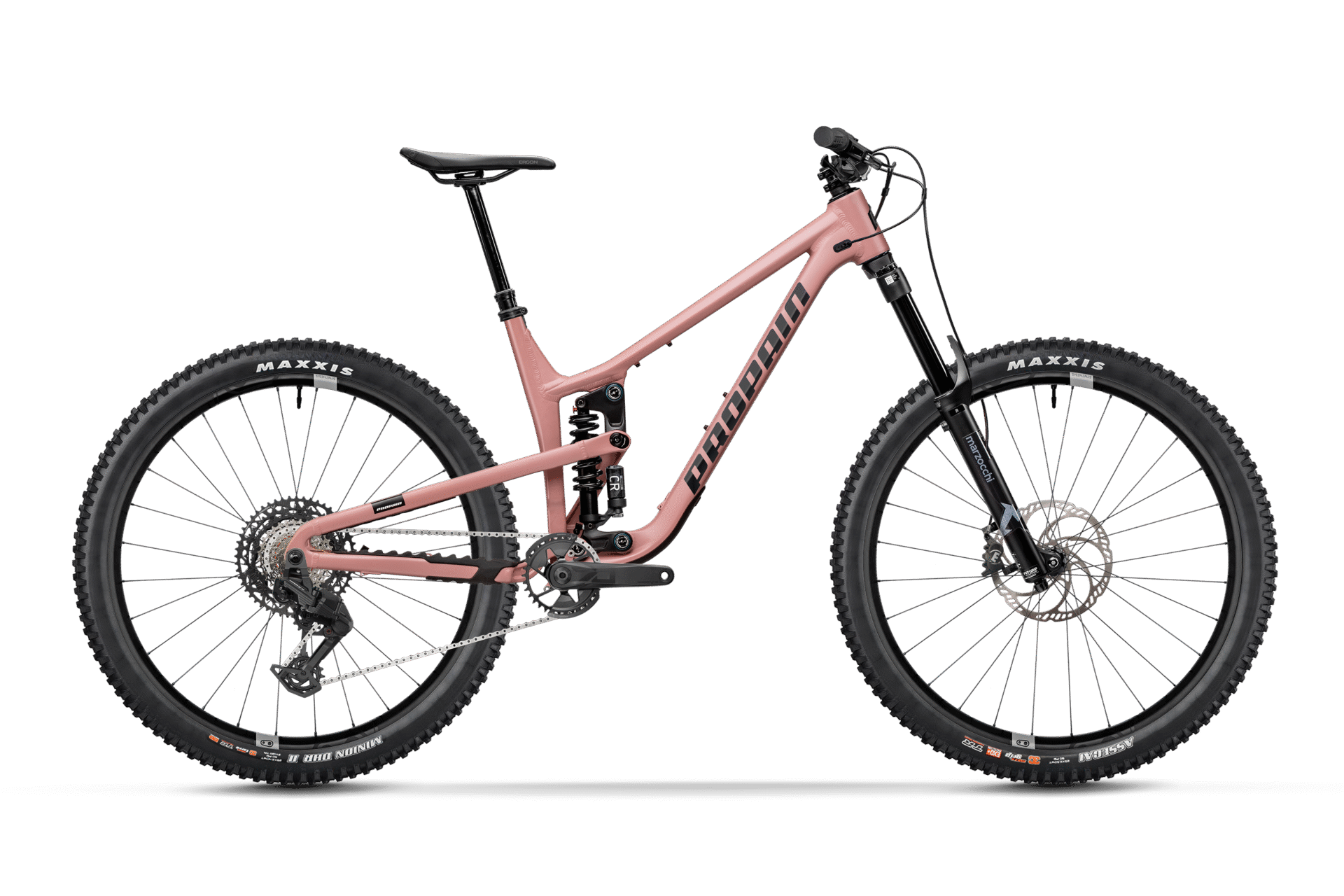

TYEE 6 AL

Blackfriday deals – SAVE 25% ON YOUR Tyee 6 AL*

The All New Tyee

from USD $2,999.00

The perfect balance

Your individual all-rounder

Silent is fast
