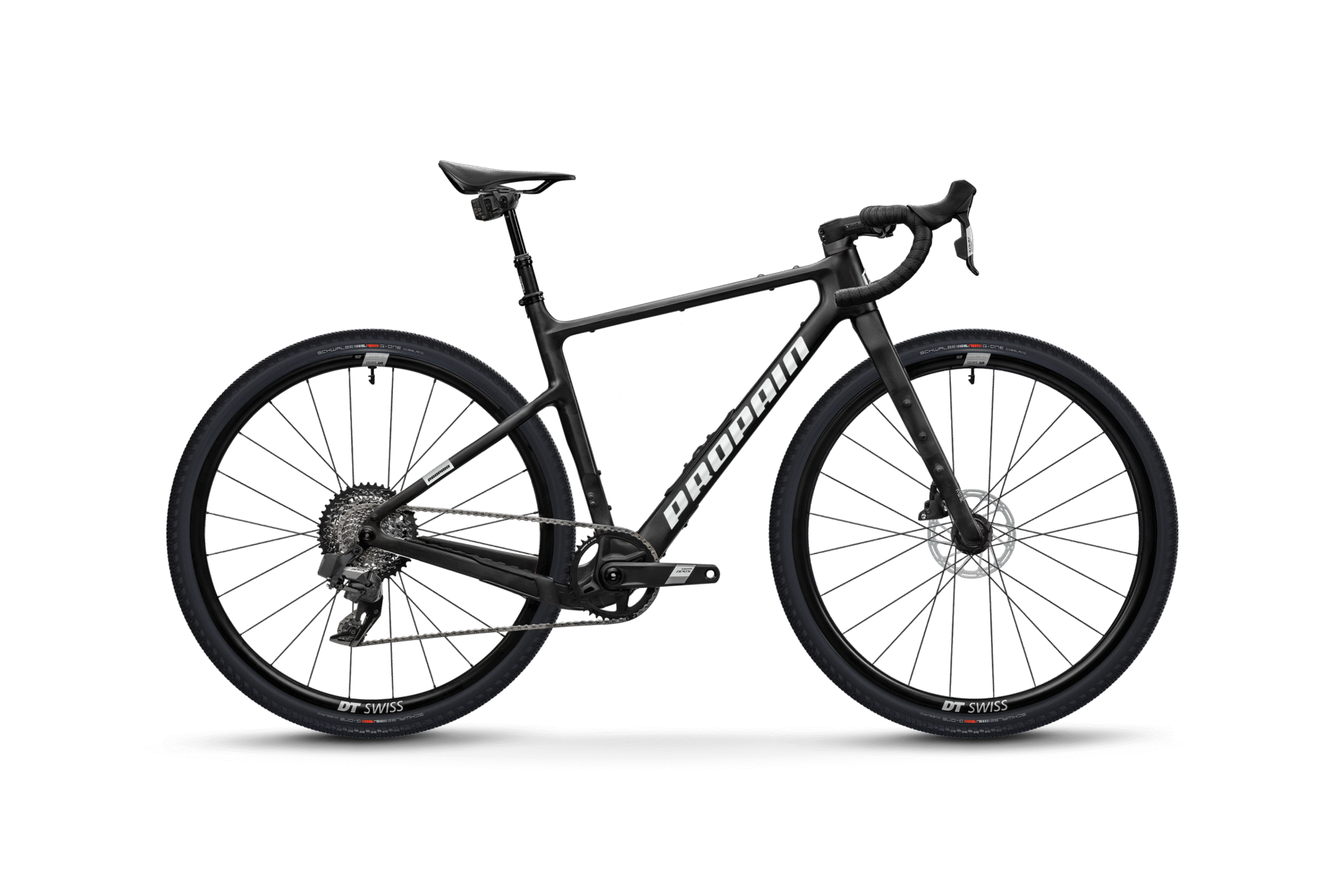

Raw Matte
Raw Matte
Raw Matte

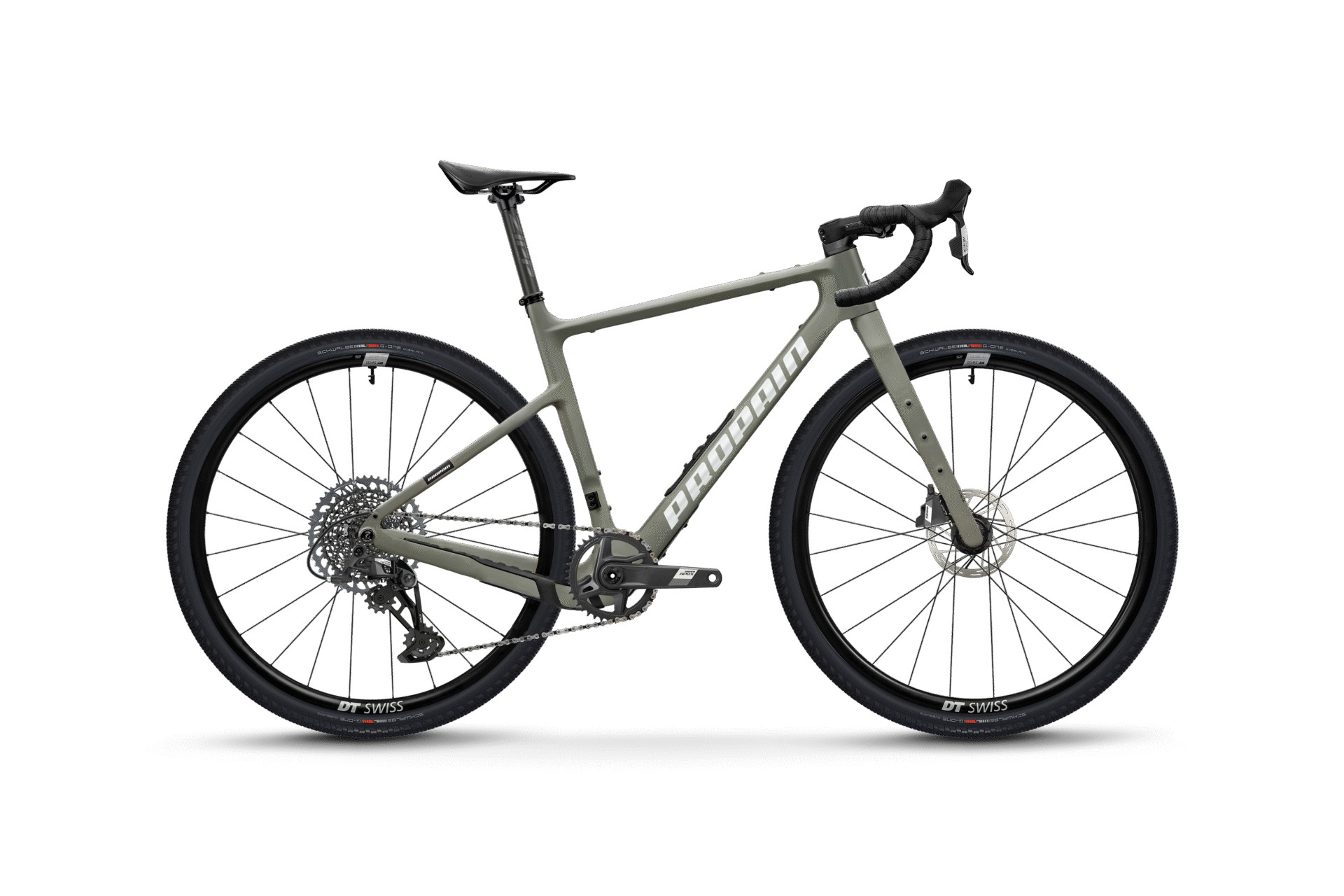

TERREL CF

from From USD $2,599.00

Payment in installment
possible with Affirm

Customize now

MAKE IT YOURS

What does gravel mean to you? Long rides off-road or technical challenges in the woods? Multi-day bikepacking trips or long-distance gravel competitions? We’ve developed the Terrel CF around the versatility of this discipline, and it comes with a powerful ace up its sleeve – the PROPAIN configurator.

The Terrel allows you to tailor it to a wide range of applications. Whether it’s a carbon fork and an aero wheelset for maximum efficiency and speed, or a suspension fork and a dropper post for ultimate comfort and trail performance. Whether it’s a 2x drivetrain for tight gear steps or a transmission derailleur and cassette for extreme range and quick shifting under load.

Make the Terrel what you need it to be.

From USD $2,599.00

plus shipping
ready to ship approx. 9 weeks *

MAKE IT EPIC

ADVENTURE

Day trip, weekend getaway, or bikepacking adventure beyond borders. Pack your gear onto the robustly configured Terrel and enjoy worry-free long days in the saddle for lasting memories.

MAKE IT WILD

TRAIL

With a dropper post and suspension fork, you have full control and freedom of movement to really push the Terrel in rough terrain.

MAKE IT FAST

COMPETITION

Lightweight yet built tough, the Terrel is absolutely “ready to race” thanks to its high torsional rigidity and progressive geometry. Challenge yourself and your competition

Frame Concept

For the lightweight frame, we have redesigned our renowned Blend Carbon Layup to meet the requirements of a gravel bike. With a high proportion of high-modulus fiber at critical points, we have achieved very high stiffness for maximum pedal efficiency while also providing vibration damping to reduce fatigue on long rides. The positioning of the seat stays and the layup in this area allow for significant flex of the seat post, providing the highest level of seating comfort. At the same time, we have managed to meet our durability standards from the gravity sector, all at a weight of only 1090 grams in size M.

Progressive Geometry

The geometry of the Terrel has undoubtedly been influenced by our gravity experience, but it’s anything but a mini-MTB. Flat steering angles and steep seat angles, longer reach and moderate stack values, combined with shorter stem lengths across all sizes, ensure a light and natural handling. With a hand position slightly behind the front axle, you always have optimal control on the Terrel, even when things get technical, and you assume a sporty, yet not overly stretched, riding position. Despite its gravity-inspired geometry, the high stiffness of the Terrel allows for efficient pedaling even on asphalt, so you can easily join a road bike group ride and shine in the next town sign sprint.

Suspension Corrected

The frame geometry is fully “suspension-corrected,” meaning it has been designed for use with a 40mm travel suspension fork. Our rigid carbon fork has the same axle-to-crown height, ensuring that it does not alter the geometry.

MAKE IT YOURS

Through our extensive online configurator, the character of all our bikes can be influenced to varying degrees. The Terrel offers you an especially wide range of options.
Make the Terrel what you need it to be.

Build Kits

We’re here to help you on the journey to your dream bike. Our four build kits are clear recommendations from us to you, as we would build our own bikes exactly this way. For every riding style and budget, we provide a well-thought-out equipment concept, so you’re directly “ready to ride.” However, at PROPAIN, we always stay custom, so you can still fulfill any individual wish in our configurator.

Competition

$ 4999
  • Fork:
    Terrel CF
  • Groupset:
    SRAM Force AXS (1x12)
  • Seatpost:
    Sixpack Gravel Line CF
  • Saddle:
    Selle Italia SLR Boost Superflow
  • Wheelset:
    DT Swiss GRC 1400 Spline
  • Tires:
    Continental Terra Speed 40 mm

Trail

$ 4079
  • Fork:
    RockShox Rudy Ultimate 40 mm
  • Groupset:
    SRAM Apex / GX T-Type AXS (1x12)
  • Seatpost:
    RockShox Reverb AXS
  • Saddle:
    Selle Italia Model X Superflow
  • Wheelset:
    DT Swiss G 1800 Spline
  • Tires:
    Continental Terra Trail 45 mm

Adventure

$ 3359
  • Fork:
    Terrel CF
  • Groupset:
    Shimano GRX 820 (2x12)
  • Seatpost:
    Sixpack Gravel Line CF
  • Saddle:
    Selle Italia Model X Superflow
  • Wheelset:
    NEWMEN G.34 Fade
  • Tires:
    Schwalbe G-One Overland 50 mm

Base

$ 2599
  • Fork:
    Terrel CF
  • Groupset:
    Shimano GRX 610 (1x12)
  • Seatpost:
    Sixpack Gravel Line CF
  • Saddle:
    Selle Italia Model X Superflow
  • Wheelset:
    DT Swiss G 1800 Spline
  • Tires:
    Schwalbe G-One Overland 50 mm

Mounting points for bags, racks, and fenders

To ensure you’re fully equipped for bikepacking and commuting, the ability to store equipment on the bike is extremely important. With mounting points for frame bags and top tube bags on the top tube, mounting points for bags or cages on the fork sides, and mounting points for fenders and racks, as well as three bottle cages, we’ve covered all the bases with the Terrel. With our mounting points for all your equipment, you achieve a clean look without the hassle of straps. Your gear always stays exactly where it should, without wobbling, rattling, rubbing, or slipping.

PROPAIN Expandable Frame Bag

A frame bag that can always stay on the bike. The sleek, size-specific bag fits perfectly into the triangle of the Terrel frame. It is fixed tool-free at the screw points, allowing it to seamlessly integrate into the design, and can thus remain on the bike unnoticed. And if you ever need to carry more, you can easily expand the volume of the bag from 3,5l to 5l with the full-length zipper.

Available in October

PROPAIN Frame Storage

Our Wilderness Essential Equipment Depository Box allows you to store all your essential gear within the frame through a large opening in the downtube. With our uniquely developed closure system, it’s easy to open even when a bottle is attached. It’s sealed against dust, mud, and water, and doesn’t rattle. With the two included bags, the Tube Bag and the Tool Bag, you can store not only the titular utensils but also keys, valuables, and anything else you need to stow away in smaller compartments.

MAKE IT YOURS

Through our extensive online configurator, the character of all our bikes can be influenced to varying degrees. The Terrel offers you an especially wide range of options.
Make the Terrel what you need it to be.

Frame protection of MTB quality

A soft TPR protector shields the chainstays of the Terrel. The added bumps efficiently dampen chain vibrations, ensuring absolute silence even when riding trails with the Terrel. The downtube protection guards the Blend Carbon frame against rock strikes and ground contact while also providing the option to mount a third water bottle.

T47 bottom bracket and UDH dropout

The threaded T47 bottom bracket with its large, durable bearings requires minimal maintenance. Unlike press-fit bottom brackets, it tend to develop noises. Once installed, you can ride worry-free. The UDH dropout is easy to replace in case of damage and allows for the installation of SRAM transmission derailleurs.

Tire clearance

The frame and carbon fork have a tire clearance of 700Cx50 for comfort and grip. Of course, the corresponding tires can also be selected directly in the configurator.

GRVL Blend Carbon

For a modern carbon frame that withstands ambitious riding for a long time, it’s not enough to just use good carbon material. Instead, it requires a blend of various carbon fibers and fabrics with diverse properties to meet the demands. PROPAIN carbon frames are made from pre-impregnated (prepreg) carbon layers. These ensure optimal resin content and result in significantly higher strength values. Each layer has specific properties and tasks at certain points of the frame. Based on the requirements for stiffness, flexibility, impact resistance, weight, strength, and direction of stress, different fibers and fabrics are used. With our Terrel, we intentionally use an additional high-quality high modulus fiber, allowing us to manufacture the frame extremely stiff against torsion during pedaling without compromising on vibration damping and seating comfort.

Bitte leer lassen
The size of the frame plays an important role in the bike’s performance and, above all, in its enjoyment. Select the frame size you need from the table. If you are between two sizes, then you only have to decide whether you like it playful or smooth. For smooth riding, choose the larger frame size, for playful riding, choose the smaller frame size.
XS: 160-170 cm / S: 168-178 cm / M: 175-185 cm / L: 183-193 cm / XL: 190-200 cm
150 cm 4’11” 160 cm 5’3″ 170 cm 5’7″ 180 cm 5’11” 190 cm 6’3″ 200 cm 6’7″
XS
S
M
L
XL
Wheel size 700C
Max. tire clearance 50 mm
Max. travel (Fork) 40 mm
Bottom bracket T47
Brake mount (Frame) Flatmount 160 direct
Seatpost diameter 27.2 mm
Seatclamp diameter 31.8 mm
Headset (S.H.I.S) IS52/IS52
Rear wheel axle 142 mm
Derailleur front Braze-on
Derailleur hanger UDH
Max. system weight 130 kg
Max. weight mounting points Fork: 3 kg per side, no low ride type racks
Rear: 8 kg per side, total max. of 16 kg on the rear triangle
Frame: behind the stem max. 3 kg
* Measured 200 mm from center of bottom bracket
SIZE XS SIZE S SIZE M SIZE L SIZE XL
Frame height (A) 470 mm 510 mm 525 mm 545 mm 570 mm
Fork offset (B) 45 mm 45 mm 45 mm 45 mm 45 mm
Fork length (C) 425 mm 425 mm 425 mm 425 mm 425 mm
Head tube length (D) 98 mm 116 mm 130 mm 154 mm 177 mm
Reach (E) 382 mm 396 mm 405 mm 412 mm 430 mm
Stack (F) 554 mm 568 mm 583 mm 608 mm 632 mm
Head angle (G) 69.5° 70° 70.5° 71° 71.5°
Seat angle (H) 74.3° 73.5° 73.5° 73.5° 73.5°
Top tube length (I) 538 mm 564 mm 578 mm 592 mm 617 mm
BB offset (J) 77 mm 72 mm 72 mm 72 mm 72 mm
BB height (K) 287 mm 292 mm 292 mm 292 mm 292 mm
Chainstay length (L) 435 mm 435 mm 435 mm 435 mm 435 mm
Wheelbase (M) 1,037 mm 1,053 mm 1,062 mm 1,073 mm 1,094 mm
Standover height (N)* 787 mm 803 mm 820 mm 843 mm 862 mm

You have questions about your next bike?
Our customer service team is here to help and support you!

Book an appointment now for a consultation on the phone or in our showroom. Of course, you can also contact us via our chat on our website or by email. We look forward to hearing from you!

Fits your TERREL CF

MAKE IT YOURS

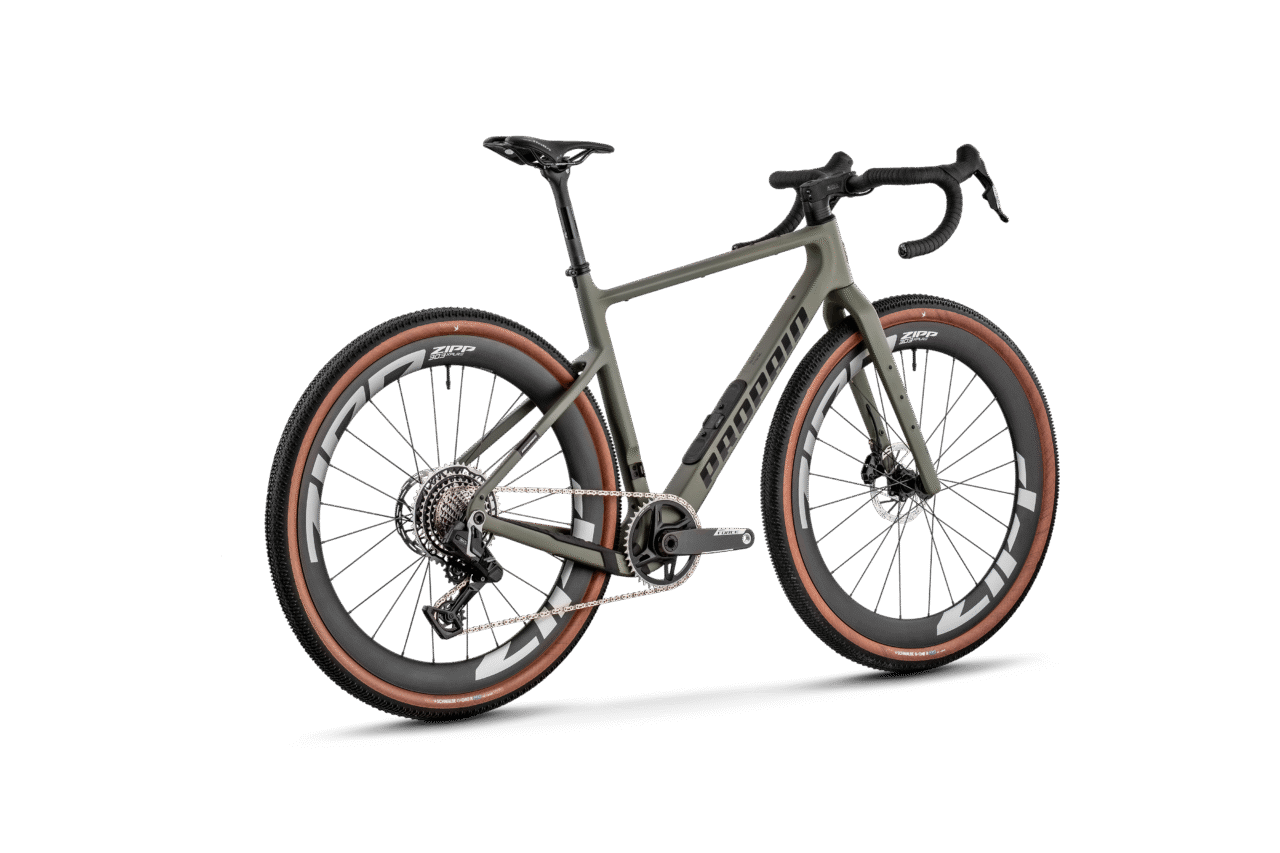

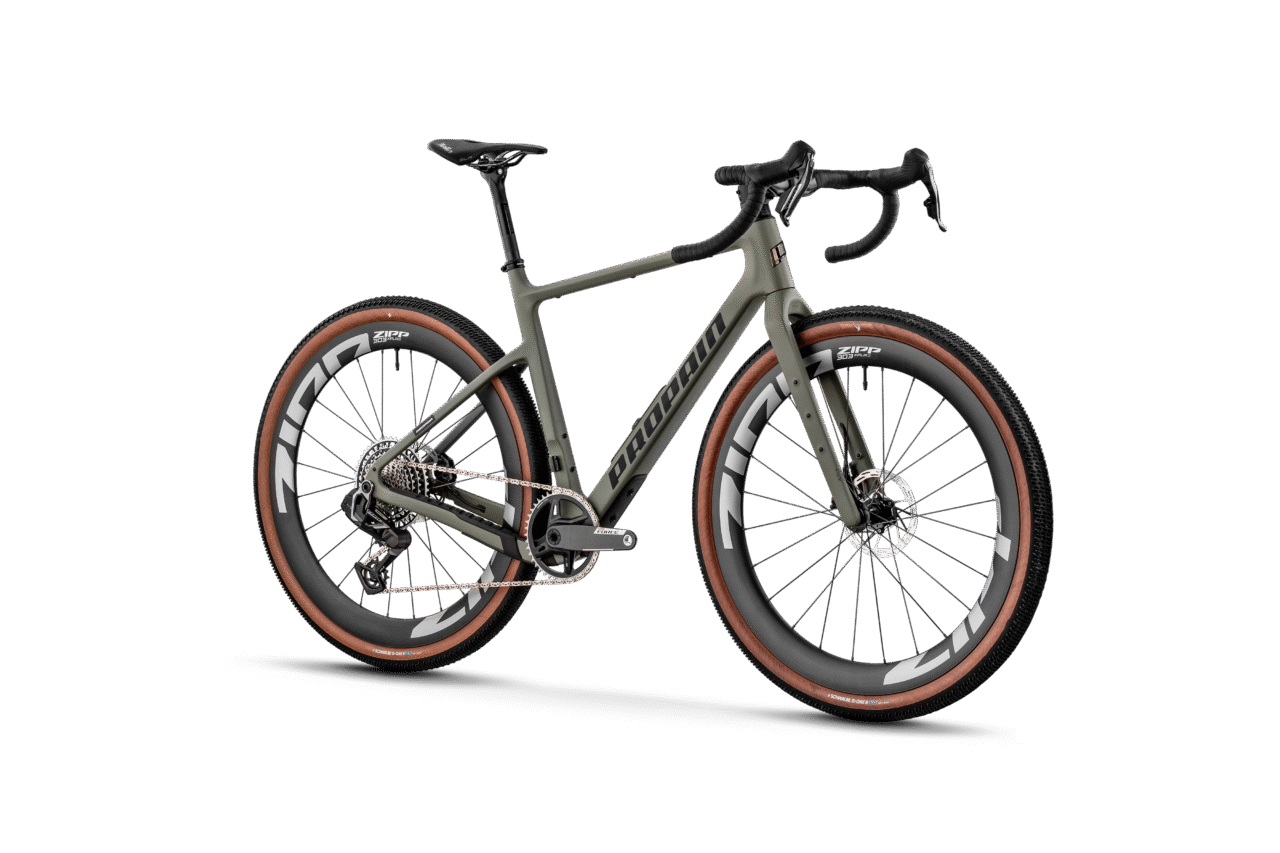

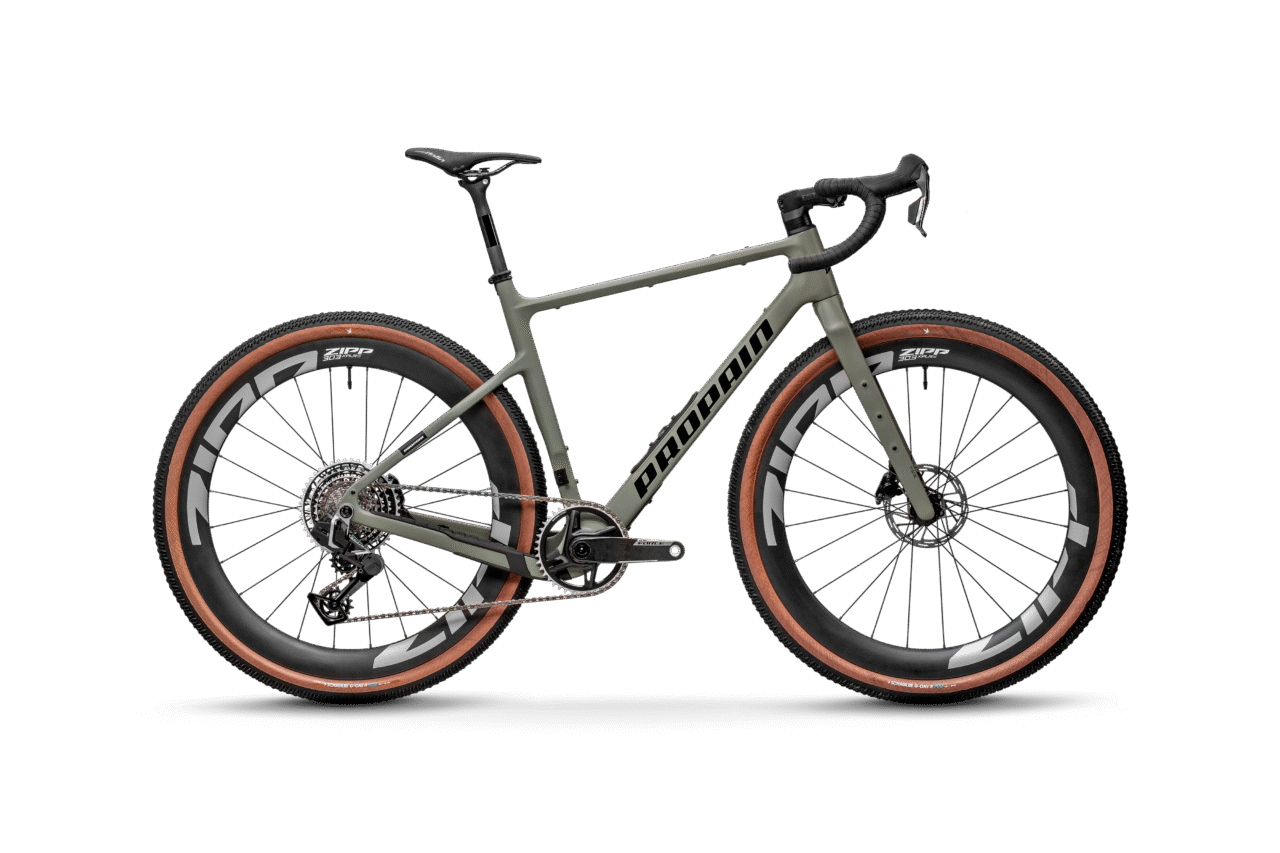

Build Kit Terrel CF Competition
Fork Terrel CF
Groupset SRAM Force AXS
TriggerSRAM Force AXS
BrakesSRAM Paceline 160 mm
CrankSRAM Force AXS 40T
DerailleurSRAM Force XPLR AXS (1x12)
CassetteSRAM Force XPLR XG-1271 10-44T
ChainSRAM Force Flattop
Handlebar Sixpack Gravel Line CF
Stem ZIPP Service Course SL
Seatpost Sixpack Gravel Line CF
Saddle Selle Italia SLR Boost Superflow
Wheels DT Swiss GRC 1400 Spline
Tires Continental Terra Speed 40 mm
Weight 8.05 kg

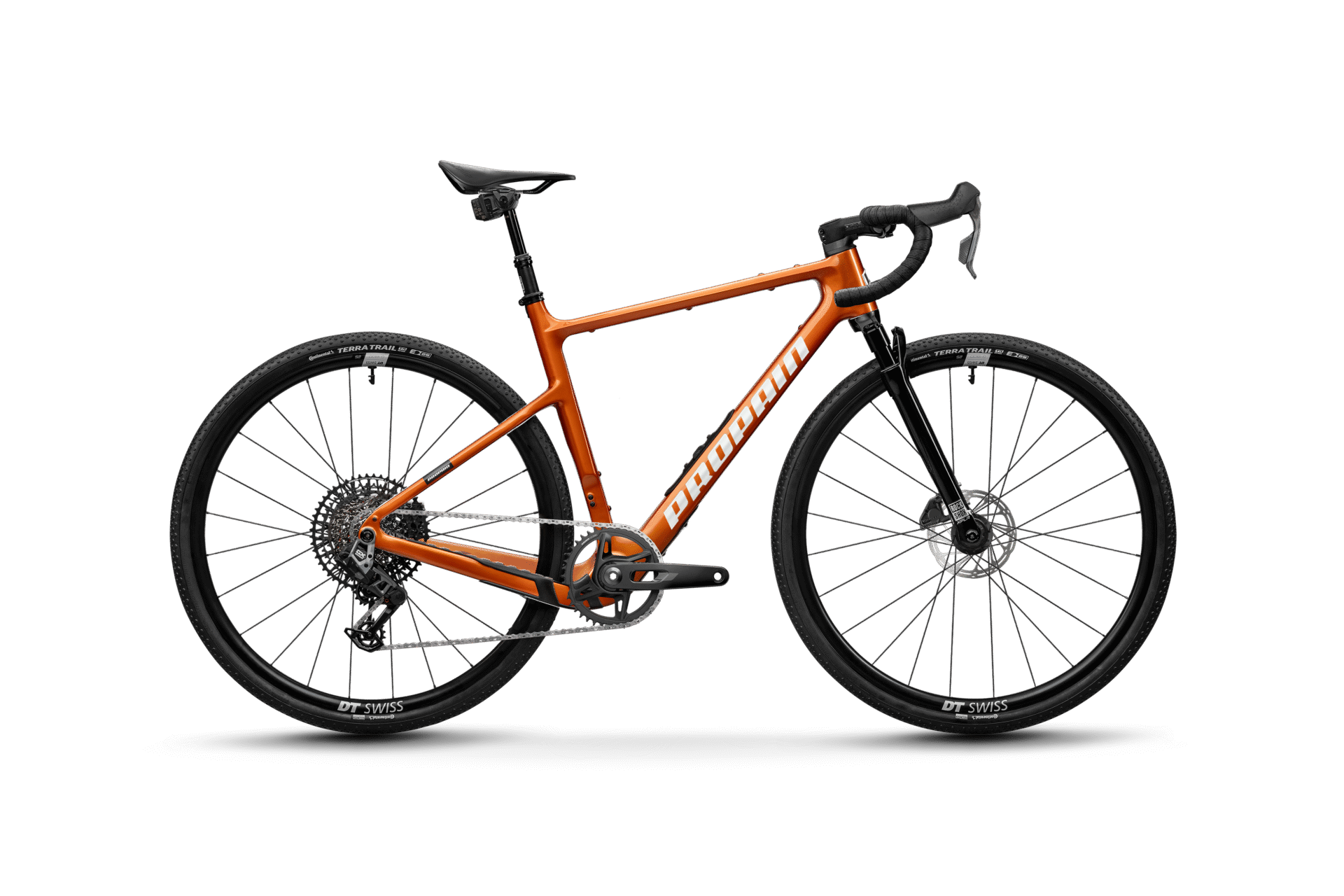

Build Kit Terrel CF Trail
Fork RockShox Rudy Ultimate 40 mm
Groupset SRAM Apex AXS / GX T-Type (Mullet)
TriggerShimano GRX820
BrakesSRAM Centerline 160 mm
CrankSRAM Apex AXS 40T
DerailleurSRAM GX Eagle AXS T-Type (1×12)
CassetteSRAM GX T-Type XG-1275 10-52T
ChainSRAM GX Eagle T-Type Flattop
Handlebar Zipp Service Course 70 XPLR
Stem ZIPP Service Course SL
Seatpost RockShox Reverb AXS XPLR
Saddle Selle Italia Model X Superflow
Wheels DT Swiss G 1800 Spline
Tires Continental Terra Trail 45 mm
Weight 10.15 kg
Build Kit Terrel CF Adventure
Fork Terrel CF
Groupset Shimano GRX 820 (2x12)
TriggerShimano GRX820
BrakesShimano RT-CL800
CrankShimano GRX820 48/31T
DerailleurShimano RD GRX 820 / FD GRX 820 (2x12)
CassetteShimano HG710 11-36T
ChainShimano Deore CN-M8100
Handlebar Zipp Service Course 70 XPLR
Stem ZIPP Service Course SL
Seatpost Sixpack Gravel Line CF
Saddle Selle Italia Model X Superflow
Wheels NEWMEN Advanced G.34 Fade
Tires Schwalbe G-One Overland 50 mm
Weight 8.8 kg
Build Kit Terrel CF Base
Fork Terrel CF
Groupset Shimano GRX 610 (1x12)
TriggerShimano GRX610
BrakesShimano SLX SM-RT70S
CrankShimano GRX610 40T
DerailleurShimano RD GRX822 (1x12)
CassetteShimano HG610 10-51T (1x12)
ChainShimano Deore CN-M6100
Handlebar Zipp Service Course 70 XPLR
Stem ZIPP Service Course SL
Seatpost Sixpack Gravel Line CF
Saddle Selle Italia Model X Superflow
Wheels DT Swiss G 1800 Spline
Tiress Schwalbe G-One Overland 50 mm
Weight 9.5 kg
