Frameset Tyee 6 AL 27.5″

SKU A000503 Category Framesets

incl. headsetz (fitting to choice of stem) , Sixpack sealed saddle clamp 34.9 mm, Sixpack axle 148 mm x 12 mm und fitting derailleur hanger.

from USD $1,649.00

plus shipping

ready to ship approx. 10-15 business days *

Description
Additional information

Description

The All New Tyee

The Tyee 6 AL is the epitome of a perfect enduro bike. It combines all the features that you want from a modern enduro mountain bike. It climbs with ease and always puts a big smile on your face on every descent. On flowy trails it rides like a playful trail bike and in rough downhill sections it simply eats up stones and roots.

No matter what you’re up to, the Tyee 6 AL is always ready to go. Are you?

Previous

Next

Highlights

From 2.649 €

The Tyee 6 AL is a true enduro mountain bike, which convinces you with its balanced geometry and the well thought-out details on every ride. Whether enduro racing, flowy trails, jump lines or the after-work rides – the Tyee 6 AL is your ultimate all-rounder and fun is guaranteed.

Whether wheel size or components, you customize your bike according to your specific needs. You can also create an individual look for your Tyee 6 AL by choosing from the different frame colours, decals and badges on the head tube.

With kinematics that let the Tyee 6 AL shy away from nothing, you will set new personal bests and experience completely new possibilities of lines choices. Our optimized cable routing and in-house developed seat- and chainstay protection, make the Tyee 6 AL ultra-silent and allow you to fully focus..

"From mellow flow trail to full-on downhill track, the bike never really feels out of place."

"The suspension platform provides a perfect mix of uphill and downhill capabilities, leaving you with a bike that covers all the bases."

"The frame is well judged and its range of appeal is broad enough to cover everything from trail riding through to bike park blasting."

"The Tyee is noticeably quiet with a lively character that still has the travel and composure to blast the rough stuff without feeling overwhelmed."

Smart Details

Our Tyee 6 AL impresses with smart detail solutions. With a sophisticated frame concept, cable integration, clever cable routing and maximum efficient chainstay protection, you don’t need to worry about a thing when riding your bike.

Frame Concept and PRO10

We remain 100% convinced that our PRO10 system represents the best frame concept and therefore remains the quintessence of PROPAIN. With newly designed links we slightly adjusted leverage ratio, pedal kickback, anti squat and the axle path. We are proud to say the PRO10 frame of the new Tyee 6 AL is more capable than ever and at the same time remains extremely agile and efficient – The perfect balance!

Clever cable routing

The optimized cable routing, going directly across the main pivots of the rear triangle, represents the cleanest solution for us. Rattling or chafing is a thing of the past – at full compression the cables remain exactly where they belong.

Optimized frame protection

Absolute silence – the only thing you hear is the sound of the tires on the trail. To make this happen in addition to the cable integration and optimized routing we also developed new chain and seat stay protectors made of a soft TPR plastic with great damping properties. Air-filled nubs with an outward tilt stop chain vibrations with great efficiency.

Brake integration

With the new Tyee 6 AL, the Postmount brake mount is integrated into the rear triangle. In addition to the sleek aesthetic aspects, this also achieves better transfer of braking forces into the frame. For 180 mm and 200 mm rotors no additional adapters are needed, just a quick adjustment of the Postmount bracket is all that needs to make the switch.

Flip Chip – 29“ / Mix

The flip chip on the top link of the PRO10 system allows the new Tyee 6 AL to switch between a pure 29“ configuration and a mixed wheel setup with minimal effort. The same geometry is maintained both in the mix and in the 29“ setup.

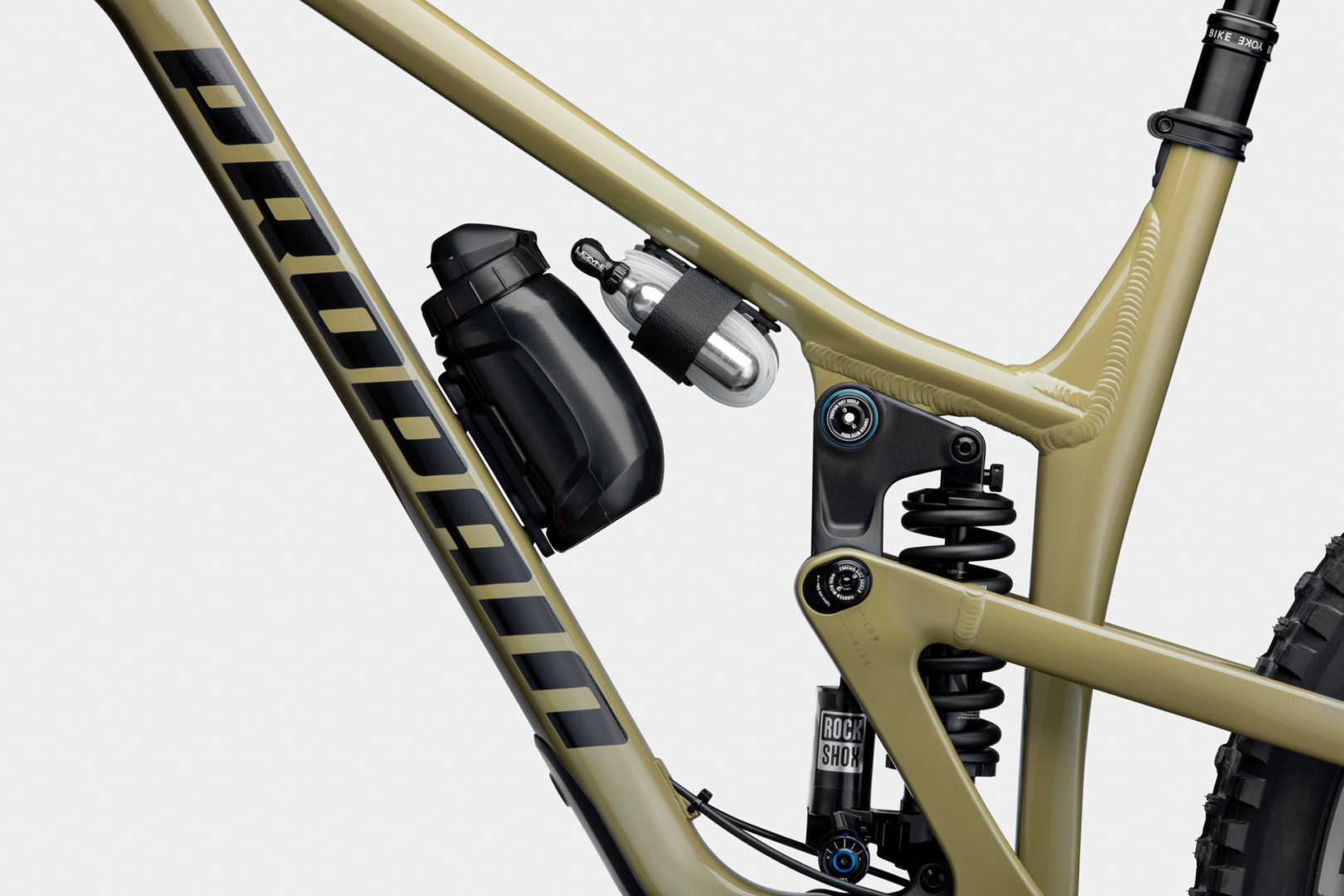

Bottle and Tool Mount

A good enduro bike of course needs the ability to carry enough hydration and the most necessary equipment for a tour or race right with the bike. The less weight in the backpack or hip bag the better. The bottle mount on the down tube and the tool mount on the bottom of the top tube provide the perfect basis for this.

Blend Alloy

The frame consists of at least three different alloys, which together create the optimum combination of stiffness, strength and weight. Frame parts such as rockers and axles are made of 7075 T6 aluminium, which has a very high strength. For the tubes of the frame a more fatigue-resistant 6066 T6 aluminium is used. In addition, the milled and forged parts are made of 6061 T6 aluminium. Blend Alloy thus represents our special and unique manufacturing process and ensures the optimum performance of the lightweight frames.

Bitte leer lassen

Bitte leer lassen

Frame size

The size of the frame plays an important role in the bike’s performance and, above all, in its enjoyment. Select the frame size you need from the table. If you are between two sizes, then you only have to decide whether you like it playful or smooth. For smooth riding, choose the larger frame size, for playful riding, choose the smaller frame size.

XS: 148 – 162 cm / S: 158 – 172 cm / M: 168-182 cm / L: 178-192 cm / XL: 188-202 cm
	140 cm / 4’7″	150 cm / 4’11″	160 cm / 5’3″	170 cm / 5’7″	180 cm / 5’11”	190 cm / 6’3″	200 cm / 6’7″
XS
S
M
L
XL
	Smoothly running Well-balanced Playful

Seatposts

The adjustable seatpost is probably one of the most ingenious inventions of recent years. In order to function optimally on the trail, the proper seatpost travel is very important. The following chart shows the recommended minimum inseam for the corresponding frame size. Please keep in mind that this is only a recommendation, as the respective sitting position depends very much on personal habits and preferences.

*Inside leg length in cm
Tyee AL	XS	S	M	L	XL
Bikeyoke Divine 125	73	73	74	76,5	79,5
Bikeyoke Divine 160	80	80	80	80,5	83
Bikeyoke Divine 185	85	85	85	85,5	85,5
Bikeyoke Revive 125	73	73	74	76,5	79,5
Bikeyoke Revive 160	80	80	80	80,5	83
Bikeyoke Revive 185	85	85	85	85,5	85,5
Bikeyoke Revive 213	91,5	91,5	91,5	92	92
Bikeyoke Revive 3 125	70,5	70,5	73	75,5	78,5
Bikeyoke Revive 3 160	77,5	77,5	77,5	79	82
Bikeyoke Revive 3 185	82,5	82,5	82,5	83	84,5
Bikeyoke Revive 3 213	89	89	89	89	89
Fox Transfer 125	71,5	71,5	74	76,5	79,5
Fox Transfer 150	77	77	77	79	82
Fox Transfer 175	82,5	82,5	82,5	83	84,5
Fox Transfer 200	88	88	88	88,5	88,5
RockShox Reverb AXS 125	74	74	76,5	79	82
RockShox Reverb AXS 150	79	79	79	81,5	84,5
RockShox Reverb AXS 170	83	83	83	83,5	86,5

Technical Data

Shock length

210 mm

Shock travel

55 mm

Shock bushings

30 mm / 30 mm

Travel (Frame)

160 mm

Max. Travel (Fork)

170 mm

Bottom bracket BSA

73 mm

Brake mount (Frame)

PM 180/200

Seatpost diameter

31.6 mm

Seatclamp diameter

CF: 36.4 mm / AL: 34.9 mm

Max. Seatpost insert length

	Tyee CF	Tyee AL
27.5″ – XS	182 mm	180 mm
27.5″ – S	202 mm	200 mm
27.5″ – M	222 mm	224 mm
29″/Mix – M	222 mm	224mm
29″/Mix – L	242 mm	247 mm
29″/Mix – XL	262 mm	277 mm

Headset

ZS56/ZS56

Rear wheel axle

148 mm

Chainline Offset

3-0

Chainline

52-55

Chainguide mount

ISCG05

Derailleur hanger

UDH

Wheel size

29″ / Mix / 27.5″

Frame weight size M

CF: 2.9 kg / AL: 3.4 kg

Max. system weight

120 kg ( Size XS max. 100 kg)

Geometry

We believe that an Enduro bike must be a true master of versatility. We achieved exactly that by combining a slack head angle of 64.5°, a very steep seat angle of 77.5°, a reach that gives room for movement, and a centrally located floating shock to concentrate the weight around a low bottom bracket. The new Tyee provides pedalling efficiency with lots of pressure on the front wheel on the uphill and an optimum weight distribution on the downhill. A characteristic that you will notice right away when you get on the bike and never want to miss again. We recommend running the full 29″ configuration in the “low” setting of the flip chip and the Mix and 27.5″ configuration in the “high” setting. Of course, the 27.5 “and Mix bikes can also be ridden in the “low” setting, the head angle becomes even flatter and the center of gravity of the bikes moves further down, which will work especially well for purely downhill-oriented bike park laps for sure. However, the bottom bracket height in this configuration is so low that pedal strikes in technical terrain become very likely. This setup is therefore recommended for experienced riders only.

160mm Fork

Recommended Position

* Measured 200 mm from center of bottom bracket
	Size XS	Size S	Size M	Size M	Size L	Size XL
Wheelsize -Flip Chip Position	27.5 -High	27.5 -High	27.5 -High	Mix -High 29 -Low	Mix -High 29 -Low	Mix -High 29 -Low
Frame height (A)	380 mm	400 mm	425 mm	425 mm	450 mm	480 mm
Fork offset (B)	37 mm	37 mm	37 mm	44 mm	44 mm	44 mm
Fork length (C)	553 mm	553 mm	553 mm	571 mm	571 mm	571 mm
Head tube length (D)	90 mm	110 mm	125 mm	105 mm	115 mm	125 mm
Reach (E)	405 mm	430 mm	455 mm	455 mm	480 mm	505 mm
Stack (F)	576 mm	594 mm	607 mm	621 mm	630 mm	639 mm
Head angle (G)	64.5°	64.5°	64.5°	64.5°	64.5°	64.5°
Seat angle – real (H)	73.5°	73.5°	73.5°	73.5°	73.5°	73.5°
Seat angle – effective (I)	77.9°	77.7°	77.6°	77.5°	77.5°	77.4°
Top tube length (J)	528 mm	559 mm	588 mm	592 mm	620 mm	647 mm
BB offset (K)	11 mm	11 mm	11 mm	27 mm	27 mm	27 mm
Chainstay length (L)	430 mm	430 mm	430 mm	445 mm	445 mm	445 mm
Wheelbase (M)	1145 mm	1178 mm	1210 mm	1231 mm	1260 mm	1290 mm
Standover height (N)*	783 mm	783 mm	783 mm	783 mm	783 mm	783 mm
BB height	348 mm	348 mm	348 mm	348 mm	348 mm	348 mm

Low Position with 27.5″ rear wheel

* Measured 200 mm from center of bottom bracket
	Size XS	Size S	Size M	Size M	Size L	Size XL
Wheelsize -Flip Chip Position	27.5 -Low	27.5 -Low	27.5 -Low	Mix -Low	Mix -Low	Mix -Low
Frame height (A)	380 mm	400 mm	425 mm	425 mm	450 mm	450 mm
Fork offset (B)	37 mm	37 mm	37 mm	44 mm	44 mm	44 mm
Fork length (C)	554 mm	554 mm	554 mm	571 mm	571 mm	571 mm
Head tube length (D)	90 mm	110 mm	125 mm	105 mm	115 mm	125 mm
Reach (E)	393 mm	418 mm	443 mm	446 mm	471 mm	496 mm
Stack (F)	584 mm	603 mm	616 mm	628 mm	637 mm	646 mm
Head angle (G)	63.4°	63.4°	63.4°	63.6°	63.6°	63.6°
Seat angle – real (H)	72.4°	72.4°	72.4°	72.6°	72.6°	72.6°
Seat angle – effective (I)	76.6°	76.6°	76.6°	76.6°	76.6°	76.6°
Top tube length (J)	531 mm	562 mm	591 mm	595 mm	623 mm	650 mm
BB offset (K)	26 mm	26 mm	26 mm	39 mm	39 mm	39 mm
Chainstay length (L)	430 mm	430 mm	430 mm	445 mm	445 mm	445 mm
Wheelbase (M)	1138 mm	1172 mm	1203 mm	1240 mm	1269 mm	1299 mm
Standover height (N)*	783 mm	783 mm	783 mm	783 mm	783 mm	783 mm
BB height	345 mm	345 mm	345 mm	345 mm	345 mm	345 mm

170mm Fork

Recommended Position

* Measured 200 mm from center of bottom bracket
	Size XS	Size S	Size M	Size M	Size L	Size XL
Wheelsize -Flip Chip Position	27.5 -High	27.5 -High	27.5 -High	Mix -High 29 -Low	Mix -High 29 -Low	Mix -High 29 -Low
Frame height (A)	380 mm	400 mm	425 mm	425 mm	450 mm	480 mm
Fork offset (B)	37 mm	37 mm	37 mm	44 mm	44 mm	44 mm
Fork length (C)	563 mm	563 mm	563 mm	581 mm	581 mm	581 mm
Head tube length (D)	90 mm	110 mm	125 mm	105 mm	115 mm	125 mm
Reach (E)	401 mm	426 mm	451 mm	451 mm	476 mm	501 mm
Stack (F)	579 mm	597 mm	610 mm	624 mm	633 mm	642 mm
Head angle (G)	64.1°	64.1°	64.1°	64.1°	64.1°	64.1°
Seat angle – real (H)	73.1°	73.1°	73.1°	73.1°	73.1°	73.1°
Seat angle – effective (I)	77.5°	77.5°	77.5°	77.1°	77.1°	77.1°
Top tube length (J)	528 mm	559 mm	588 mm	592 mm	620 mm	647 mm
BB offset (K)	8 mm	8 mm	8 mm	24 mm	24 mm	24 mm
Chainstay length (L)	430 mm	430 mm	430 mm	445 mm	445 mm	445 mm
Wheelbase (M)	1149 mm	1182 mm	1214 mm	1235 mm	1264 mm	1294 mm
Standover height (N)*	786 mm	786 mm	786 mm	786 mm	786 mm	786 mm
BB height	352 mm	352 mm	352 mm	352 mm	352 mm	352 mm

Low Position with 27.5″ rear wheel

* Measured 200 mm from center of bottom bracket
	Size XS	Size S	Size M	Size M	Size L	Size XL
Wheelsize -Flip Chip Position	27.5 -Low	27.5 -Low	27.5 -Low	Mix -Low	Mix -Low	Mix -Low
Frame height (A)	380 mm	400 mm	425 mm	425 mm	450 mm	480 mm
Fork offset (B)	37 mm	37 mm	37 mm	44 mm	44 mm	44 mm
Fork length (C)	554 mm	554 mm	554 mm	581 mm	581 mm	581 mm
Head tube length (D)	90 mm	110 mm	125 mm	105 mm	115 mm	125 mm
Reach (E)	389 mm	414 mm	439 mm	441 mm	462 mm	487 mm
Stack (F)	587 mm	606 mm	620 mm	631 mm	643 mm	652 mm
Head angle (G)	63.0°	63.0°	63.0°	63.2°	63.2°	63.2°
Seat angle – real (H)	72°	72°	72°	72.3°	72.3°	72.3°
Seat angle – effective (I)	76.2°	76.2°	76.2°	76.3°	76.3°	76.3°
Top tube length (J)	532 mm	563 mm	592 mm	596 mm	624 mm	651 mm
BB offset (K)	23 mm	23 mm	23 mm	42 mm	42 mm	42 mm
Chainstay length (L)	430 mm	430 mm	430 mm	445 mm	445 mm	445 mm
Wheelbase (M)	1151 mm	1184 mm	1226 mm	1245 mm	1278 mm	1308 mm
Standover height (N)*	786 mm	786 mm	786 mm	786 mm	786 mm	786 mm
BB height	349 mm	349 mm	349 mm	349 mm	349 mm	349 mm

Downloads

FAQ

Which bottle sizes fits in the frame?
Attaching bottles up to 0.5 l is no problem. With larger frame sizes, 0.7 l bottles can also be stowed.

Can the wheel size be changed afterwards?

The wheel size can be changed depending on the selected frame size thanks to the flip chip. To do this, for a 29” configuration set the flip chip to the “low” setting and the Mix and 27.5″ configuration to the “high” setting.

What is the maximum tire clearence?
2.5 Inch

How much does the Tyee weigh in my build?
Due to the large selection of components and frame sizes, we cannot make a statement for all combinations. However, we have given weights for our build kits, which you can see in the table above. In the configurator you will also find weight information for each component.

Do you also offer other componens that are not listed in the configurator?

No, we only offer the components and color variants that we show in the configurator.

What does the delivery include?

Your bike comes with all the instructions you need. We also offer additional equipment such as pedals or tools for assembly in our online shop. These parts are not included with the bikes as standard.

More questions & answers about Tyee

Additional information

Frame Material	Blend Aluminium
Terrain	Enduro
Frame Size	XS, S, M
Wheel Size	27.5"
Frame Color	Olive Matte, Raw (Alloy), Venomblack Matte
Bike Model	Tyee 6
