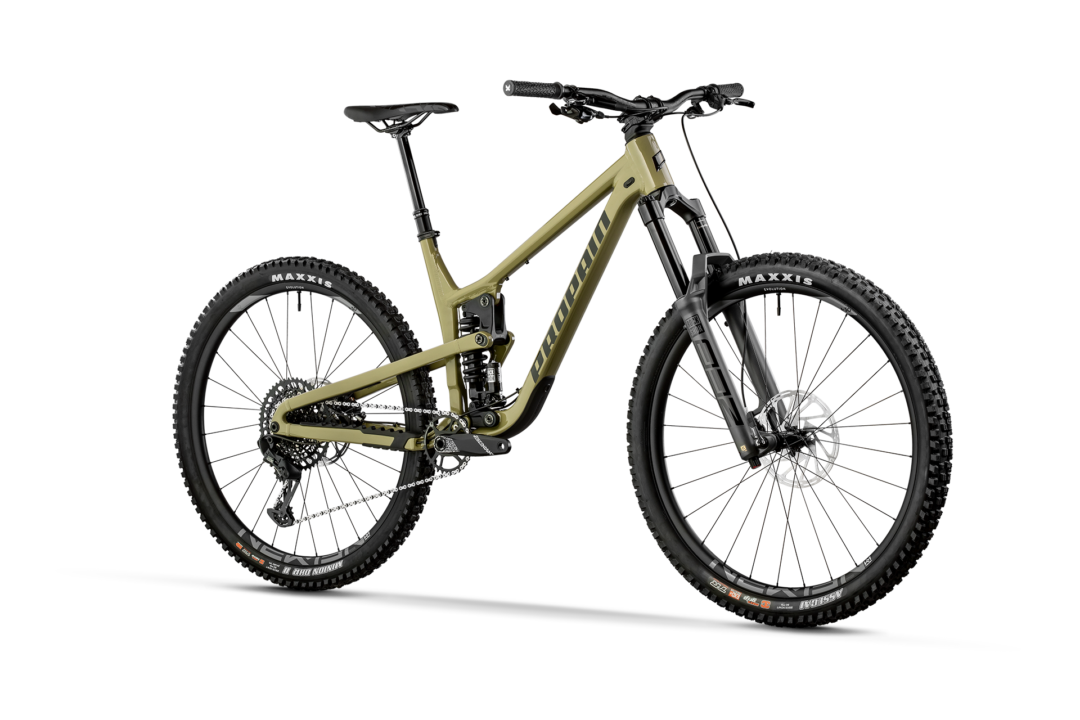

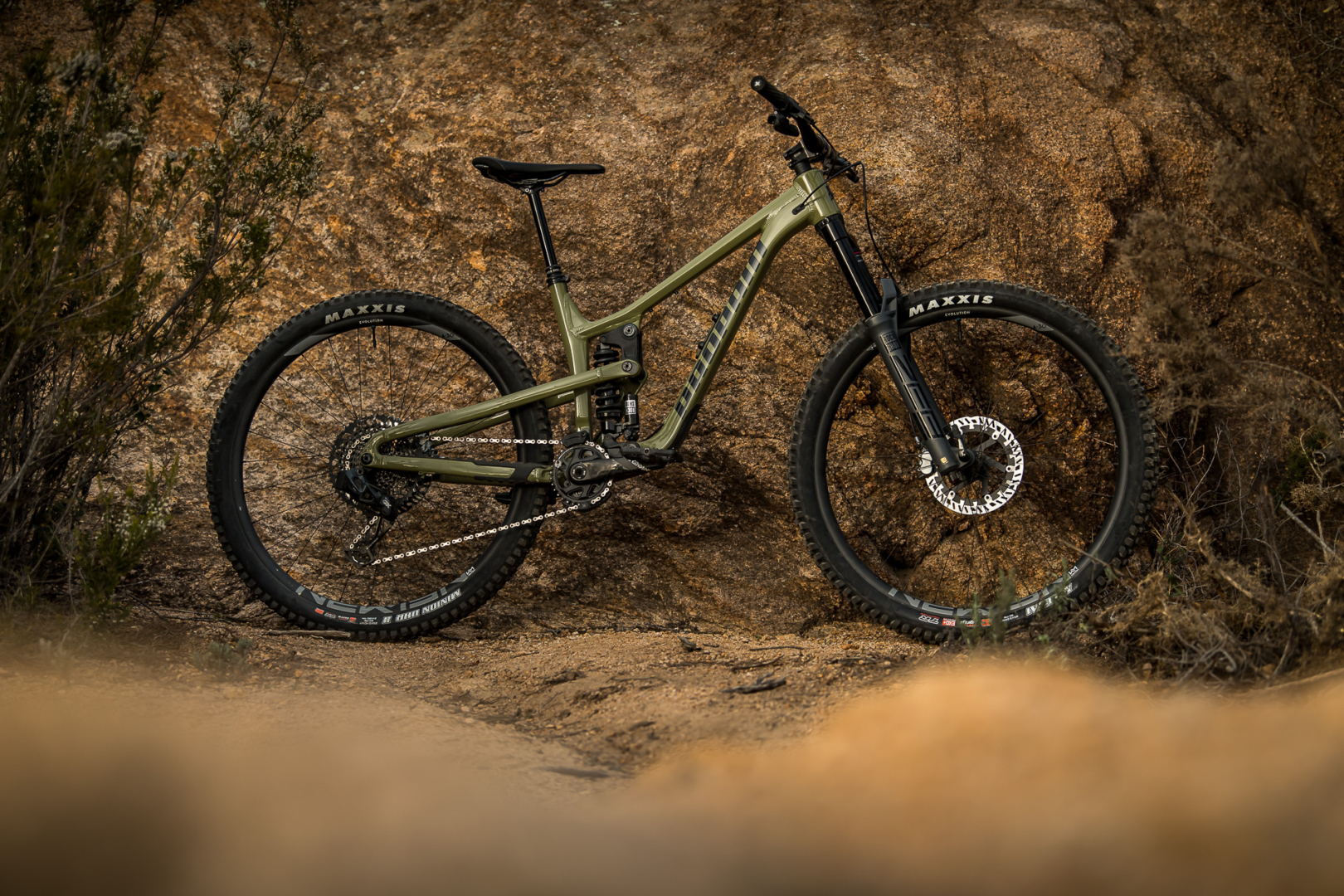

Tyee AL



To look at things from a new perspective, to be courageous and break new ground, to improve and develop, to start a new chapter – that was our vision for the new Tyee. With the 2020 Tyee we have completely reimagined our Enduro bike. The ideas and experience gained over the course of the last six years have shaped its development. The result is a bike that matches the definition of an Enduro bike by 100%: a versatile and balanced mountain bike that sets new standards on the climbs and descents alike.

With its steep seat angle and progressive geometry, the new Tyee AL is a potent climber that kills it on the descents thanks to its full bikepark rating.

The new Tyee AL is our Next Level Action Enduro!

Frame concept and PRO10

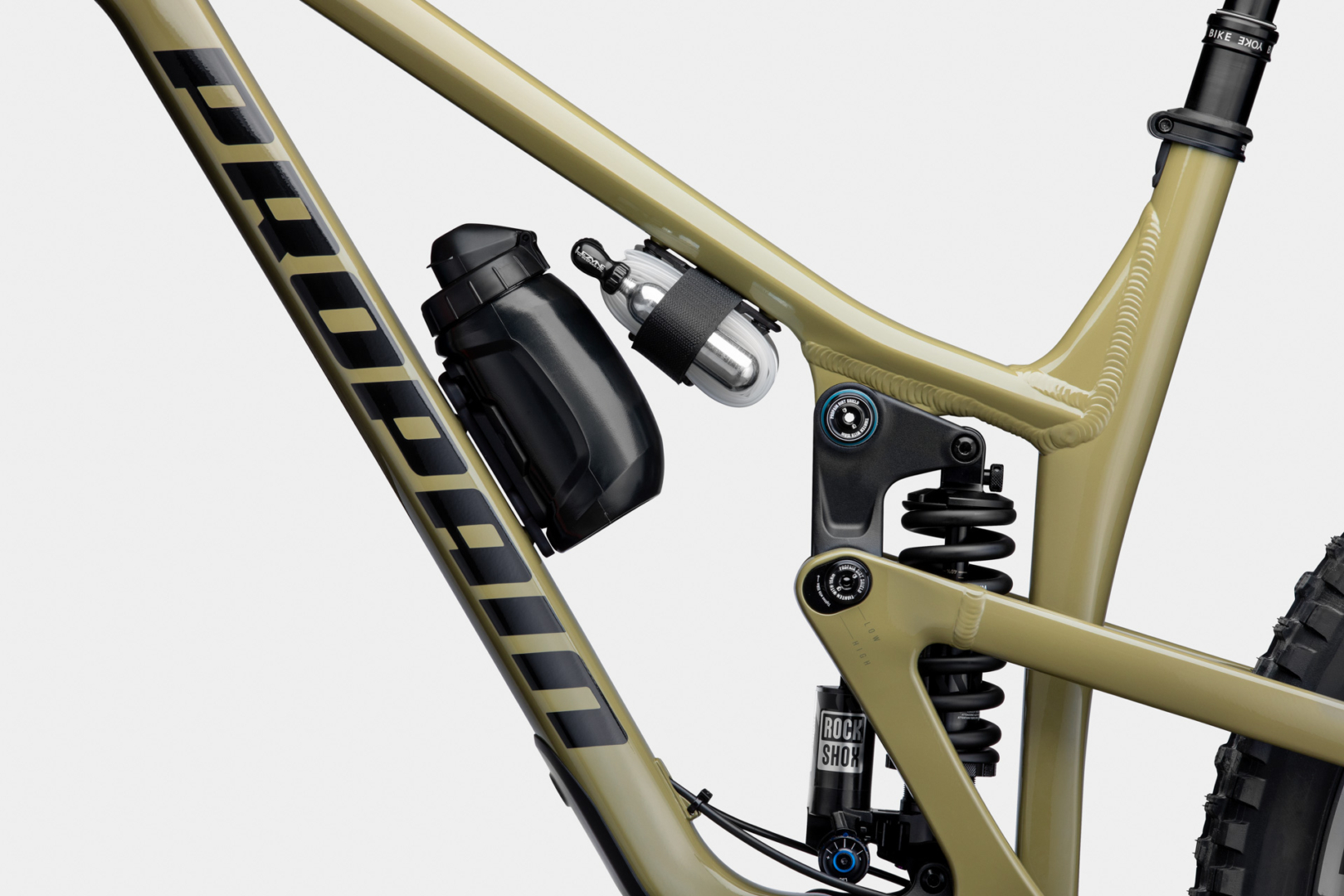

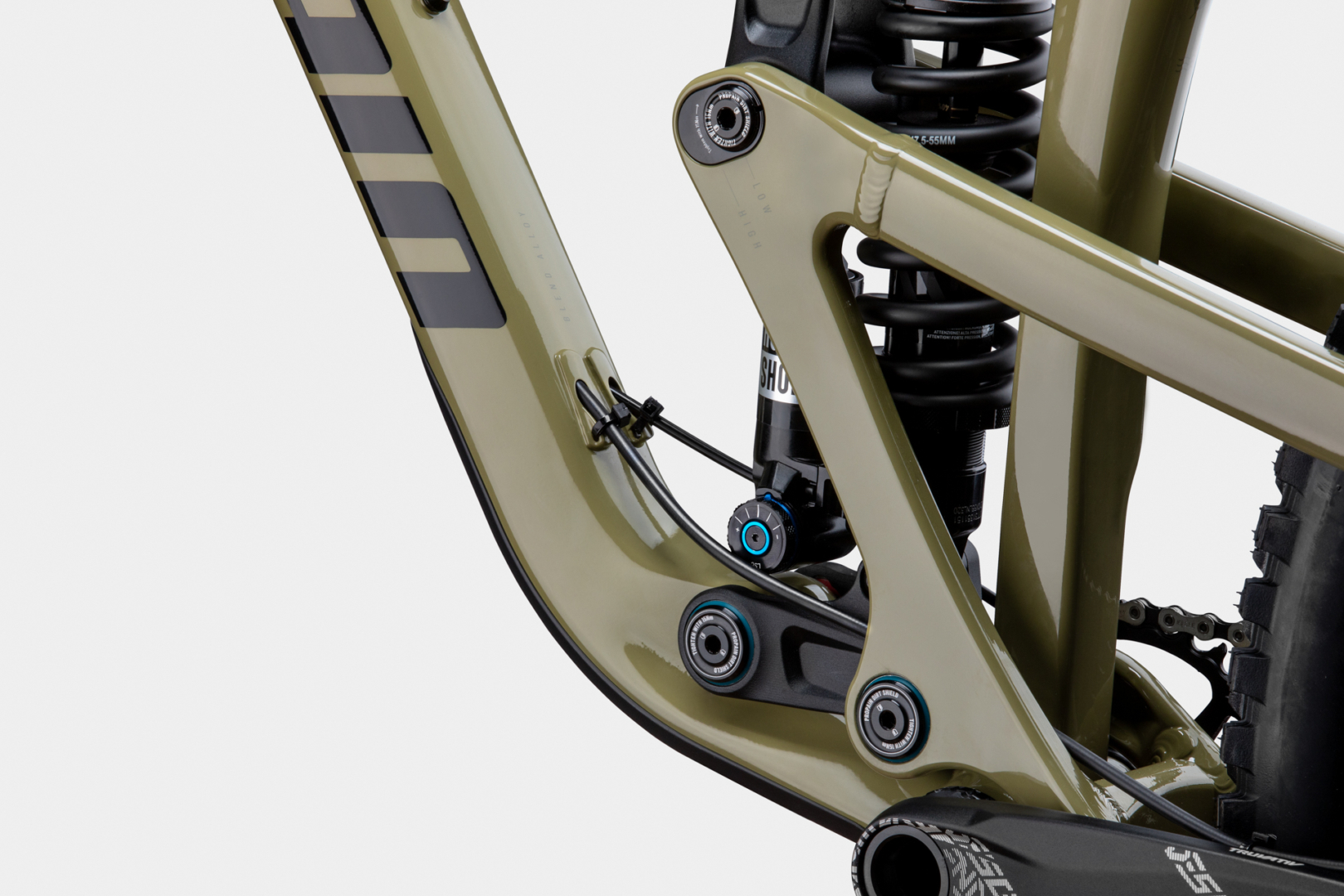

With his mission to develop the best frame concept, Robert Krauss laid the foundation for Propain 12 years ago and the PRO10 suspension system is the quintessence. It has been the heart of our Propain frames ever since and we trust in it 100%. The new Tyee features the latest evolution of the Pro10 system with the shock integrated in the front triangle. Don’t be fooled by the new looks, the good old Pro10 characteristics remain whilst further improving pedaling efficiency and weight balance.

Blend Alloy

A Blend Alloy frame consists of at least three different alloys. For example, the tubes of the frame are usually made of a more fatigue-resistant material than the forged or CNC-machined parts. Frame parts, such as rockers and axles, are usually made of 7075 T6 aluminum. These provide very high strength.

Internal Cable Routing

Internal cable routing became a standard for modern bikes. It is the smartest, safest and, above all, the cleanest way to route the cables.

Propain Dirt-Shield and Acros bearings

Better safe than sorry! The robust Acros frame bearings are additionally protected by Propain Dirt-Shields. An additional seal that protects the bearings from dust, water and dirt.

Chain stay protection and down tube protection

Optimum frame protection is key for Propain. Therefore a newly developed down tube and chain stay guard is used on the new Tyee.

The chain stay guard is an entire new design which absorbs chain vibrations with the soft shapes on its surface.

Build Kits

We will help you on your way to your personal dream bike. Our options are only a preliminary recommendation, because your needs are as individual as you are. We have put together three pre-configured models for you. In our configuration tool, however, you can still adapt every single part of all models to your wishes. Have fun building your dream bike!

Tyee AL Start

3,499
00
$
  •
  • Fork: RockShox Yari RC 170mm
  • Shock: RockShox Deluxe Select R 160 mm
  • Front Brake: SRAM Guide R 200mm
  • Rear Brake: SRAM Guide R 200mm
  • Saddle: SIXPACK Kamikaze
  • Seatpost: Propain Sattelstütze
  • Wheels: Propain ZTR FLOW S1
  • Crank: Truvativ Descendant Eagle 175mm 32Z
  • Derailleur: SRAM GX Eagle (1×12)
  • Trigger: SRAM GX Eagle (1×12)
  • Cassette: SRAM XG1275 10-50 (1×12)
  • Handlebar: SIXPACK Millenium 805
  • Stem: SIXPACK Vertic 50
  • Tires: Schwalbe Magic Mary Addix Soft
  • Weight: 15,0kg
NEW

Tyee AL Performance

4,799
00
$
  •
  • Fork: RockShox Lyrik Ultimate RC2 170mm
  • Shock: RockShox Super Deluxe Ultimate RCT 160mm
  • Front Brake: SRAM Code RSC 200mm
  • Rear Brake: SRAM Code RSC 200mm
  • Saddle: SIXPACK Kamikaze
  • Seatpost: Bikeyoke Revive
  • Wheels: Propain ZTR FLOW MK3
  • Crank: Truvativ Descendant Carbon Eagle 175mm 32Z
  • Derailleur: SRAM X01 Eagle (1×12)
  • Trigger: SRAM X01 Eagle (1×12)
  • Cassette: SRAM XG1275 10-50 (1×12)
  • Handlebar: SIXPACK Millenium 805
  • Stem: SIXPACK Vertic 50
  • Tires: Schwalbe Magic Mary Addix Soft
  • Weight: 15,0kg
New

Tyee AL Performance Fox

5,399
00
$
  •
  • Fork: Fox 36 Factory Kashima 170mm
  • Shock: Fox Float X2 Factory 160mm
  • Front Brake: SRAM Code RSC 200mm
  • Rear Brake: SRAM Code RSC 200mm
  • Saddle: SIXPACK Kamikaze
  • Seatpost: Bikeyoke Revive
  • Wheels: Propain ZTR FLOW MK3
  • Crank: Truvativ Descendant Carbon Eagle 175mm 32Z
  • Derailleur: SRAM X01 Eagle (1×12)
  • Trigger: SRAM X01 Eagle (1×12)
  • Cassette: SRAM XG1275 10-50 (1×12)
  • Handlebar: SIXPACK Millenium 805
  • Stem: SIXPACK Vertic 50
  • Tires: Schwalbe Magic Mary Addix Soft
  • Weight: 15,0kg
New

Frame sizes

The frame size is an essential part of the bike performance and above all of the riding fun. Select your required frame size from the table. If you stand between two sizes, then you only have to decide whether you like it playful or smooth running. For smooth running choose the larger frame size, for playful the smaller.

Seatposts

The adjustable seatpost is probably one of the most ingenious inventions of recent years. In order for it to function optimally on the trail, the proper seatpost travel is very important. The following table shows the recommended minimum inseam for the corresponding frame size. Please keep in mind that this is only a recommendation, as the respective sitting position depends very much on personal habits and preferences.
* Inside leg length in cm
TYEE AL S M L XL
Bikeyoke Revive 125 73,5 75,5 77,5 79,5
Kind Shock Lev 125 74,5 76,5 78,5 80,5
Fox Transfer 125 75,5 77,5 79,5 81,5
Bikeyoke Revive 160 / Kinds Shock Lev 150 77,0 79,0 81,0 83,0
Fox Transfer 150 78,0 80,0 82,0 84,0

Technical Data

Shock length 210 mm
Shock travel 55 mm
Shock bushings Top: 8 x 35 mm / Bottom: 8 x 30 mm
Travel (Frame) 160 mm
Bottom bracket BSA 73 mm
Brake mount (Frame) Postmount 180
Max. break rotor diamenter (rear) 203mm
Seatpost diameter 31,6 mm
Max. seatpost insert length 29": M 221mm / L 241mm / XL 261mm
27,5": S 247mm / M 267mm / L 287mm
Headset (S.H.I.S.) Top: ZS49 / Bottom: ZS56
Rear wheel axle 148 mm x 12 mm (X12)
Front derailleur keine
Chainline 52 mm (Boost)
Chainguide mount ISCG 05
Wheel size 29" / 27,5"
Maximum fork travel 170 mm
Frame weight 3,7 kg (Size M)

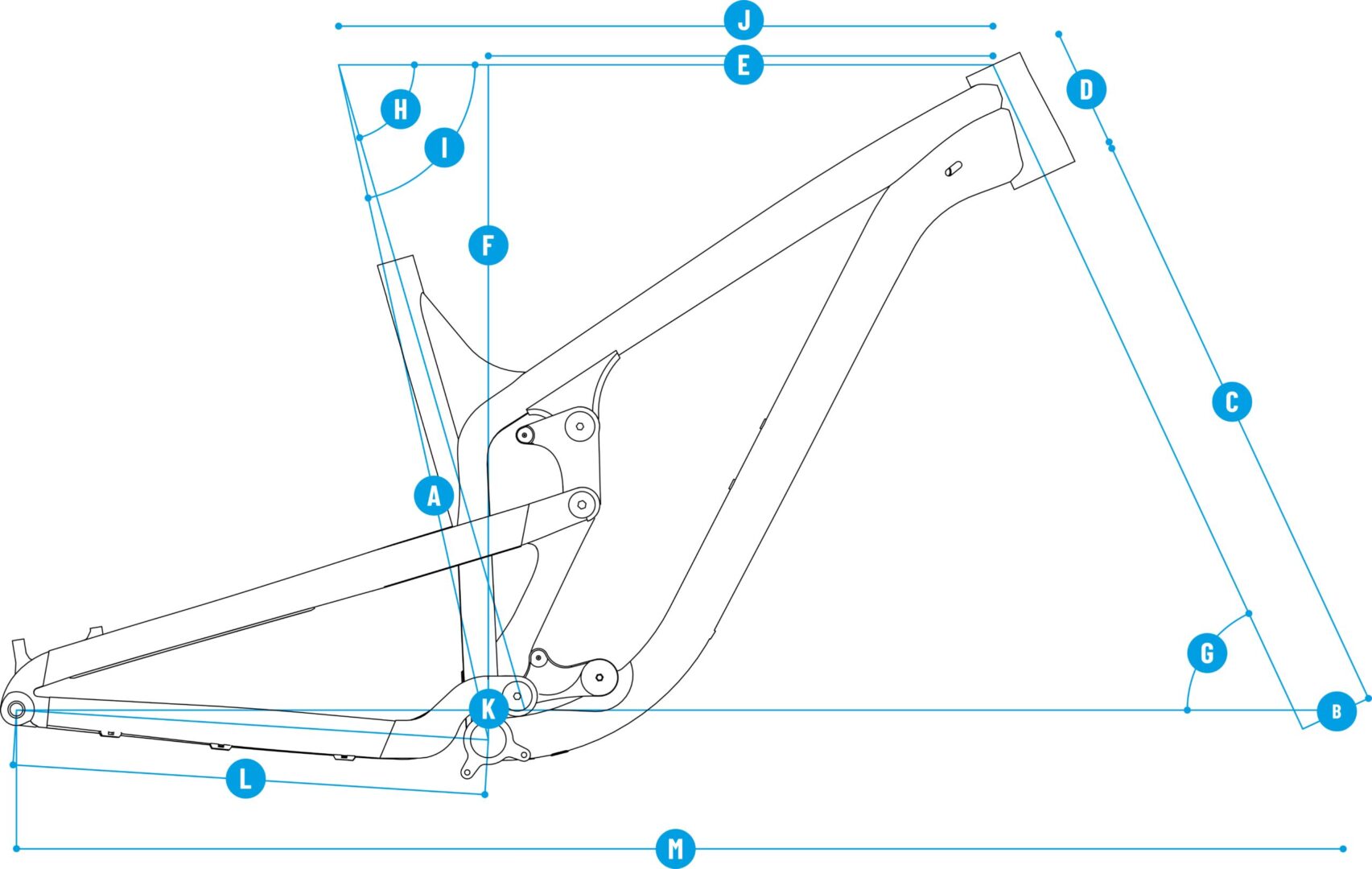

Geometry

 Size MSize LSize XL
Frame height (A)440 mm / 17,5″460 mm / 18,5″480 mm / 19,5″
Wheelbase (M)1.228 mm1.253 mm1.275 mm
Top tube length (J)595 mm618 mm640 mm
Fork offset (B)42 mm42 mm42 mm
Fork length (C)585 mm585 mm585 mm
Chainstay length (L)445 mm445 mm445 mm
Reach (E)451 mm471 mm491 mm
Stack (F)630 mm639 mm648 mm
Head angle (G)64,5°64,5°64,5°
Seat angle – real (H)73,5°73,5°73,5°
Seat angle – effektiv (I)77,1°77,1°77,1°
Head tube length (D)105 mm115 mm125 mm
BB offset (K)26 mm26 mm26 mm
