incl. Headset Acros AiX-338 IS42/IS52, Seatclamp SIXPACK Skywalker 34,9 mm black, SIXPACK 148 mm x 12 mm thru-axle and a fitting rear derailleur hanger
from USD $2,349.00
Tour, Trail, Allmountain? What now? The new Hugene 2 is the answer. A bike with 140/150mm of travel that always fits. Whether it is a quick trail loop, an all-day tour or even an alpine cross. The Hugene 2 is a summiteer on the uphills and a rocket on the downhills. One bike to rule them all.
The lightweight Blend Carbon frame paired with 29″ wheels will efficiently get you up even the steepest climbs. On descents, perfectly tuned 140 mm travel in our “Trail-Tuned” PRO10 frame and a choice of 140 or 150 mm travel at the front give you total control and playful handling. With the combination of confident stability, an effective suspension system that generates an extremely high level of grip for its class and agile handling, you can pop off every root and get maximum fun out of every trail on any terrain.
Do you like steep climbs and long uphill sections? Thanks to the steep seat angle, spacious reach and high anti-squat of the PRO10 frame, our Hugene climbs smoothly and effectively. Your power is transferred directly to the ground without bobbing, even with the shock open, and the riding position is optimized so that a raising front wheel is a thing of the past. The 29″ wheels provide plenty of drive and traction to get you to your destination.
Do you crave flow wherever you ride, even on technical terrain? No problem with our Hugene. The large wheels guarantee stability and excellent roll-over behavior. Thanks to the modern but moderate geometry with a head angle of 65.5°, the Hugene is also very agile, and the poppy ride feel lets you fly playfully from turn to turn.
Good looks aren’t everything. Our Hugene also impresses with its core values and smart detail solutions. With a sophisticated frame concept, our award-winning PRO10 system, durable bearings, internal cable routing and an efficient chainstay protector, you can enjoy your ride with complete peace of mind.
On our Hugene, we manufacture the upper link of the PRO10 system from carbon to optimize the weight of the frame. This also allows for the link to be painted in the frame color and rounds off the design.
Cable ducts run through the frame of our Hugene 2, which not only protect the cables from dirt and eliminate annoying rattling, but also make cable routing very easy.
The robust Acros frame bearings are additionally protected by our PROPAIN dirt shields. An extra seal protects the underlying bearings from dust, water, and dirt.
To keep your frame protected at all times, our Hugene 2 comes with a custom chainstay and downtube protectors. The chainstay protector absorbs chain vibrations and minimizes noise.
A good trail bike of course needs the ability to carry enough hydration and the most necessary equipment for a long day on the bike. The less weight in the backpack or hip bag the better. The bottle mount on the down tube and the tool mount on the bottom of the top tube provide the perfect platform for this.
Whether pedaling uphill or going down fast, our Hugene 2 always keeps a cool head. And off the trail it’s just a natural beauty.
We are convinced that it is not enough to just use one good carbon material for a frame. Instead, it needs different carbon materials and their diverse properties to meet the requirements. PROPAIN carbon frames are made from pre-impregnated (prepreg) carbon layers. These guarantee an optimum resin content and thus ensure significantly higher strength values. Each of the layers has special properties and corresponding tasks at specific points of the frame. Based on the requirements for stiffness, flexibility, impact resistance, weight, strength and the direction of stress, different fibers and fabrics are used. PROPAIN uses only the highest quality materials. For example, the carbon fibers used in our frames are the same as those used in the latest generation of aviation components.
| 150 cm 4’11” | 160 cm 5’3″ | 170 cm 5’7″ | 180 cm 5’11” | 190 cm 6’3″ | 200 cm 6’7″ | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| S |
|
||||||||||
| M |
|
||||||||||
| L |
|
||||||||||
| XL |
|
||||||||||
|
|
|||||||||||
The adjustable seatpost is probably one of the most ingenious inventions of recent years. In order to function optimally on the trail, the proper seatpost travel is very important. The following chart shows the recommended minimum inseam for the corresponding frame size. Please keep in mind that this is only a recommendation, as the respective sitting position depends very much on personal habits and preferences.
| HUGENE CF | S | M | L | XL |
|---|---|---|---|---|
| Bikeyoke Divine 125 | 72 | 74 | 77 | 80 |
| Bikeyoke Divine 160 | 75 | 78 | 80 | 83 |
| Bikeyoke Divine 185 | 80 | 80,5 | 83 | 86 |
| Bikeyoke Revive 125 | 72 | 74 | 77 | 80 |
| Bikeyoke Revive 160 | 75 | 78 | 80 | 83 |
| Bikeyoke Revive 185 | 80 | 80,5 | 83 | 86 |
| Bikeyoke Revive 3 125 | 70,5 | 73 | 75,5 | 78,5 |
| Bikeyoke Revive 3 160 | 75,5 | 76,5 | 79 | 82 |
| Bikeyoke Revive 3 185 | 80,5 | 80,5 | 81,5 | 84,5 |
| Bikeyoke Revive 3 213 | 87 | 87 | 88 | 90,5 |
| Fox Transfer 125 | 73,5 | 76 | 78,5 | 81,5 |
| Fox Transfer 150 | 77 | 78,5 | 81 | 84 |
| Fox Transfer 175 | 82 | 82,5 | 83,5 | 86,5 |
| RockShox Reverb AXS 125 | 74 | 76,5 | 79 | 82 |
| RockShox Reverb AXS 150 | 76,5 | 79 | 81,5 | 84,5 |
| Shock length | 210 mm |
| Shock travel | 50 mm |
| Shock bushings | 8 x 30 mm |
| Travel (Frame) | 140 mm |
| Max. Travel (Fork) | 150 mm |
| Bottom bracket BSA | 73 mm |
| Brake mount (Frame) | Postmount 180 |
| Seatpost diameter | 31.6 mm |
| Seatclamp diameter | 34.9 mm |
| max. Seatpost insert length | S 220 mm / M 245 mm / L 260 mm / XL 265 mm |
| Headset (S.H.I.S.) | Top: IS42 / Bottom: IS52 |
| Rear wheel axle | 148 mm x 12 mm |
| Chainline Offset | 3 mm Offset |
| Chainline | 52 mm (Boost) |
| Chainguide mount | ISCG 05 |
| Derailleur hanger | SRAM UDH |
| Wheel size | 29″ |
| Frame weight | 2.3 kg |
| Max. system weight | 120 kg |

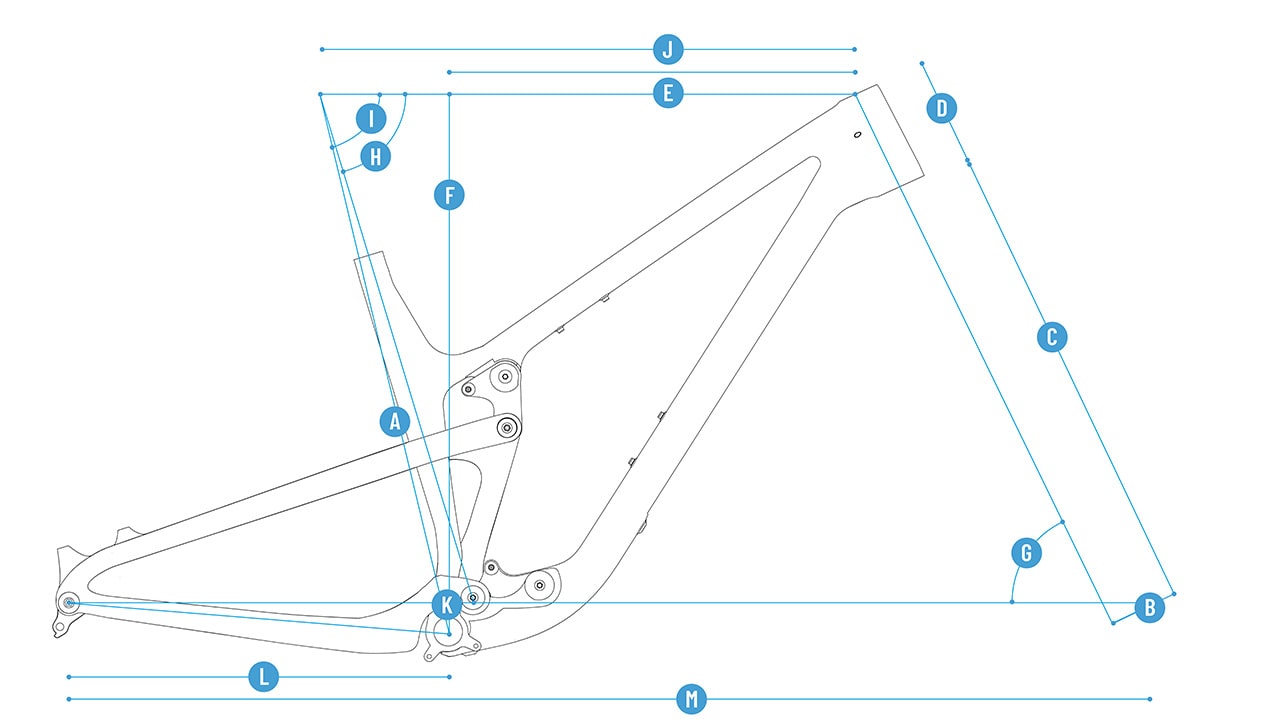

| Size S | Size M | Size L | Size XL | |
|---|---|---|---|---|
| Frame height (A) | 400 mm | 425 mm | 450 mm | 480 mm |
| Fork offset (B) | 42 mm | 42 mm | 42 mm | 42 mm |
| Fork length (C) | 555 mm | 555 mm | 555 mm | 555 mm |
| Head tube length (D) | 100 mm | 110 mm | 120 mm | 130 mm |
| Reach (E) | 430 mm | 455 mm | 480 mm | 505 mm |
| Stack (F) | 612 mm | 621 mm | 630 mm | 640 mm |
| Head angle (G) | 65.5° | 65.5° | 65.5° | 65.5° |
| Seat angle – real (H) | 73.1° | 73.1° | 73.1° | 73.1° |
| Seat angle – effective (I) | 76.5° | 76.5° | 76.5° | 76.5° |
| Top tube length (J) | 577 mm | 604 mm | 631 mm | 659 mm |
| BB offset (K) | 34 mm | 34 mm | 34 mm | 34 mm |
| Chainstay length (L) | 445 mm | 445 mm | 445 mm | 445 mm |
| Wheelbase (M) | 1,184 mm | 1,213 mm | 1,242 mm | 1,271 mm |
| BB height | 342 mm | 342 mm | 342 mm | 342 mm |
| Size S | Size M | Size L | Size XL | |
|---|---|---|---|---|
| Frame height (A) | 400 mm | 425 mm | 450 mm | 480 mm |
| Fort offset (B) | 42 mm | 42 mm | 42 mm | 42 mm |
| Fork length (C) | 565 mm | 565 mm | 565 mm | 565 mm |
| Head tube length (D) | 100 mm | 110 mm | 120 mm | 130 mm |
| Reach (E) | 426 mm | 451 mm | 476 mm | 501 mm |
| Stack (F) | 616 mm | 625 mm | 634 mm | 644 mm |
| Head angle (G) | 65.1° | 65.1° | 65.1° | 65.1° |
| Seat angle – real (H) | 72.7° | 72.7° | 72.7° | 72.7° |
| Seat angle – effective (I) | 76.1° | 76.1° | 76.1° | 76.1° |
| Top tube length (J) | 578 mm | 605 mm | 632 mm | 660 mm |
| BB offset (K) | 30 mm | 30 mm | 30 mm | 30 mm |
| Chainstay length (L) | 445 mm | 445 mm | 445 mm | 445 mm |
| Wheelbase (M) | 1,188 mm | 1,217 mm | 1,246 mm | 1,275 mm |
| BB height | 346 mm | 346 mm | 346 mm | 346 mm |
Can I use the Hugene in bike parks?
Our Hugene is assigned to bike category 4. Regular and permanent use on North Shore trails and in bike parks should therefore be avoided. Use in rough terrain and moderate jumps are no problem. After intense use, you should check your bike for damage before and after each ride.
Can I ride a 27.5″ wheel on the rear of the Hugene?
Due to its geometry and frame characteristics, the Hugene is only designed for the use of 29″ wheels. Therefore it is not possible to mount wheels in 27.5″.
Why is the Hugene not available in 27.5″?
With its 29″ wheels, our trail bike is your ideal companion for longer tours or for your local home trails. The large wheels ensure optimal climbing characteristics in the uphill as well as solid performance over sticks and stones in the downhill. We are therefore convinced that 29″ wheels are the better choice for this field of use.
What is the frame mount below the top tube for?
The mount is used to fix straps, tools, tubes or other spare parts that could be helpful on your tour.
Which bottle size fits in the frame?
Attaching drinking bottles up to 0.5 l is no problem. With larger frame sizes, 0.7 l bottles can also be stowed.
What does the delivery include?
The bike comes with three stem spacers, uncut handlebars and all the instructions you need.
What is the maximum tire width that fits the frame?
A general statement is not possible here due to the tolerances of the tire manufacturers’ width specifications. E.g. fit Schwalbe tires up to 2.4, VEE up to 2.35 and Maxxis up to 2.5WT.
How much does the Hugene weigh in my build?
Due to the large selection of components and frame sizes, we cannot make a statement for all combinations. However, we have given weights for our build kits, which you can see in the table above. In the configurator you will also find weight information for each component.
Do you also offer other components that are not listed in the configurator?
No, we only offer the components and color variants that we show in the configurator.
What does my frame look like in the colour Raw?
Carbon raw is a real beauty! The frames are getting a special treatment before we paint them so the carbon surface, which is shining through the paint, is showing its best side. Besides the clear paint there is also a light dark coating applied. This results in a light dark shine of carbon material, especially in sunlight. Each model is different so every method and also materials will differ. That also means every single frame is a unique.
| Bike Model | Hugene 2 |
|---|---|
| Wheel Size | 29" |
| Frame Material | Blend Carbon |
| Frame Size | S, M, L, XL |
| Terrain | Trail |
