Frame material
Aluminium -
Wheel size
27,5" -
Travel front
200mm -
Travel rear
200mm

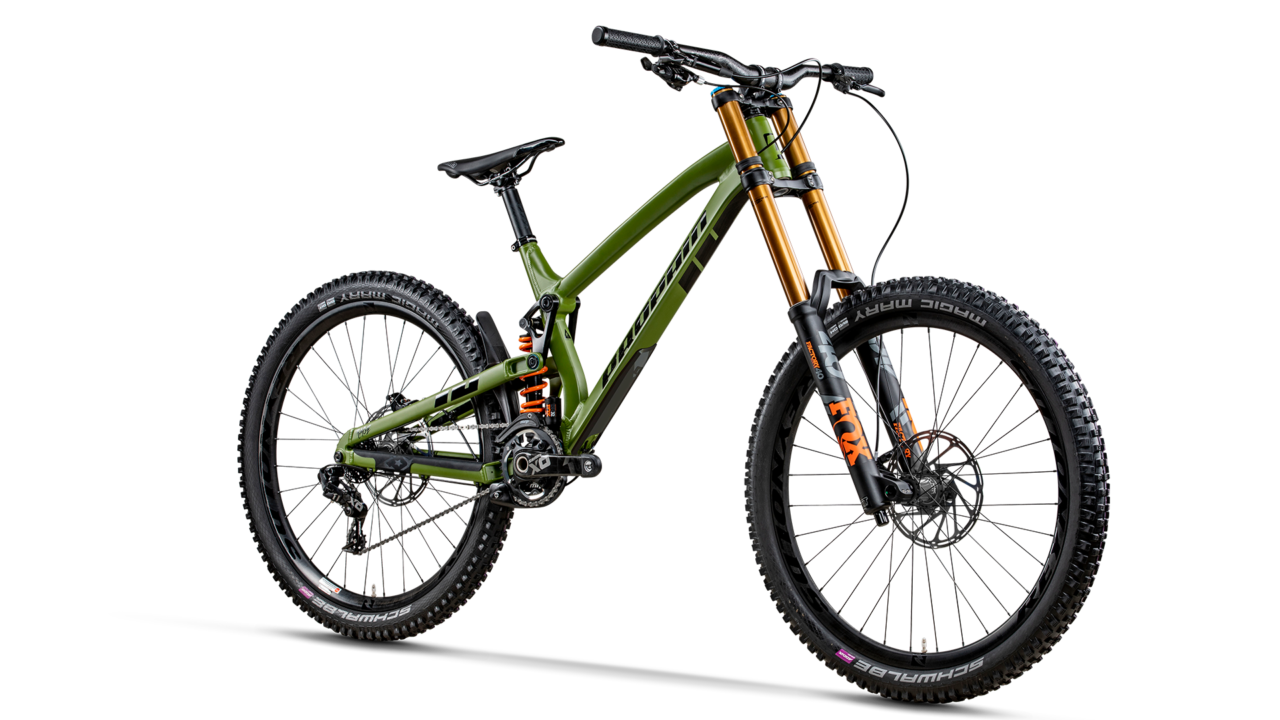

The new Rage AL has been completely redesigned, rolls on 650B wheels, and is available in three frame sizes (S, M, L). The geometry is inspired by the Rage Carbon and based on the experience of our World Cup team. A clean, sturdy and robust frame was the development goal for our engineering team. So we said “good bye” to some features of the previous Rage frame, such as the split seat tube design. The new design was inspired by the design of the popular Spindrift frame. In fact, some of Propain’s customers and Propain staff were fantasizing about a long travel version of the Spindrift for some time – a “Spindrift on Steroids”. Here it is, a downhill bike which focuses on reduced needs for maintenance whilst still delivering maximum performance for the high speeds and big hits that a park bike has to take.
- Blend Alloy
- Pro10 System
- Category 5
- 3 Years Warranty
Choose your model
Rage AL 27,5"
Customize Rage AL 27,5"Build Kits
We will help you on your way to your personal dream bike. Our options are only a preliminary recommendation, because your needs are as individual as you are. We have put together three pre-configured models for you. In our configuration tool, however, you can still adapt every single part of all models to your wishes. Have fun building your dream bike!
Rage AL Start
-
Fork: RockShox Boxxer Select 200mm
-
Shock: RockShox Super Deluxe Select R 200mm
-
Front Brake: Magura MT5 203mm
-
Rear Brake:Magura MT5 203mm
-
Saddle: SIXPACK Kamikaze
-
Seatpost: Propain Seatpost
-
Wheels: Propain ZTR FLOW S1
-
Crank: Truvativ Descendant DH 165mm 36Z
-
Derailleur: SRAM GX DH (1×7)
-
Trigger: SRAM GX DH (1×7)
-
Casette:SRAM PG720 11/25 (1×7)
-
Handlebar: SIXPACK Millenium 785
-
Stem: SIXPACK Millenium Direct Mount
-
Tires: Schwalbe Magic Mary Ultra Soft
-
Weight: 16,8 kg
Rage AL Performance
-
Fork: RockShox Boxxer Ultimate 200mm
-
Shock: RockShox Super Deluxe Coil Ultimate 200mm
-
Front Brake: SRAM Code RSC 200mm
-
Rear Brake: SRAM Code RSC 200mm
-
Saddle: SIXPACK Kamikaze
-
Seatpost: Propain Seatpost
-
Wheels: Propain ZTR FLOW EX3
-
Crank: Truvativ Descendant DH 165mm 36Z
-
Derailleur: SRAM GX DH (1×7)
-
Trigger: SRAM GX DH (1×7)
-
Casette: SRAM PG720 11/25 (1×7)
-
Handlebar: SIXPACK Millenium 785
-
Stem: SIXPACK Millenium Direct Mount
-
Tires: Schwalbe Magic Mary Ultra Soft
-
Weight: 16,3 kg
Rage AL High End
-
Fork: Fox 40 Factory Kashima 203mm
-
Shock: Fox DHX2 Factory 200mm
-
Front Brake: Magura MT7 203mm
-
Rear Brake: Magura MT7 203mm
-
Saddle: SIXPACK Kamikaze
-
Seatpost: Propain Seatpost
-
Wheels: Propain ZTR FLOW EX3
-
Crank: SRAM X01 Carbon DH 165mm 36Z
-
Derailleur: SRAM X01 DH (1×7)
-
Trigger: SRAM X01 DH (1×7)
-
Casette: SRAM XG795 10/24 (1×7)
-
Handlebar: SIXPACK Millenium Carbon 785
-
Stem: SIXPACK Millenium Direct Mount
-
Tires: Schwalbe Magic Mary Ultra Soft
-
Weight: 15,7 kg
Frame Sizes
The frame size is an essential part of the bike performance and above all of the riding fun. Select your required frame size from the table. If you stand between two sizes, then you only have to decide whether you like it playful or smooth running. For smooth running choose the larger frame size, for playful the smaller.
Technical Data
| Shock length | 230 mm |
| Shock travel | 65 mm |
| Shock mount | 8 x 25 mm |
| Rear wheel travel | 200 mm |
| Bottom bracket BSA | 83 mm |
| Brake mount | Postmount 180 |
| Seatpost diameter | 31,6 mm |
| Headset (S.H.I.S) | Tapered - Top: IS42 / Bottom: IS52 |
| Rear wheel axle | 157 mm x 12 mm (X12) |
| Front derailleur | none |
| Chainline | 52 mm |
| Chainguide mount | ISCG 05 |
| Wheel size | 27,5" |
| Maximum fork travel | 203 mm |
| Frame weight | 3,5 kg (Size M) |

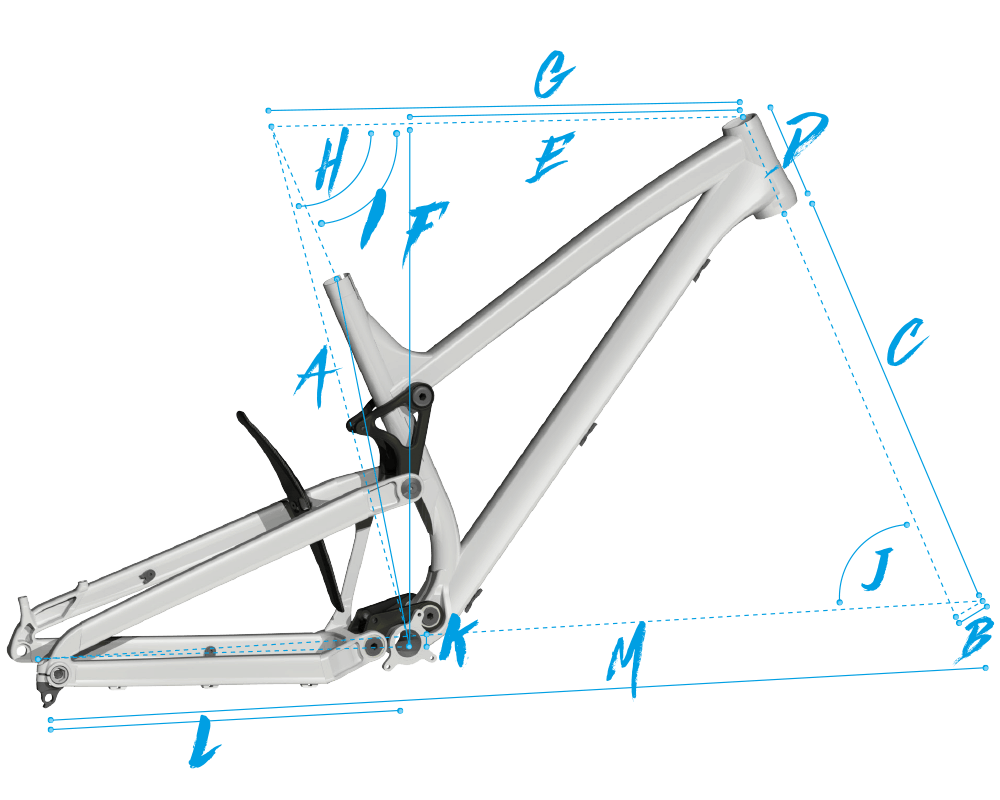

Geometry
| SIZE S | SIZE M | SIZE L | |
|---|---|---|---|
| Frame height (A) | 420 mm / 16,5" | 420 mm / 16,5" | 420 mm / 16,5" |
| Wheelbase (M) | 1.215 mm | 1.240 mm | 1.265 mm |
| Top tube length (G) | 586 mm | 611 mm | 636 mm |
| Fork offset (B) | 42 mm | 42 mm | 42 mm |
| Fork length (C) | 580 mm | 580 mm | 580 mm |
| Chainstay length (L) | 445 mm | 445 mm | 445 mm |
| Reach (E) | 420 mm | 445 mm | 470 mm |
| Stack (F) | 611 mm | 611 mm | 611 mm |
| Head angle (J) | 63,5° | 63,5° | 63,5° |
| Seat angle - real (H) | 64,5° | 64,5° | 64,5° |
| Seat angle - effective (I) | 74,5° | 74,5° | 74,5° |
| Head tube length (D) | 120 mm | 120 mm | 120 mm |
| BB offset (K) | 3 mm | 3 mm | 3 mm |
