Hugene


  • Frame material
    Carbon
  • Wheel size
    29"
  • Travel front
    140mm / 150mm
  • Travel rear
    130mm

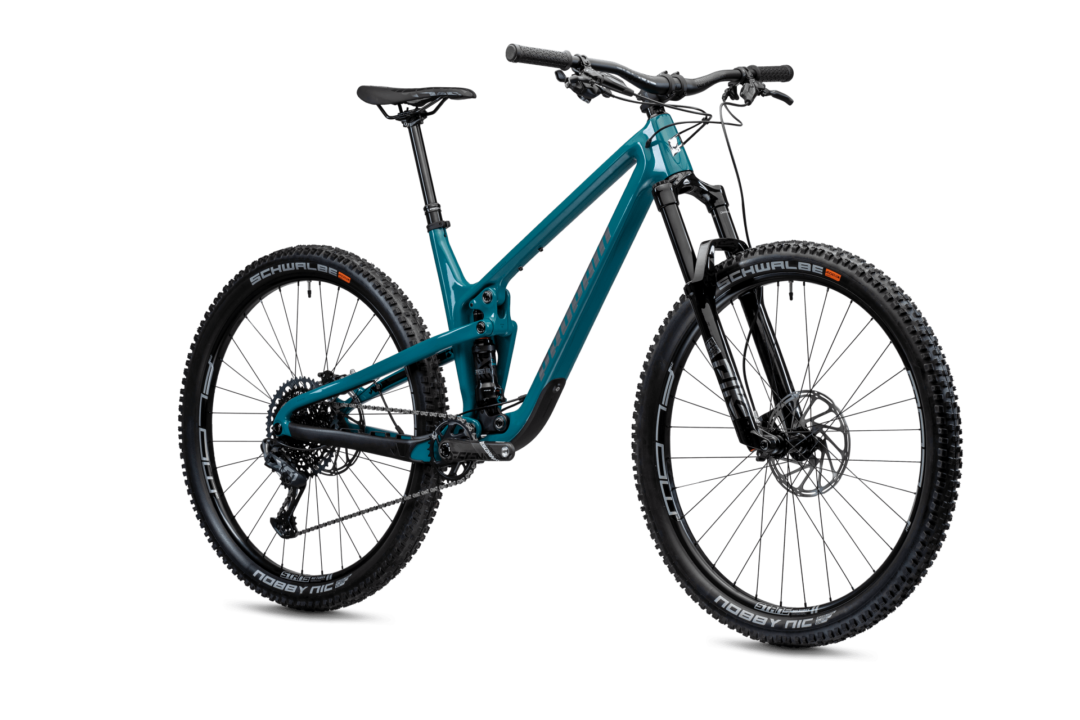

Hugene is our interpretation of the perfect trailbike. A bike that flies up mountains with ease and puts a fat smile on your face on the way back down. For the first time, we are relying on large 29″ wheels and have optimized our proven PRO10 suspension system for them. This results in a great balance between stability and playfulness, providing lots of safety for the rider without feeling boring. The shock sits in front of the seatpost and is perfectly protected against dirt and mud. To make the Hugene a agile trailbike, we’ve paid particular attention to its drive efficiency. Providing 100% anti-squat, the chainstay always keeps its cool on the uphills. The Hugene climbs almost like a hardtail but also offers sturdy downhill performance due to its progressive suspension kinematics that have been optimized offering both perfect sensitivity and bottom out resistance.

  • Blend Carbon
  • Pro10 Hugene tuned
  • Category 4
  • 5 Years Warranty

Choose your model

Build Kits

We will help you on your way to your personal dream bike. Our options are only a preliminary recommendation, because your needs are as individual as you are. We have put together three pre-configured models for you. In our configuration tool, however, you can still adapt every single part of all models to your wishes. Have fun building your dream bike!

Hugene Start

3.149
00
incl. VAT
  • Fork: RockShox Revelation RC 150mm
  • Shock: RockShox Deluxe Select R 130mm
  • Front Brake: SRAM G2 R 200mm
  • Rear Brake: SRAM G2 R 180mm
  • Saddle: SIXPACK Kamikaze
  • Seatpost: Propain Seatpost
  • Wheels: Propain ZTR FLOW S1
  • Crank: Truvativ Descendant Eagle 175mm 32Z
  • Derailleur: SRAM GX Eagle (1×12)
  • Trigger: SRAM GX Eagle (1×12)
  • Casette: SRAM XG1275 10-50 (1×12)
  • Handlebar: SIXPACK Millenium 805
  • Stem: SIXPACK Leader 50
  • Tires: Schwalbe Magic Mary Addix Soft
  • Weight: 13,6 kg

Hugene Performance

4.484
00
incl. VAT
  • Fork: RockShox Pike Ultimate RCT3 140mm
  • Shock: RockShox Deluxe Ultimate RCT 130mm
  • Front Brake: SRAM G2 RSC 200mm
  • Rear Brake: SRAM G2 RSC 180mm
  • Saddle: SIXPACK Kamikaze
  • Seatpost: Bikeyoke Revive
  • Wheels: Stans Flow MK3 Team
  • Crank: Truvativ Descendant Carbon Eagle 175mm 32Z
  • Derailleur: SRAM X01 Eagle (1×12)
  • Trigger: SRAM X01 Eagle (1×12)
  • Casette: SRAM XG1275 10-50 (1×12)
  • Handlebar: SIXPACK Millenium 805
  • Stem: SIXPACK Leader 50
  • Tires: Schwalbe Magic Mary/Hans Dampf Addix Soft
  • Weight: 13,3 kg

Hugene High End

6.674
00
incl. VAT
  • Fork: Fox 36 Factory Kashima 150mm
  • Shock: Fox DPX2 Factory Kashima 130mm
  • Front Brake: Magura MT7 203mm
  • Rear Brake: Magura MT7 180mm
  • Saddle: SIXPACK Kamikaze
  • Seatpost: Fox Factory Transfer Kashima
  • Wheels: NEWMEN Advanced SL A 30
  • Crank: SRAM XX1 Carbon Eagle 175mm 32Z
  • Derailleur: SRAM AXS XX1 Eagle (1×12)
  • Trigger: SRAM AXS Eagle Controller
  • Casette: SRAM XG-1299 Eagle Rainbow
  • Handlebar: SIXPACK Millenium Carbon 805
  • Stem: SIXPACK Leader 50
  • Tires: Schwalbe Magic Mary/Hans Dampf Addix Soft
  • Weight: 13,1 kg

Frame Sizes

The frame size is an essential part of the bike performance and above all of the riding fun. Select your required frame size from the table. If you stand between two sizes, then you only have to decide whether you like it playful or smooth running. For smooth running choose the larger frame size, for playful the smaller.

Seatposts

The adjustable seat post is probably one of the most ingenious inventions of recent years. In order for it to function optimally on the trail, the proper seatpost travel is very important. The following table shows the recommended minimum inseam for the corresponding frame size. Please keep in mind that this is only a recommendation, as the respective sitting position depends very much on personal habits and preferences.

* inside leg length in cm
HUGENE S M L XL
Bikeyoke Revive 125 72,5 75,5 78,5 81,5
Kind Shock Lev 125 73,5 76,5 79,5 82,5
Fox Transfer 125 74,5 77,5 80,5 83,5
Bikeyoke Revive 160 / Kinds Shock Lev 150 76,0 79,0 82,0 85,0
Fox Transfer 150 77,0 80,0 83,0 86,0

Technical Data

Shock length 190 mm
Shock travel 45 mm
Shock mount 8 x 30 mm
Rear wheel travel 130 mm
Bottom bracket BSA 73 mm
Brake mount Postmount 180
Seatpost diameter 31,6 mm
Headset (S.H.I.S) Tapered - Top: IS42 / Bottom: IS52
Rear wheel axle 148 mm x 12 mm (X12)
Front derailleur none
Chainline 52 mm (Boost)
Chainguide mount none
Wheel size 29"
Maximum fork travel 150 mm
Frame weight 2,4 kg (Size M)

Geometry

SIZE S SIZE M SIZE L SIZE XL
Frame height (A) 410 mm / 16,5″ 440 mm / 17,5″ 470 mm / 18,5″ 500 mm / 19,5″
Wheelbase (M) 1.146 mm 1.175 mm 1.204 mm 1.232 mm
Top tube length (G) 571 mm 599 mm 626 mm 654 mm
Fork offset (B) 51 mm 51 mm 51 mm 51 mm
Fork length (C) 546 mm 546 mm 546 mm 546 mm
Chainstay length (L) 445 mm 445 mm 445 mm 445 mm
Reach (E) 410 mm 435 mm 460 mm 485 mm
Stack (F) 602 mm 612 mm 621 mm 630 mm
Head angle (J) 67,5° 67,5° 67,5° 67,5°
Seat angle – real (H) 71° 71° 71° 71°
Seat angle – effective (I) 75° 75° 75° 75°
Head tube length (D) 95 mm 105 mm 115 mm 125 mm
BB offset (K) 30 mm 30 mm 30 mm 30 mm
SIZE S SIZE M SIZE L SIZE XL
Frame height (A) 410 mm / 16,5″ 440 mm / 17,5″ 470 mm / 18,5″ 500 mm / 19,5″
Wheelbase (M) 1.150 mm 1.179 mm 1.208 mm 1.236 mm
Top tube length (G) 573 mm 601 mm 628 mm 656 mm
Fork offset (B) 51 mm 51 mm 51 mm 51 mm
Fork length (C) 556 mm 556 mm 556 mm 556 mm
Chainstay length (L) 445 mm 445 mm 445 mm 445 mm
Reach (E) 407 mm 432mm 457 mm 482 mm
Stack (F) 605 mm 615 mm 624 mm 633 mm
Head angle (J) 67,0° 67,0° 67,0° 67,0°
Seat angle – real (H) 70,5° 70,5° 70,5° 70,5°
Seat angle – effective (I) 74,5° 74,5° 74,5° 74,5°
Head tube length (D) 95 mm 105 mm 115 mm 125 mm
BB offset (K) 28 mm 28 mm 28 mm 28 mm
