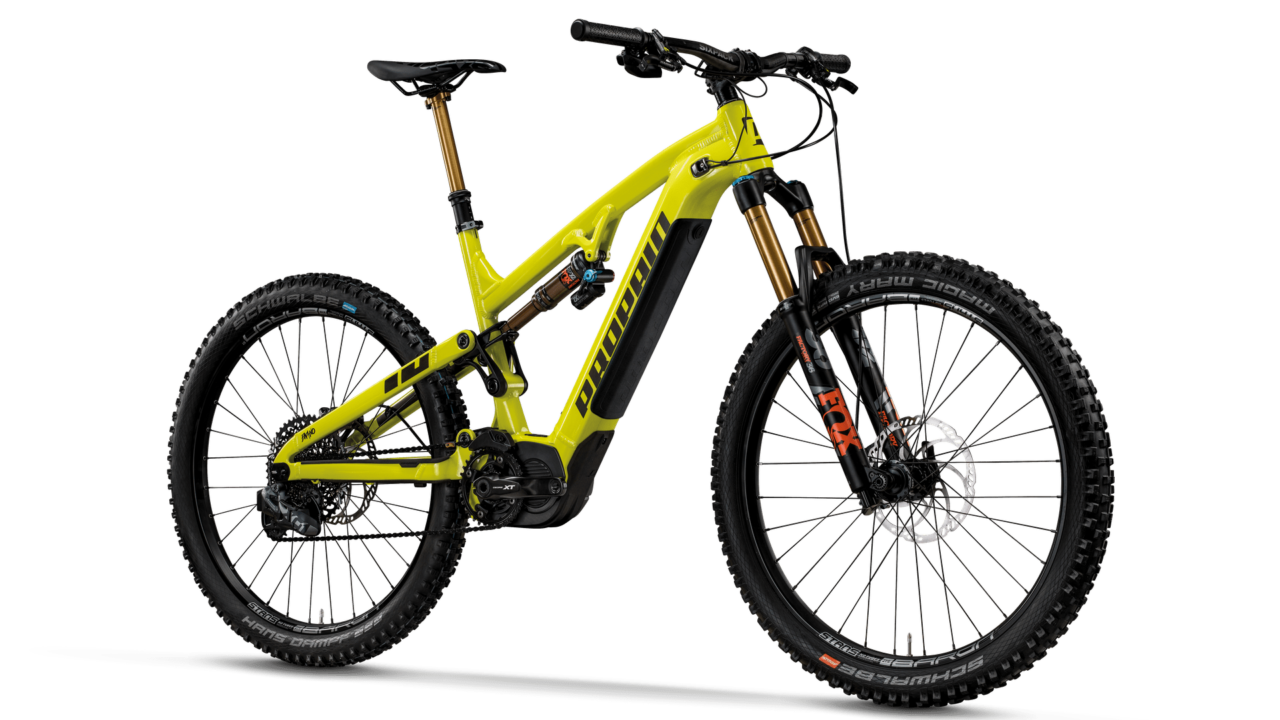

EKANO 2 AL

POWER UP, PARTY DOWN
from 4,994.00 €

Customize yours now

POWER UP, PARTY DOWN

The EKANO 2 AL is THE absolute fun machine, no matter in which direction. Technical, steep uphills – no problem! Full commitment and perfect handling on the downhills – guaranteed!

The Shimano EP801 / EP600 motor with 85 Nm and 600 W peak power drives you steadily forward, no matter what terrain.

The Future of Freeride – Spindrift DNA, chairlift included!

Agile Handling - Easiness and Speed

The PRO10 frame design of the EKANO 2 AL paired with the optimal integration of the motor and the slim battery provides an ideal weight distribution and a low, central center of gravity. The weight is extremely unobtrusive, and the downhill performance of our new E-Freerider is just like our motorless bikes.

POWER UP

Weighing just 2.7 kg, the new Shimano EP801 delivers a maximum torque of 85 Nm and 600 watts of peak power, making it the ideal choice for our EKANO 2 AL. This gives you the power to tackle every climb, even when it gets steep and technical.

Best Trail-Performance with 626 Wh Battery

Performance on the trail is our absolute focus. That’s why we installed a powerful 626 Wh battery with the new 21700 lithium-ion cell generation in the EKANO 2 AL. The cells store more energy in less space and weight. This makes the battery of the EKANO 2 AL significantly slimmer, more compact, and lighter than other batteries in this class. This gives the rider the ideal energy storage to mass ratio to achieve the best trail performance. Three times as much elevation gain as usual is no problem on your after-work ride. Still, it always remains playful and agile.

MIX Only

The EKANO 2 AL is available exclusively in mixed wheel setup. For our E-Freeride bike it was important to us to ensure the maximum freedom of movement with good rollover behavior at the same time. Therefore, “business in the front & party in the back” is without a doubt the best option.

Build Kits

We at PROPAIN always remain committed to custom, so you can still fulfill your every individual wish in our configurator. Still, we want to help guide you on the way to your personal dream bike. Our three build kits are confidently recommended, because we would build our own bikes exactly the same way. For every area of use and every budget, we provide you with a well-thought-out equipment concept, each of which is fully “ready to shred”.

Goldrush

8999
00
  • Fork:
    Fox 38 Factory Grip2 Kashima
  • Shock:
    Fox Float DHX2 Factory
  • Brakes:
    Magura MT7 Performance
  • Wheels:
    Crankbrothers Synthesis E-Bike Carbon i9
  • Driveunit:
    Shimano EP801 Max (incl. Display)
  • Drivetrain:
    SRAM X0 Eagle Transmission (1x12)
  • Seatpost:
    Fox Transfer Factory Kashima

Shred²

7579
00
  • Fork:
    RockShox ZEB Ultimate
  • Shock:
    RockShox Super Deluxe Ultimate RCT Air
  • Brakes:
    SRAM Code RSC
  • Wheels:
    NEWMEN Evolution E.G.30
  • Driveunit:
    Shimano EP801 Max (incl. Display)
  • Drivetrain:
    SRAM GX Eagle Transmission (1x12)
  • Seatpost:
    RockShox Reverb AXS

Price2Ride

5889
00
  • Fork:
    RockShox ZEB Select+
  • Shock:
    RockShox Super Deluxe Coil R
  • Brakes:
    Formula Cura 4
  • Wheels:
    NEWMEN Evolution E.G.30
  • Driveunit:
    Shimano EP801 Lite (without Display)
  • Drivetrain:
    SRAM GX Eagle (1x12)
  • Seatpost:
    BikeYoke Divine

New Shimano EP801

The EP801 is the new top model of the Japanese manufacturer. The intelligent drive unit delivers superbly controllable high power with a maximum torque of 85 Nm and 600 watts peak power over a wider cadence range than before. The harmonious power delivery and optimized control provide a very natural feel on the trail. These features in combination with the low weight of only 2.7 kg, thanks to the magnesium housing, made it easy for us to choose the EP801 as the drive unit for our new E-Freerider. To provide a more affordable entry into our E-Bike world, we also offer the 300 gram heavier EP600. Apart from the extra weight of the aluminum housing, the EP600 delivers the same torque by a peak power of 500 Wh.

626 Wh Battery

A powerful 626 Wh battery comes into play in the EKANO 2 AL. The new 21700 lithium-ion cell generation achieves a remarkably high energy density. The cells store more energy in less space and weight. This makes the battery of the EKANO 2 AL significantly slimmer, more compact and lighter than other batteries in this class and exactly the right energy storage to achieve the best trail performance.

E-TUBE PROJECT App

Everyone is familiar with Eco, Trail or Boost modes nowadays. With the Shimano E-Tube Project app, you can wirelessly tune the support of your motor to suit your riding style. 15 customization modes allow you to fine-tune the level of support and can be saved in two profiles. In addition, firmware updates can be uploaded easily.

More information about E-TUBE PROJECT can be found at SHIMANO.

Integrated Cable Routing

Our Integrated Cable Routing “ICR” developed together with Sixpack is also used on the EKANO 2 AL. The stem, CNC-milled in Germany, forms a positive fit to the top plastic spacer. The cables therefore do not go through the stem, but through a pinch-through-seal below the stem into the top spacer, through the headset, into the frame. This allows the stem to be replaced effortlessly if necessary, and the mounting height can be adjusted by clip-in spacers without having to dismantle the stem at all.

To make the system maximally durable, an additional IPS seal is mounted on the upper headset bearing in addition to the seal at the cable entry. The system becomes absolutely bullet-proof with the stainless-steel bearings used exclusively in all frames. Wear in the headset is therefore not an issue with our ICR system.
Our Internal Cable Routing is selectable in the configurator in two options. For the EKANO 2 AL you can choose our Sixpack full integration with matching stem or the Acros solution with cable routing through the headset cover. The Acros stainless steel bearings in the headset can be recognized by the red seal.

Smart Details

Our Ekano 2 AL impresses with smart detail solutions. With the sophisticated PRO10 frame concept, cable integration, clever cable routing, and maximimally efficient chainstay protection, you don’t need to worry about a thing when riding your bike.

Seamless Integration Into The Frame

The battery and engine covers have been redesigned and integrated precisely into the frame, which not only means a more beautiful design language, making the down tube look slim and dynamic, but also protects against dirt, water, and impacts. In addition, quick and easy battery removal is ensured with a 4 mm Allen key.

Clean & Modern

Many small details make our EKANO 2 AL a real eye-catcher. The tidy, quiet and completely silent cockpit with the sophisticated integrated cable routing through the headset makes the EKANO 2 AL absolutely clean and uncluttered. The cable routing through the headset is the most modern, safest, and most beautiful way to run cables.

ICR system from Sixpack - Made in Germany

Our Sixpack ICR full integration with the CNC-milled Millenium stem impresses with the clean look, and is the perfect solution for a tidy cockpit and a quiet bike. The stem is available in 35 mm and 50 mm length. Both have a clamp diameter of 35 mm and a handlebar clamp width of 55 mm. For the perfect look you can also choose our Headtube Badge in four different versions.

Frame Concept and PRO10

The new EKANO 2 AL is the next evolutionary step of the first PROPAIN E-Bike. We have succeeded in transferring our proven PRO10 system to an e-bike. This results in a significantly lower center of gravity and improves kinematics considerably. Handling and downhill performance were absolutely paramount in the development. That’s why we didn’t get involved in the “who has the biggest battery” competition. A relatively low overall weight with optimal weight distribution provides the new EKANO 2 AL for a playful and agile “Spindrift-like” behavior on the trail.

Clever Cable Routing and Positioning of the Charging Port

The optimized cable routing, going directly across the main pivots of the rear triangle, represents the cleanest solution for us. Rattling or chafing is a thing of the past – at full compression the cables remain exactly where they belong. The charging port is positioned for easy access and perfectly protected by a rubber seal.

Optimized Frame Protection

Absolute silence – the only thing you hear is the sound of the tires on the trail. Alongside the cable integration and optimized routing, we developed new chain and seat stay protectors made of a soft TPR plastic with great damping properties. Air-filled nubs with an outward tilt stop chain vibrations with great efficiency.

Brake Integration

The Postmount brake mount is integrated in the EKANO 2 AL in the rear frame triangle. In addition to aesthetic aspects, this also achieves a better transmission of braking forces to the frame. For 200 mm brake discs no adapters are needed.

Bottle- and Tool-Mount

A good e-bike of course needs the ability to carry enough hydration and the most necessary equipment for a long day on the bike. The less weight in the backpack or hip bag the better. The bottle mount on the down tube and the tool mount on the bottom of the top tube provide the perfect platform for this.

Blend Alloy

The frame consists of at least three different alloys, which together create the optimum combination of stiffness, strength and weight. Frame parts such as rockers and axles are made of 7075 T6 aluminium, which has a very high strength. For the tubes of the frame, a more fatigue-resistant 6066 T6 aluminium is used. In addition, the milled and forged parts are made of 6061 T6 aluminium. Blend Alloy thus represents our special and unique manufacturing process and ensures the optimum performance of the lightweight frames.

The size of the frame plays an important role in the bike’s performance and, above all, in its enjoyment. Select the frame size you need from the table. If you are between two sizes, then you only have to decide whether you like it playful or smooth. For smooth riding, choose the larger frame size, for playful riding, choose the smaller frame size.

S: 158-172 cm / M: 168-182 cm / L: 178-192 cm / XL: 188-202 cm
150 cm 4’11” 160 cm 5’3″ 170 cm 5’7″ 180 cm 5’11” 190 cm 6’3″ 200 cm 6’7″
S
M
L
XL
Smoothly running
Well-balanced
Playful

The adjustable seatpost is probably one of the most ingenious inventions of recent years. In order to function optimally on the trail, the proper seatpost travel is very important. The following chart shows the recommended minimum inseam for the corresponding frame size. Please keep in mind that this is only a recommendation, as the respective sitting position depends very much on personal habits and preferences.

* Inside leg length in cm
EKANO 2 AL S M L XL
Bikeyoke Divine 125 72 74,2 76,7 79,2
Bikeyoke Divine 160 79 78 80,2 82,7
Bikeyoke Divine 185 84 83 83,5 85,2
Bikeyoke Revive 125 72 74,2 76,7 79,2
Bikeyoke Revive 160 79 78 80,2 82,7
Bikeyoke Revive 185 84 83 83,5 85,2
Bikeyoke Revive 213 90,5 89,5 90 90
Fox Transfer 125 71,9 73,8 76,3 78,8
Fox Transfer 150 77,3 76,3 78,8 81,3
Fox Transfer 175 83 82 82,5 83,8
Fox Transfer 200 88,6 87,6 88,1 88,1
RockShox Reverb AXS 125 74,5 76,5 79 81,5
RockShox Reverb AXS 150 79,5 79 81,5 84
RockShox Reverb AXS 170 83,5 82,5 83,5 86
Drive Unit Shimano EP801/ EP600
Battery Darfon E3C0A (~626 Wh (Typ) / 600 Wh (Min))
Shock length 205 mm
Shock travel 60 mm
Shock bushings 35 mm / Trunnion
Travel (Frame) 170 mm
Max. Travel (Fork) 190 mm
Brake mount (Frame) PM 200
Seatpost diameter 31.6 mm
Seatclamp diameter 34.9 mm
Max. Seatpost insert length Frame size S: 190 mm
Frame size M: 230 mm
Frame size L: 252 mm
Frame size XL: 275 mm
Headset ZS56/ZS56
Rear wheel axle 148 mm
Chainline 53 (Shimano) / 52 (SRAM)
Chainguide mount Shimano EP801 Chainguard Standard
Derailleur hanger SRAM UDH
Wheel size Mix
Drive Unit Weight 2.7 kg
Battery Weight 3.3 kg
Max. system weight 130 kg

170 mm of travel at the rear and optionally 180 mm or 190 mm at the front, reach values adapted to our product range, a slightly flatter head angle of now 64° and a steep seat angle of 78° result in the modern geometry of our E-Freerider. The EKANO 2 AL is available exclusively in a mixed-wheel setup. The small rear wheel and the medium length chainstays of 445 mm round off the playfull handling.

180 mm Fork

* Measured 200 mm from center of bottom bracket

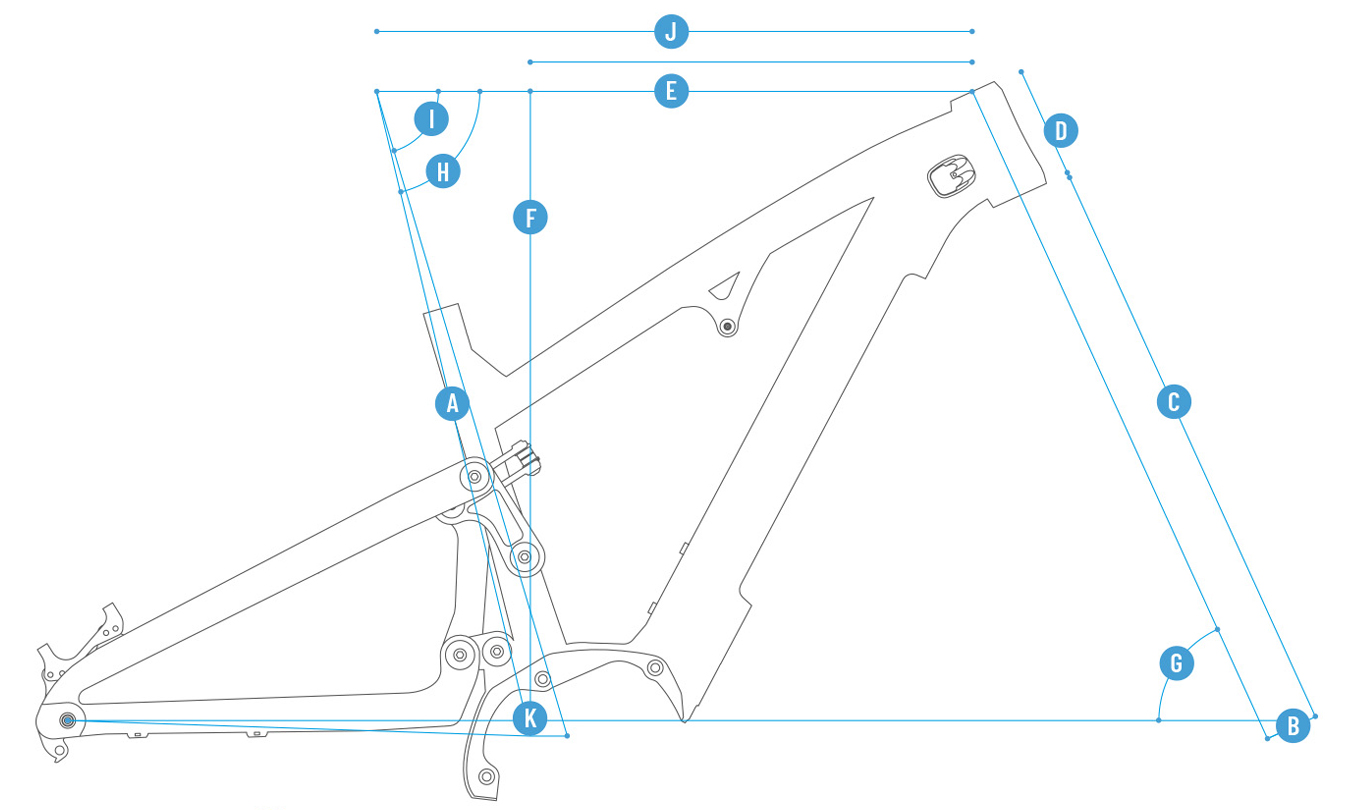

SIZE S SIZE M SIZE L SIZE XL
Frame height (A) 410 mm 430 mm 455 mm 480 mm
Fork offset (B) 44 mm 44 mm 44 mm 44 mm
Fork length (C) 598 mm 598 mm 598 mm 598 mm
Head tube length (D) 110 mm 115 mm 120 mm 130 mm
Reach (E) 435 mm 455 mm 475 mm 495 mm
Stack (F) 644 mm 648 mm 653 mm 662 mm
Head angle (G) 64° 64° 64° 64°
Seat angle – real (H) 77.2° 77.2° 77.2° 77.2°
Seat angle – effective (I) 78° 78° 78° 78°
Top tube length (J) 571 mm 592 mm 613 mm 635 mm
BB offset (K) R13 / F24 mm R13 / F24 mm R13 / F24 mm R13 / F24 mm
Chainstay length (L) 445 mm 445 mm 445 mm 445 mm
Wheelbase (M) 1,231 mm 1,253 mm 1,275 mm 1,299 mm
Standover height (N)* 830 mm 825 mm 820 mm 818 mm
BB height 350 mm 350 mm 350 mm 350 mm

190 mm Fork

* Measured 200 mm from center of bottom bracket
SIZE S SIZE M SIZE L SIZE XL
Frame height (A) 410 mm 430 mm 455 mm 480 mm
Fork offset (B) 44 mm 44 mm 44 mm 44 mm
Fork length (C) 606 mm 606 mm 606 mm 606 mm
Head tube length (D) 110 mm 115 mm 120 mm 130 mm
Reach (E) 430 mm 450 mm 470 mm 490 mm
Stack (F) 647 mm 651 mm 656 mm 665 mm
Head angle (G) 63.6° 63.6° 63.6° 63.6°
Seat angle – real (H) 76.8° 76.8° 76.8° 76.8°
Seat angle – effective (I) 77.6° 77.6° 77.6° 77.6°
Top tube length (J) 573 mm 594 mm 615 mm 637 mm
BB offset (K) R10 / F21 mm R10 / F21 mm R10 / F21 mm R10 / F21 mm
Chainstay length (L) 445 mm 445 mm 445 mm 445 mm
Wheelbase (M) 1,235 mm 1,257 mm 1,279 mm 1,303 mm
Standover height (N)* 830 mm 825 mm 820 mm 818 mm
BB height 354 mm 354 mm 354 mm 354 mm

Fitting for your EKANO 2 AL

Ekano 2 AL Goldrush

The name says it all, Kashima is just the new Gold. Magura MT7 Performance, Crankbrothers Synthesis Carbon wheelset and the new AXS X0 Transmission, nothing more needs to be said.
Fork Fox 38 Factory Grip2 Kashima 180mm
Shock Fox Float DHX2 Factory
Brakes Magura MT7 Performance 220 mm / 203 mm
Wheels Crankbrothers Syntheis E-Bike Carbon i9
Driveunit Shimano EP801 Max (inkl. Display)
Drivetrain SRAM X0 Eagle Transmission (1x12)
Trigger SRAM AXS Pod Controller
Rear derailleur SRAM X0 Eagle Transmission
Cassette SRAM X0 Eagle Transmission
Crank Shimano FC-M8150 165mm 34t
Handlebar SIXPACK Millenium 805
Stem SIXPACK Millenium 35
Seatpost Fox Transfer Factory Kashima
Saddle SQLab 6OX Infinergy ERGOWAVE
Tires Maxxis Assegai MaxGrip / Maxxis DHR2 DoubleDown

Ekano 2 AL Shred²

Our heavy-hitter spec. Rockshox ZEB Ultimate and Super Deluxe Ultimate shock set the tone and the GX Transmission drivetrain and NEWMEN Evolution E.G.30 wheelset complete the package.
Fork RockShox ZEB Ultimate 190mm
Shock RockShox Super Deluxe Ultimate RCT Air
Brakes SRAM Code RSC 220 mm / 200 mm
Wheels NEWMEN Evolution E.G.30
Driveunit Shimano EP801 Max (inkl. Display)
Drivetrain SRAM GX Eagle Transmission (1x12)
Trigger SRAM AXS Pod
Rear derailleur SRAM GX Eagle Transmission
Cassette SRAM XG-1275 Eagle Transmission
Crank Shimano FC-EM600 165mm 34t
Handlebar SIXPACK Millenium 805
Stem SIXPACK Millenium 35
Seatpost RockShox Reverb AXS
Saddle SQLab 6OX Infinergy ERGOWAVE
Tires Schwalbe Magic Mary / Big Betty

Ekano 2 AL Price2Ride

The entry-level offer that is absolutely “ready to shred”. The most fun for the least money with RockShox suspension and brakes, NEWMEN Evolution E.G 30 wheelset and BikeYoke Divine seatpost.
Fork RockShox ZEB Select+ 180mm
Shock RockShox Super Delux Coil R
Brakes Formula Cura 4 220 mm / 203 mm
Wheels NEWMEN Evolution E.G.30
Driveunit Shimano EP801 Lite (ohne Display)
Drivetrain SRAM GX Eagle (1x12)
Trigger SRAM GX Eagle
Rear derailleur SRAM GX Eagle
Cassettte SRAM XG-1275 Eagle
Crank Shimano FC-EM600 165mm 34t
Handlebar SIXPACK Millenium 805
Stem SIXPACK Millenium 35mm
Seatpost BikeYoke Divine
Saddle SIXPACK Kamikaze
Tires Schwalbe Magic Mary / Big Betty
