Spindrift 4 CF

from 2.887,00€ 3.849,00 €
Financing from 67,30 €/month
Qualified for leasing

Customize now
Save 25% on your Spindrift 4 CF 27,5" and 15% on your Spindrift Mix/29"
Valid from 05th March until 19th March 2024. The discount will be calculated at checkout. Not combinable with other vouchers or sales promotions.

Beyond The Elements

Our Freeride Bike – a bike that unites all elements. No matter if it is steep root sections, high drops, flowy jump-lines, or the relaxing after-work session. Whether bike park or home trail – just FULL SEND!

The Spindrift 4 CF is our interpretation of a modern Freeride Bike.

Play Video

Highlights

from 2.887,00€ 3.849,00 €

Down to earth

Whether sand, roots or stones, wet or dust-dry, the Spindrift 4 CF copes with every surface. And that does not only apply downhill. Uphill the bike stays on the ground and climbs up every trail with you.

Flow like water

Smooth as a flowing mountain stream. Brute like a roaring river. With the Spindrift 4 CF you send every line and stay always agile. In rough and steep terrain, you will rush over every obstacle with smoothness.

Lit like fire

A bike that gets you up to speed and takes your breath away. You always find your line and take what you can, both downhill and uphill. With the Spindrift 4 CF you are unstoppable.

Up in the air

Flying is your element? Go for it, the Spindrift 4 CF takes you up in the air. No matter what maneuver you pull, the Spindrift 4 CF gives you a feeling of lightness. Airtime guaranteed.

Wheel sizes

You decide the intended purpose and decide whether you prefer the playful 27.5″, the all-round Mix version, or the smooth running 29″ wheels. Your individual Spindrift 4 CF offers you the performance you need in any terrain. With 180 mm / 190 mm travel at the front and 180 mm at the rear, there are no limits to your fun.

Stability through 29"

You prefer smooth running ? Then the Spindrift 4 CF 29″ is exactly the right choice for you!

Allround-Use with Mix

With the mix variant you have the best of both worlds! The Allrounder for Up- and Downhill.

Maximum handling with 27.5"

May it be playful? Ideal for those who like it a little more agile and prefer smaller wheels.

Build Kits

We will help you on your way to your personal dream bike. The three build kits are our recommendations from us to you, as this is exactly how we would build our own bikes. We prepared a well-thought-out predefined spec for all purposes and every budget, with which you instantly are “ready to shred”. However, we at PROPAIN always remain “custom” so you can still choose individual components to customize your dream bike in our configurator.

Highend
8.674 €

Fork
Fox 38 Factory Kashima
180 mm

Shock
Fox Float DHX2 Factory
180 mm

Brakes
Magura MT7
203 mm / 203 mm

Wheels
Crankbrothers Synthesis Enduro
Carbon i9

Seatpost
Fox Transfer Factory

Drivetrain
SRAM XX Eagle Transmission (1×12)

Frequently Asked Questions – bitte leer lassen

Trigger
SRAM AXS Pod Controller


Derailleur
SRAM XX Eagle Transmission


Cassette
SRAM XX Eagle Transmission


Crank
SRAM XX Eagle Transmission 170 mm 32t


Handlebar
SIXPACK Millenium 805


Stem
SIXPACK Millenium 35


Saddle
SIXPACK Kamikaze


Tires
Schwalbe Magic Mary


Weight
15.1 kg


Performance
5.389 €

Fork
RockShox ZEB Ultimate
190 mm

Shock
RockShox Super Deluxe Ultimate
RCT Coil 180 mm

Brakes
SRAM Code RSC
200 mm / 200 mm

Wheels
NEWMEN Evolution
E.G.30

Seatpost
Bikeyoke Revive

Drivetrain
SRAM X01 Eagle (1x12)

Frequently Asked Questions – bitte leer lassen

Trigger
SRAM X01 Eagle
(1×12)


Derailleur
SRAM X01 Eagle (1×12)


Cassette
SRAM XG-1275 10-52
(1×12)

Crank
Truvativ Desendant Carbon Eagle 32t


Handlebar
SIXPACK Millenium 805


Stem
SIXPACK Vertic 50


Saddle
SIXPACK Kamikaze


Tires
Schwalbe Magic Mary


Weight
15.2 kg


Start
4.029 €

Fork
RockShox ZEB R
180 mm

Shock
RockShox Select R Coil
180 mm

Brakes
SRAM G2 R
200 mm / 200 mm

Wheels
NEWMEN Performance
30

Seatpost
PROPAIN Seatpost

Drivetrain
SRAM GX Eagle (1x12)

Frequently Asked Questions – bitte leer lassen

Trigger
SRAM GX Eagle
(1×12)


Derailleur
SRAM GX Eagle (1×12)


Cassette
SRAM XG-1275 10-52
(1×12)


Crank
Truvativ Descendant Eagle
32t


Handlebar
SIXPACK Millenium 805


Stem
SIXPACK Vertic 50


Saddle
SIXPACK Kamikaze


Tires
Schwalbe Magic Mary


Weight
15.9 kg


Smart Details

Good looks are not everything. Our Spindrift 4 CF also impresses with its inner values and smart details. With quick-change chain guard, durable bearings and internal cable routing, you’ll get more time on the bike than in your garage.

New chainstay protection

High drops and hard landings can get your chain swinging pretty hard. Our newly designed chainstay protector absorbs them, eliminates noise and protects the chainstay from damage.

Clean & Modern

Thanks to the versatility of our Blend Carbon our Spindrift 4 CF also convinces with its elegant design. Many visible edges and flowing shapes paired with a futuristic logo guarantee envious looks on and off the trails.

Internal Cable Routing

Internal cable routing became a standard for modern bikes. We are taking this to a new level by equipping the carbon frames with internal cable channels in which the cables run. This makes the fitting super easy and any cable noise in the frame is eliminated.

Highlights

Intense bikepark action or local hometrail session. Massive jumpline or wet root passage, quick curves or steep drops. Your Spindrift 4 CF offers the performance you need in any terrain.

Bitte leer lassen
The frame size is an essential part of the bike performance and contributes significantly to the riding fun. Select your required frame size from the chart. If you are between two sizes, then you only have to decide whether you like it playful or smooth running. For smooth running choose the larger frame size, for playful the smaller one.

S: 158-172 cm / M: 168-182 cm / L: 178-192 cm / XL: 188-202 cm *S only in 27.5″ / XL only in Mix and 29″
150 cm 4’11” 160 cm 5’3″ 170 cm 5’7″ 180 cm 5’11” 190 cm 6’3″ 200 cm 6’7″
S*
M
L
XL*
Smoothly running
Well-balanced
Playful

The adjustable seatpost is probably one of the most ingenious inventions of recent years. In order to function optimally on the trail, the proper seatpost travel is very important. The following chart shows the recommended minimum inseam for the corresponding frame size. Please keep in mind that this is only a recommendation, as the respective sitting position depends very much on personal habits and preferences.
* Inside leg length in cm
SPINDRIFT CF S M L XL
Bikeyoke Divine 125 73.5 75.5 77.5 79.5
Bikeyoke Divine 160 77.0 79.0 81.0 83.0
Bikeyoke Divine 185 83.5 83.5 83.5 85.5
Bikeyoke Revive 125 73.5 75.5 77.5 79.5
Bikeyoke Revive 160 77.0 79.0 81.0 83.0
Bikeyoke Revive 185 83.5 83.5 83.5 85.5
Fox Transfer 125 75.5 77.5 79.5 81.5
Fox Transfer 150 78.0 80.0 82.0 84.0
Fox Transfer 175 84.5 84.5 84.5 86.5
RockShox Reverb AXS 125 73.5 75.5 77.5 79.5
RockShox Reverb AXS 150 76 78 80 82
Shock length 230 mm
Shock travel 65 mm
Shock bushings Top: 8 x 20 mm / Bottom: 8 x 30 mm
Travel (Frame) 180 mm
Max. Travel (Fork) 190 mm
Bottom bracket BSA 73 mm
Brake mount (Frame) Postmount 180
Seatpost diameter 31.6 mm
Seatclamp diameter 36.4 mm
max. Seatpost insert length 29″ & Mix: M 215 mm / L 220 mm / XL 250 mm 27.5″: S 200 mm / M 220 mm / L 230 mm
Headset (S.H.I.S.) Top: ZS49 / Bottom: ZS56
Rear wheel axle 148 mm x 12 mm
Chainline Offset 3 mm Offset
Chainline 52 mm (Boost)
Chainguide mount ISCG 05

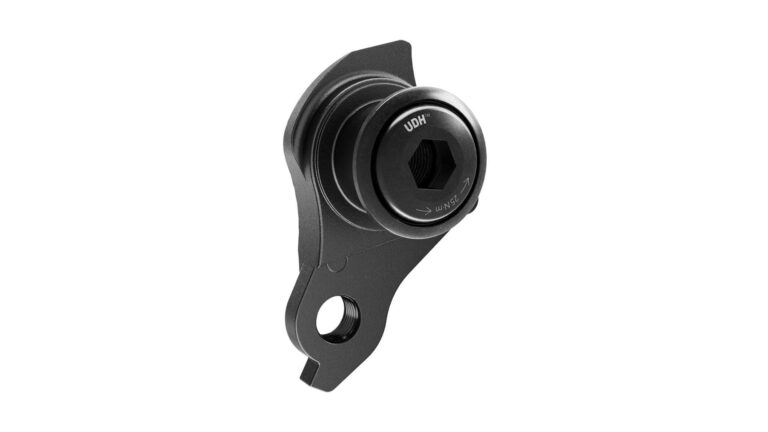

Derailleur hanger SRAM UDH
Wheel sizes 29″ / Mix / 27.5″
Frame weight 3 kg (Size L, 29″)
Max. rider weight 120 kg

Our well known PRO10 system has once again been further developed and improved for the Spindrift. The shock moved in front of the seat tube and is now ideally integrated in the main frame. So, the Spindrift is even more agile and more balanced. The combination of a slack headtube angle of 64.5° and a steep, effective seat angle of 78° ensures that you can climb the steepest climbs on a Freeride Bike without getting out of breath.

Frequently Asked Questions – bitte leer lassen

Size M Size L Size XL
Frame height (A) 440 mm 460 mm 480 mm
Fork offset (B) 44 mm 44 mm 44 mm
Fork length (C) 598 mm 598 mm 598 mm
Head tube length (D) 95 mm 110 mm 125 mm
Reach (E) 450 mm 475 mm 500 mm
Stack (F) 633 mm 646 mm 660 mm
Head angle (G) 64.5° 64.5° 64.5°
Seat angle – effective (H) 78° 78° 78°
Seat angle – real (I) 73.5° 73.5° 73.5°
Top tube length (J) 584 mm 612 mm 640 mm
BB offset (K) 23 mm 23 mm 23 mm
Chainstay length (L) 445 mm 445 mm 445 mm
Wheelbase (M) 1,234 mm 1,265 mm 1,297 mm
BB height 352 mm 352 mm 352 mm
Size M Size L Size XL
Frame height (A) 440 mm 460 mm 480 mm
Fork offset (B) 44 mm 44 mm 44 mm
Fork length (C) 598 mm 598 mm 598 mm
Head tube length (D) 95 mm 110 mm 125 mm
Reach (E) 450 mm 475 mm 500 mm
Stack (F) 633 mm 646 mm 660 mm
Head angle (G) 64.5° 64.5° 64.5°
Seat angle – effective (H) 78° 78° 78°
Seat angle – real (I) 73.5° 73.5° 73.5°
Top tube length (J) 584 mm 612 mm 640 mm
BB offset (K) R10 / F23 mm R10 / F23 mm R10 / F23 mm
Chainstay length (L) 435 mm 435 mm 435 mm
Wheelbase (M) 1,224 mm 1,255 mm 1,284 mm
BB height 352 mm 352 mm 352 mm
Size S Size M Size L
Frame height (A) 420 mm 440 mm 460 mm
Fork offset (B) 38 mm 38 mm 38 mm
Fork length (C) 577 mm 577 mm 577 mm
Head tube length (D) 100 mm 110 mm 120 mm
Reach (E) 425 mm 450 mm 475 mm
Stack (F) 608 mm 617 mm 626 mm
Head angle (G) 64.5° 64.5° 64.5°
Seat angle – effective (H) 78° 78° 78°
Seat angle – real (I) 73.5° 73.5° 73.5°
Top tube length (J) 554 mm 581 mm 608 mm
BB offset (K) 10 mm 10 mm 10 mm
Chainstay length (L) 435 mm 435 mm 435 mm
Wheelbase (M) 1,187 mm 1,216 mm 1,246 mm
BB height 345 mm 345 mm 345 mm

Frequently Asked Questions – don’t fill any text in here

Yes, the Spindrift is approved for 200mm DH forks.
Please note the installation height of the suspension fork. You can find this information in the geometry table.

Attaching drinking bottles up to 0.5 l is no problem. With larger frame sizes, 0.7 l bottles can also be stowed.

No, because our frames are specially developed and adapted for the respective wheel size.

A general statement is not possible here due to the tolerances of the tire manufacturers’ width specifications.

E.g. Schwalbe tires fit up to 2.4, VEE up to 2.35 and Maxxis up to 2.5WT.

Due to the large selection of components and frame sizes, we cannot make a statement for all combinations. However, we have given weights for our build kits, which you can see in the table above. In the configurator you will also find weight information for each component.

No, we only offer the components and color variants that we show in the configurator.



The bike comes with three stem spacers, uncut handlebars and all the instructions you need.

We offer further equipment like pedals in our online store.

Carbon raw is a real beauty! The frames are getting a special treatment before we paint them so the carbon surface, which is shining through the paint, is showing its best side. Besides the clear paint there is also a light dark coating applied. This results in a light dark shine of carbon material, especially in sunlight. Each model is different so every method and also materials will differ. That also means every single frame is a unique.
