Hugene CF 29

available colors:

from 3.110,- €

29
``
wheel size
130
mm
rear travel
150
mm
front travel
5
years
warranty on frame

Carbon Trailbike in 29″

Hugene is our interpretation of the perfect trailbike. A bike that flies up mountains with ease and puts a fat smile on your face on the way back down. For the first time, we are relying on large 29″ wheels and have optimized our proven PRO10 suspension system for them. This results in a great balance between stability and playfulness, providing lots of safety for the rider without feeling boring. The shock sits in front of the seatpost and is perfectly protected against dirt and mud. To make the Hugene a agile trailbike, we’ve paid particular attention to its drive efficiency. Providing 100% anti-squat, the chainstay always keeps its cool on the uphills. The Hugene climbs almost like a hardtail but also offers sturdy downhill performance due to its progressive suspension kinematics that have been optimized offering both perfect sensitivity and bottom out resistance.

Specs

We will help you on your way to your personal dream bike. Our options are only a preliminary recommendation, because your needs are as individual as you are. We have put together three pre-configured models for you. In our configuration tool, however, you can still adapt every single part of all models to your wishes. Have fun building your dream bike.

Start
Colors
Fork RockShox Revelation RC 140 mm
Rear Shock RockShox Deluxe R 130 mm
Brake front SRAM Guide R 200 mm
Brake rear SRAM Guide R 180 mm
Saddle Sixpack Kamikaze
Seatpost Sixpack Menace
Wheels Propain ZTR FLOW S1
Cranks Truvativ Descendant Eagle 175 mm 32Z
Rear Derailleur SRAM GX Eagle (1×12)
Shifter SRAM GX Eagle (1×12)
Cassette SRAM XG1275 10/50 (1×12)
Handlebar Sixpack Millenium 785
Stem Sixpack Leader 50
Tires Schwalbe Hans Dampf Addix Soft
Weight 13,6 kg
Price € 3.110
Performance
Colors
Fork RockShox Pike Ultimate RCT3 140 mm
Rear shock RockShox Super Deluxe Select+ 130 mm
Brake front SRAM Guide RSC 200 mm
Brake rear SRAM Guide RSC 180 mm
Saddle Sixpack Kamikaze
Seatpost Bikeyoke Revive
Wheels Propain ZTR FLOW MK3
Cranks Truvativ Descendant Carbon Eagle 175 mm 32Z
Rear Derailleur SRAM X01 Eagle (1×12)
Shifter SRAM X01 Eagle (1×12)
Cassette SRAM XG1275 10/50 (1×12)
Handlebar Sixpack Millenium 785
Stem Sixpack Leader 50
Tires Schwalbe Hans Dampf Addix Soft
Weight 13,3 kg
Prcie € 4.240
Highend
Colors
Fork Fox 36 Factory Kashima 150 mm
Rear shock Fox DPX2 Factory Kashima 130 mm
Brake front Magura MT7 203 mm
Brake rear Magura MT7 180 mm
Saddle Selle Italia XR
Seatpost Fox Transfer Factory Kashima
Wheels Reynolds Black Label Carbon 29 Enduro
Cranks SRAM XX1 Carbon Eagle 175 mm 32Z
Rear Derailleur SRAM AXS XX1 Eagle (1×12)
Shifter SRAM AXS Eagle Controller
Cassette SRAM XG-1299 Eagle Rainbow
Handlebar Sixpack Millenium Carbon 785
Stem Sixpack Leader 50
Tires Schwalbe Hans Dampf Addix Soft
Weight 13,3 kg
Price € 7.055

Frame size

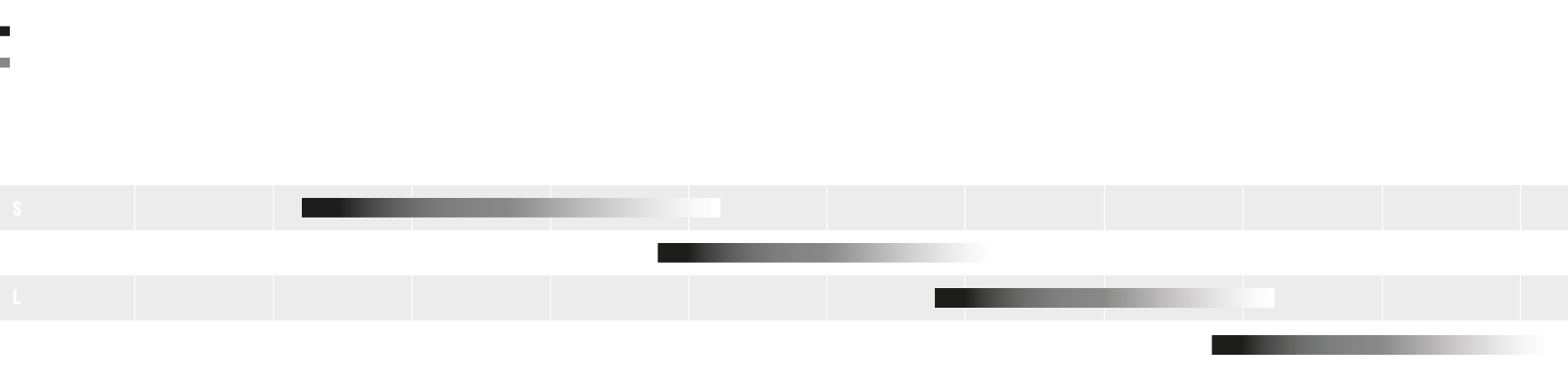

The frame size is an essential part of the bike performance and above all of the riding fun. Select your required frame size from the table. If you stand between two sizes, then you only have to decide whether you like it playful or smooth running. For smooth running choose the larger frame size, for playful the smaller.

Seatpost

The adjustable seat post is probably one of the most ingenious inventions of recent years. In order for it to function optimally on the trail, the proper seatpost travel is very important. The following table shows the recommended minimum inseam for the corresponding frame size. Please keep in mind that this is only a recommendation, as the respective sitting position depends very much on personal habits and preferences

HUGENE S M L XL
Bikeyoke Revive 125 72,5 75,5 78,5 81,5
Kind Shock Lev 125 73,5 76,5 79,5 82,5
Fox Transfer 125 74,5 77,5 80,5 83,5
Bikeyoke Revive 160 / Kinds Shock Lev 150 76,0 79,0 82,0 85,0
Fox Transfer 150 77,0 80,0 83,0 86,0

Technical Data

Shock length 190 mm
Shock travel 45 mm
Shock mount 8 x 30 mm
Rear wheel travel 130 mm
Bottom bracket BSA 73 mm
Brake mount Postmount 180
Seatpost diameter 31,6 mm
Headset (S.H.I.S.) Tapered – Top: IS42 / Bottom: IS52
Rear wheel axle 148 mm x 12 mm (X12)
Deraillure mount none
Chainline 52 mm (Boost)
Chainguide mount none
Wheel size 29″
Maximum fork travel 150 mm
Frame weight 2,4 kg (Size M)

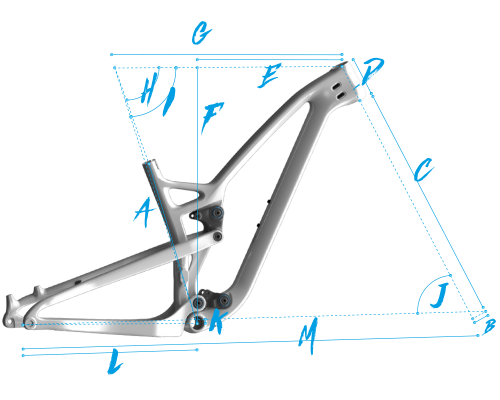

Geometry

Hugene_Geometrie
140 mm Fork SIZE S SIZE M SIZE L SIZE XL
Frame size (A) 410 mm / 16,5″ 440 mm / 17,5″ 470 mm / 18,5″ 500 mm / 19,5″
Wheelbase (M) 1.146 mm 1.175 mm 1.204 mm 1.232 mm
Top tube length (G) 571 mm 599 mm 626 mm 654 mm
Fork offset (B) 51 mm 51 mm 51 mm 51 mm
Fork length (C) 546 mm 546 mm 546 mm 546 mm
Chainstay length (L) 445 mm 445 mm 445 mm 445 mm
Reach (E) 410 mm 435 mm 460 mm 485 mm
Head tube length (D) 95 mm 105 mm 115 mm 125 mm
Stack (F) 602 mm 612 mm 621 mm 630 mm
Head angle (J) 67,5° 67,5° 67,5° 67,5°
Seat angle (actual) (H) 71,0° 71,0° 71,0° 71,0°
Seat angle (effective) (I) 75,0° 75,0° 75,0° 75,0°
BB Offset (K) 30 mm 30 mm 30 mm 30 mm
Hugene_Geometrie

150 mm Fork

SIZE S SIZE M SIZE L SIZE XL
Frame size (A) 410 mm / 16,5″ 440 mm / 17,5″ 470 mm / 18,5″ 500 mm / 19,5″
Wheelbase(M) 1.150 mm 1.179 mm 1.208 mm 1.236 mm
Top tube length (G) 573 mm 601 mm 628 mm 656 mm
Fork offset (B) 51 mm 51 mm 51 mm 51 mm
Fork length (C) 556 mm 556 mm 556 mm 556 mm
Chainstay length (L) 445 mm 445 mm 445 mm 445 mm
Reach (E) 407 mm 432 mm 457 mm 482 mm
Head tube length (D) 95 mm 105 mm 115 mm 125 mm
Stack (F) 605 mm 615 mm 624 mm 633 mm
Head angle (J) 67,0° 67,0° 67,0° 67,0°
Seat angle (actual) (H) 70,5° 70,5° 70,5° 70,5°
Seat angle (effective) (I) 74,5° 74,5° 74,5° 74,5°
BB Offset (K) 28 mm 28 mm 28 mm 28 mm
