Frechdax

available colors:

from 1.399,- €

20
``
wheel size
90
mm
rear travel
80
mm
front travel
3
years
warranty on frame

Kidsfully in 20″

The Frechdax was one of our special projects. As bikers and fathers it was time to develop a bike that meets the requirements of our very little ones without compromise, but at the same time uses the technology of our regular mountain bikes. The result is the Frechdax, which brings a big smile to every child’s face. It’s the right choice for kids who are already shredding bike parks or who are already venturing into demanding, technical terrain.

Specs

Colors
Fork 1st Ride Carbon 80 mm
Rear shock RockShox Monarch R 90 mm
Brake front SRAM Level 65 mm
Brake rear SRAM Level 125 mm
Saddle 1st Ride Race
Seatpost 1st Ride 27,7
Wheels 1st Ride 20″
Cranks 1st Ride 115 mm
Rear Derailleur SRAM X-5 9-speed
Shifter SRAM X-5 9-speed
Cassette SRAM PG 920
Handlebar 1st Ride 550
Stem 1st Ride 38
Tires VEE Crown Gem 20″
Weight 9,8 kg
Price € 1.399

Frame size

Technical Data

Shock length 152 mm
Shock travel 31 mm
Shock mount Top: 8 x 22,2 mm / Bottom: 8 x 41 mm
Rear wheel travel 90 mm
Bottom Bracket BSA 73 mm
Brake mount Postmount 140
Seatpost diameter 27,7 mm
Headset (S.H.I.S.) Top: ZS44 / Bottom: ZS44
Rear wheel axle 135 mm x 10 mm
Front deraillure none
Chainline 49 mm
Chainguide mount ISCG 05
Wheel size 20″
Maximum fork travel 100 mm
Maximum rider weight 40 kg

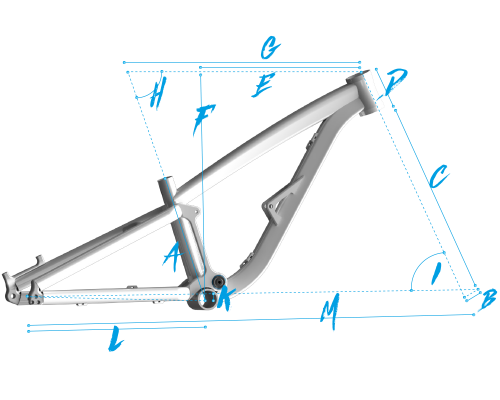

Geometry

Frechdax
Frame size (A) 240 mm / 9,5″
Wheelbase (M) 872 mm
Top tube length (G) 442 mm
Fork offset (B) 35 mm
Fork length (C) 375 mm
Chainstay length (L) 360 mm
Reach (E) 314 mm
Stack (F) 418 mm
Head angle (I) 68,5°
Seat angle (H) 73,0°
BB offset (K) 12 mm
