Ekano 165

available colors:

from 4.170,- €

27.5″ / Mix / 29″

wheel size

165mm

rear travel

170mm

front travel

3 years

warranty on frame

E-MTB Long Travel-Version

Ekano – the electrified version of the Japanese name Kano. His character is described as versatile, adventurous and visionary, just like our new bike. He’s rebellious and is fighting against rules and breaks with conventions.
We also had to break with several of our conventions before we started with the Ekano project, but once you push the boundaries in your head the fun on this E-MTB is endless.

The versatility of the Ekano is its biggest strength. The bike is completely configurable, and you can choose almost anything according to your riding style. Due to customizable components, wheel size, and suspension travel the usage spectrum covers everything from All-Mountain to E-Enduro Racing.

Combined with the complete Drive unit from Shimano, the Ekano is our definition of a perfect and also service-oriented E-MTB.

Specs

We will help you on your way to your personal dream bike. Our options are only a preliminary recommendation, because your needs are as individual as you are. We have put together three pre-configured models for you. In our configuration tool, however, you can still adapt every single part of all models to your wishes. Have fun building your dream bike.

Start
Colors
Fork RockShox Yari 29 170mm
Rear shock RockShox Super Deluxe Select R Coil 170mm
Brake front Magura MT 5 203 mm
Brake rear Magura MT 5 203 mm
Saddle Sixpack Kamikaze
Seatpost Propain Alu
Wheels Propain ZTR Baron S1 27,5 XD
Cranks Shimano E8000 165 mm / Eagle CR Steel
Rear derailleur SRAM GX Eagle (1×12)
Shifter SRAM GX Eagle (1×12)
Cassette SRAM XG1275 10/50 (1×12)
Handlebar Sixpack Millenium 785
Stem Sixpack Leader 50
Tires (rear/front) Schwalbe Hans Dampf / Magic Mary
Weight 23,2 kg
Price € 4.170
Performance
Colors
Fork RockShox Lyrik Select+ 170 mm
Rear shock RockShox Super Deluxe Select+ RT Air 165 mm
Brake front SRAM Code R 200 mm
Brake rear SRAM Code R 200 mm
Saddle Sixpack Kamikaze
Seatpost Bikeyoke Revive
Wheels Propain ZTR Baron S1 27,5 XD
Cranks Shimano E8000 165 mm / Eagle CR Steel
Rear derailleur SRAM X01 Eagle (1×12)
Shifter SRAM X01 Eagle (1×12)
Cassette SRAM XG 1275 10/50 (1×12)
Handlebar Sixpack Millenium 785
Stem Sixpack Leader 50
Tires (rear/front) Schwalbe Hans Dampf / Magic Mary
Weight 23,2 kg
Price € 4.850
Highend
Colors/td>
Fork Fox 36 Factory Kashima 170 mm
Rear shock Fox DPX2 Factory Kashima 165 mm
Brake front Magura MT7 203 mm
Brake rear Magura MT7 203 mm
Saddle Selle Italia SLR Lite
Seatpost Fox Transfer Factory Kashima
Wheels Propain ZTR Baron S1 27,5 XD
Cranks Shimano E8050 165 mm / Eagle CR Alloy
Rear derailleur SRAM AXS X01 (1×12)
Shifter SRAM AXS X01 (1×12)
Cassette SRAM XG1275 10/50 (1×12)
Handlebar Sixpack Millenium Carbon 785
Stem Sixpack Leader 50
Tires (rear/front) Schwalbe Hans Dampf / Magic Mary
Weight 23,1 kg
Price € 6.150

Frame size

The frame size is an essential part of the bike performance and above all of the riding fun. Select your required frame size from the table. If you stand between two sizes, then you only have to decide whether you like it playful or smooth running. For smooth running choose the larger frame size, for playful the smaller.

Seatpost

The adjustable seat post is probably one of the most ingenious inventions of recent years. In order for it to function optimally on the trail, the proper seatpost travel is very important. The following table shows the recommended minimum inseam for the corresponding frame size. Please keep in mind that this is only a recommendation, as the respective sitting position depends very much on personal habits and preferences.

EKANO S M L XL
Bikeyoke Revive 125 73,5 75,5 77,5 79,5
Kind Shock Lev 125 74,5 76,5 78,5 80,5
Fox Transfer 125 75,5 77,5 79,5 81,5
Bikeyoke Revive 160 / Kinds Shock Lev 150 77,0 79,0 81,0 83,0
Fox Transfer 150 78,0 80,0 82,0 84,0

Technical Data

Shock length 230 mm
Shock travel 62,5 mm
Shock mount front 8 x 25 mm
Shock mount rear Custom Flip Chip
Rear wheel travel 165 mm
Engine Shimano 8000
Brake mount Postmount 200
Seat post diameter 31,6 mm
Head set (S.H.I.S) Top: 7544 / Bottom: 7556
Rear wheel axle 148 mm x 12 mm (X12)
Front derailleur mount keine
Chain line 52 mm (Boost)
Chain guide mount Shimano 8000 chain guide mount
Wheel size 27,5″ / 29″
Maximum fork travel 170 mm

Geometry

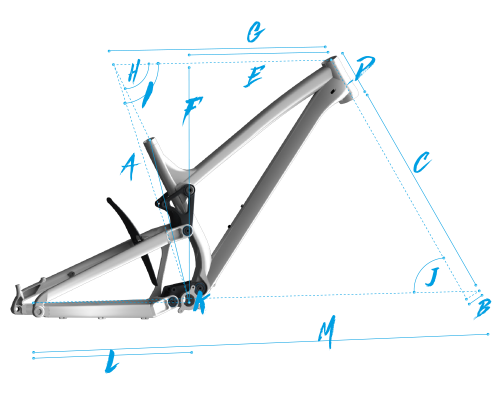

Spindrift_Geometriegrafik_NEU

650B – Flipchip High

SIZE S SIZE M SIZE L SIZE XL
Frame Size (A) 420 mm / 16,5″ 440 mm / 17,5″ 460 mm / 18,5″ 480 mm / 19,5″
Wheelbase (M) 1.197 mm 1.221 mm 1.242 mm 1.265 mm
Top Tube Lenght (G) 574 mm 597 mm 618 mm 639 mm
Fork Offset (B) 42 mm 42 mm 42 mm 42 mm
Fork Lenght(C) 584 mm 584 mm 584 mm 584 mm
Chainstay Lenght (L) 445 mm 445 mm 445 mm 445 mm
Reach (E) 420 mm 440 mm 460 mm 480 mm
Stack (F) 623 mm 633 mm 637 mm 641 mm
Head Angle (J) 65° 65° 65° 65°
Seat Angle -real (H) 73,1° 73,1° 73,1° 73,1°
Seat Angle -effective (I) 76,1° 76,1° 76,1° 76,1°
Head Tube Lenght (D) 110 mm 120 mm 125 mm 130 mm
BB Offset (K) 12 mm 12 mm 12 mm 12 mm
Spindrift_Geometriegrafik_NEU

29″ – Flipchip Low

SIZE S SIZE M SIZE L SIZE XL
Frame Size (A) 420 mm / 16,5″ 440 mm / 17,5″ 460 mm / 18,5″ 480 mm / 19,5″
Wheelbase (M) 1.213 mm 1.234 mm 1.255 mm 1.276 mm
Top Tube Lenght (G) 576 mm 599 mm 620 mm 641 mm
Fork Offset (B) 42 mm 42 mm 42 mm 42 mm
Fork Lenght (C) 584 mm 584 mm 584 mm 584 mm
Chainstay Lenght (L) 459 mm 459 mm 459 mm 459 mm
Reach (E) 415 mm 435 mm 455 mm 475 mm
Stack (F) 626 mm 636 mm 640 mm 644 mm
Head Angle (J) 64,6° 64,6° 64,6° 64,6°
Seat Angle -real (H) 72,6° 72,6° 72,6° 72,6°
Seat Angle -effective (I) 75,6° 75,6° 75,6° 75,6°
Head Tube Lenght (D) 110 mm 120 mm 125 mm 130 mm
BB Offset (K) 20 mm 20 mm 20 mm 20 mm
Spindrift_Geometriegrafik_NEU

Mixed – Flipchip High

SIZE S SIZE M SIZE L SIZE XL
Frame Size (A) 420 mm / 16,5″ 440 mm / 17,5″ 460 mm / 18,5″ 480 mm / 19,5″
Wheelbase (M) 1.200 mm 1.221 mm 1.242 mm 1.265 mm
Top Tube Lenght (G) 577 mm 600 mm 621 mm 642 mm
Fork Offset (B) 42 mm 42 mm 42 mm 42 mm
Fork Length (C) 584 mm 584 mm 584 mm 584 mm
Chainstay Lenght (L) 445 mm 445 mm 445 mm 445 mm
Reach (E) 412 mm 432 mm 452 mm 472 mm
Stack (F) 629 mm 639 mm 643 mm 647 mm
Head Angle (J) 64,3° 64,3° 64,3° 64,3°
Seat Angle -real (H) 72,3° 72,3° 72,3° 72,3°
Seat Angle -effective (I) 75,3° 75,3° 75,3° 75,3°
Head Tube Lenght (D) 110 mm 120 mm 125 mm 130 mm
BB Offset (K) 12 mm 12 mm 12 mm 12 mm
